YANHUA ACDP-1 Module 19 SH725XX Gearbox Module Clone for All ZF 8HP/ DQ380/DQ381 0DE/ MB VGS-NAG3/ BMW GETAG 7DCT/ TEMIC DKG

Product Description

Yanhua Mini ACDP-1 Module 19 SH725XX Gearbox Clone

Please note that this module 19 is suitable for first-generation ACDP. If you are a second-generation ACDP, purchase ACDP-2 Module 19.


ACDP-1 Module 19 functions:

1. Supports all ZF 8HP gearbox clones.
Supported car brands: BMW, JLR, VW/Audi, Rolls-Royce, Porsche, Bentley, Aston Martin, Lamborghini, Maserati, Dodge, Jeep, Chrysler, etc
2. Support VW/Audi DQ380/DQ381 0DE gearbox clone.
3. Support Mercedes-Benz 9GT (VGS-NAG3) gearbox clone.
4. Support BMW 7-speed dual-clutch (GETAG 7DCT) gearbox clone.
5. Support BMW 7-speed dual-clutch (DKG) gearbox clone.


Connection diagram display:

Benz 9GT VGS-NAG3

Connection method 1: Connect ACDP, DB15-LAN adapter, interface board, and gearbox as shown in the figure:

Connection method 2: Connect ACDP, PTCU line, and gearbox as shown in the figure:

BMW-Getrag 7DCT
Connection method 1: Connect ACDP, DB15-LAN adapter, interface board, and gearbox as shown in the figure:

Connection method 2: Connect ACDP, PTCU line, and gearbox as shown in the figure:

BMW-TEMIC DKG
Connection method 1: Connect ACDP, DB15-LAN adapter, interface board, and gearbox as shown in the figure:

Connection method 2: Connect ACDP, PTCU line, and gearbox as shown in the figure:

DQ380/DQ381 0DE
Connection method 1: Connect ACDP, DB15-LAN adapter, interface board, and gearbox as shown in the figure:

Connection method 2: Connect ACDP, PTCU line, and gearbox as shown in the figure:

ZF 8HP
Connection method 1: Connect ACDP, DB15-LAN adapter, interface board, and gearbox as shown in the figure:

Connection method 2: Connect ACDP, PTCU line, and gearbox as shown in the figure:

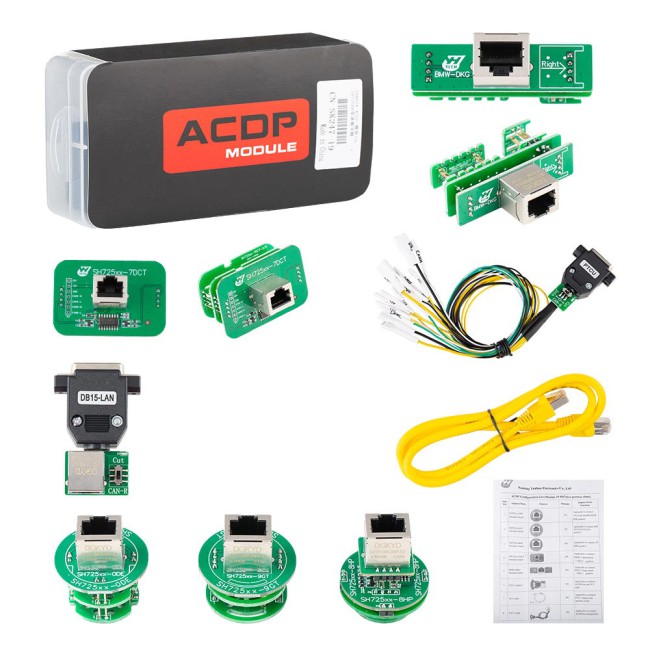

Module 19 Packing List:

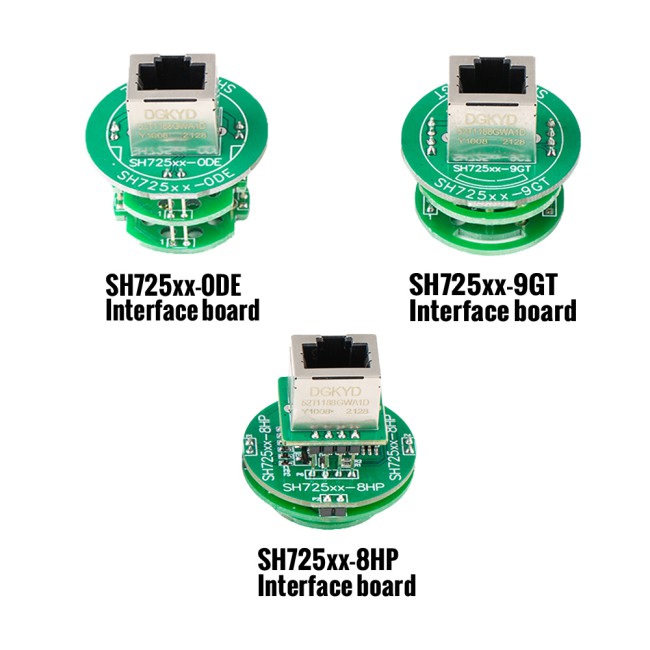

1PC x SH725xx-0DE Interface board
1PC x SH725xx-9GT Interface board
1PC x SH725xx-8HP Interface board

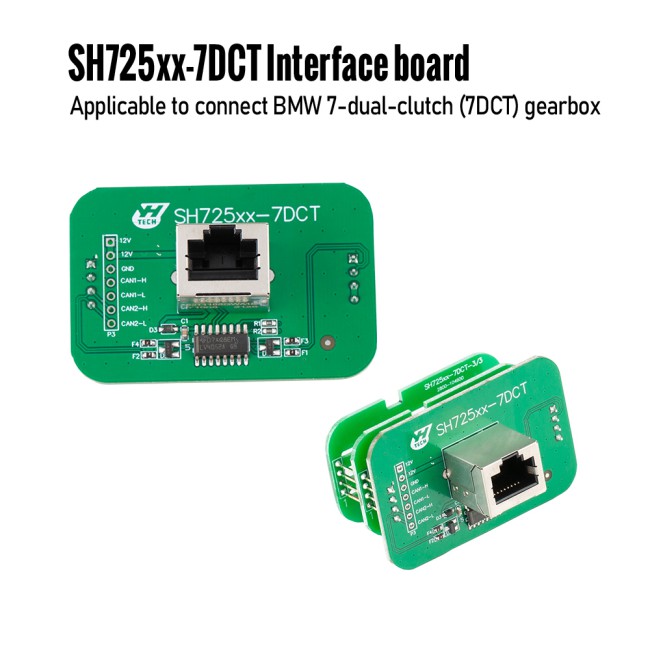

1PC x SH725xx-7DCT Interface board

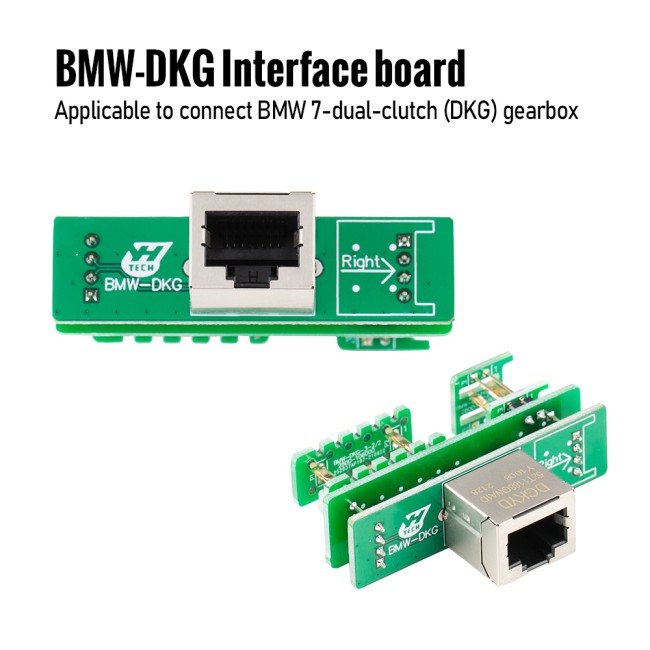

1PC x BMW-DKG Interface board

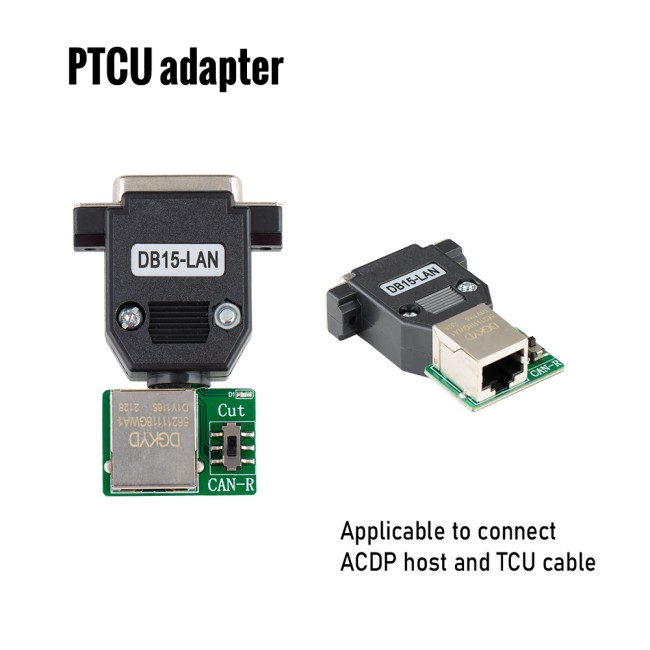

1PC x PTCU adapter

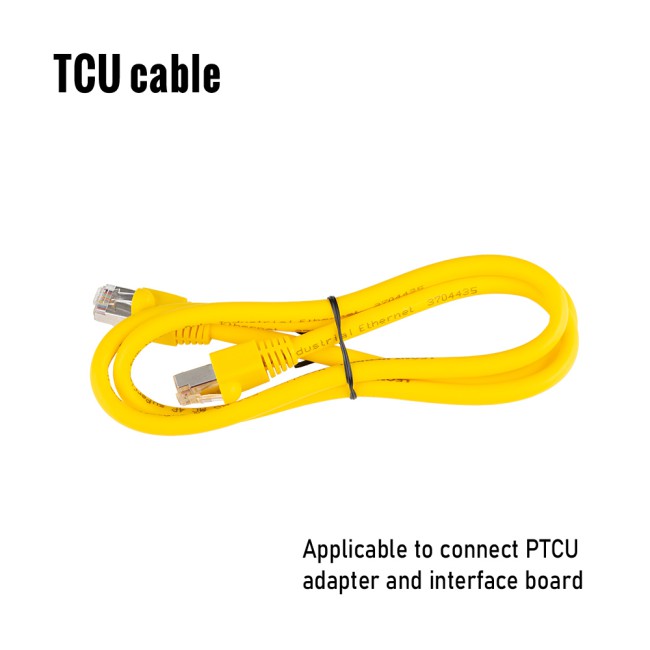

1PC x TCU cable

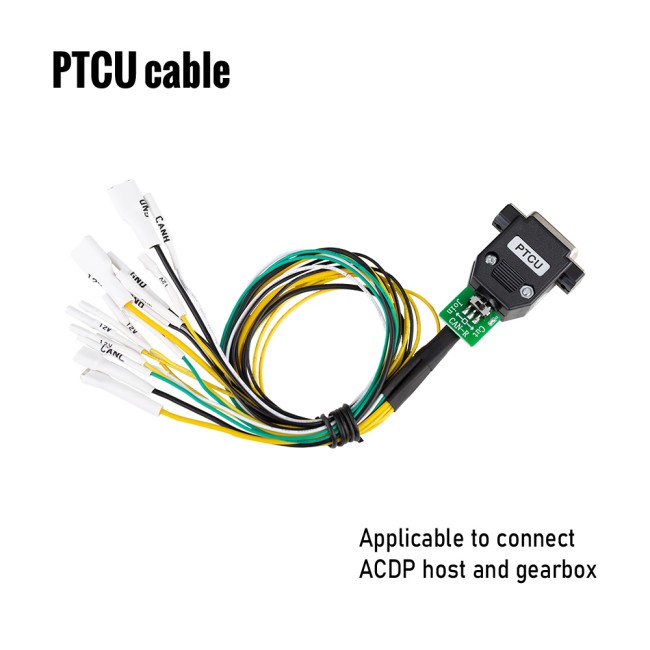

1PC x PTCU cable


---
