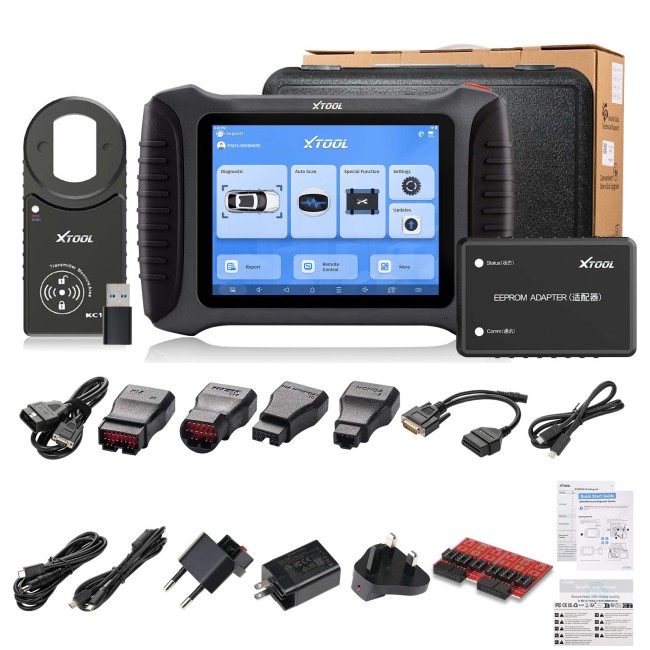

XTOOL X100 PAD3 Auto Key programmer For Toyota/Lexus Key Lost VW 4/5th Anti-theft Immo

Product Description

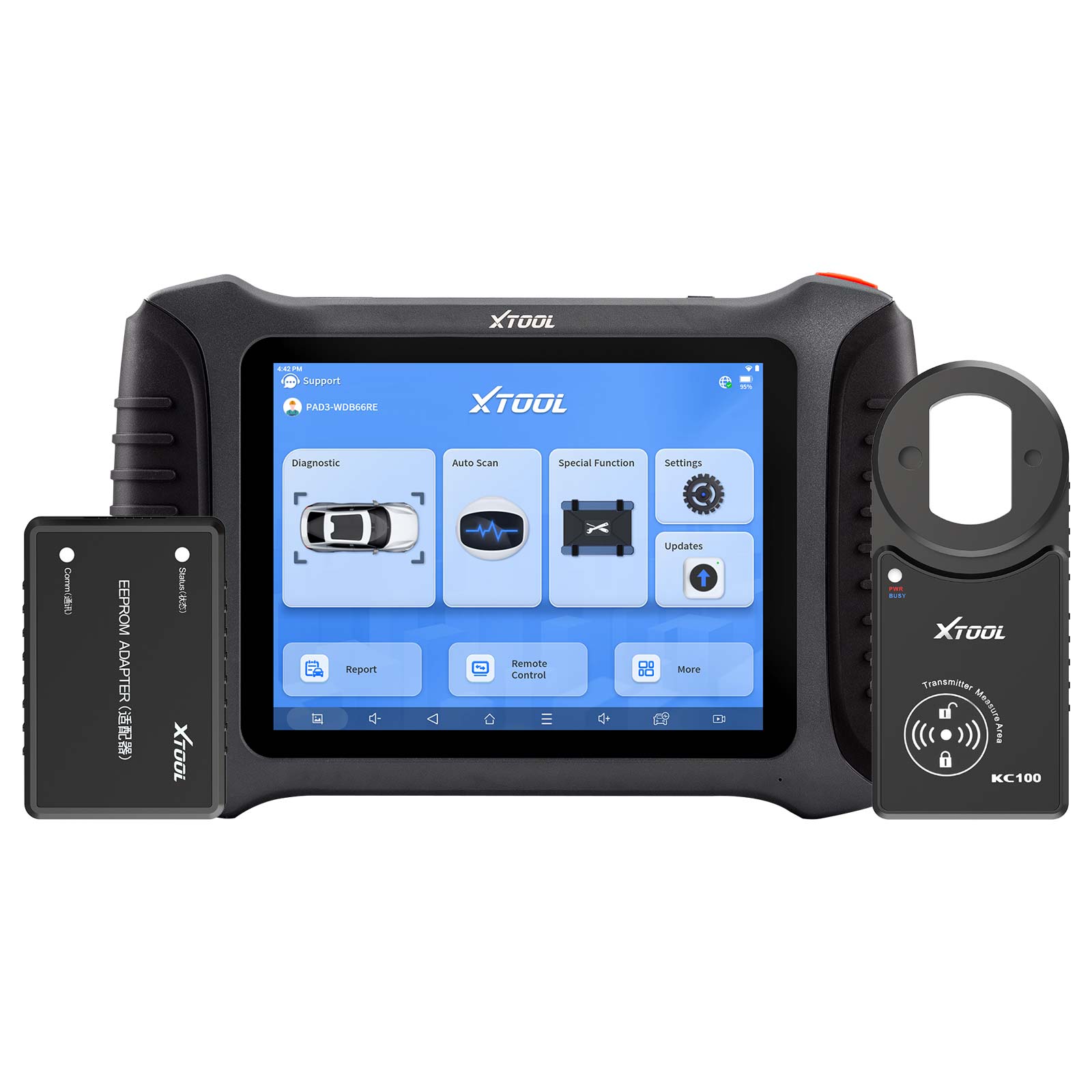

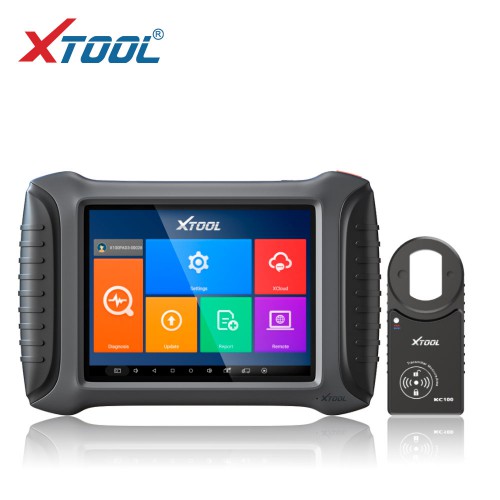

XTOOL X100 PAD3 Auto Key programmer

Advantages of X100 PAD3

• Support key mismatch after loss
•  Work on VW 4/5th anti theft
• Support Toyota/Lexus All Lost No Need Disassembly with KS-1 Smart Key Simulator
• Support key increase matched
• Multi-Language: English, German, French, Spanish, Italian, Japanese, Portuguese, Russian, Korean, Finnish, Arabic and Polish
• One-Click Free Update Online for Two Years
• Support 16 Special Functions
• Update Version of X100 Pad2 PRO

XTOOL X100 PAD3 Functions:

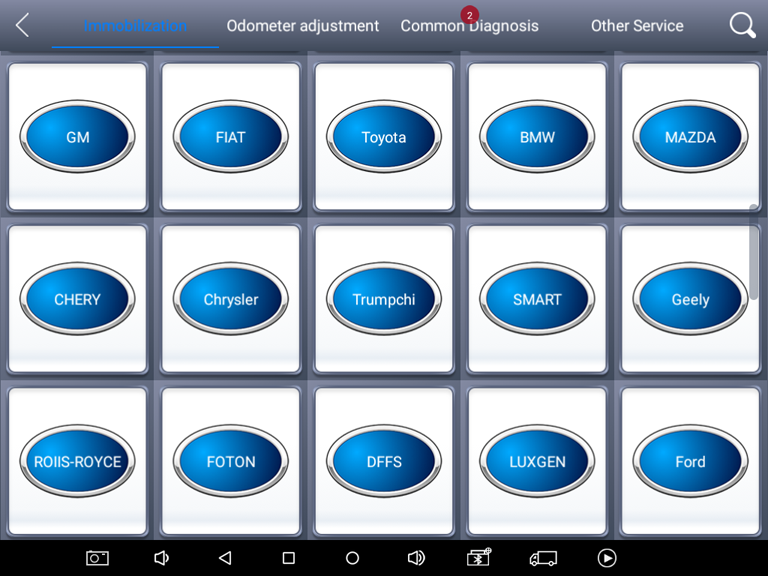

1. Immobilization

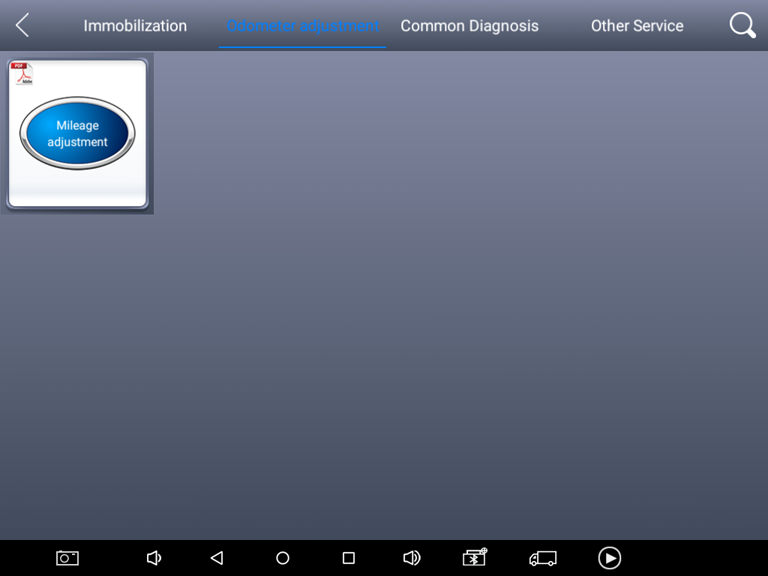

2. mileage adjustment

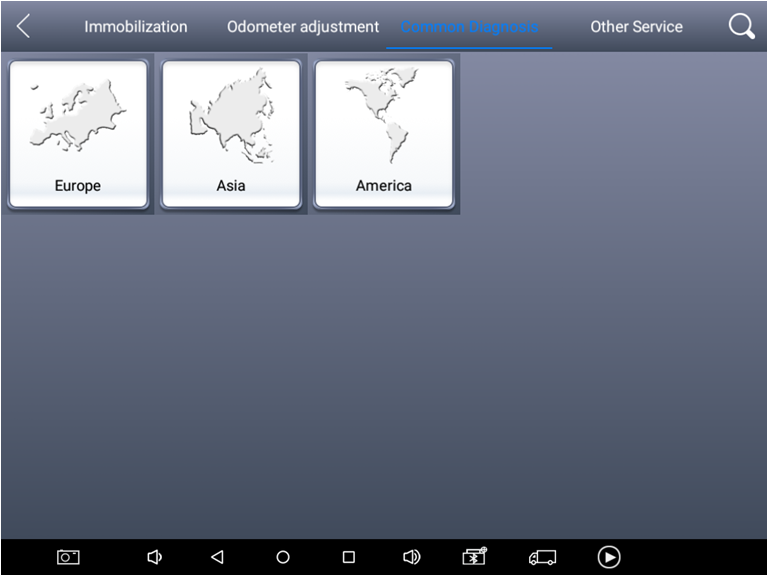

3. Common Diagnosis



4. special functions

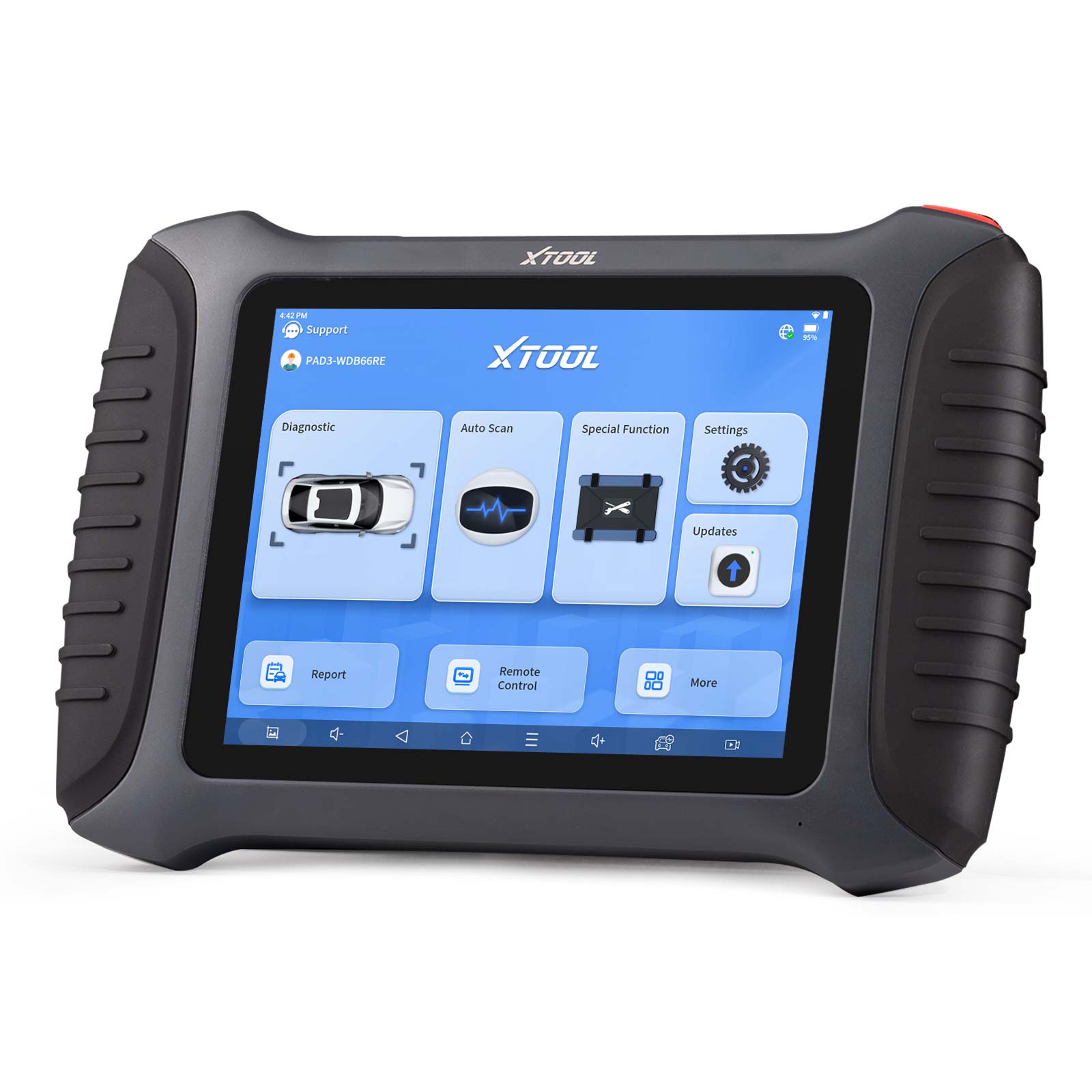

Xtool X100 PAD3 Appearance:

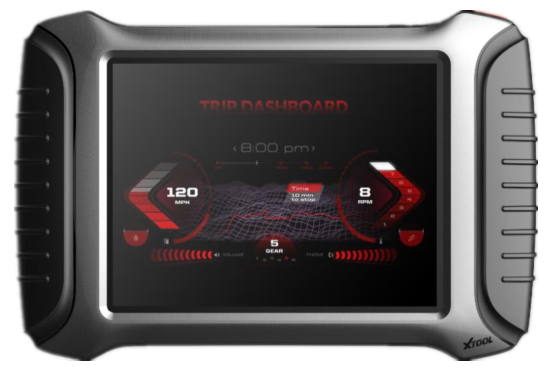

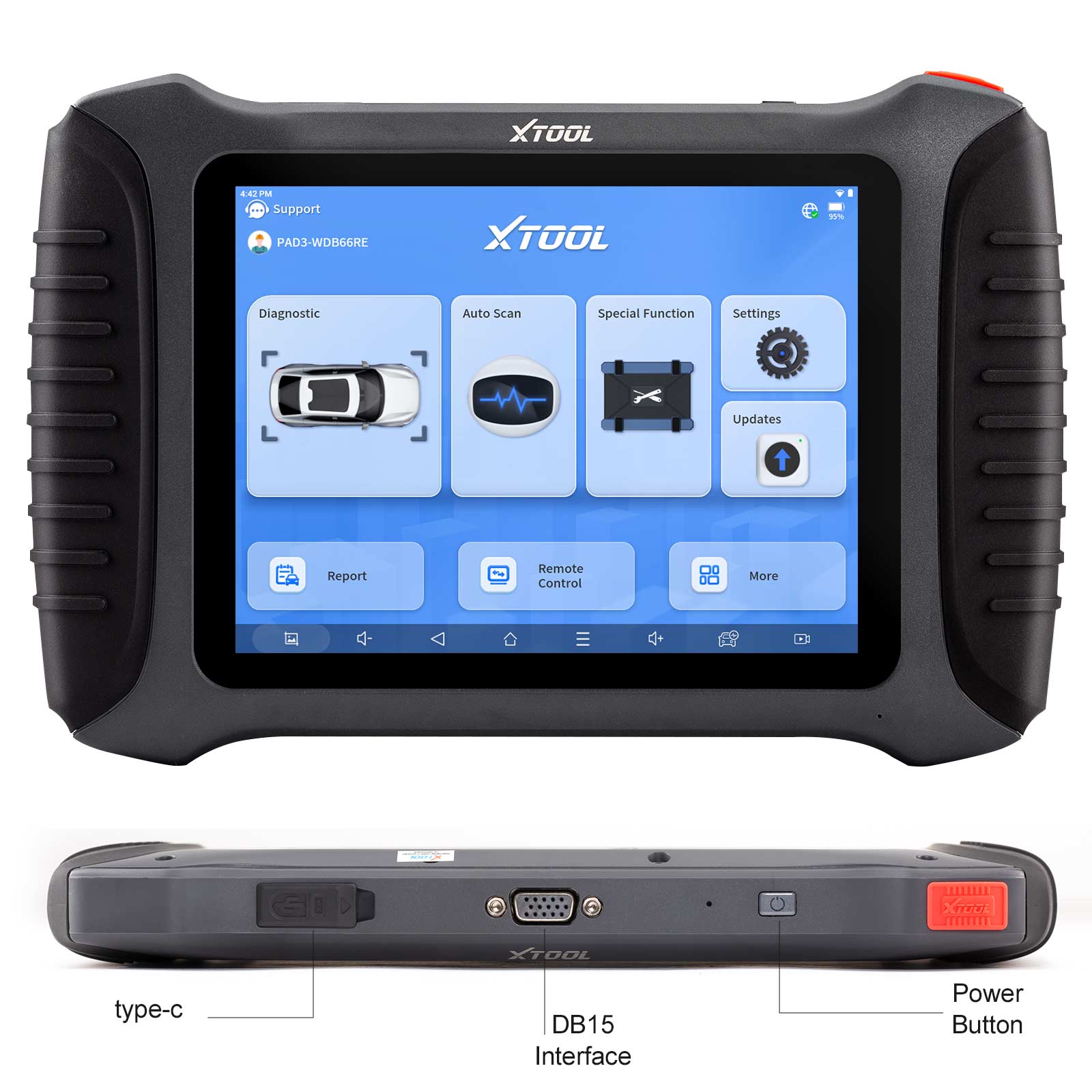

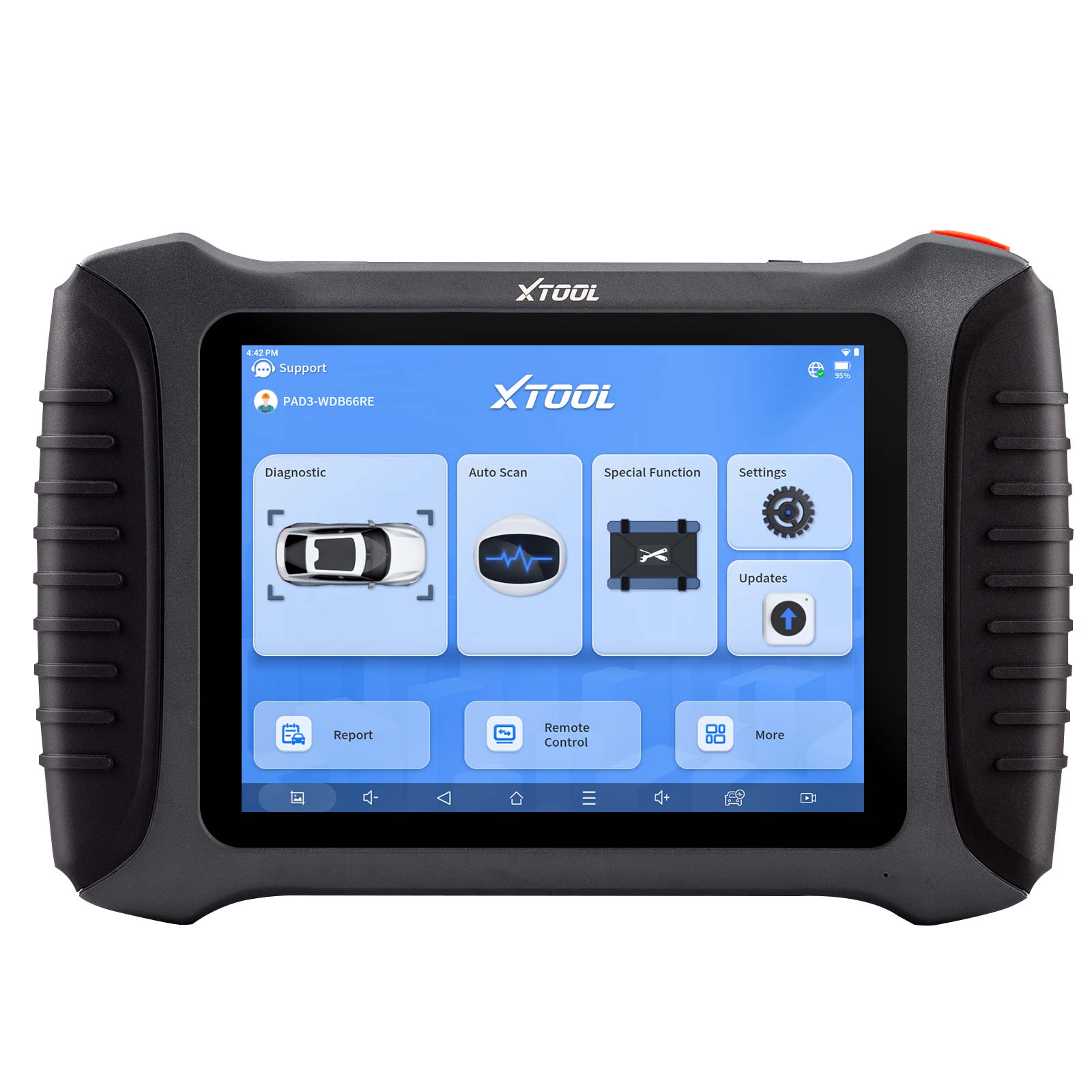

Front View:

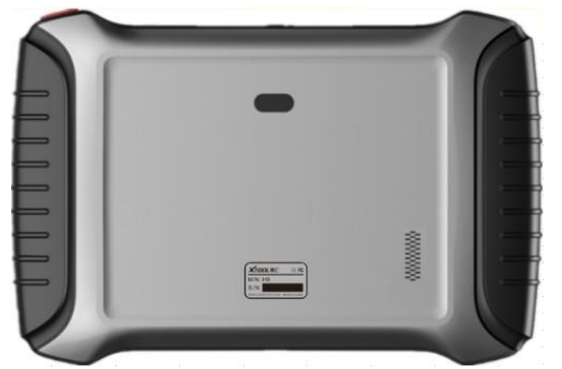

Back View:

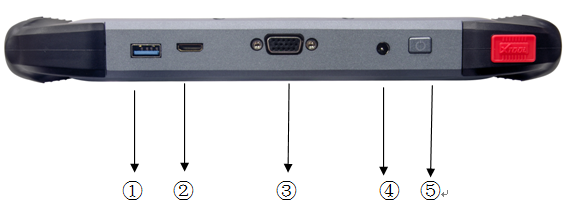

Top View:

① USB3.0 interface: Wired data transmission
② Mini HDMI interface: Transmission of audio and video
③ DB15 interface: Subsequent extended reservation port
④ DC charging port: Charge for equipment, use 12V power supply
⑤ Power Button: Power on or power off

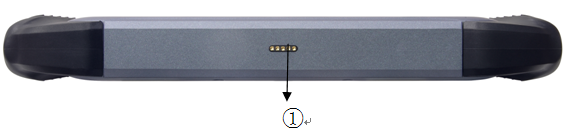

Side View:

① Seat adapter: This is reserved for the socket, and can be charged with charging.

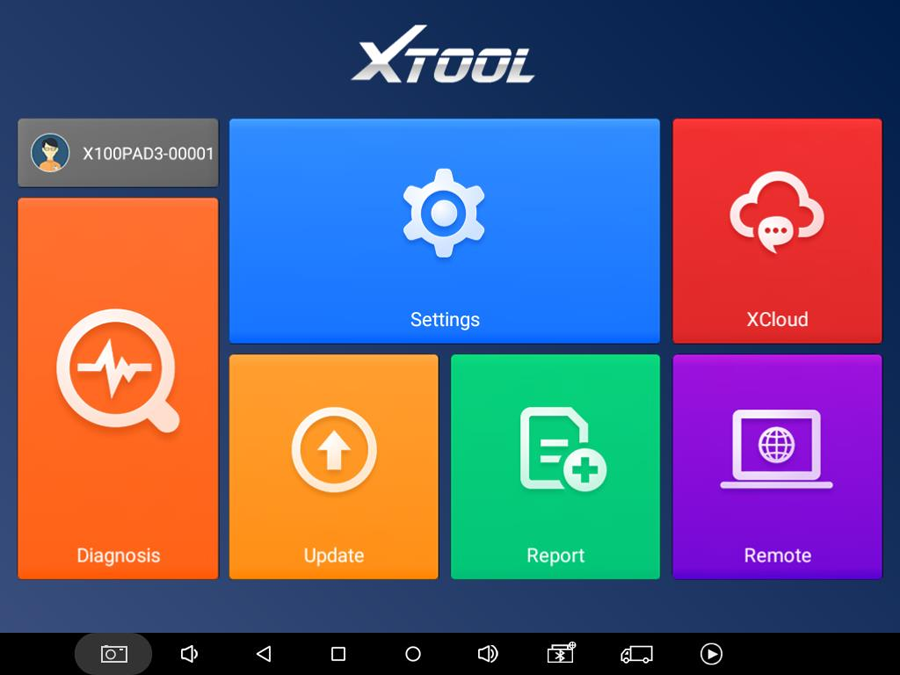

X100PAD3 Functional Buttons and Descriptions:

【Diagnosis】Read vehicle diagnosis information
【Diagnose report】Read vehicle report
【Setting】Language, unit, Bluetooth
【Xtool cloud】Online chatting
【One-click upgrade】Upgrade software
【Remote control】Xtooltech support center and function keys



Note: More Functional Buttons and Descriptions please refer to page 7 of the X100PAD3 Manual

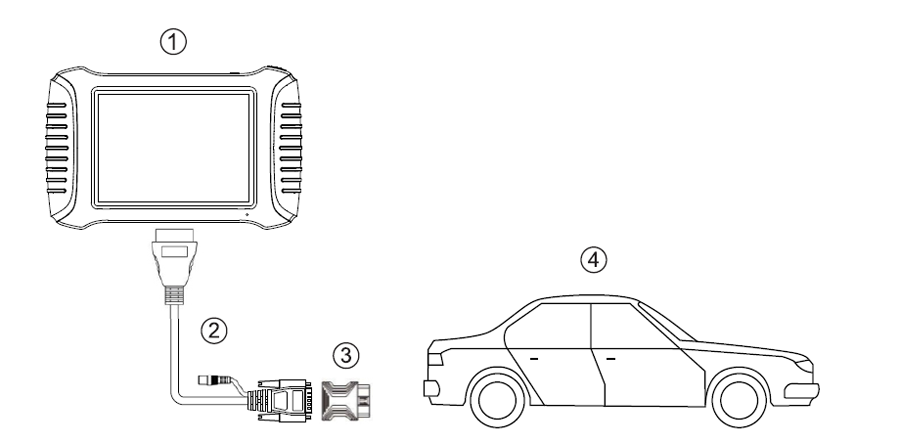

PAD3 Vehicle Connection Diagnosis:

a. Turn on X100PAD3 tablet
b. Connect cables and X100PAD3 in following order: ①→②→③→④
c. Switch on the ignition and tap on X100PAD3 application to test vehicles (Shown as follows).

① X100PAD3 Tablet
② Main cable
③ OBDII-16 Adapter (Select other adapters if needed)
④ Measured vehicle


X100 PAD3 Technical Parameters:

Operating system: Android 10.0
Processor: quad-core processor 1.8GHz
Memory: 4G RAM, 64G ROM
Display/touch screen: 1024•768 resolution, 8-inch LED Compatible touch screen
Camera: Rear camera, 8 million pixels, with flash autofocus.
Sensor: Gravity sensor
Audio input / output: microphone, 4 band 3.5 millimeter stereo.
Interface: USB3.0, DC charging port, MINI HDMI, DB15 interface.
Battery: 5000mAh 3.7V lithium polymer battery
Input voltage: +9~+36VDC, compatible with 12V and 24V voltage system.
Working temperature: -20 to 50 C (-4 to 126 C)
Relative humidity: <90%
Appearance size: 275•183•33.9 (mm)

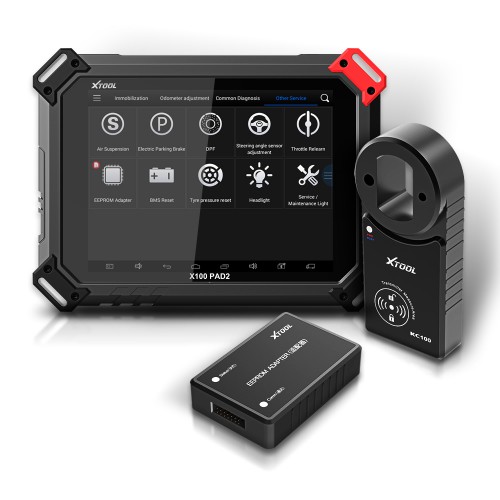

Xtool X100 PAD3 Vs Pad2:


Item	Xtool X100 PAD3	Xtool X100 PAD2 Pro
Brand	Xtool	Xtool
Release year	2020 year	2016 year
Hardware	Operating system: Android 10.0 Processor: quad-core processor 1.8GHz Memory: 4G RAM, 64G ROM Display/touch screen: 1024•768 resolution, 8 inches LED Compatible touch screen Camera: Rear camera, 8 million pixels, with flash autofocus. Sensor: Gravity sensor Audio input / output: microphone, 4 band 3.5 millimeter stereo. Interface: USB3.0, DC charging port, MINI HDMI, DB15 interface. Battery: 5000mAh 3.7V lithium polymer battery Input voltage: +9~+36VDC, compatible with 12V and 24V voltage system	Wi-Fi: WIFI 2.4Ghz Memory: 2GB RAM, 32GB Flash Sensors: Gravity Sensor, Light Sensor Power Consumption: 29.6W CPU: Quad-Core, 1.6 GHz Operating System: Android 4.4.4 Bluetooth: 100 Meters Display: 8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution Battery: 4000mAh, 7.4V Dimension: (L*W*H): 240*177*30mm Power Voltage: 12V
Communication	USB 3.0, WIFI 2.4Ghz	USB, WIFI 2.4Ghz
Immobilization	Asia: Toyota, Lexus, Honda, Acura, Mazda, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Kia, Hyundai, Daewoo, SSANGYONG, Proton, etc Europe: Audi, VW, Skoda, Seat, Porsche, Opel, Citroen, Peugeot, Jaguar, Land Rover, Lincoln, Renault, etc America: GM, Cadillac, Buick, Chrysler, Ford, etc China: Great Wall, Chery, Brilliance-auto, Geely, LIFAN, HAFEI, CHANGAN, LANDWIND, BYD, BYD, JAC, etc.	America: Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer, Pontiac, Saturn, Ford Asia: Acura, Honda, Hyundai, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki, Toyota China: BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars, Chery Europe: Audi, Benz, Citroen, Ford, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot, Porsche, Renault, Romeo, Seat, Skoda, Smart, VW
VAG 4th 5th IMMO	yes, when working together with KC100 adapter that comes in the package.	yes, when working together with KC100 adapter that comes in the package.
Toyota Smart Key All Keys Lost	Yes, when working together with the KS-1 emulator (need to buy additionally)	Yes, when working together with the KS-1 emulator (need to buy additionally)
Odometer adjustment	VW / Audi/ Seat/ Skoda, Buick, Cadillac, Chevrolet, Chrysler, Ford, Mazda, Nissan,  Suzuki,  Kia,  Hyundai,  Jaguar,  Land Rover,  Porsche And More…	VW /Audi/Eat/Skoda, Buick, Cadillac,  Chevrolet, Chrysler, Ford, Mazda, Nissan, Suzuki, Kia, Hyundai, Jaguar, Land Rover, Porsche And More…
Common diagnosis	Yes, cover models from Europe, Asia, America, more at http://www.xtooltech.com/EN/ProductView/X100PADElite.html	Yes, cover models from Europe, Asia, America, more at  http://www.xtooltech.com/EN/ProductView/X100PAD2PRO.html

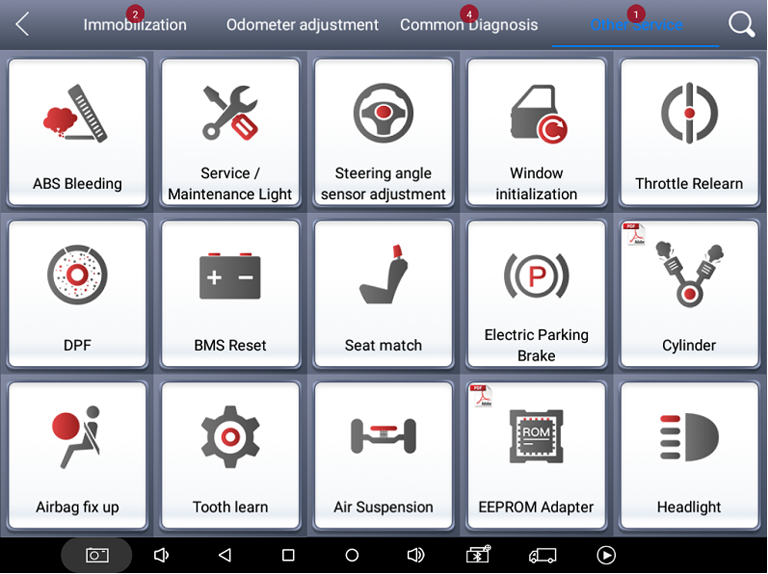

Special Service	1. Service/Maintenance Light 2. Steering angle sensor adjustment 3. Window Initialization 4. Throttle Relearn 5. DPF 6. BMS Reset 7. Seat Match 8. Electric Parking Brake 9. Cylinder 10. Airbag Repair 11. Air Suspension 12. Injector Coding 13. EEPROM Adapter 14. Headlight 15. Type pressure reset 16. Gearbox Match	1. EEPROM Adapter 2. BMS Reset 3. Electric Parking Brake 4. Steering angle sensor adjustment 5. DPF 6. Service/Maintenance Light 7. Air Suspension 8. Headlight 9. Type pressure reset 10. Throttle Relearn
Update	X100PAD3 updates directly via the Internet using WiFi or wired connection. To access the update application open the X100PAD3 application and click UPDATE	One-click update via WIFI.
Language	Persian, Arabic, Indonesian, Greek	English, Spanish, French, Turkish, Indonesian, Thai, Portuguese

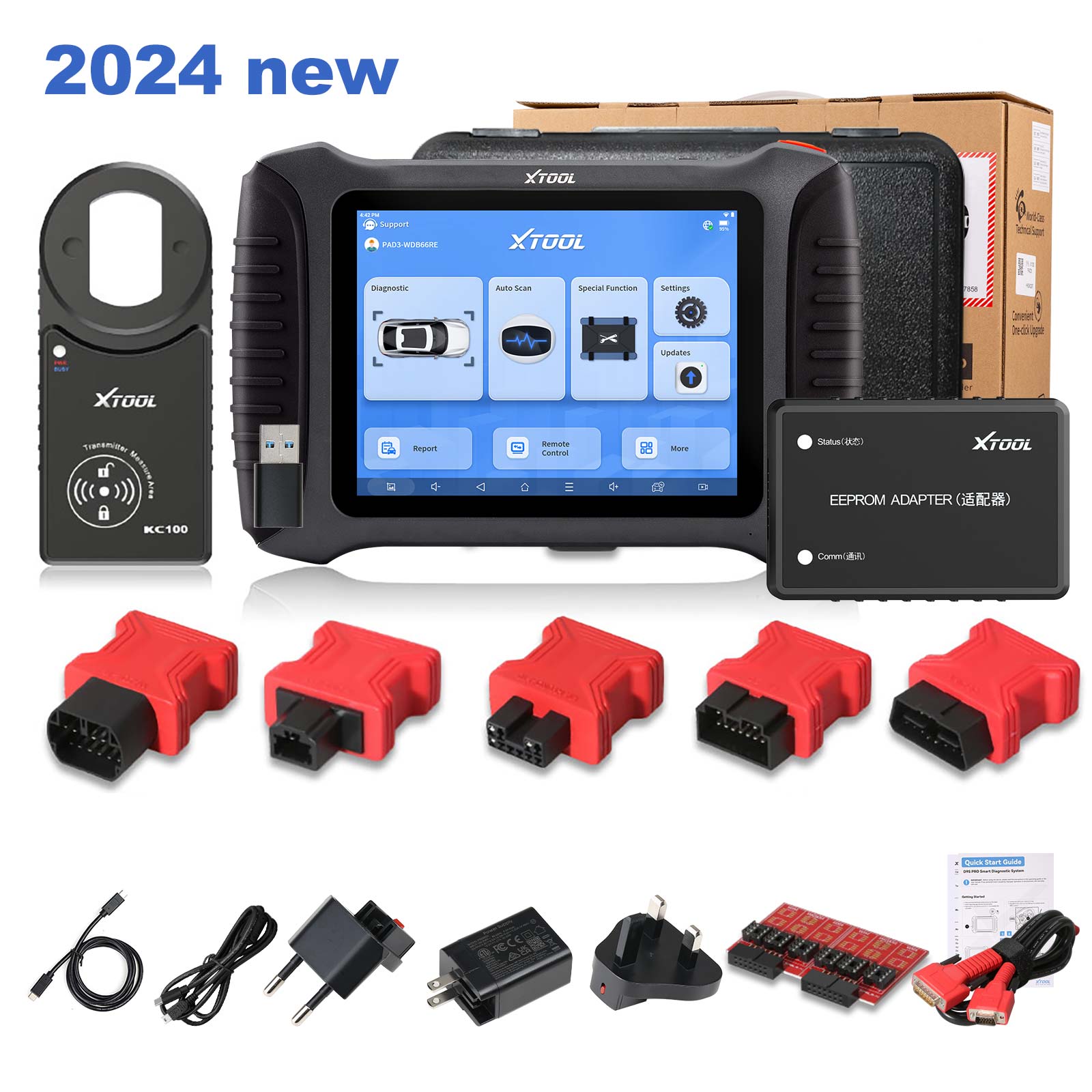

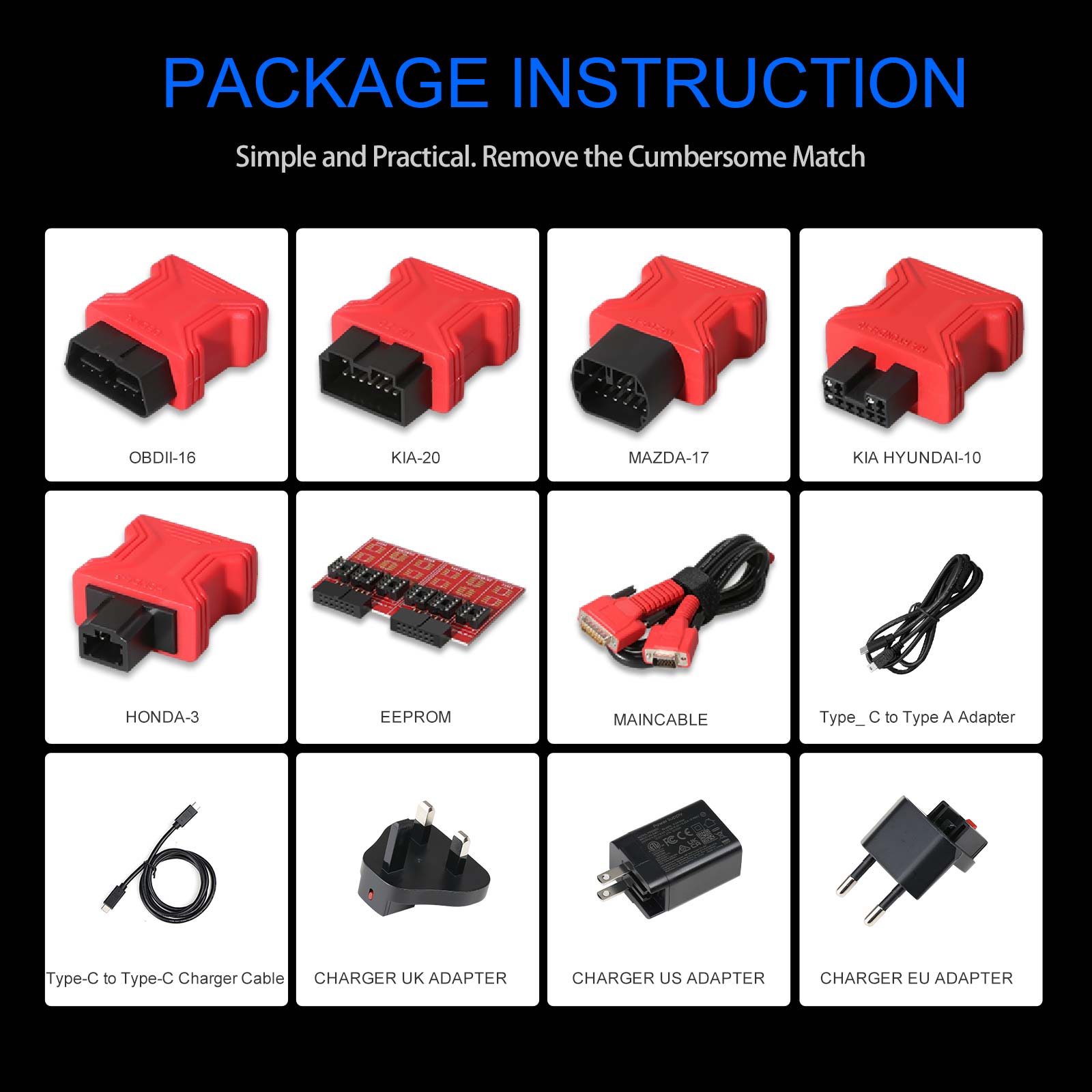

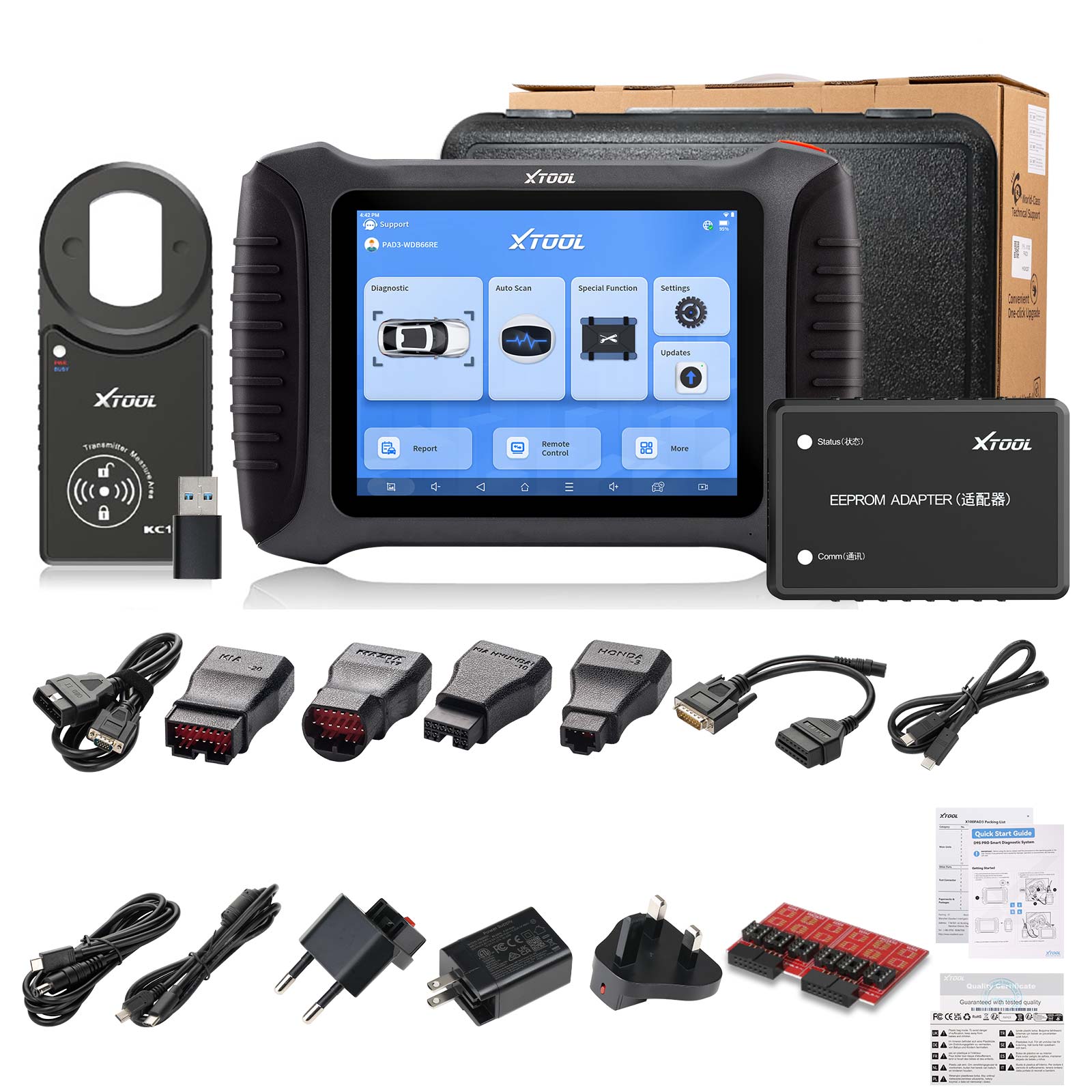

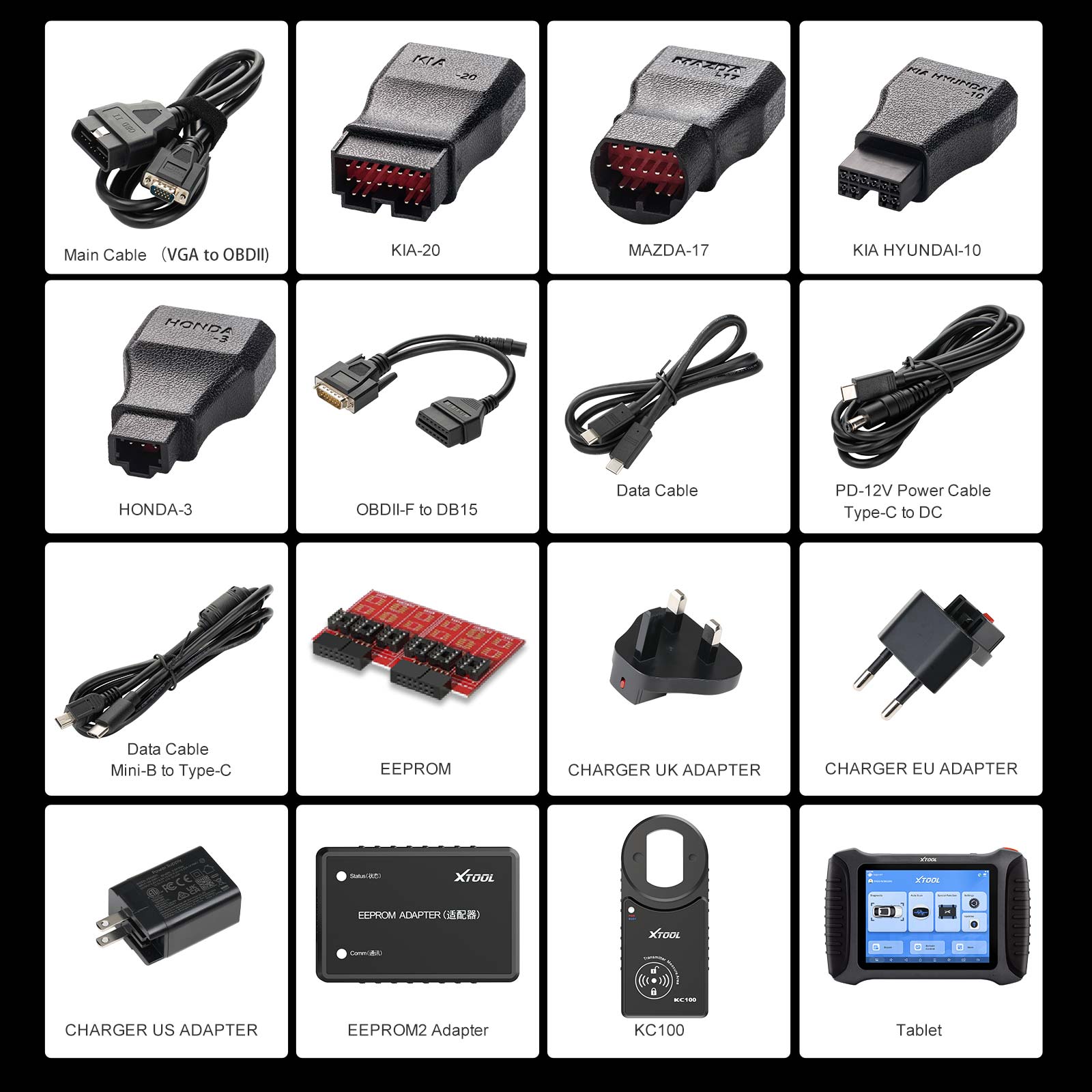

Package	Main Units: Mini B to USB 3.0 Type C Cable X100 PAD3 Cable KC100 EEPROM 2 Adapter Charger For tablet Charger US Adapter Charger EU Adapter Test Connectors: OBDII-16 HONDA-3 MAZADA-17R KIA20 HYUNDAI/KIA-10 DB15 Main Cable USB3.0 Main Cable (1m) Accessories: Certificate of quality Packing List User Manual Tool Case Carton	Main Units: X-100 PAD2 USB TYPE-C and Mini_USB shift cable Charger for Tablet US Power Adapter KC100 EEPROM adapter EU Power Adapter Test Connectors: HYUNDAI/KIA-10 KIA-20 HONDA-3 DB15Male To VGA_Male USB TYPE-C OBD II-16 MAZDA-17R Accessories: Carton Packing List User Manual Certificate of Quality



---
