Xtool D7 Bi-Directional Scan Tool Supports OE Level All Systems Diagnostics 36+ Maintenance Functions 85+ Car Brands

Product Description

Xtool D7 Bi-Directional Scan Tool

XTOOL D7 Description:

Based on the Android 5.1.1 OS, D7 features bi-directional control capability, OE level all systems diagnostics, comprehensive service resets and extensive vehicle coverage of 85+ car brands. Equipped with robust quad-core processor, 32GB memory, 7 inch 1024 X 600 resolution touch screen, 4000mAh built-in battery, microphone, dual speakers and intuitive interface, D7 offers maximum efficiency for auto repair and maintenance.


Xtool D7 Highlights:

1. Bi-Directional Control: Receive information and send the commands to the system/components to perform active tests like EVAP Test, Fuel Pump Test, Fuel Injector Test, Cycling A/C Clutch On/Off, Cooling Fan Test, etc.
2. 36+ Maintenance Functions: Include top popular maintenance functions, like ABS Bleeding, Key Programing, Injector Coding, Oil Reset, EPB, etc.
3. OE-Level Full System Diagnostics: Complete capabilities for codes, live data, freeze frame, ECU information, active tests and etc on all available systems.
4. AutoVin & Auto Scan: Automatically retrieve the vehicle identification number for comprehensive all available systems scan for quick diagnostics.
5. 85+ Brand Coverage & Growing: Broad vehicle coverage, work on more than 85 brands, 10000 cars, and it is still growing.
6. Multi-lingual: Arabic, German, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Chinese, Vietnamese (default in english, send us S/N to change the language).
7. Dual-Band WIFI Frequency: Both 2.4Ghz and 5Ghz WiFi for best signal or connection speed.
8. IMMO/Key Programming: Disable a lost vehicle key to protect the vehicle from being stolen and add the new key.
9. 7'' Touch Screen with 1024*762 resolution for easily interpreting data.
10. Android 5.1operating system and 1.6GHz processor for fast running and multitask easily.
11. Three years of free upgrades, after three years the cost is 90GBP/1 year


Xtool D7 Parameters:

Operating System: Android 5.1.1
Display: 7.0 inch touch screen with 1024 X 600 resolution
Audio Input/Output: microphone, dual speakers, 4-band 3.5mm stereo/standard headset jack
Power Consumption: 8W
Humidity: <90%
Processor: Quad-core 1.6GHz Processor
Connectivity: Micro USB+WIFI(2.4Ghz & 5Ghz)
Power and Battery: 4000mAh, 3.7V lithium-polymer battery
Operating Temperature: -20 to 60℃(-4 to 140℉)
Dimension (L*W*H): 218*150*29mm
Operating Temperature: -20 to 60℃(-4 to 140℉)
Storage Temperature: -40 to 70℃(-40 to 158℉)
Humidity: <90%
Dimension (L*W*H): 218*150*29mm
Memory: 32GB
Sensors: Gravity sensor, light sensor
Power Voltage: 5V
Storage Temperature: -40 to 70℃(-40 to 158℉)


Xtool D7 Vs D8:


	D7	D8
All system diagnostic	yes	yes
Special Functions	24	30
Active Test(Bi-directional Controls)	yes	yes
Can fd for GM	no	yes
Auto VIN Ways	2: Auto scan, Manual input	3: Auto scan, Manual input, Scan code
Display	7.0-inch	8.0-inch
Resolution	1024x600	1024x768
Memory	32GB	64GB
Dimension(L*W*H)	218*150*29mm	218*150*29mm
Battery	4000mAh	10000mAh

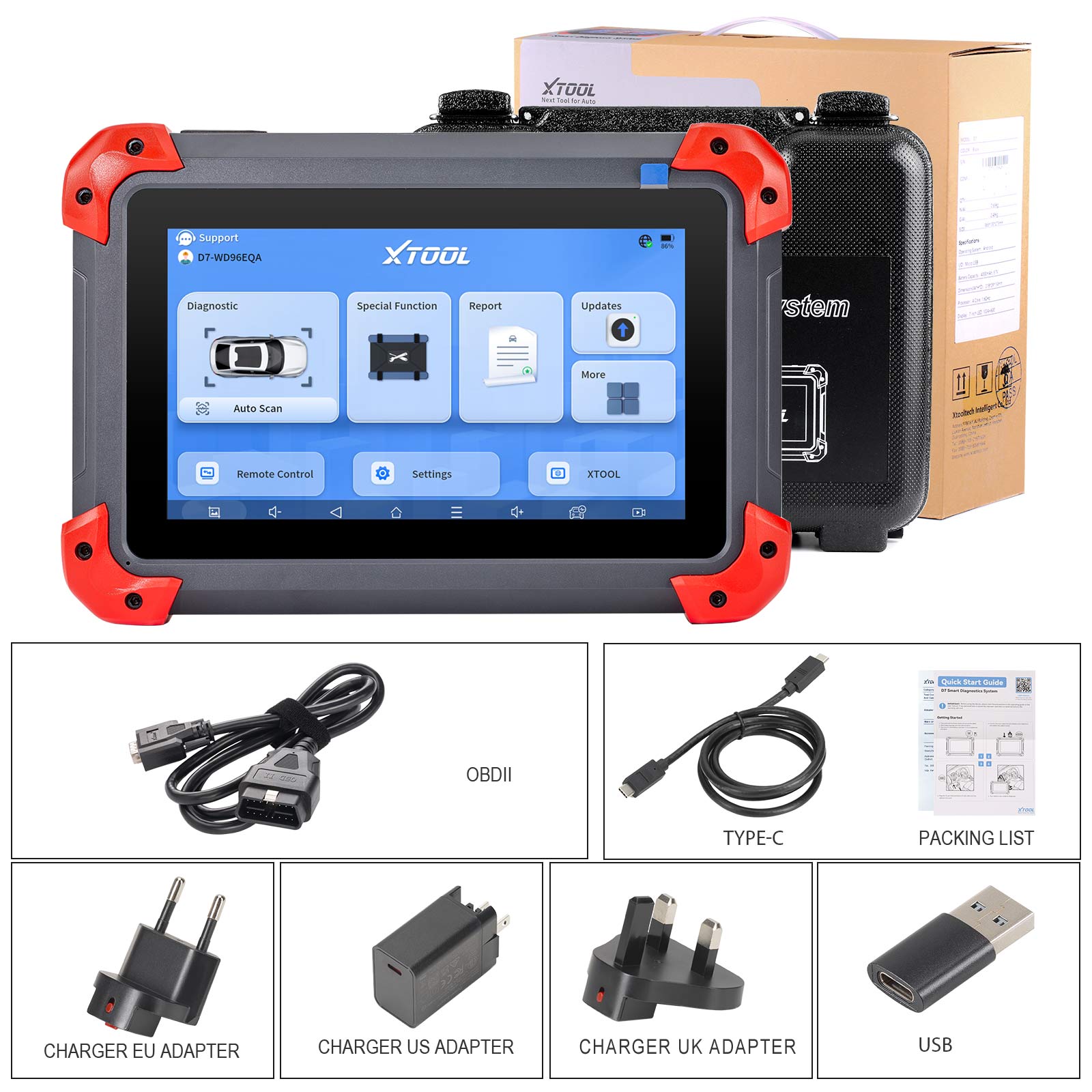

Xtool d7 Package list:

1pc x OBDII-16 ADAPTER
1pc x DB15 TOVGA MAIN CABLE
1pc x USB to Type-C ADAPTER
1pc x Type-C CABIE
1pc x US Standard Plug
1pc x EU Standard Plug
1pc x USER MANUAL
1pc x PACKING LIST
1pc x CERTIFICATE OF QUALITY




---
