Ship from EU [Bundle Kit] OBDSTAR P50 Airbag Reset Tool + OBDSTAR CAN FD Adapter Covers 95 Brands and 14900+ ECU part No.

Product Description

OBDSTAR P50 Airbag Reset Tool + OBDSTAR CAN FD Adapter

Product Description:

This package includes item SR27 OBDSTAR P50 intelligent Airbag Reset tool + SO564 OBDSTAR CAN FD adapter.
Bundle kit helps you save more! No tax!


Product Details:

1. OBDSTAR P50 Airbag Reset tool

Description:

P50 is the new generation of intelligent crash reset equipment of OBDSTAR Technology Co., Ltd.  It's with powerful function and wide coverage, covering 95 brands and 14900+ ECU part No., some MCU. It's based on an RK3128 Quad-Core processor, extremely fast and smooth; equipped with a 5-inch capacitive touch screen, touch-sensitive.

P004 adapter is designed for ECU programming, reading, or writing data in bench mode. It has merits below:
① Programming devices keep in normal communication no matter turn on or off 12V power button;
② Turn on or off 120Ω resistance at any time for CANBUS ECU;
③ Support 6&14 and 3&11 CANBUS Protocol at the same time;
④ Optional CANFD adaptor (Mainly used for models after 2020, such as HYUNDAI/KIA, etc.);
⑤ Support GM Single CAN(GM SCAN);
⑥ Support K-line Protocol;
⑦ P004 jumper can connect with multiple wires at the same time, making wiring clearer and easier;
⑧ DB15 connector can communicate with any OBDII-16 I/O interface.

Functions:

① supports one-click airbag reset for 95 brands and 14900+ ECU part No.
② supports fuzzy search for ECU part No.
③ contains a clear BENCH mode wiring diagram
④ contains powerful and complete description files for fault code
⑤ supports battery reset(MVBM) function
⑥ supports the SAS reset function
More functions in developing...

Advanced Functions:

• Ecu Info.
• Read DTC
• Erase DTC
• Read EEPROM
• Write EEPROM
• Read FLASH
• Write FLASH
• Erase Crash
• Write VIN

Coverage Supported 95 brands:

ACURA, ALFA ROMEO, ASTON MARTIN, AUDI, BAOJUN, BENZ, BMW, BUICK, CADILLAC, CHERY, CHEVROLET, CHRYSLER, CITROEN, DACIA, DODGE, FERRARI, FIAT, FORD, GMC, GREAT WALL, HONDA, HYUNDAI, INFINITI, JAGUAR, JEEP, KIA, LADA, LAMBORGINI, LANCIA, LANDROVER, LEXUS, LINCOLN, MASERATI, MAZDA, MINI, MITSUBISHI, NISSAN, OPEL, PEUGEOT, PORSCHE, RENAULT, SEAT, SKODA, SMART, SUBARU, SUZUKI, TESLA, TOYOTA, UAZ, VOLVO, VW, ZOTYE
95 brands and 14900+ (supporting fuzzy search)
MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570...

Specifications:


Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM Cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃  ~  55℃(14℉  ~  131℉)
Storage temperature	-20℃  ~  70℃(-4℉  ~ 158℉)
Weight	About 700g
Dimension	198mm*115*mm*31mm

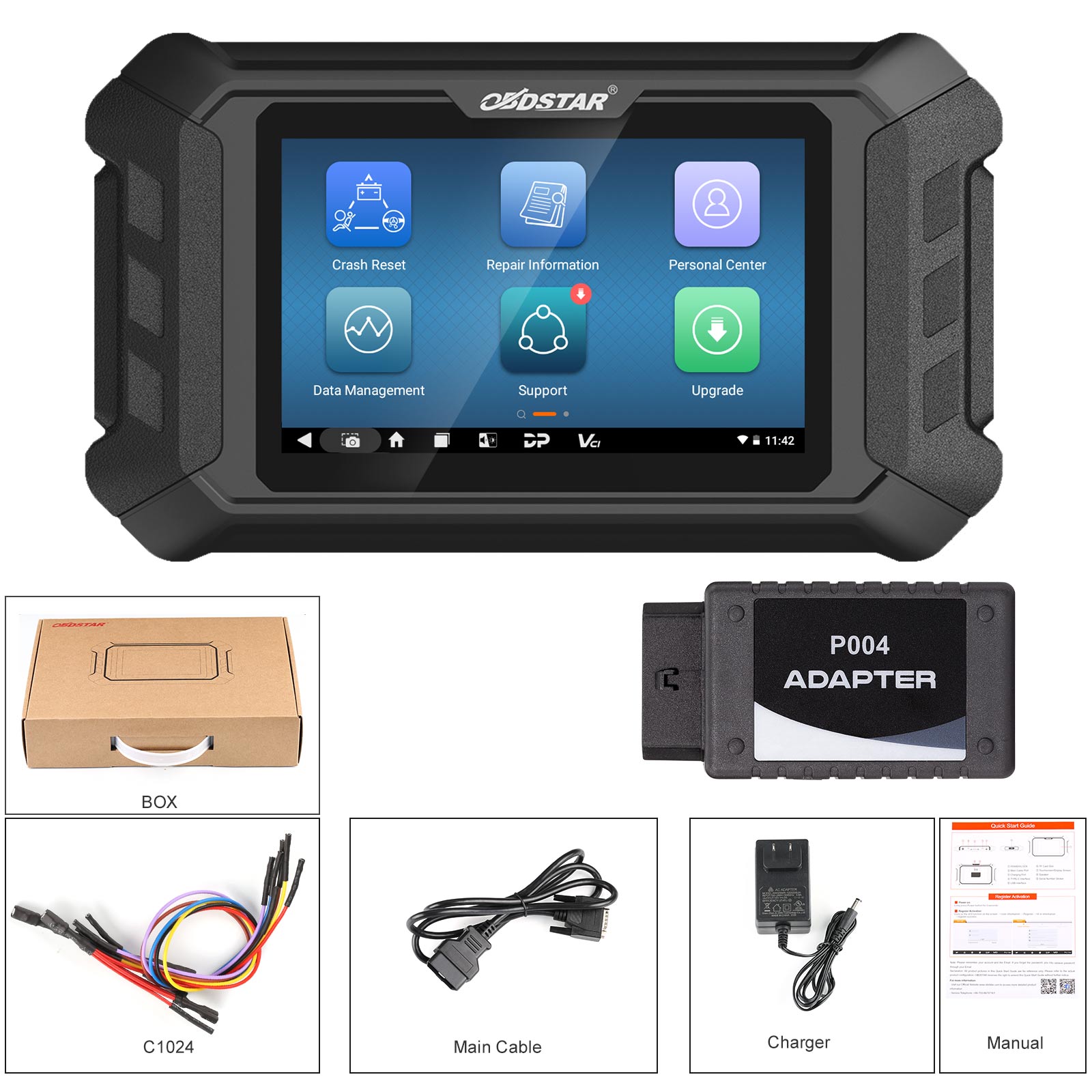

Package List:

1pc x P50 main unit
1pc x main cable
1pc x P004 adapter
1pc x C1024 jumper
1pc x 12V2A charger


2. OBDSTAR CAN FD Adapter

Description:

CANFD ADAPTER is designed for diagnosing ECU systems of cars complying with CANFD protocols. It's used with our company's tablets series products such as Key Master DP Plus. It's a high-performance and easy operation.

Advantages:

1. Portable Design
2. Easy Operation
3. High Performance

How to use the CAN FD Adapter?

Use a female connector connecting with OBDII-16 and a male connector connecting with a DLC diag socket.


Specifications:


Voltage	12V
Weight	100g
Dimension(L*W*H)	113*75*31mm

Package list:

1pc x OBDSTAR CAN FD Adapter

---
