Ship from EU OBDSTAR P50 Airbag Reset Tool Covers 95 brands and 14900+ ECU Part No. by OBD/ BENCH Newest Update Battery Reset for Audi by BENCH

OBDSTAR P50 Introduction:

OBDSTAR P50 is the new generation of intelligent airbag reset equipment. With powerful functions and wide coverage, it covers 95 brands and 14900+ ECU part No., some MCU.
OBDSTAR P50 is based on RK3128 quad-core processor, extremely fast and smooth; equipped with a 5-inch capacitive touch-sensitive screen.


OBDSTAR P50 Functions:







Read ECU Information: Read ECU part number, historical frame number, current frame number, and collision record.
Read DTC
Erase DTC
Read EEPROM: Read EEPROM data from ECU for backup
Write EEPROM: Write EEPROM data into ECU
Read FLASH
Write FLASH
Write VIN: Write back the correct VIN after executing [Crash Data Clear]
Clear/Erase Crash: Clear ECU crash data
Unlock ECU
Battery Reset for Audi by BENCH

P004 Advantages:

The P004 adapter is designed for ECU programming, reading, or writing data in bench mode. It has merits below:

1. Programming devices keep in normal communication no matter turn on or off 12V power button;
2. Turn on or off 120Ω resistance at any time for CANBUS ECU;
3. Support 6&14 and 3&11 CANBUS Protocol at the same time;
4. Optional CANFD adaptor (Mainly used for models after 2020, such as HYUNDAI/KIA, etc.);
5. Support GM Single CAN(GM SCAN);
6. Support K-line Protocol;
7. P004 jumper can connect with multiple wires at the same time, making wiring clearer and easier;
8. DB15 connector can communicate with any OBDII-16 I/O interface.


How to use OBDSTAR P50?

Please register the device before using it.
distributor code: 0086A002.


The general operation steps are as follows:

1. Read the part number---To see whether it reads the correct part number
2. Read fault codes---Check if there is an airbag crash fault
3. Clear the fault code---A few car models' airbag fault codes can be cleared by cleaning the fault codes directly
4. If reading EEPROM is supported, please read EEPROM
5. Clear the collision record
6. If there is a write VIN function, please write VIN ( Very few Ford and Renault models' VIN information will be erased when cleaning the fault codes)
7. Clear the fault code
8. Read the fault code---To confirm that the fault has been successfully cleared

P50 Vehicle Coverage:

1. Supported 95 brands:

ACURA, ALFAROMEO, ASTON MARTIN, AUDI, BAOJUN, BENZ, BMW, BUICK, CADILLAC, CHERY, CHEVROLET, CHRYSLER, CITROEN, DACIA, DODGE, FERRARI, FIAT, FORD, GMC, GREATWALL, HONDA, HYUNDAI, INFINITI, JAGUAR, JEEP, KIA, LADA, LAMBORGINI, LANCIA, LANDROVER, LEXUS, LINCOLN, MASERATI, MAZDA, MINI, MITSUBISHI, NISSAN, OPEL, PEUGEOT, PORSCHE, RENAULT, SEAT, SKODA, SMART, SUBARU, SUZUKI, TESLA, TOYOTA, UAZ, VOLVO, VW, ZOTYE

2. 93 brands and 14900+ (supporting fuzzy search)

3. MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570...


OBDSTAR P50 Specifications:


Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM Cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃  ~  55℃(14℉  ~  131℉)
Storage temperature	-20℃  ~  70℃(-4℉  ~ 158℉)
Weight	About 700g
Dimension	198mm*115*mm*31mm

FAQs

Q: I want the list of modules that can be covered with the tool.
A: You can download the coverage list from the P50 page on our website from the ' Function Manual'.

Q: Does KeyMaster DP Plus have an Airbag rest function?
A: The KeyMaster DP Plus C version supports this function, A version does not.

Q: Do I need to purchase any additional spare parts when using the Airbag reset function via KeyMaster DP Plus C?
A: Yes, need to purchase the P004 Adapter+P004 Jumper cable.

Q: Does P50 support multiple languages?
A: Currently only supports English.

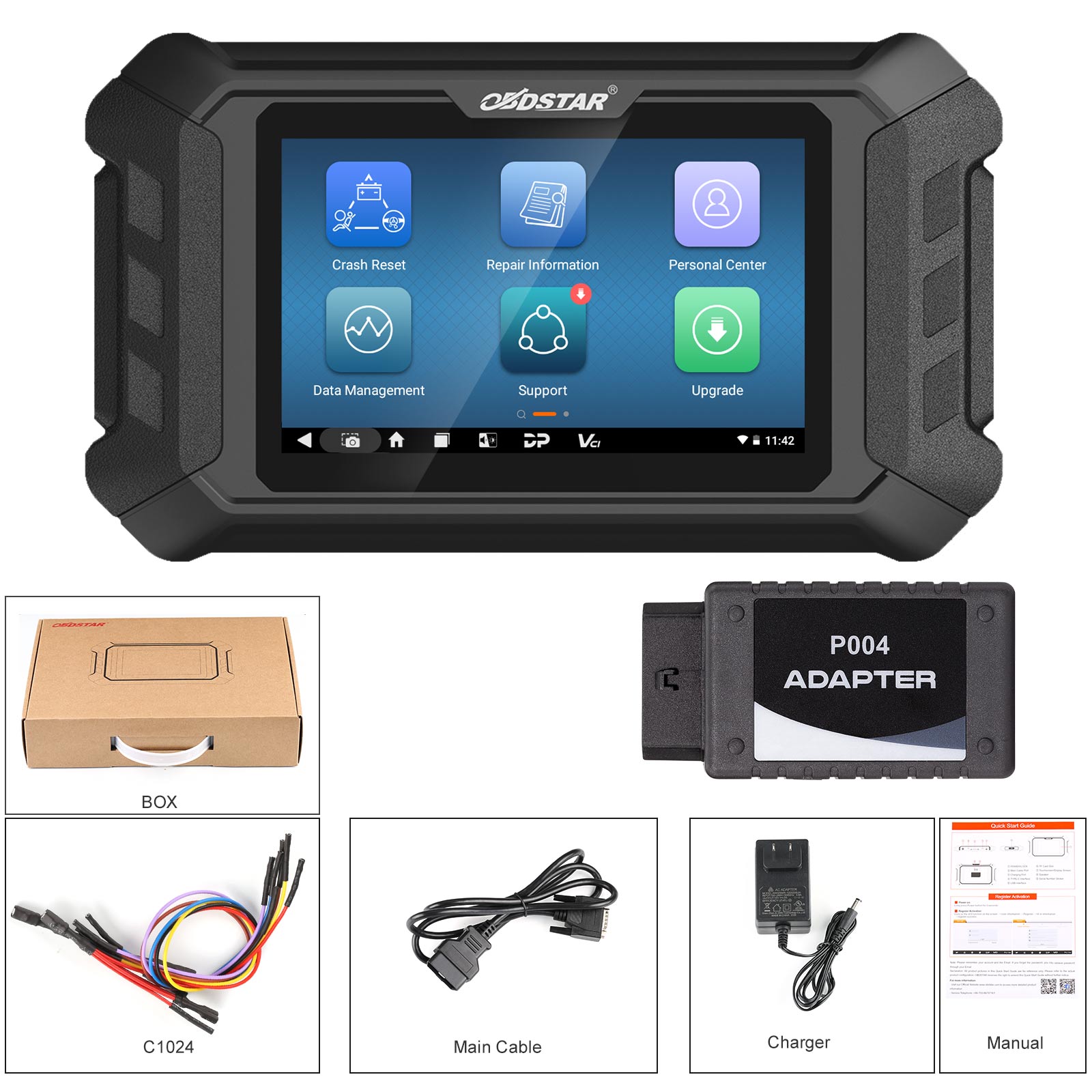

OBDSTAR P50 Package List:



1pc x P50 main unit

1pc x Main cable

1pc x P004 adapter

1pc x P004 jumper

1pc x 12V2A charger
1pc x CAN FD Adapter (buy alone)

---

P50 Latest Update information

1、AIRBAG RESET V30.15 ( Update on July,31st,2025)
Details Added
Add SGMW 23994082 TMS570 Erase Crash function.

Highlights Added
Add 236 part NO. again!!!(14900+part No. supported)

Add 224 part numbers for the below models to support airbag reset function:

ACURA 77960-TX4-K011-M4 SIEMENS SPC560P50

AEOLUS U400004360 BOSCH R7F701A033

AEOLUS U400008660 JOYSON SPC560P40

AEOLUS U400009360 JOYSON SPC560P40

ALFAROMEO 50569792 MOPAR BOSCH 95256

ALFAROMEO 50573184/0285020613 MOPAR BOSCH 95256

AUDI 8Z0959655F BOSCH 912B32

BAIC A00094011 CONTINENTAL R7F701008

BAIC J3858417 95320

BRILLIANCE 3095549-J3858143 95080

BRILLIANCE 3101850 95080

BRILLIANCE 3108996-J3858267 95080

BRILLIANCE 3291018-J3858043 95080

BRILLIANCE J3858143-3095459 95080

BUICK 26684186(PARTIALLY) GM

BYD 3658100-SY02(BETA)

BYD MEHM-3658100A(BETA)

BYD MRHB-3658100B-D1(BETA)

BYD MRHB-3658100C-D1(BETA)

BYD SA2E-3658100B(BETA)

BYD SA2FC-3658100B(BETA)

BYD SA2H-3658100A(BETA)

BYD SA2HG-3658100A-D1(BETA)

BYD SA2HG-3658100B-D1(BETA)

BYD SA2HG-3658100C-D3(BETA)

BYD SA3HK-3658100B TC23XX-32F

BYD SA3HV-3658100A TC23XX-32F

CADILLAC 13529209(PARTIALLY) GM

CADILLAC 15894240(PARTIALLY) 95160

CHANGAN 3658100-EA01 BOSCH R7F701A033

CHANGAN 3658100-MK08-DF03 VEONEER TC222S-16F

CHANGAN 3658100-MK08-EQ01 VEONEER TC222S-16F

CHANGAN 682282000 VEONEER TC222S-16F

CHERY 407000356AA CONTINENTAL R7F701009

CHERY A21-3606010BA 95080

CHERY J60-3658010FC AUTOLIV XC2336B-40F

CHERY S21-3606010BC 95080

CHERY T11-3606011PD-J3858187 CONTINENTAL 95320

CHEVROLET 13502337(PARTIALLY) GM

CHEVROLET 13510479(PARTIALLY) GM

CHEVROLET 24375058 GM R7F701009

CHEVROLET 26218232(PARTIALLY) GM

CHRYSLER 68526663AC MOPAR CONT. 95512

CHRYSLER 6852667644 MOPAR CONT. 95512

CITROEN 600237600 AUTOLIV 95080

CITROEN 9637176880 AUTOLIV 95080

CITROEN 9642927780-AJ AUTOLIV 95080

CITROEN 9642927780-AO AUTOLIV 95080

CITROEN 9645883980-AE AUTOLIV 95080

CITROEN 9646469080-AG AUTOLIV 95080

CITROEN 9646469180-AF AUTOLIV 95080

CITROEN 9646469180-AI AUTOLIV 95080

CITROEN 9646757580-AO AUTOLIV 95080

CITROEN 9650137080 AUTOLIV 95080

CITROEN 9652276980 AUTOLIV 95080

CITROEN 9652276980-AK AUTOLIV 95080

CITROEN 9653190980 AUTOLIV 95080

CITROEN J3858031 AUTOLIV 95080

CITROEN J3858078 AUTOLIV 95080

CITROEN J3858152 AUTOLIV 95080

CITROEN ZQ00731180-5WK43855 AUTOLIV 95080

CITROEN ZQ00811180-5WK44152 AUTOLIV 95080

CITROEN ZQ00885680-5WK44325 AUTOLIV 95080

DODGE 50564741/0285015661 MOPAR BOSCH 95256

FORD BC3T-14C028-BA XC2361A

FORD JX7T-14B321-DD BOSCH R7F701A033

FORD KS1-14B321-DA R7F701010

FORD P2W9-14B321-XC BOSCH R7F701A033

FORD PP6-14010-CA R7F701010

GEELY 6608182416 CONTINENTAL R7F701008

GEELY 8891612727 CONTINENTAL R7F701008

GMC 1003975 95080

GMC 549640 95080

GMC 96400534 95080

GMC 96406712 95080

GMC 96406714 95080

GMC 96406716 95080

GMC 96430711 95080

GMC 96430713 95080

GMC 96430715 95080

GREATWALL 3658110A-G08 95080

GREATWALL 3658120XKM05A VEONEER TC222S-16F

GREATWALL 3658130XKV3AA VEONEER TC222S-16F

GREATWALL 3658160-K00 95080

HAIMA FA02-57-K30M1 95080

HAIMA FA11-57-K30M2 95080

HAIMA FA13-57-K30-M2 95320

HAIMA HMCA-57-K30-M1A 95080

HAIMA HMFA-57-K30-M1A 95080

HAIMA J3858035-HMGA-57-K30 95080

HAIMA MA20-57-K30M1 95080

HAIMA SA22-57-K30 AUTOLIV XC2336B-40F

HONDA 77960-3C3-Q730-M2 ZF TC23XX-32F

HONDA 77960-3M0-P710-M1 ZF TC23XX-32F

HONDA 77960-53V-C020-11 ZF R7F701686

HONDA 77960-S9A-F411-M1 ZF R7F701686

HONDA 77960-S9A-J412-M1 ZF R7F701686

HONDA 77960-S9A-N810-M1 ZF R7F701686

HONDA 77960-S9A-Q612-M1 ZF R7F701686

HONDA 77960-S9A-Q822-M1 ZF R7F701686

HONDA 77960-S9A-Q824-M1 ZF R7F701686

HONDA 77960-S9A-X022-M1 ZF R7F701686

HONDA 77960-S9A-X222-M1 ZF R7F701686

HONDA 77960-S9A-Y413-M1 ZF R7F701686

HONDA 77960-SAA-G921-M1(PARTIALLY) TMS320

HONDA 77960-SDA-6300-M1 ZF R7F701686

HONDA 77960-SDA-C014-M1 ZF R7F701686

HONDA 77960-SDA-L914-M1 ZF R7F701686

HONDA 77960-SDA-Q813-M1 ZF R7F701686

HONDA 77960-SDA-Y413-M1 ZF R7F701686

HONDA 77960-SDA-Y613-M1 ZF R7F701686

HONDA 77960-SDA-Y615-M1 ZF R7F701686

HONDA 77960-SDA-Y631-M1 ZF R7F701686

HONDA 77960-SDA-Y681-M1 ZF R7F701686

HONDA 77960-SDA-Y914-M1 ZF R7F701686

HONDA 77960-SDA-Y930-M1 ZF R7F701686

HONDA 77960-SLE-H010-M3 ZF R7F701686

HONDA 77960-SNA-H230-M1 ZF R7F701686

HONDA 77960-SNB-Y630-M1 ZF R7F701686

HONDA 77960-T34-H820 TC23XX-32F

HONDA 77960-T50-E010-M1 TC23XX-32F

HONDA 77960-T6P-S610-M1 ZF R7F701686

HONDA 77960-TBT-H810-M2 DENSO R7F701A223

HONDA 77960-TBY-P130-M4 TRW 95640

HONDA 77960-TEA-H430-M4 TRW 95640

HONDA 77960-TF0-Y670-M3 ZF R7F701686

HONDA 77960-TF7-J811-M3(PARTIALLY) KEIHIN MPC5604

HONDA 77960-TFO-H432-M3 ZF R7F701686

HONDA 77960-TK4-H011-M1 ZF R7F701686

HONDA 77960-TLA-H330-M4 TRW 95640

HONDA 77960-TM0-Y430-M3(PARTIALLY) KEIHIN MPC5604

HONDA 77960-TP1-A010-M1(PARTIALLY) 95320

HONDA 77960-TRN-H130-M4 TRW 95640

HONDA 77960-TS6-H911-M1 ZF R7F701686

HONDA 77960-TVA-H020-M4 TRW 95640

HONDA 77960-TWB-H140-M4 TRW 95640

HONDA 77960-TWC-H130-M4 TRW 95640

HONDA 77960-TY3-J320-M1 TRW 95640

HYUNDAI 95910-2C700 9S12DG128

HYUNDAI 95910-CH910 CONTINENTAL R7F7015803

HYUNDAI 95910-CU110 VEONEER TC23XX-16F

HYUNDAI 95910-CV140 VEONEER TC23XX-16F

HYUNDAI 95910-ES020 VEONEER TC23XX-16F

HYUNDAI 95910-G9860 VEONEER TC23XX-32F

HYUNDAI 95910-J3800 TRW 95256

HYUNDAI 95910-L7600 MOBIS 95512

HYUNDAI 95910-NI300 VEONEER TC23XX-16F

HYUNDAI 95910-P4600 VEONEER TC23XX-32F

HYUNDAI 95910-P4950 VEONEER TC23XX-16F

HYUNDAI 95910-T4400 MOBIS 95512

HYUNDAI 95910-T6250 VEONEER TC23XX-32F

INFINITI 98820-4HD0B BOSCH 95128

JAC 5824901U2150

JAC 5824901X0070

JEEP 52204023 MOPAR BOSCH 95640

JEEP 68630142AB MOPAR CONT. 95512

KIA 95910-CP500 MOBIS 95512

KIA 95910-H7500 MOBIS 95512

KIA 95910-K5510 CONTINENTAL R7F7015803

KIA 95910-K8700 MOBIS 95512

KIA 95910-N9560 CONTINENTAL R7F7015803

KIA 95910-P0510 CONTINENTAL R7F7015803

LANDROVER NNW506820/0285001676 BOSCH 95320

LANDROVER NNW507970/0285010169 BOSCH 95320

LEXUS 89170-11000(PARTIALLY) DENSO R7F701A223

LEXUS 89170-33N71(PARTIALLY) DENSO R7F701A223

LEXUS 89170-76440(PARTIALLY) DENSO R7F701A223

LUXGEN 28556SU100 95320

LUXGEN 28556SU120 95320

MB BENZ A2389002104-A2389016700 CONTINENTAL SPC560P50

MG 11504679-01 TRW TC22XX-16F

MG 11553657-01 TRW TC22XX-16F

MITSUBISHI 98820-A002P VEONEER TC22XX-16F

NISSAN 28556-2GP0B BOSCH 95640

NISSAN 28556-3RD0A AUTOLIV XC2336B

NISSAN 28556-4EH0A AUTOLIV XC2336B

NISSAN 98820-3SA0A AUTOLIV XC2336B

NISSAN 98820-4MU0B VEONEER TC22XX-16F

NISSAN 98820-5BS0C VEONEER TC22XX-16F

NISSAN 98820-6SY0E VEONEER TC22XX-16F

NISSAN 98820-6XV0B VEONEER TC22XX-16F

NISSAN 99820-6UA0A VEONEER TC22XX-16F

OPEL 13367446(PARTIALLY) TEMIC 95160

PEUGEOT 9666292680/0285010659 BOSCH 95320

PEUGEOT 9674909680/620260800 AUTOLIV 95320

PEUGEOT 9804502280 AUTOLIV 95320

PEUGEOT 9861190680 CONTINENTAL SPC56AP54

RENAULT 285558549R BOSCH 95128

RENAULT 285580045R CONTINENTAL 95640

ROEWE 11352919-01 TRW TC224L-16F

ROEWE 11352920-01 TRW TC224L-16F

ROEWE 11551604-02 TRW TC224L-16F

SGMW 23557729 CONTINENTAL R7F70100X

SGMW 23756585 BOSCH R7F701A033

SGMW 23828921 CONTINENTAL R7F70100X

SGMW 23994082 AUTOLIV TMS570

SGMW 24375999 CONTINENTAL R7F70100X

SGMW 26162168 BOSCH R7F701A033

SKODA 1C0909605C/5WK43130 SIEMENS 08AZ32

SSANGYONG 86250-35442 CONTINENTAL R7F701042X

SSANGYONG 86250-35443 CONTINENTAL R7F701042X

SSANGYONG 86250-38081 CONTINENTAL SPC560P50

SUBARU 98221SJ620 BOSCH R7F7010643

SUBARU 98221VC070 DENSO R7F7016863

SUBARU 98821AN00C DENSO R7F7016863

SUZUKI 38910-59J10 SIEMENS 95080

SUZUKI 38910-59J12 SIEMENS 95080

SUZUKI 38910-59J40 SIEMENS 95080

SUZUKI 38910-59J70 SIEMENS 95080

SUZUKI 38910-84E21 SIEMENS 95080

SUZUKI 38910-86G02 SIEMENS 95080

SUZUKI 38910-86G12 SIEMENS 95080

SUZUKI 3F900-64R50 CONTINENTAL SPC560P50

TOYOTA 89170-02M11(PARTIALLY) DENSO R7F701A223

TOYOTA 89170-02M21(PARTIALLY) DENSO R7F701A223

TOYOTA 89170-0DE60 DENSO R7F7016843

TOYOTA 89170-0KJ80 H8SX1797

TOYOTA 89170-30G10 H8SX1797

TOYOTA 89170-76550 H8SX1797

TOYOTA 89170-76810 R7F7016443

TOYOTA 89170-F4410(PARTIALLY) DENSO R7F701A223

TOYOTA 89170-F4420(PARTIALLY) DENSO R7F701A223

ZOTYE 3658010002-A40 BOSCH R7F701A033

ZOTYE J38580611 CONTINENTAL SPC560P40



Add 12 part numbers for the below models to support Read/Erase DTC function:

AEOLUS 3658100-SA05(DIAG + READ/WRITE) BOSCH R7F7010643

AEOLUS 98820-2GZ0A(DIAG + READ/WRITE) BOSCH R7F7010643

AUDI 4KE959655B-VW32(DIAG ONLY) CONTINENTAL TC27XX-64F

AUDI 4M0959655BH-VW33(DIAG ONLY) CONTINENTAL TC27XX-64F

AUDI 4M0959655BJ-VW33(DIAG ONLY) CONTINENTAL TC27XX-64F

AUDI 4N0959655AK-VW31(DIAG ONLY) CONTINENTAL TC27XX-64F

BENTLEY 3W3959655/0285010768(DIAG + READ/WRITE) BOSCH 95640

CHANGAN 3658100-MK01-W01-AA-V2(DIAG + READ/WRITE) BOSCH R7F7010643

CHANGAN 3658100-MK01-W01-AC-V2(DIAG + READ/WRITE) BOSCH R7F7010643

CHERY 407000403AA/0285021164(DIAG + READ/WRITE) BOSCH R7F7010643

PEUGEOT 9613576580/610963100(DIAG ONLY) AUTOLIV 95320

PEUGEOT 9869435280(DIAG ONLY) BOSCH R7F7010643

Details Optimized
Optimized Ford TC22XX-16F Erase Crash Process and some types Pinout.


Package Includes:

1pc x P50 main unit
1pc x main cable
1pc x P004 adapter
1pc x C1024 jumper
1pc x 12V2A charger
