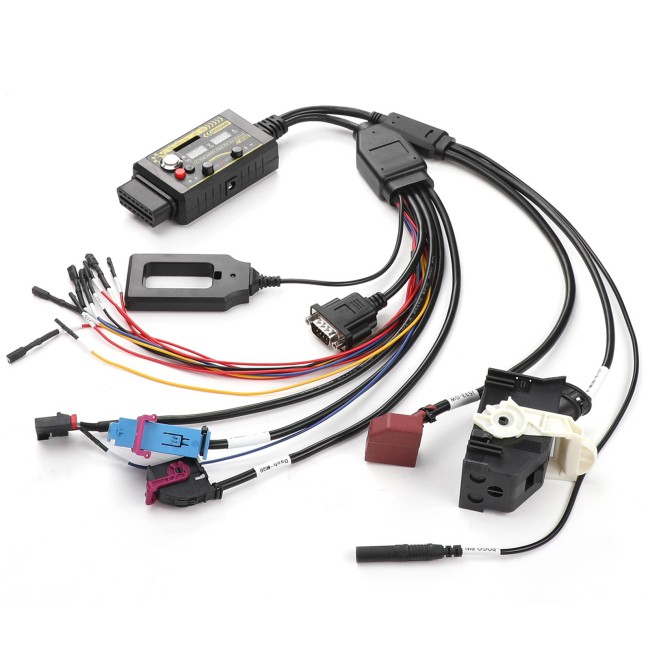

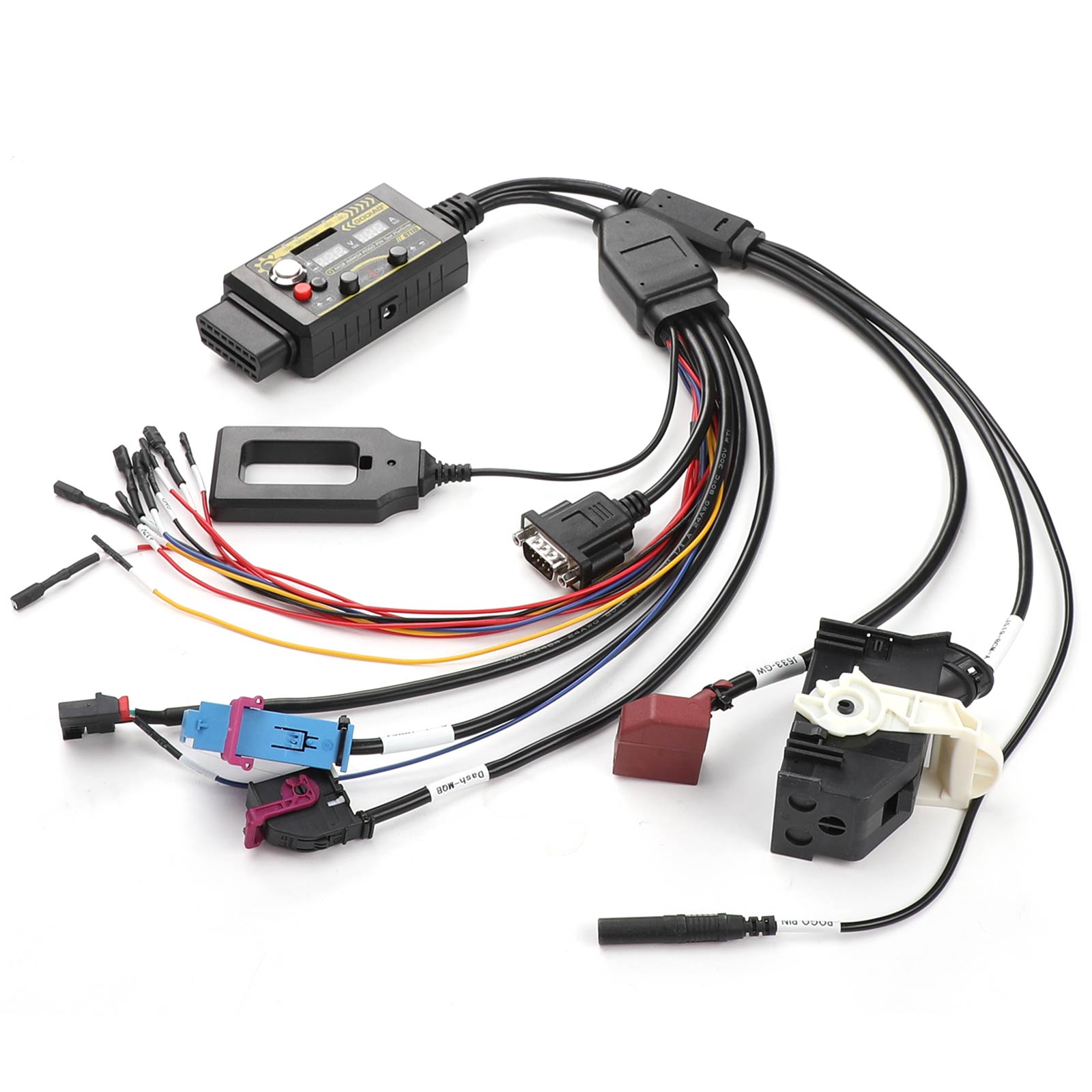

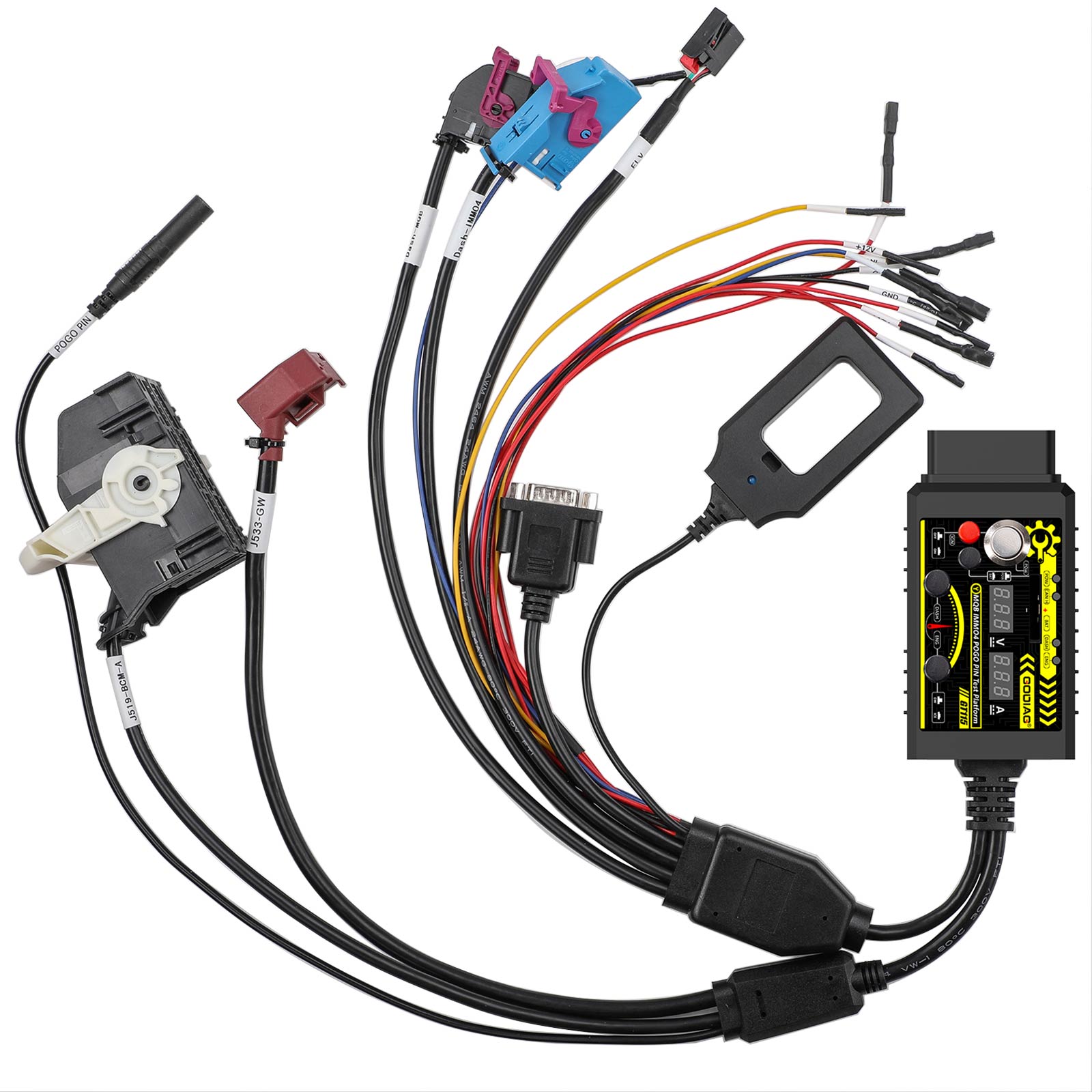

GODIAG GT115 For V-A-G MQB IMMO4 CAN-Bus UDS 4th Generation IMMO System Test Platform + GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter

Product Description

GODIAG GT115 For V-A-G MQB IMMO4 CAN-Bus UDS 4th Generation IMMO System Test Platform  + GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter

This package including item SF414  Godiag GT115 + SF382-B GODIAG MQB Data Collector


GODIAG GT115 Functions:


• GT115 Cover GT110  and Xhorse M35080/D80 Adapter V1.0 function
• Synchronous detection of key and vehicle IMMO module.
• Independent diagnosis of the engine and power expansion module.
• Communication diagnosis, and programming test of the engine module and power module through the gateway module.
• IMMO 4th generation POGO PIN read and write data and key synchronization detection.
• Connect the BCM module with the gateway module for communication diagnosis, and programming test (Note: Press the corresponding switch when required.)
• Gateway module detection.
• Current connected power supply voltage display.
• Current connected module current display.
• 2032 Battery voltage detection.
•  With POGO PIN to read and write data to the dashboard.


GODIAG GT115 Features:

1. Synchronous Detection: Effortlessly detect keys and vehicle IMMO modules.
2. Independent Diagnostics: Perform standalone diagnostics for engine and power expansion modules.
3. Gateway Communication: Conduct communication diagnostics and programming tests for engine and power modules via the gateway.
4. POGO PIN Technology: Read and write data to the dashboard with precision and stability.
5. Comprehensive Testing: Test BCM modules through the gateway for seamless communication and programming.
6. Real-Time Monitoring: Display current power supply voltage and module current for accurate diagnostics.
7. Battery Voltage Detection: Ensure optimal performance with 2032 battery voltage detection.

How to Use POGO PIN?

1. Connect the power supply [Note: the power switch must be off].
2. Press the IGN ignition power [the IGN ignition switch must be turned on].
3. Connect the instrument plug.
4. Find the POGO PIN connection point of the corresponding instrument and connect it with a probe.
5. Turn on the power switch for 3-5 seconds. If the ABS light flashes, you've successfully entered POGO PIN read/write mode.

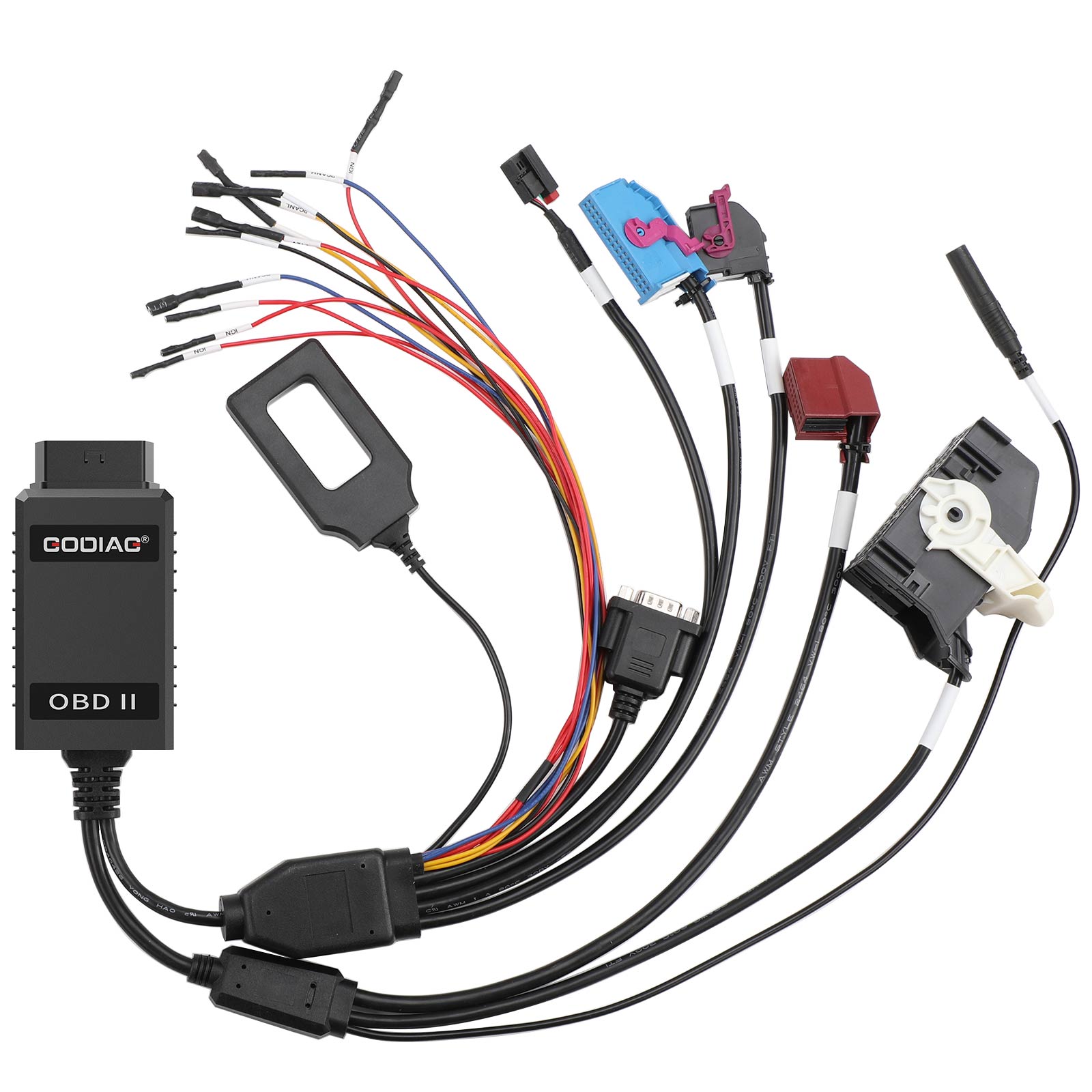

GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter

Product Functions:

In combination with GODIAG GT115(SF414), the vehicle instrument plug can be connected to collect ELV data, and in combination with the GODIAG GT107+ gearbox adapters(SF380-FULL), it can diagnose or read and write data.

In combination with full protocol OBD2 jumper(SF347) or other OBD2 canbus communication protocol cables, and GODIAG GT107+ gearbox adapters(SF380-FULL) to diagnose and read and write data in the office.

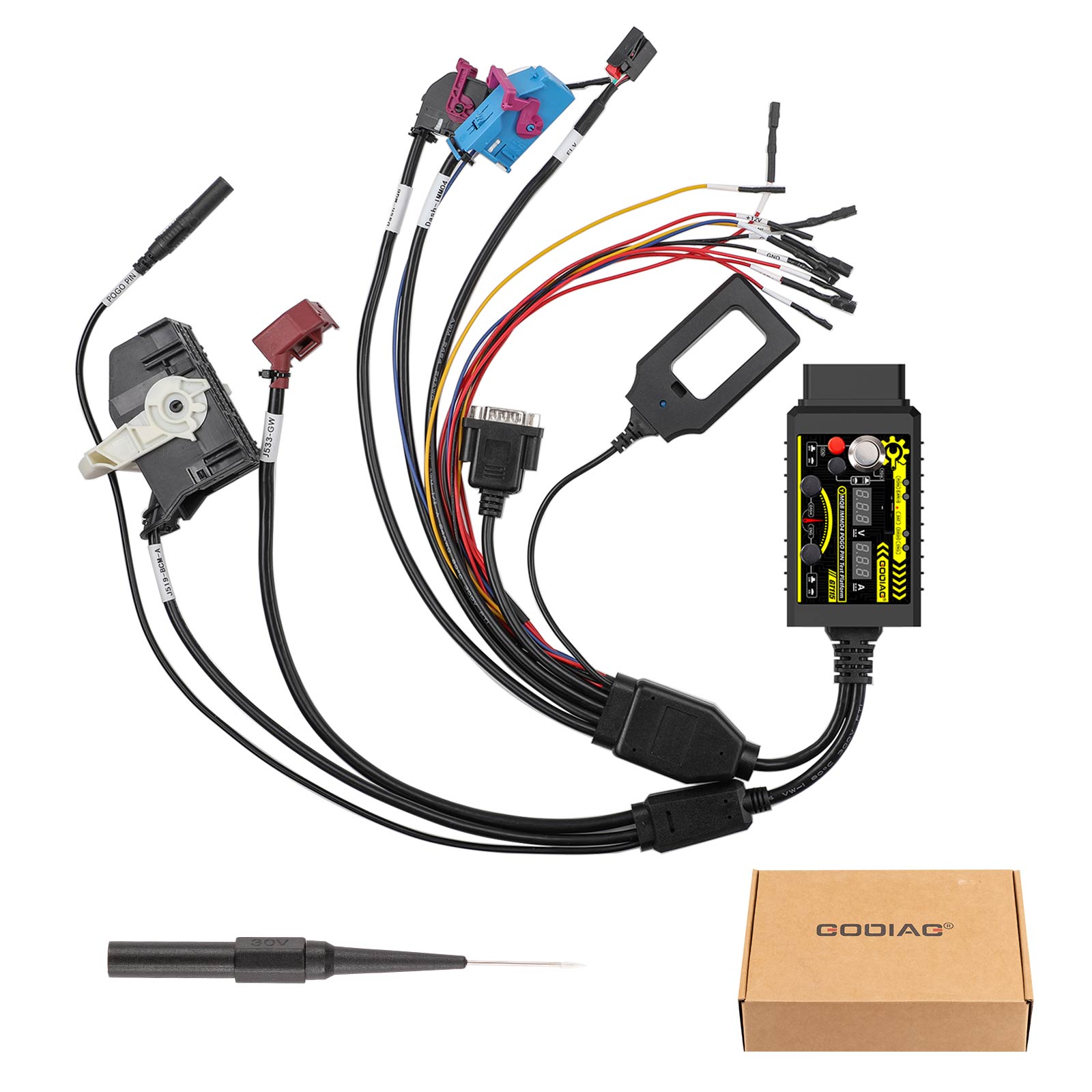

Package including

1 Set Godiag GT115  V-A-G MQB IMMO4 CAN-Bus UDS 4th Generation IMMO System Test Platform
1 Set GODIAG MQB Data Collector ELV/TCM DSG Gearbox Adapter


---
