Ship from EU GODIAG Full Protocol obd2 Jumper Breakout Tricore Cable

Product Description

Godiag Full Protocol obd2 Jumper

Godiag obd2 Jumper Description:

Godiag full protocol obd2 jumper can cooperate with MPPS, FGTECH, BYSHUT, DISPROG via obd2 to connect to ECU for programming.


Godiag obd2 Jumper Functions:

1. Supports DC power supply
2. Support safety protection banana head super programming dedicated connection port power supply.
3. Independent GND4, GND5 [meet the needs of special ECU programming].
4. With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESSV2.
5. With GND4 GND5 short-circuit switch [some ECUs need to be switched to short-circuit mode when programming].
Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.

6. With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].
What is the analog ignition switch?
After the ING ignition switch is pressed, the line marked with ING12V will have 12v, which is the analog ignition switch. Because when some devices read some ECUs, the device will prompt to turn on or off the ignition switch.

7. Support standard obd2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, 4 small GND.
8. Equipped with CAN protocol communication resistance.

OBD2 Jumper connection diagram:

Connection diagram of the dedicated programming power connector

FGTECH programming connection diagram

MPPS  ECU connection diagram

KESSV2 ECU connection diagram

Product: Package Includes:

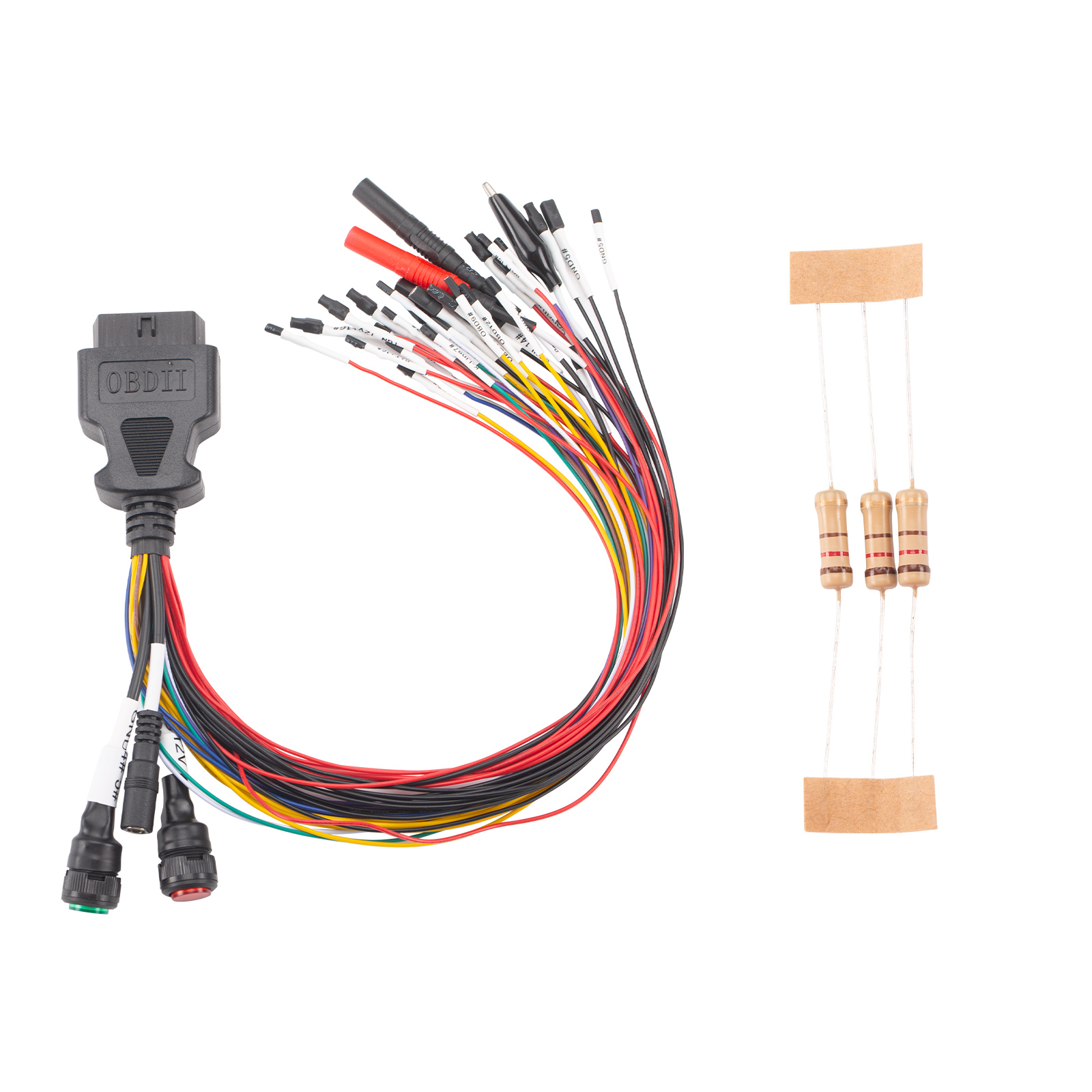

1pc x Full protocol OBD2 jumper

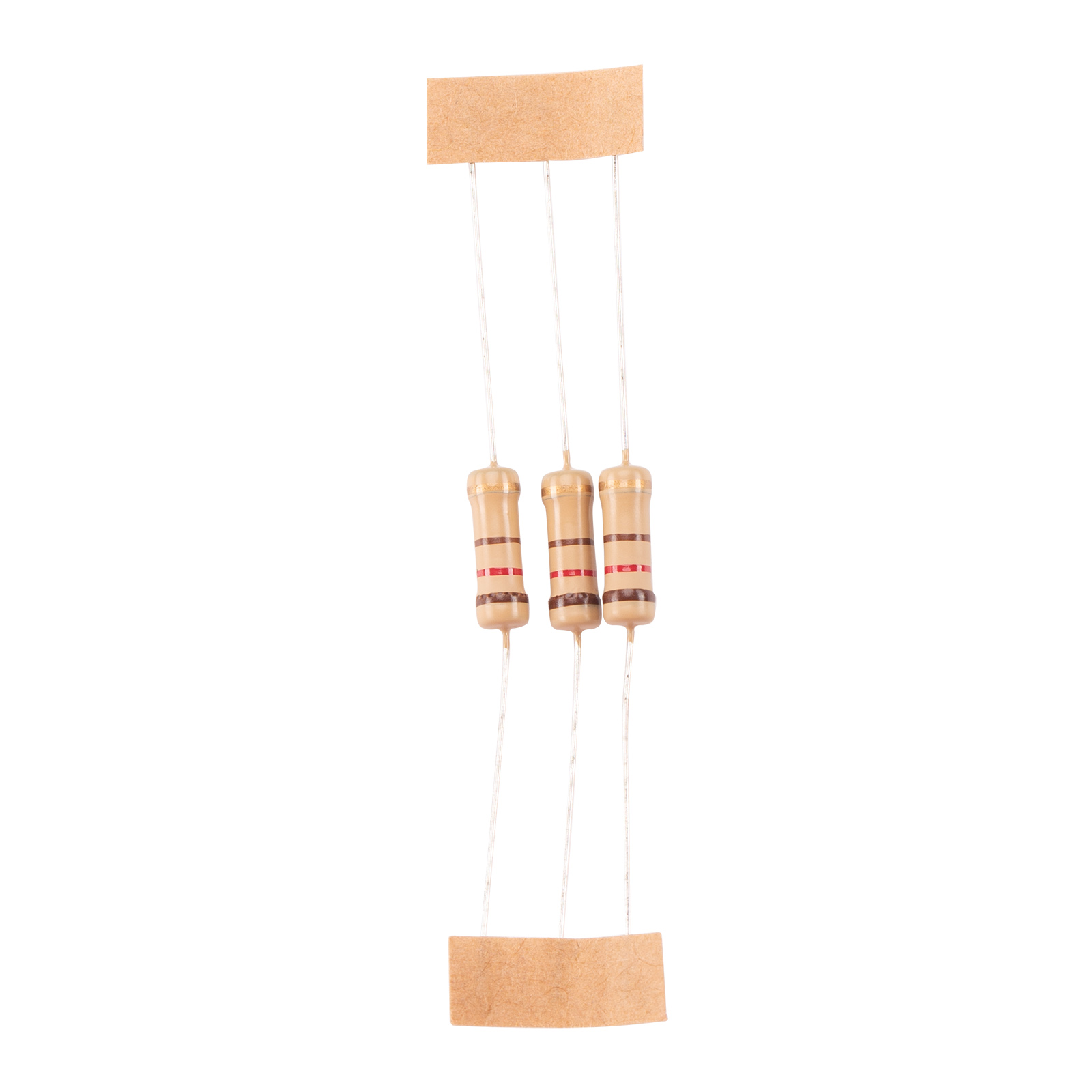

3pcs x Electrical resistance

---

Contact Us:

Email: Sales@OBDStore.eu

WhatsApp : +86 133 7268 9373
