Ship from EU [No Tax] Best ECU Tool CG FC200 ECU Programmer Full Version Support 4200 ECUs and 3 Operating Modes Upgrade of AT200

Product Description

CGDI FC200 ECU Programmer For ECU/EGS Clone the Update Version of AT-200

Promotion

Now buy CG FC200, Free Activate FC200 VOLVO DENSO ECU Function and FC200 A100000F CHINA MTxx Engine Read / Write Data (OBD/Platform) Function


CG FC200 Programmer Description:

CGDI FC200 ecu programmer is new device which is designed for ECU/EGS clone, supports functions including data reading and writing, ISN acquisition, disassembly matching, module clone, VIN modification and DTC shielding ect FC200 supports 4200 kinds of ECU, 3 tyeps of operation modes, and covers 80% of the models at the market.

Free download of the FC200 software, please download here when you get the package.


CGDI FC200 Highlights:

1. Auto ECU Programmer for repair necessary--Support BMW ECU Data reading, writing and clone.
Effectively solve the problem of replacing the second-hand computer after the damage of BMW ECU control unit, just need to read the original computer data and then clone it.
Support almost all the BMW ECU model for reading and writing: MSV90/ MSD85 MSD87 N20 N55 B48 B58 etc.
Successfully make up the market for BMW ECU reading and writing equipment, save you high equipment costs.

2. Auto Locksmith necessary-Support BMW IMMO functions, Read BMW ISN Code by OBD.
Quickly solve the problem for data collection of bmw all key lost.
With more stable and efficient irremovable functions.
If you want to do all key lost for BMW 3 Series 5 Series 7 Series X5 X6 GT535 Six-cylinder engine, must need ISN code to program the keys.

3. Work together with CGDI BMW, VVDI2 Full, Mini ACDP, AUTEL IM508, IM608 Pro, etc to program keys, save your money
(The cost of similar equipment is very expensive).

4. With stable and effective functions by professional quality test. It is easy to operate and quick to start.

5. Add Mercedes-Benz 271 Audi Volkswagen 06J and other ecu types (Some are paid service).

6. Full Version with All License Activated. 1 year free update (After one year, it will cost $200/year for update, buy CGDI FC200 Update subscription). Annual fee needs to be checked with us after the first year. If you don't pay the annual fee, you can still use it, but some for bosch ecu does not have the verification function (the function that needs to be connected to the server cannot be used)

7. Language: English

8. With new update, FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess, kessy, Dimsport etc.
Check FC200 Support ECU List, FC200 User Manual

9. for Bosch ECU serach: Free to find out what ECU type  (except for bosch made in China)

10. With CAN-bus, and no disassembly (platform mode), and boot mode


CG FC200 Programmer Functions:

1. Original Parts Protection
FC200 supports OBD and platform mode for more than 98% of ECU/EGS. There is no need to open shell and no punch. FC200 protects original parts of the vehicle.

2. Smart Identification
The "identification" function can help users diagnose whether the ECU module is communicating and check whether the wiring is wrong.
If the ECU module is not damaged and can be communicated, and if the wiring is correct and identification is successful, FC200 can read chip and firmware information.

3. Module Clone
FC200 supports ECU/EGS reading&writing and modules clone, synchronization matching, without online programming, flash data by area, automatic check, chips and modules protection.


4. ISN Reading and Writing

FC200 supports all BMW series (including Mini) ECU ISN code acquisition , convenient for all keys lost matching and anti-theft fault maintenance.

5. VIN Writing
FC200 solves the problem of double VIN or VIN mismatch of vehicles, which is convenient for vehicle maintenance.

6. Data Processing
FC200 supports data analysis and modification for the 4th and 5th generations of Audi/ Seat/ Skoda/ Volkswagen ECUs.
Turn off anti-theft system for Bosch MED/EDC17 series ECU
TPROT off function for Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.

7. DTC Shielding
The engine DTC code can be shielded, such as the shielding of the 28A0/101F01 fault code of the BMW N55 engine, read the engine data via FC200, then load the data into the hexadecimal data modification tool, modify and save the bytes of the fault code comparison, and then use FC200 to load the modified data and write it back to ECU.


CGDI FC200 Programmer Features:

FC200 Hardware Features:

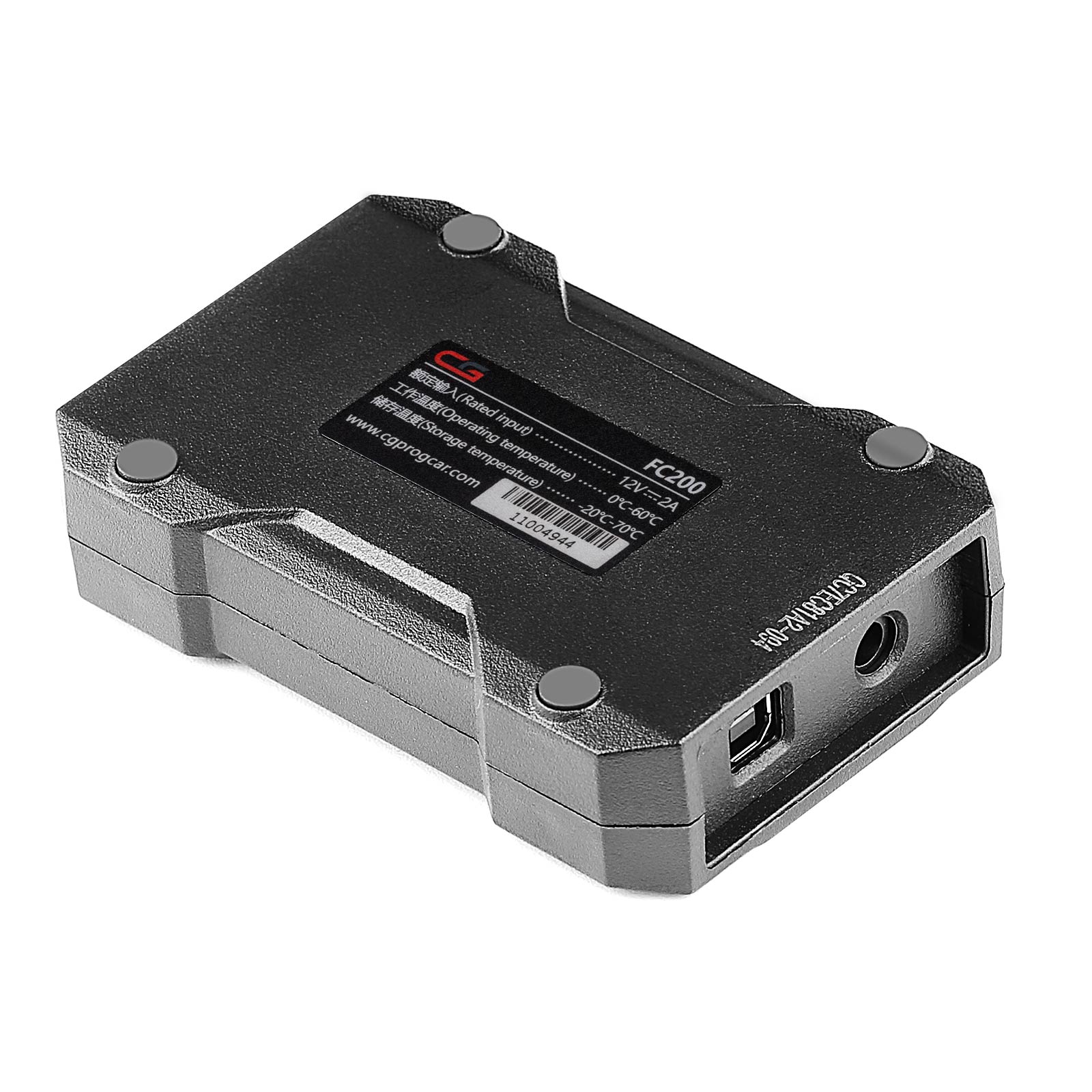

FC200 Main Unit
1. Integrated injection of polymer materials, professional customized internal circuit boards, national patent certification
2. Exquisite design, easy to carry, can shield surrounding interference signals, adapt to various operating environments
3. There are 3 expansion ports for peripherals, which are automatically diagnosed and identified. They are 12V power port, USB port and DB15 port.The DB15 port can be connected to a free-dismantling adapter and OBD cable.

FC200 Adapters
1. Vehicle-grade wiring harness, made of synthetic metal, has excellent internal conductivity, and can be used continously for 10,0000 times.
2. Tight design, seemless connection between ECU and host to ensure continuours communication and excort your operation
3. Equipped with B-type, C-type, D-type, F-type and G-Type pin interfaces, suitable for many types of ECU and EGS

OBD2 Cable
FC200 obd2 cable mainly suitable for BMW B48/B58 ECU at present, read ISN via OBD without disassembly.
110cm, made of synthetic material, resistant to high temperature water-proof, anti-corrosion is designed according to OBD port of the vehicles, built-in anti-falling buckle make connection stable

FC200 Software Features:

1. Interactive interface
The level is clear, the function is clear, and the "brand-model-ECU" structure is used to help users save time and accurately find the operating directory.

2. Built-in model search
Support ECU model and for Bosch number search, avoid the trouble of level selection, and enter the function interface as quickly as possible.

ECU search: Take the BMW MSV90 engine computer as an example.
First select "BMW", select "ECU" as the search condition, enter "MSV90", click the search button, and the ECU type will appear.

for Bosch number search: Take the BMW engine computer as an example.
First select "BMW", select "for Bosch Number" as the search condition, and enter "0261S11654", click the search button, and the ECU type will appear.
Please note that the for Bosch number is a ten-digit number and the letters are capitalized.

for Bosch number query (click "for Bosch search")
Take the Volkswagen engine computer as an example.
First select "Volkswagen", select "for Bosch Number" as the search condition, and enter "0261S10525".
Click the search button, and the ECU type will appear.

3. Intuitive wiring diagram
Highly paid professional designers are hired to produce, 1:1 simulation, bright colors, to avoid user wiring errors.


FC200 Supported Vehicle Models:

Support 4200 kinds of ECUs, involving 80% of the models on the market.

European Cars: Abbas, Alfa Romeo, Aebi, Artec, Aston, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, CASE, CASE Tractors, Dallara, Deutz, DS, Ducati, Fendt, Ferrari, Fiat, Jaguar, KTM, Lada, Lamborghini, Lancia, Land Rover, MAN, Maserati, McLaren, Mercedes-Benz, MG, Mini, Opel, Peugeot, Piaggio, Porsche, Renault, Royal Enfield, Saab, SEAT, Skoda, Smart, Steyr, UAZ, Vauxhall, Volkswagen (VW), Volvo, Volvo Penta.
American Cars: Can-Am, Caterpillar, Chevrolet, Chrysler, Dodge, Ford, Ford Trucks, Freightliner, GMC, Indian, Internation, Jeep, Lincoln, New Holland, Polaris, Hidu.
Asian Cars: Force, Genesis Motors, Honda, Hyundai, Infiniti, Isuzu, Kassan, Kia, Kubota, Mahindra, Mitsubishi Fuso, Nissan, Subaru, Suzuki, Toyota.
Chinese Cars: Changan, Chery, Foday, Geely, Great Wall, Iveco, Jianghuai, Jiangling, Lifan, Ferguson, Valtra


CG FC200 Repair Expert Update Log:

CGDI FC200 V1.4.1.0 Registered Version was released on 2026.9.21, please check details now.

1. Added Read/Write Support for the Following ECU Types:

Borgward: MED17821
Changan: MT92.1E
Buick: GL8 48V (Lithium Battery Read/Write)
Lynk & Co: MG1US708_BootLoader TC387Q

2. Added Support for Bench mode Read/Write on the Following Locked ECUs (Boot Mode unlock first, then Bench Mode):

Locked_ BOSCH MG1CS011 TC298 test
Locked BOSCH MD1CS014 TC299 test
Locked_BOSCH MG1CS008 TC298 test
Locked_ BOSCH MG1CS163 TC298 test
Locked_BOSCH MDICS069 TC299 test
Locked BOSCH MG1CS042 TC298 test
Locked_BOSCH MD1CS012 TC298 test
Locked_ BOSCH MD1CPO17 TC298 test
Locked BOSCH MD1CE100 TC299 test
Locked BOSCH MG1CP007 TC299 test
Locked_ BOSCH MD1CS005 TC298 test
Locked_BOSCH MDICP061 TC298 test
Locked BOSCH MG1CS031 TC298 test
Locked BOSCH MG1CS002 TC298 test
Locked_BOSCH MD1CS089 TC299 test
Locked_BOSCH MD1CE101 TC299 test
Locked_BOSCH MD1CS003 TC298 test
Locked_BOSCH MDICPO06 TC298 test
Locked_ BOSCH MG1CS028 TC298 test
Locked BOSCH MD1CP007 TC298 test
Locked_ BOSCH MG1CS047 TC299 test
Locked BOSCH MD1CE102 TC299 test
Locked BOSCH MD1CS004 TC298 test
Locked BOSCH MG1CS111 TC298 test

3. Added PCR2.1 Clone Data Transfer Function

4. Added Blank CALID Repair Function for the Following Models:
EDC17C81
EDC17C55
EDC17C63

5. Added OBD-VIN Repair Function:
MT22.1 MC9S12XEQ512
MT22.1 MC9S12XEP768 VIN
LEC4AF
LEC4AP

6. Added New Immo Off Support Types:

Toyota Lexus DENSO Ist generation
Toyota Lexus DENSO 2nd generation
Toyota Lexus DENSO 3rd generation
Toyota Lexus DENSO 4th generation
Siemens&Continental sim2k-140/141/142/143/341
Siemens&Continental sim2k-240/241/242/243/245
Siemens&Continental sim2k-250/251/253/258/259
Siemens sim2k-47/simk43/simk42
Delphi MT38
Delphi MT38-amplificr signal off
Delphi MT86Delphi MT86-amplifier signal offBOSCH M(E)7.9.7/7.9.7+BOSCH M7.9.8 MG7.9.8
BOSCH MED17.9.8/MEDG17.9.8/MEG17.9.8
BOSCH MEG17.9.21//MEG17.9.21.1/ME17.9.21.1
BOSCH ME17.9.2/MEG17.9.2/MEGD17.9.2
BOSCH MEG17.9.1/MEG17.9.1
BOSCH ME17.9.11/ME17.9.11.1BOSCH ME(G)17.9.11(12-13)BOSCH ME(G.D)17.x.xKEFICO-MH72xx,MH83xx,MH82xx-(128kb&256kb&512kb)BOSCH EDC17CP14 Flash
BOSCH ME17.5.20
BOSCH ME17.5.26
BOSCH ME17.5.21BOSCH ME17.5.5BOSCH ME17.1BOSCH ME17.1.1BOSCH ME17.1.6
BOSCH ME17.x.x
BOSCH ME7.1.1
BOSCH ME7.5
BOSCH ME7.8
Siemens-5wp_4M27C256B
Nissan Hitachi <2009
Nissan Mec-32
Nissan Lucas 93c46
BOSCH ME17.3.0
BOSCH MEV17.x.x
BMW MS42.ca0110AD
BOSCH MED17.x
BOSCH ME17.8.x
BOSCH MED17.X.X
Mitsubishi E6T42XXX
Iveco Truck stralis.Edc17ev41
Toyota 2TR-FE
Buick E83

7. Function Fixes

(1)Fixed the Clone Data Parsing Function: PCR2.1, SIMOS8.5, ME17.5.22, EDC17CP14, MED17.1. MED17.5.25, MED17.5.
MED17.5.5-TC1766
(2)Fixed the Immo Data Parsing Function: PCR2.1,SIMOS8.5, MED17.5.25, MED17.5, MED17.5.5-TC1766
(3)Fixed the write failure issue after Immo Off on EDC17C63.
(4)Fixed the checksum issue on MD1CS018.
(5)Fixed the CALID modifieation failure on ECU6.I_Black.
(6)Optimized the OBD-VIN Repair function for the Bosch ME7 Series.

8. Function Optimizations:

(1)Optimized Boot Mode detection for locked MG1/MD1 ECUs.
(2)Optimized the write function for Nissan Hitachi EFI series.
(3)Optimized checksum processing for Volvo MB279700-9811,
MB279700-9801,and MB279700-96xx.
(4) VIN Function Optimizations:
MED17.810.1
MED17.0
MEVD17.2.P
SIMK43
(5)DTC Function Optimizations:
E39A
EDC17C81
MD1CS089
MED17.8.10
MT62.1
Easy_U2.5
LEC4AP
ME7-ME7.8.8
MGIUA008
MGICS080
MEG17.9.8

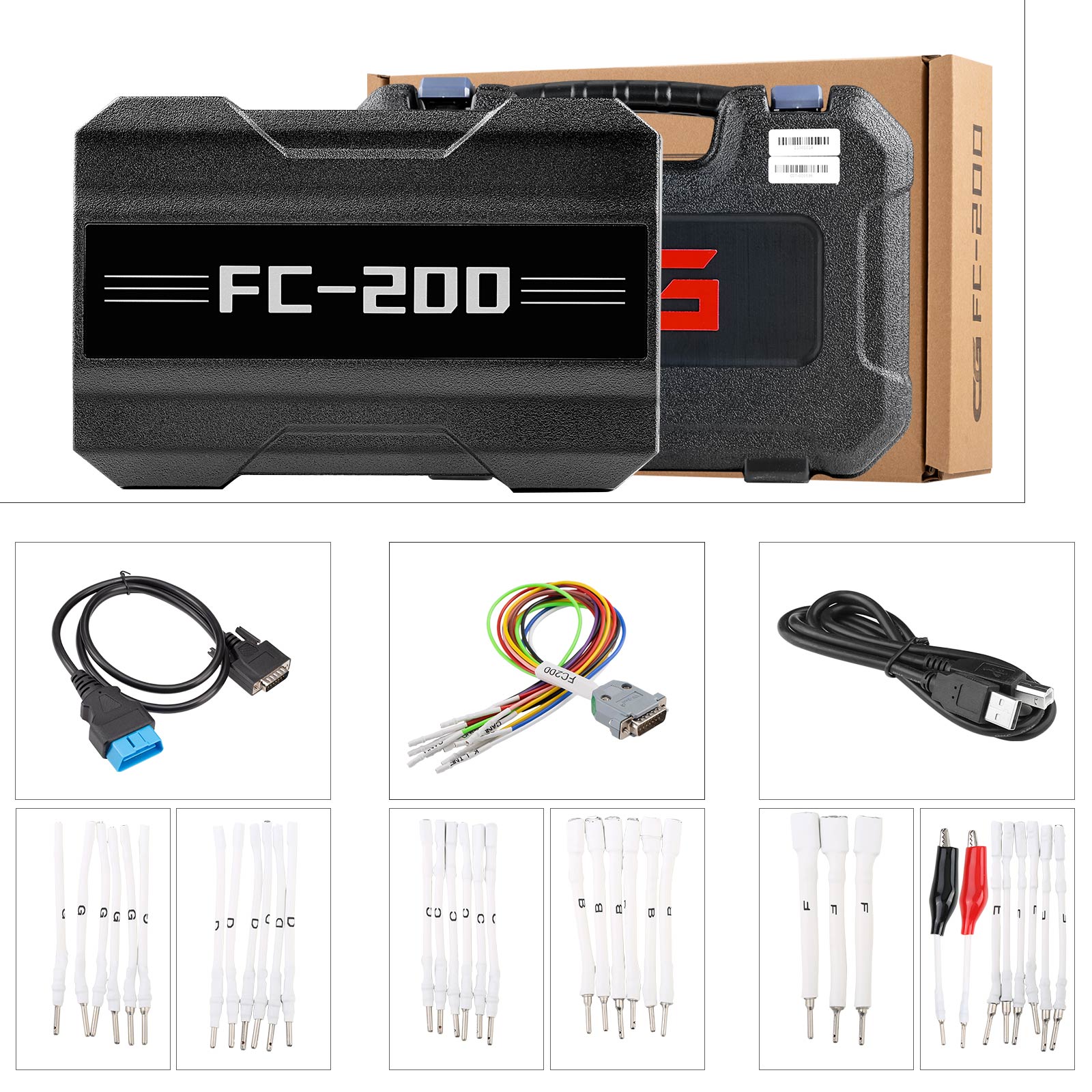

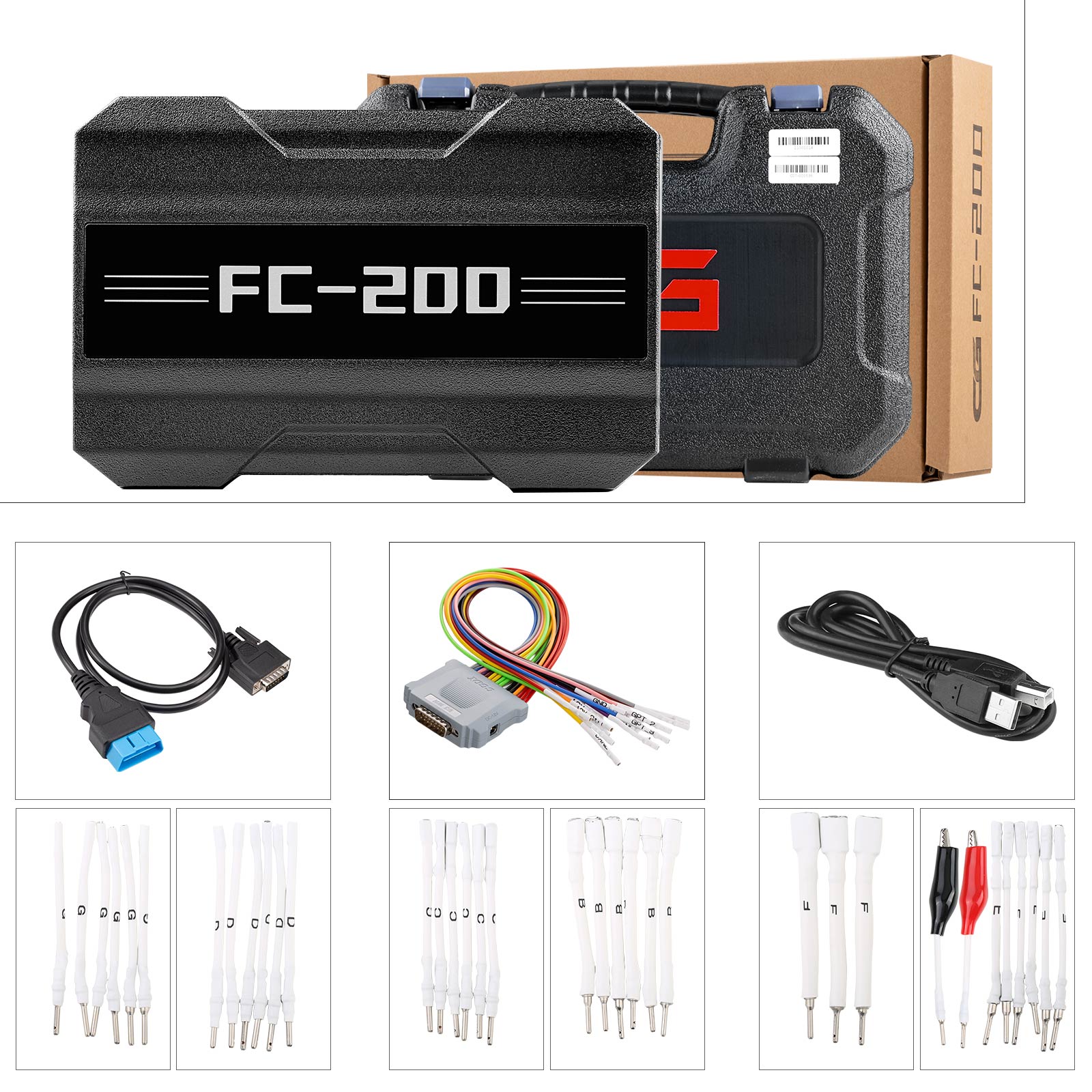

CG FC200 Package Includes:

Packing List

1pc x CGDI FC200 host
1pc x OBD cable
1pc x Jumper
1pc x USB cable
6pcs x G-type adapter cable
3pcs x F-type adapter cable
6pcs x E-type adapter cable
6pcs x D-type adapter cable
6pcs x C-type adapter cable
6pcs x B-type adapter cable
