Ship from EU Autel MaxiIM KM100 KM100E Auto Key IMMO Universal Key Generator Kit in Open OBD Mode Function Free Update Online Multi-language

Product Description

AUTEL MaxiIM KM100 KM100E Key Programmer

Autel KM100 KM100E Advantages:


• Free Update Online Lifetime
• Supporting PLC V200 (Supports for all keys lost & add keys)
• Support AutoVIN
• Transponder Reading/Writing/Cloning (support original and auxiliary chips)
• Key Renewal: Supports 36 Vehicle Makes
• Frequency Detection & Ignition Coil Detection
• Transponder Editing: Supports 20 Categories.
• 60-Second Key Generation(Autel Universal Only)
• Dual-Band,High FrequencyTransmitter315m/434mor 868m/915m. At present, autel only has smart handsets, and does not support handsets of other brands (such as xhorse, KD, Lonsdor)
• KM100E supports Wi-Fi and Bluetooth.
• Key unlock KM100E more fiat, honda, Benz, Opel, Suzuki models than Xhorse products.
• Support chip simulation for emergency use ( for ID46 47 48 49 4A 8A)
• Multi-language: English, German, Spanish, French, Hebrew, Arabic, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Chinese ( default language is English, after got it, tell us the SN to change language)

Autel MaxiIM KM100E Description:

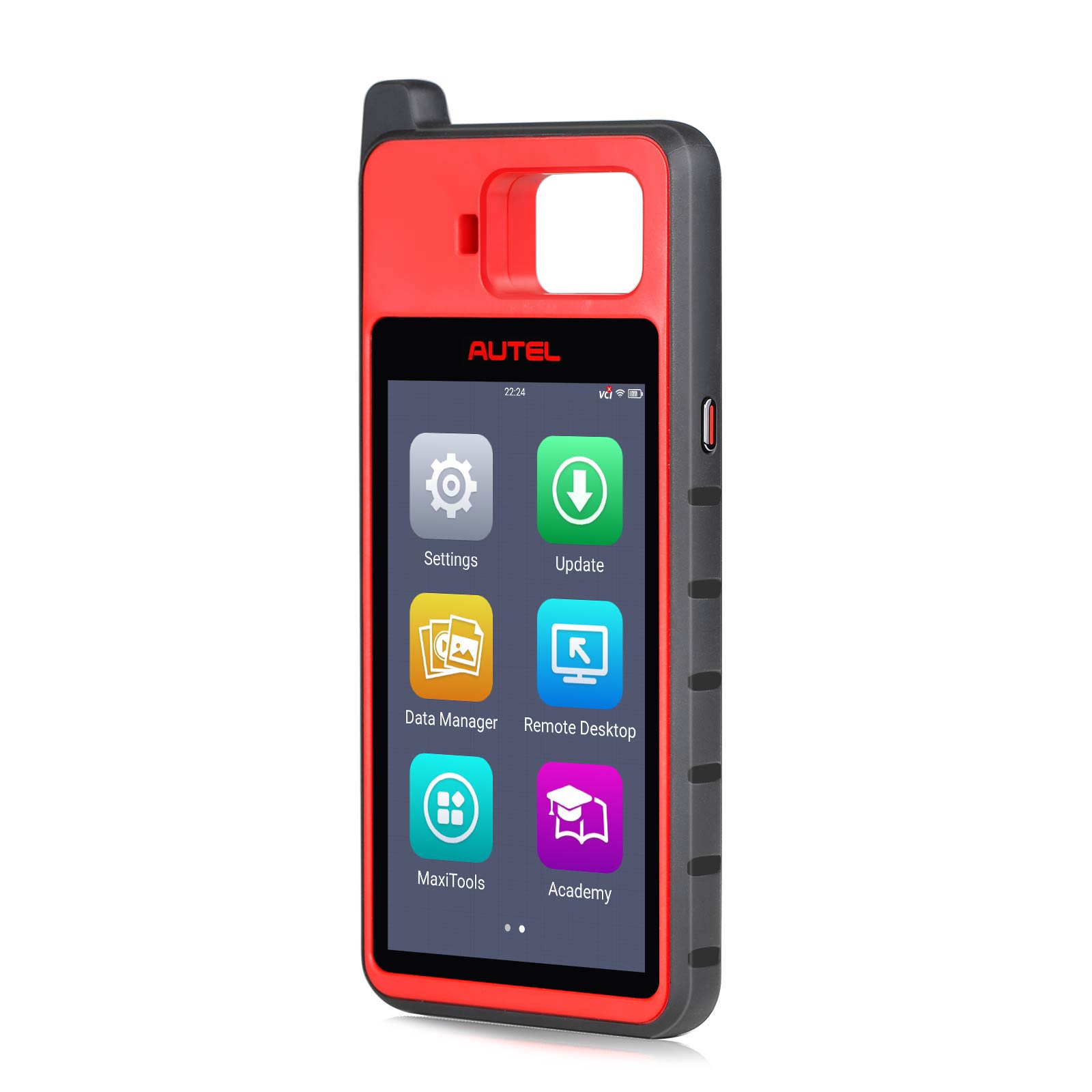

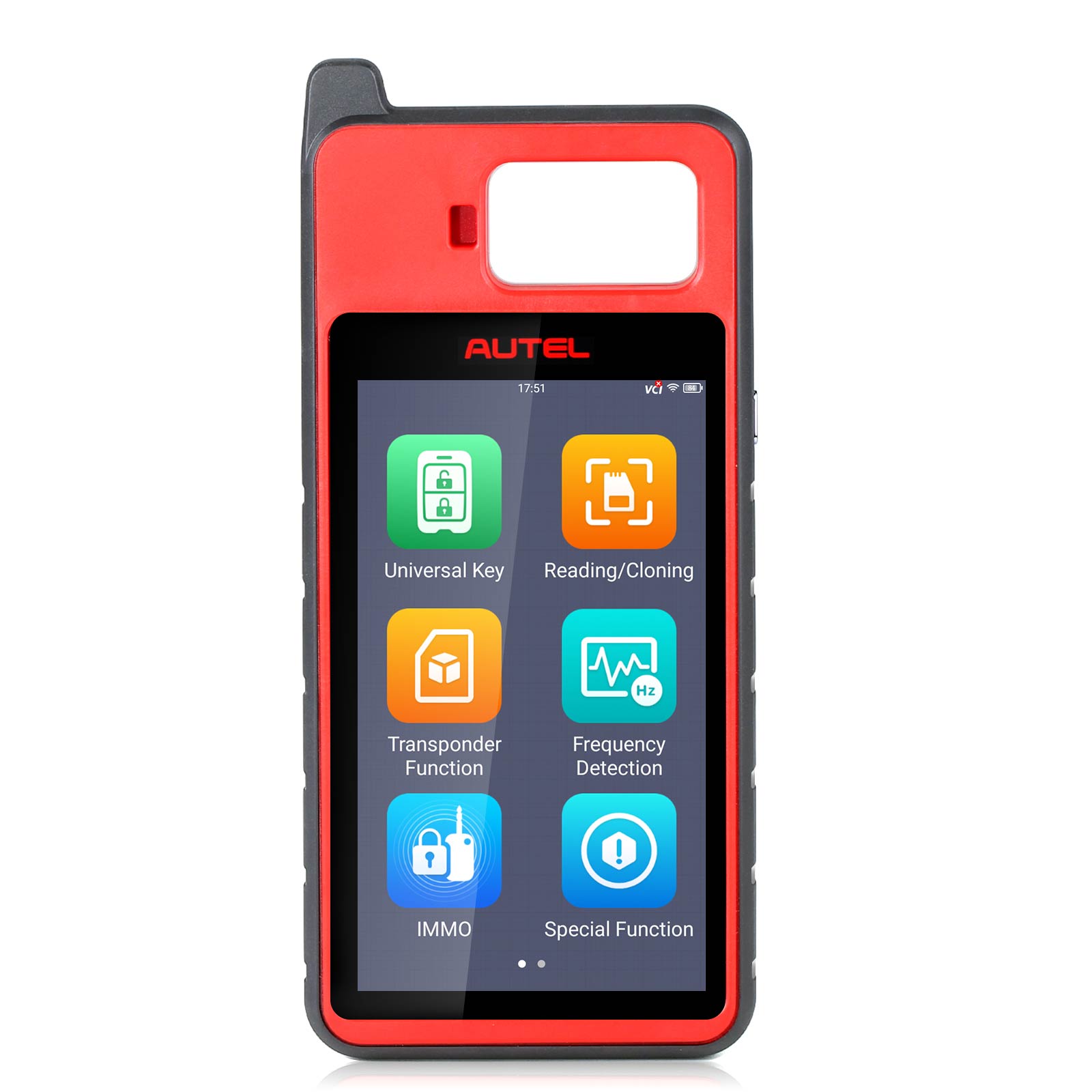

MaxiIM KM100 is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 700 vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Volkswagen, Toyota, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.


KM100E Features:

1. AutoVIN: when you do not choose the model, the vehicle can be analyzed by automatically reading the VIN code.
2. Supporting 8 Key Series And 37 Models
3. Simple Operation, Guided User Instructions, Easy To Use
4. Industry-Leading Coverage Of IMMO Learning Via OBD For More than 90% Of Models
5. Compatible with Autel Blank Universal Smart Keys
6. Supporting Certification Requirements of Various Regions
7. OE-Level Quality.


Anti-theft matching (PLC V200 connector), supports AutoVIN

1. Enter from the Universal key, select AutoVIN or manually select the model

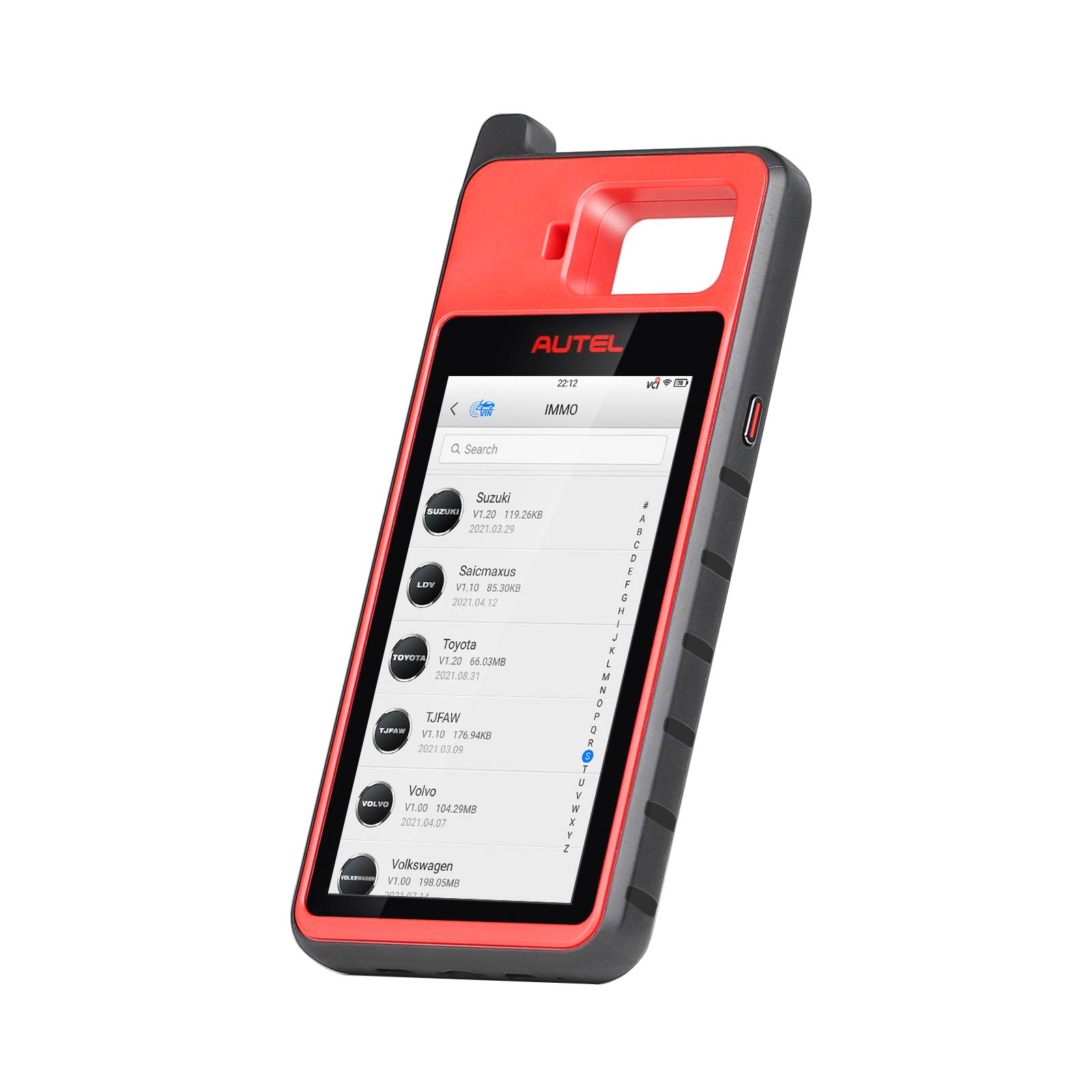

2. Enter from the IMMO function menu


How to do key Generation via Autel KM100 KM100E?

1. Automatically scan the VIN code to obtain vehicle information
2. Obtain model information by scanning the VIN barcode on the nameplate
3. Scan the license plate number to confirm the model, if you can't scan it, you need to enter it manually
4. PLC V200 Bluetooth picks up the car, after generating the remote control, you can directly select the immo function to match the key, without the need to push back to the main interface to select the IMMO function, and then re-select the model


Autel KM100e Vs Autel IM508 Vs Autel IM608:


Function	IM508	IM608	KM100E
Universal transponder & key generation	×	×	√
Transponder simulation, editing cloning	×	×	√
Ignition coil detection	×	×	√
Vehicle diagnoses	√	√	×
Vehicle service functions	√	√	×
IMMO function via programmer	√	√	×
Transponder reading	√	√	√
Frequency detection	√	√	√
Key unlocking	√	√	√
Immobilizer data processing	√	√	√
IMMO in open OBD mode	√	√	√


MaxiIM KM100E vs VVDI Max vs VVDI MiNi Key Tool vs Lonsdoer KH100+ vs KeyDIY KD-X2


Function	MaxiIM KM100	VVDI Key Tool MAX	VVDI MINI KEY TOOL	Lonsdor KH100+	KEYDIY KD-X2
car remote control generation	√	√	√	√	√
garage remote control	X	√	√	√	√
Remote copy	X	√	√	√	√
Chip identification copy	√	√	√	√	√
Dedicated chip generation	√	√	√	√	√
Frequency test	√	√	√	√	√
Anti-theft matching	√	X( with mini obd)	X	X	X
ID/IC copy	X	√	√	√	√
key to unlock	√	√	√	X	√
Toyota Smart Key Unlock	√	√	√	√	√
ignition coil test	√	√	√	√	√
Remote control simulation	X	√	X	X	X
chip simulation	√	X	X	√	√
write start	X	√	X	X	X
Acquisition test	X	√	X	X	X
Infrared signal detection	X	X	X	√	X
key charging	X	√	√	√	√
password calculation	X	X	X	X	√
ID48/ID48 96bit copy	X	√	√	X	√

KM100E advantages than other products:

1. Standard PLC V200 Bluetooth head, which can be directly connected to the vehicle matching key, VVDI MAX needs to be equipped with mini OBD, other devices in the comparison table do not support
2. KM100 adopts a high-resolution display screen of 1280*720, and supports touch-screen operation, which is sensitive, convenient, and fast to use. The KD-x2 / VVDI mini key tool needs to install the app software on a mobile phone or tablet, and kh100+ does not support touch-screen operation. not very friendly
3. Support chip simulation for emergency use ( for ID46 47 48 49 4A 8A), which can be used in an emergency when there is no chip around.
4. Key unlock KM100 more fiat, honda, Benz, Opel, Suzuki models than Xhorse products.

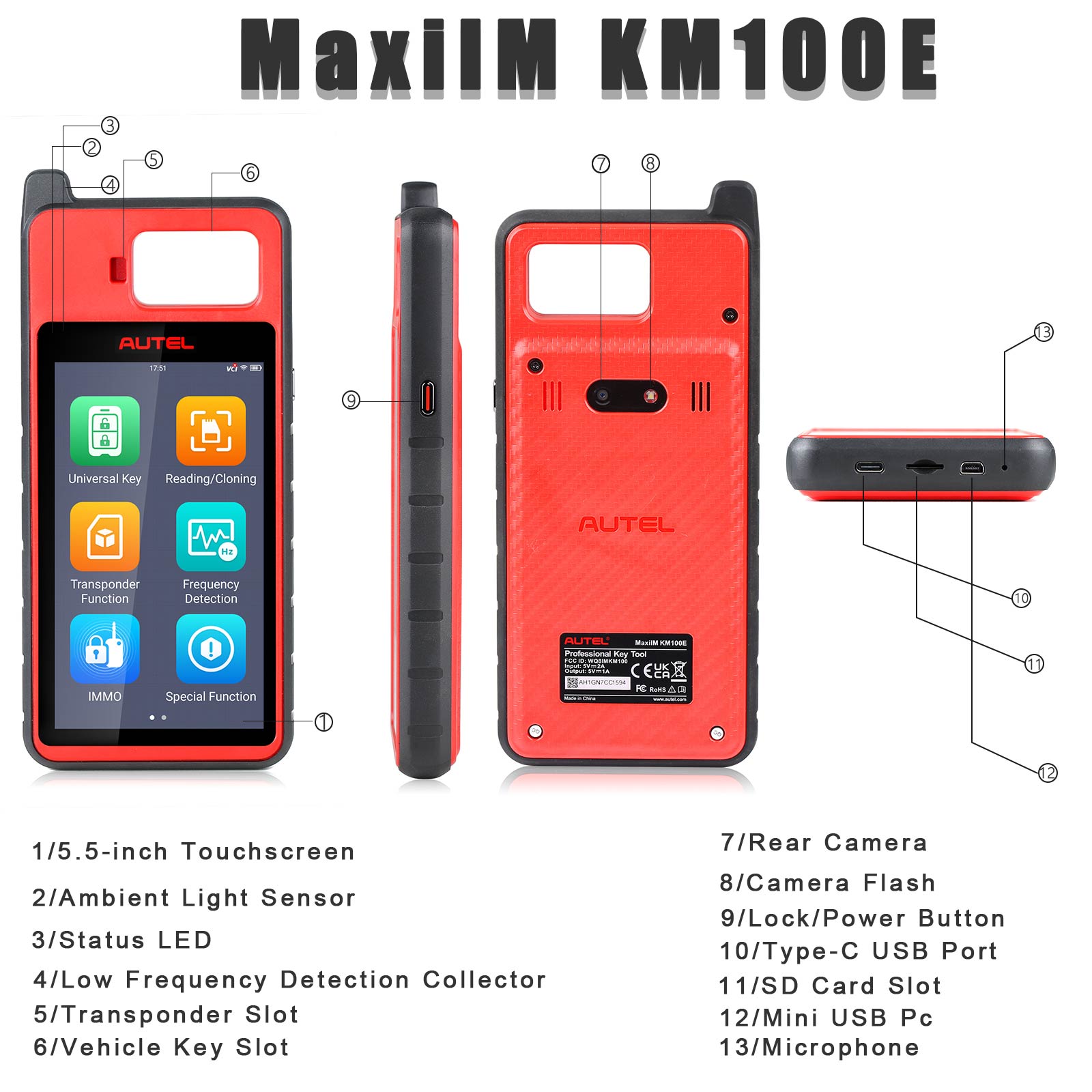

Autel Maxiim KM100E Specification:

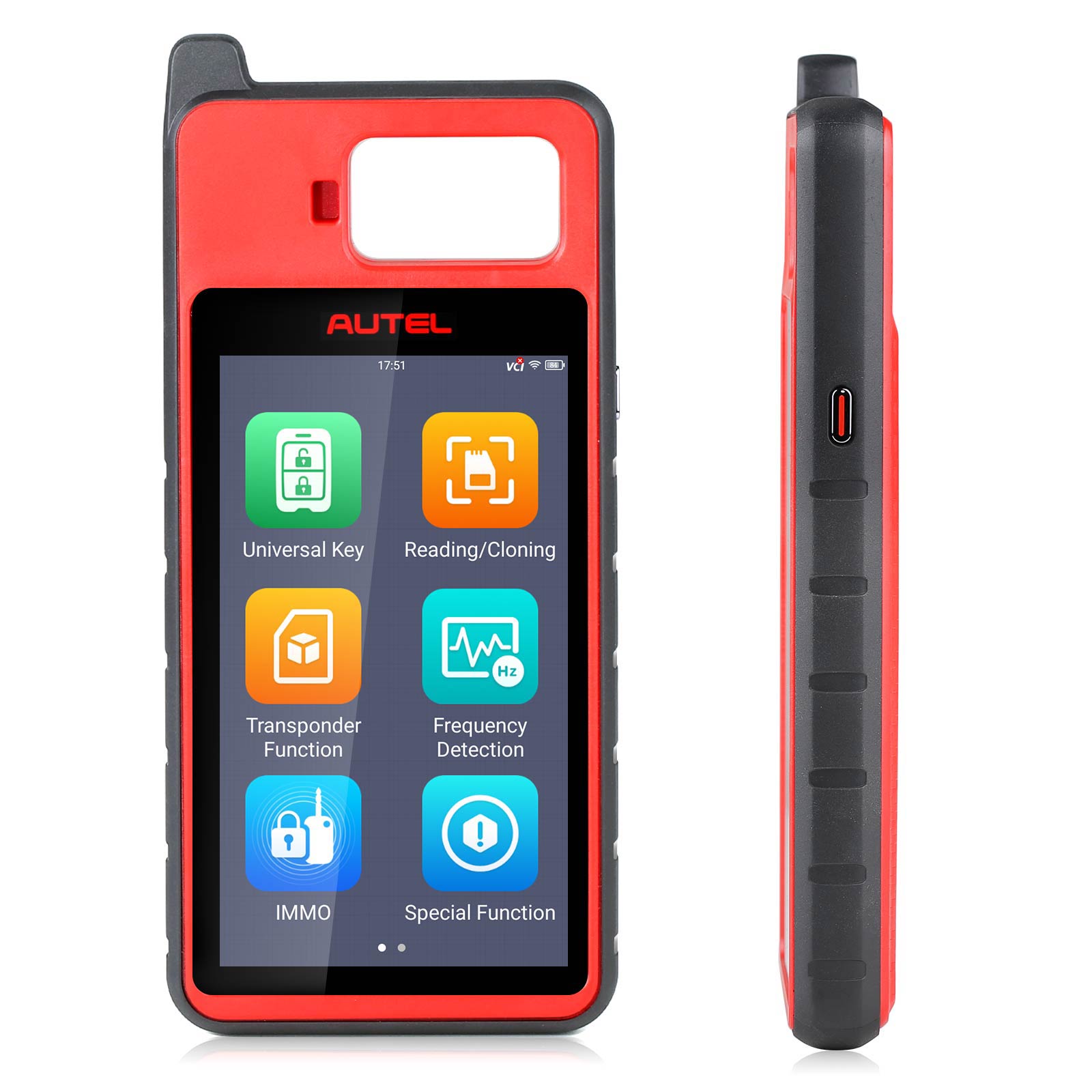

Dimensions (WxHxD): 200mm(7.9”) x 89 mm (3.5”) x 22 mm (0.87")
Weight: 352.7g (0.8 lb)
Screen: 5.5-inch screen with 1280 x 720 resolution
Processor: Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Operating System: Android™   9.0
Memory: 2GB RAM/64GB on-board memory
Camera: 8 megapixels
Connection: Wi-Fi  Bluetooth 5.0 USB 2.0 type C
Battery: 4950mAh lithium-polymer battery

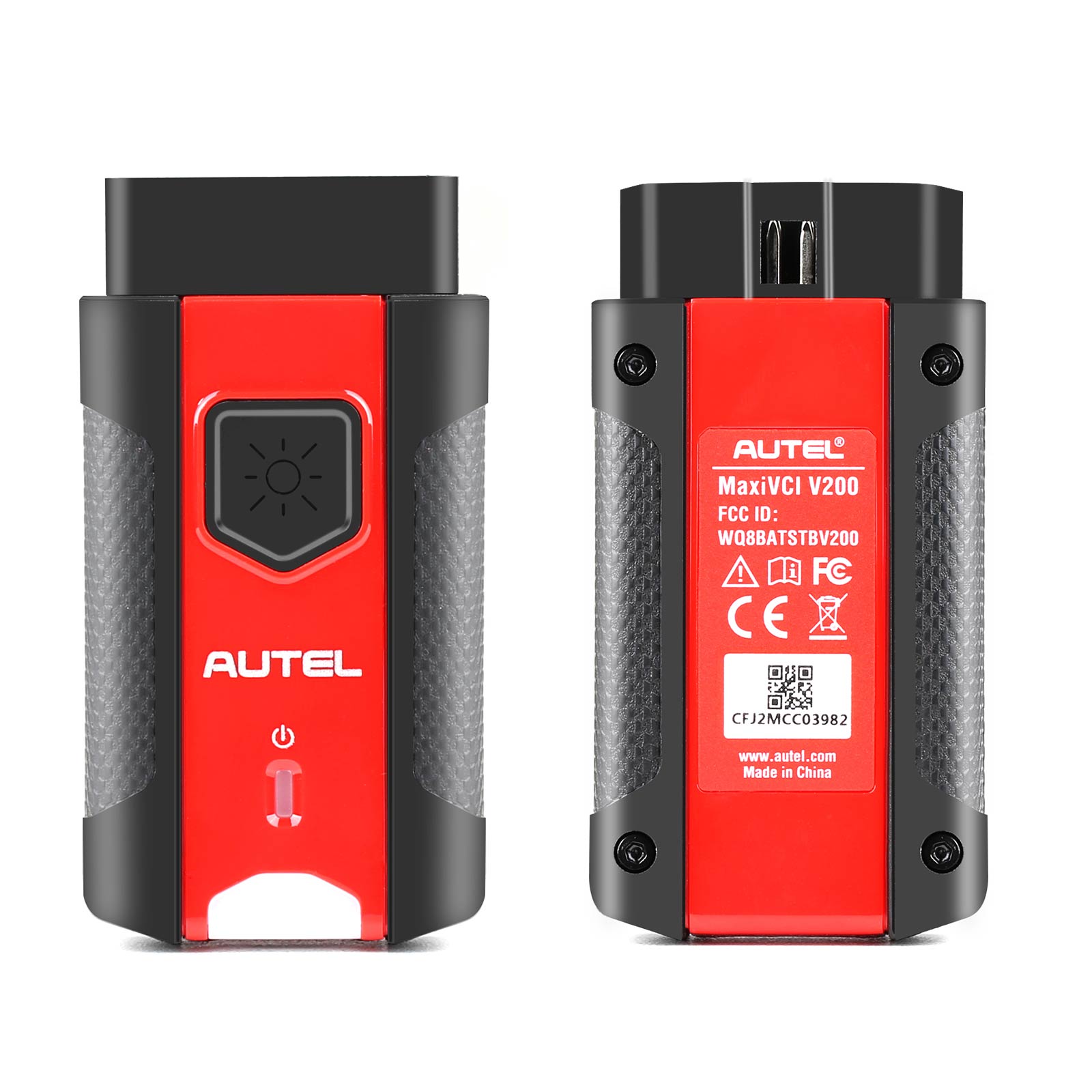

VCI: V200
Input: 5V/2A
Sensor: Ambient light sensor
Audio Input/Output: MIC: supported Speaker: supported
Operating Temp: -10 to 45°C (14 to 113°F)
Storage Temp: -20 to 60°C (-4 to 140°F)

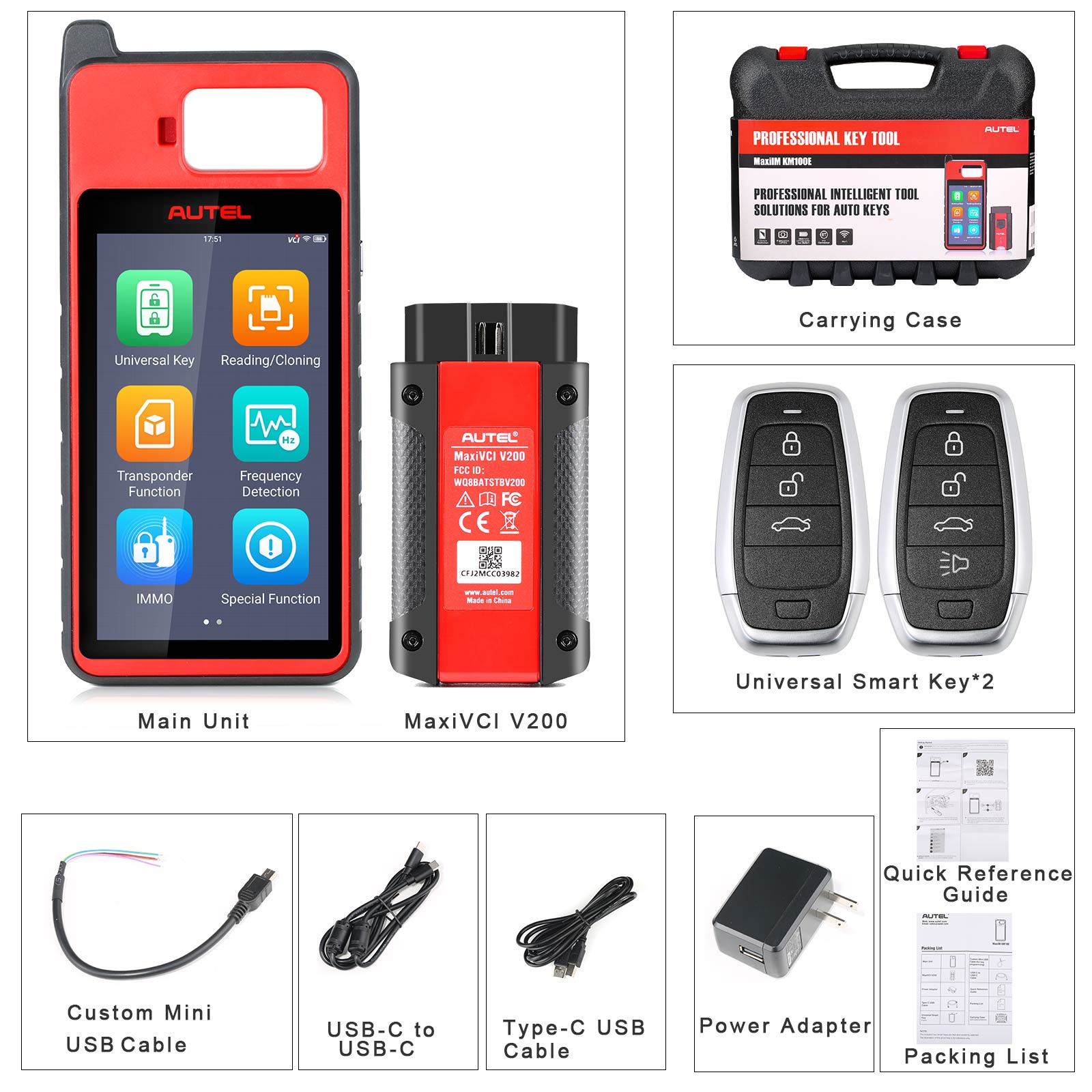

KM100E Package Includes:

1pc x KM-100E Universal Key Generator
1pc x OBD Adapter

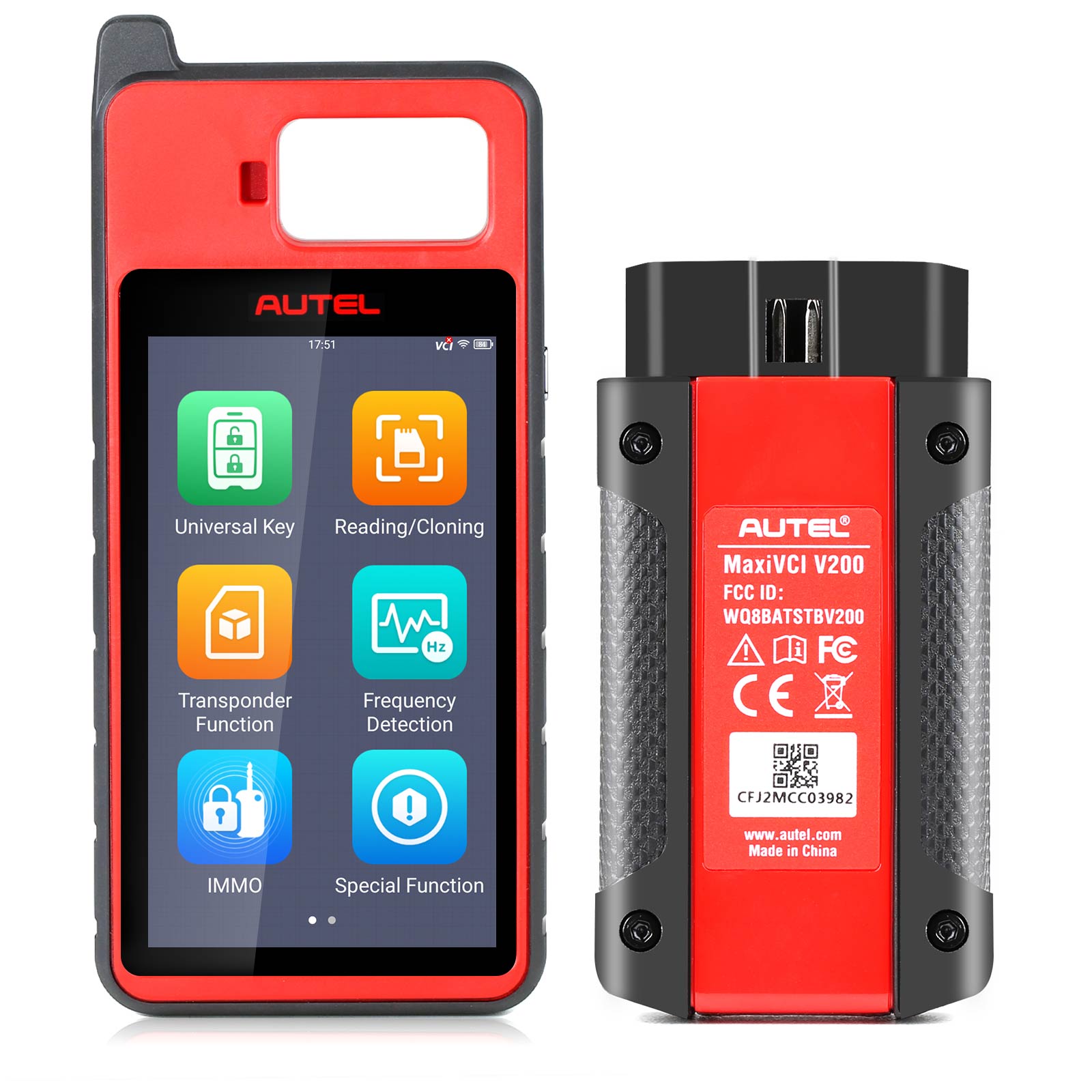

1pc x VCI
2pcs x Universal Keys

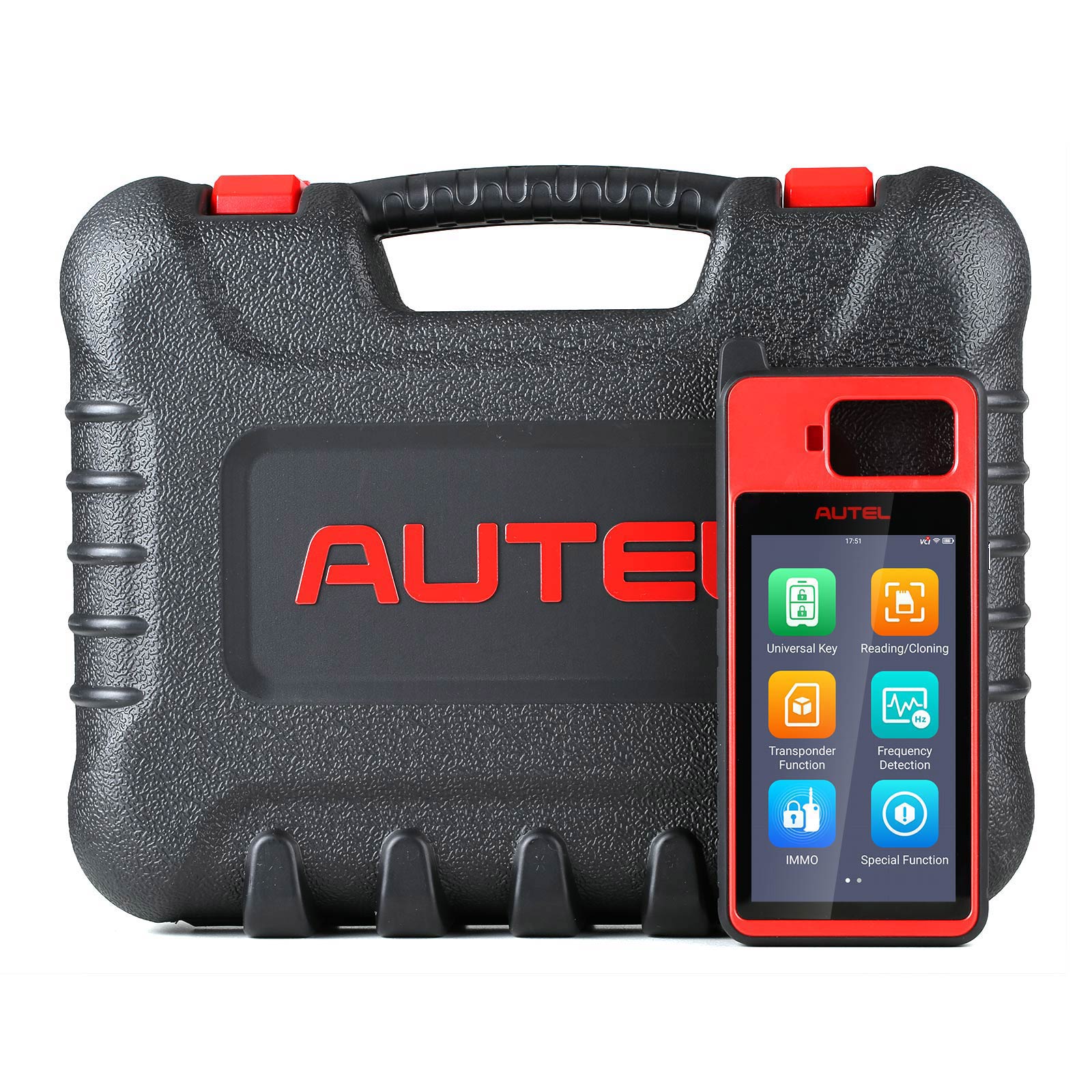

1pc x Hard Shell Carrying Case



---
