YANHUA ACDP Module 21 for VW/Audi Gearbox Mileage Correction with License A605

Product Description

Yanhua Mini ACDP Module 21 for VW/Audi Gearbox Mileage Correction

Software License Number: A605
Software Licensing Functions: Volkswagen Audi gearbox mileage modification


ACDP Module 21 Introduction:

Yanhua ACDP VW/Audi gearbox mileage correction module 21 is a module that is used to correct gearbox mileage for Volkswagen and Audi cars.


ACDP Module 21 Supported Models:

Volkswagen/Audi DQ200 (0AM/0CW), DQ250 (02E/0D9), DL382 (0CK), VL381 (0AW) gearbox mileage correction.


Yanhua ACDP Module 21 Features:

1. Can rapidly OBD identify the gearbox model.
2. Using a special interface board to the plug-in car to correct the mileage, not removing the TCM from the car.

Wiring Diagram for Reference:

Take VW DQ200 (0AM/0CW) as an example.

1. Please confirm the model and serial number.

2. Please prepare ACDP, OBP+ICP adapter, interface board and VAG.

3. Connect the interface board correctly to the VAG interface as shown.

4. Connect the CAN resistor.

5. Connect ACDP, OBP+ICP adapter, interface board and VAG.

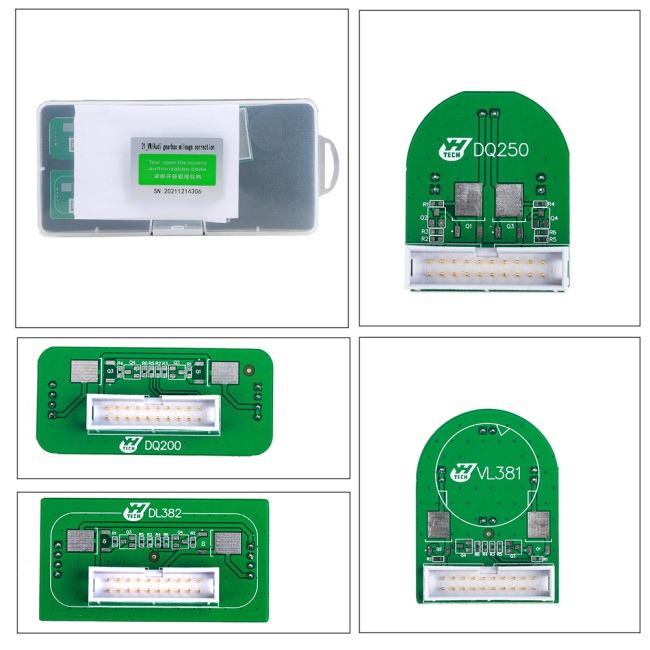

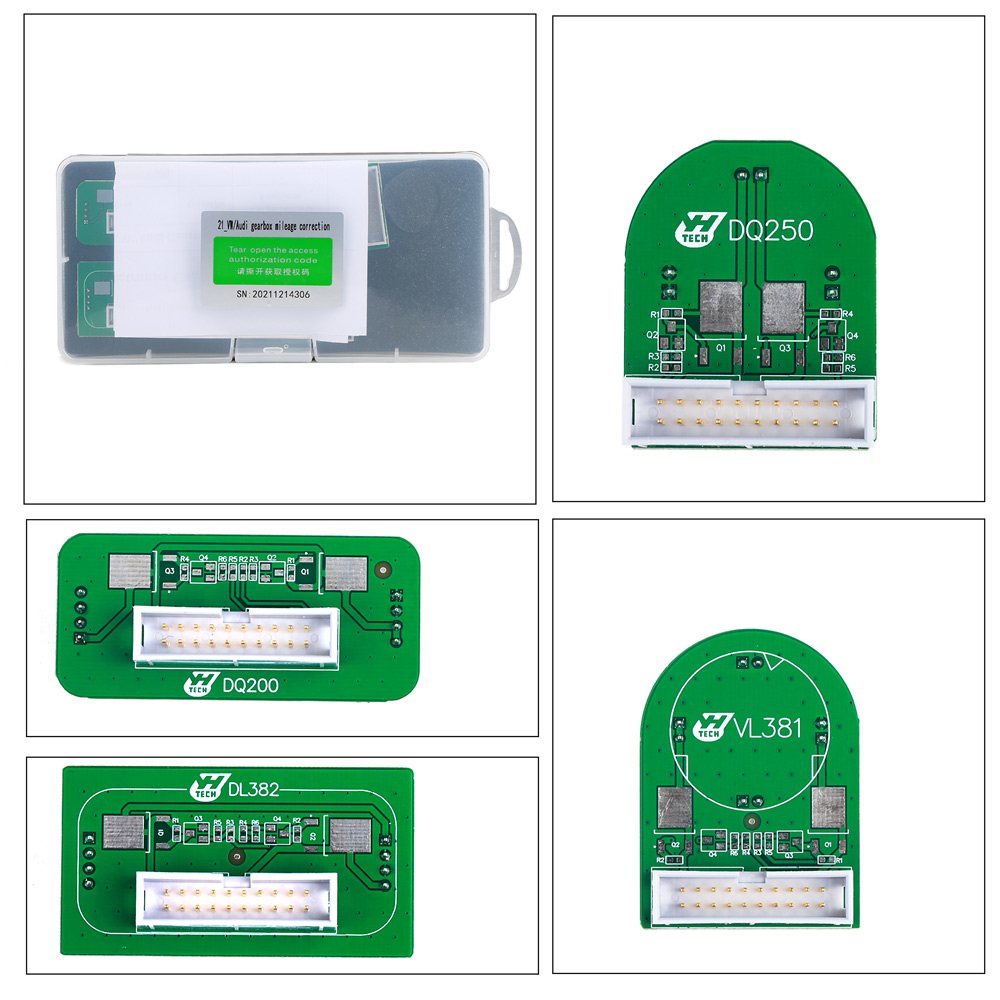

ACDP Module 21 Package List:

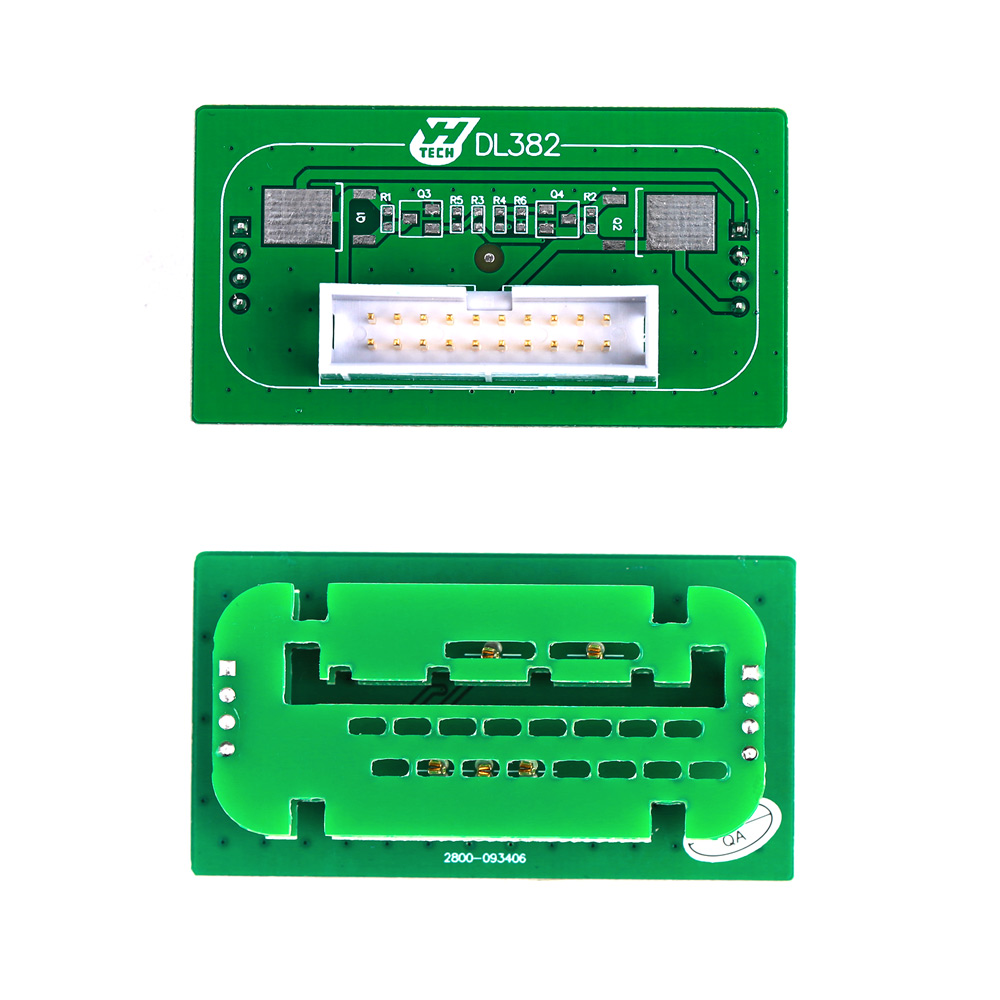

1PC x DL382 interface board

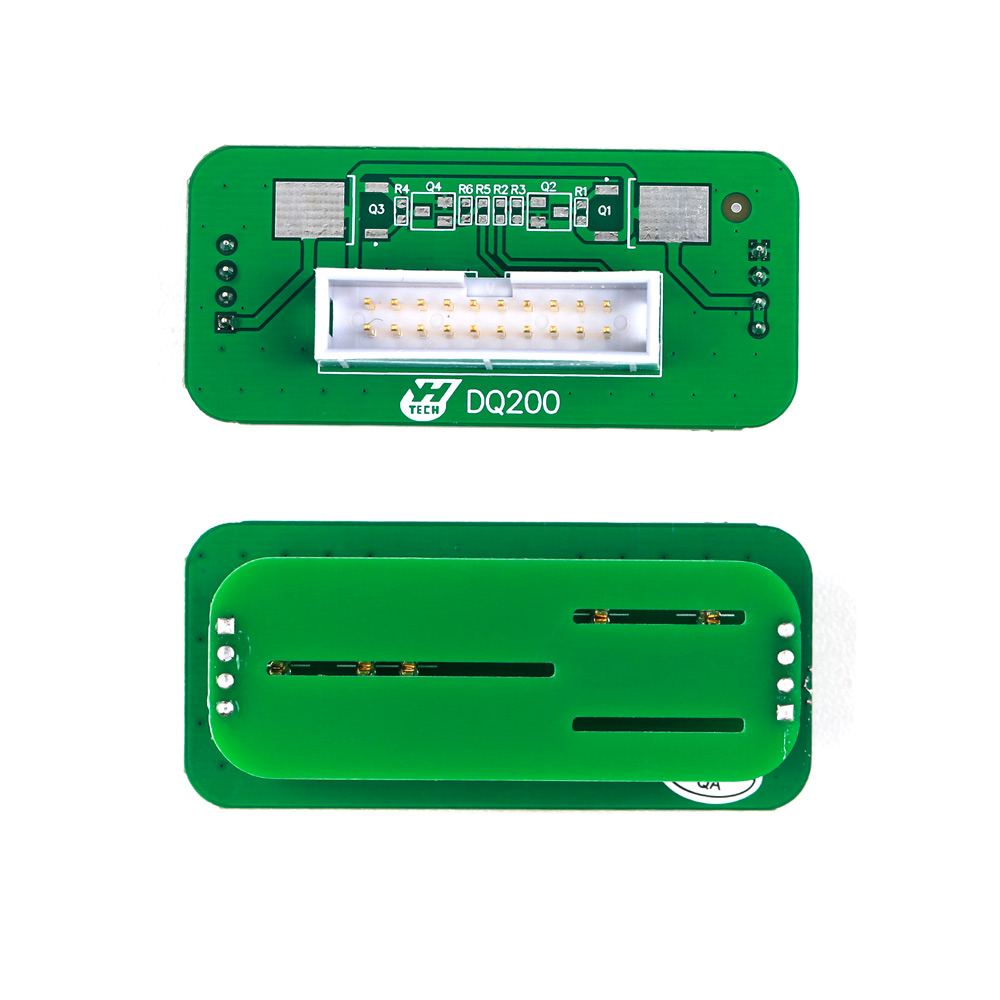

1PC x DQ200 interface board

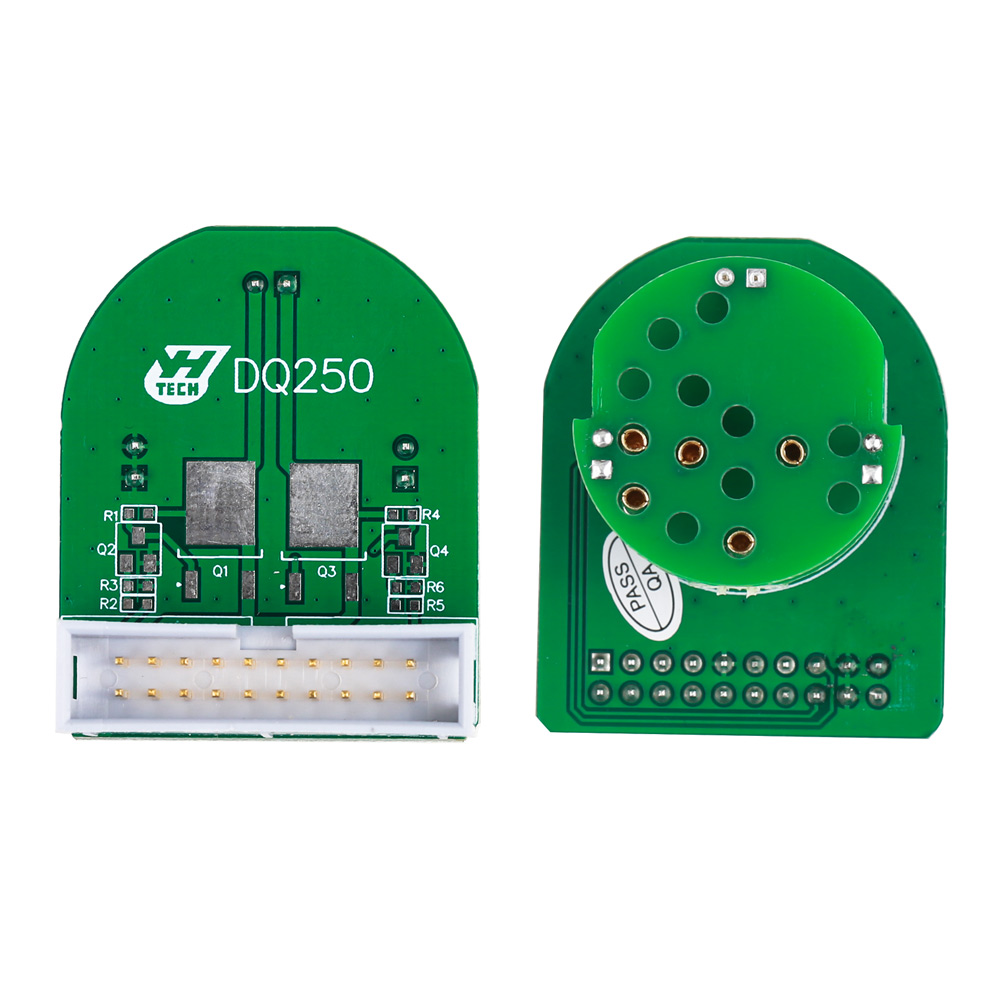

1PC x DQ250 interface board

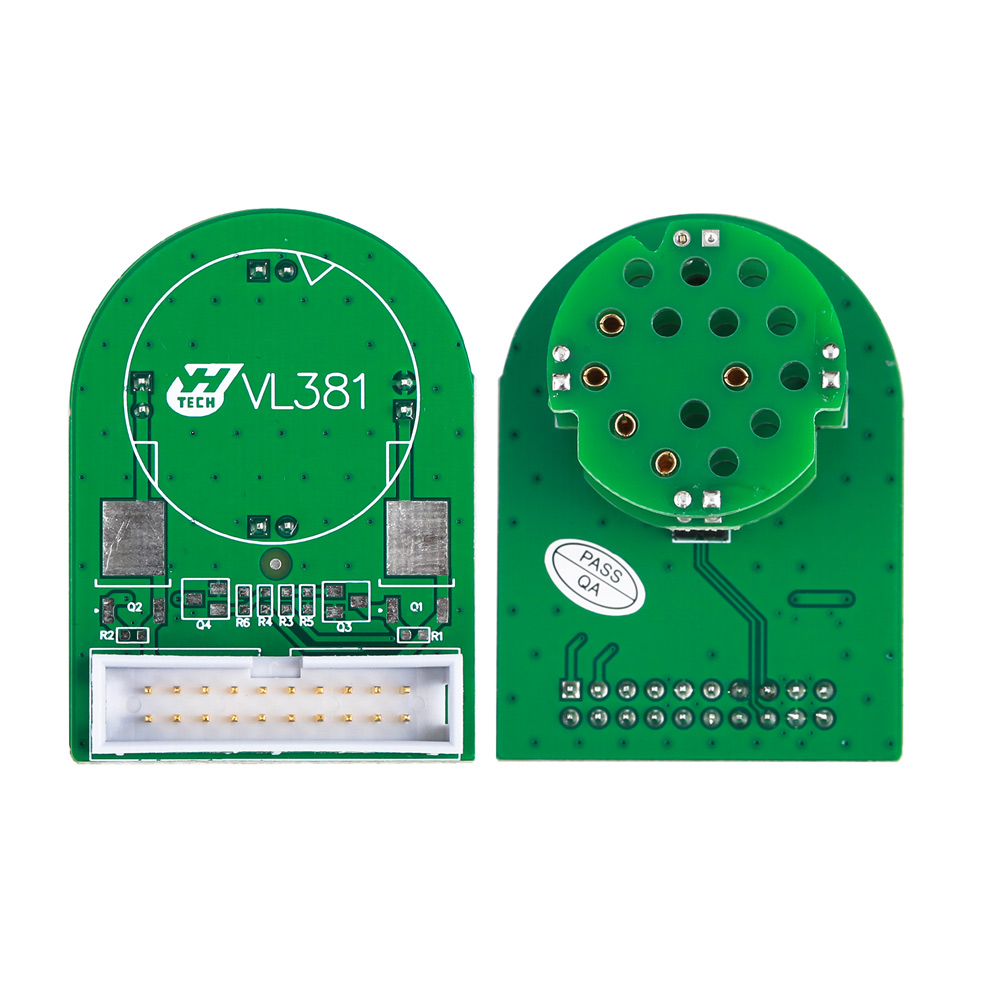

1PC x VL381 interface board


---
