YANHUA ACDP Module 22 GM 6T/6L Gearbox Clone Module

Product Description

Yanhua Mini ACDP Module 22 GM 6T/6L Gearbox Clone

Software License Number: A400
Software Licensing Functions: Universal 6T/6L gearbox computer clone
Work on Both ACDP 1 and ACDP-2


ACDP Module 22 features:

Use a special interface board to replace the wiring, to avoid the wrong connection.
Simple and efficient, plug and play, safe and reliable.


ACDP Module 22 Supports Models:

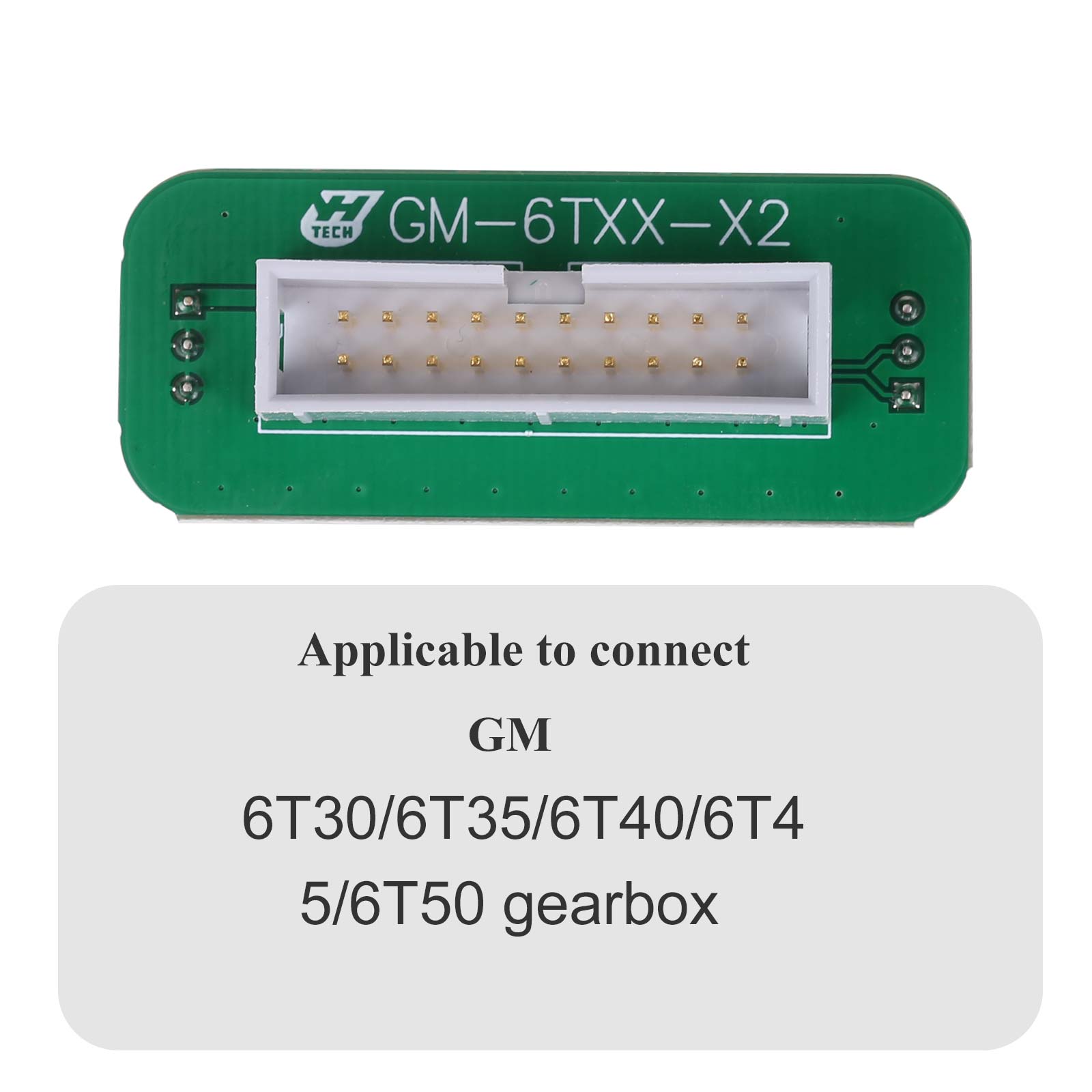

1. Support GM 6T30/6T35/6T40/6T45/6T50 gearbox clone.
2. Support GM 6T70/6T75/6T80 gearbox clone.

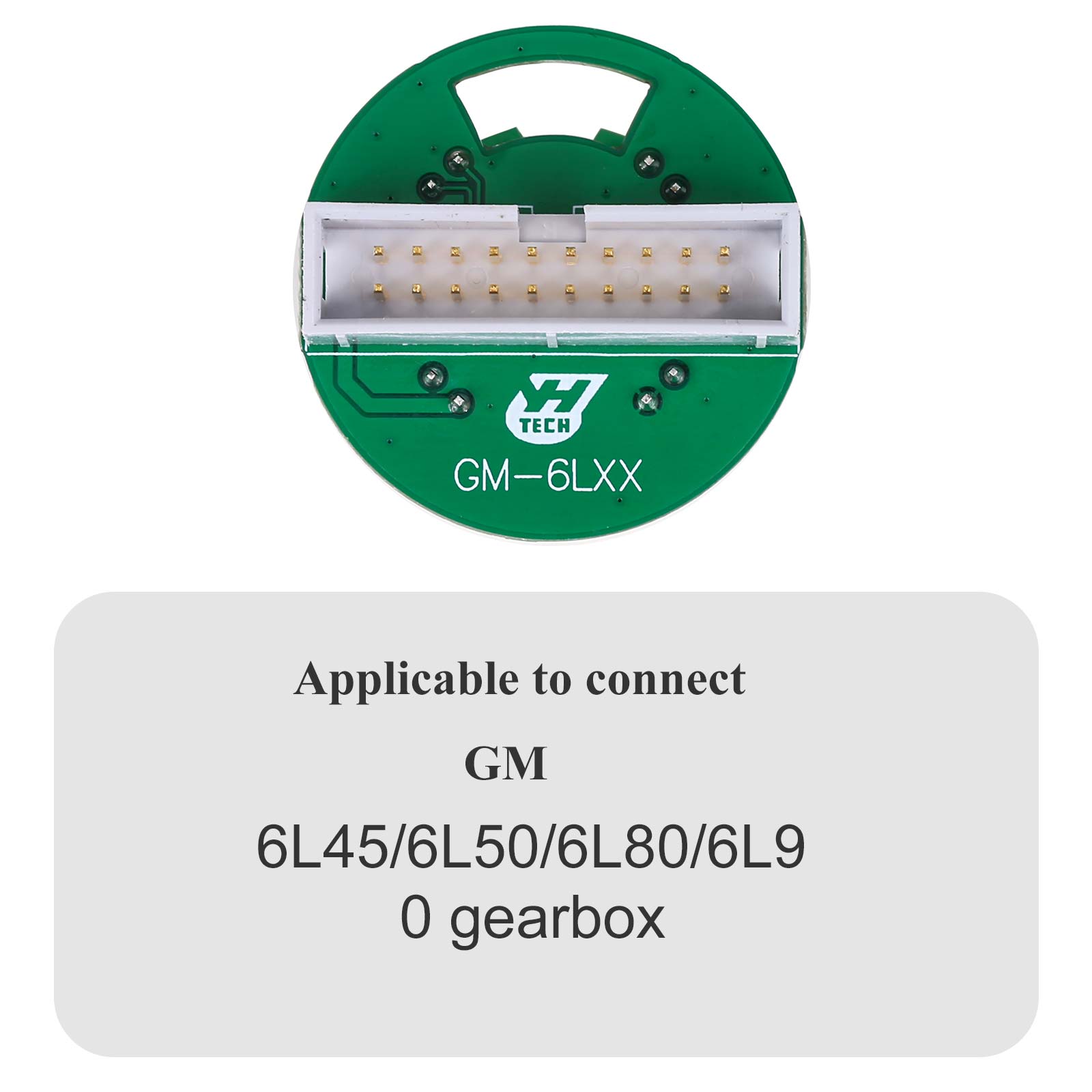

3. Support GM 6L45/6L50/6L80/6L90 gearbox clone.


Gearbox clone Connection diagram:

1. GM 6T30/6T35/6T40/6T45/6T50 gearbox clone

Please confirm the model and hardware structure of the gearbox.

Step 1. Please prepare ACDP, OBP+ICP adapter, interface board and gearbox.

Step 2. Connect the interface board correctly to the gearbox interface as shown.

Step 3. Short the CAN resistor on the OBP+ICP adapter to the "CAN-R Join".

Step 4. Connect ACDP, OBP+ICP adapter, interface board and gearbox.

2. GM 6T70/6T75/6T80 gearbox clone

Please confirm the model and hardware structure of the gearbox.

Step 1. Please prepare ACDP, OBP+ICP adapter, interface board and gearbox.

Step 2. Connect the interface board correctly to the gearbox interface as shown.

Step 3. Short the CAN resistor on the OBP+ICP adapter to the "CAN-R Join".

Step 4. Connect ACDP, OBP+ICP adapter, interface board and gearbox.

3. GM 6L45/6L50/6L80/6L90 gearbox clone

Please confirm the model and hardware structure of the gearbox.

Step 1. Please prepare ACDP, OBP+ICP adapter, interface board and gearbox.

Step 2. Connect the interface board correctly to the gearbox interface as shown.

Step 3. Short the CAN resistor on the OBP+ICP adapter to the "CAN-R Join".

Step 4. Connect ACDP, OBP+ICP adapter, interface board and gearbox.

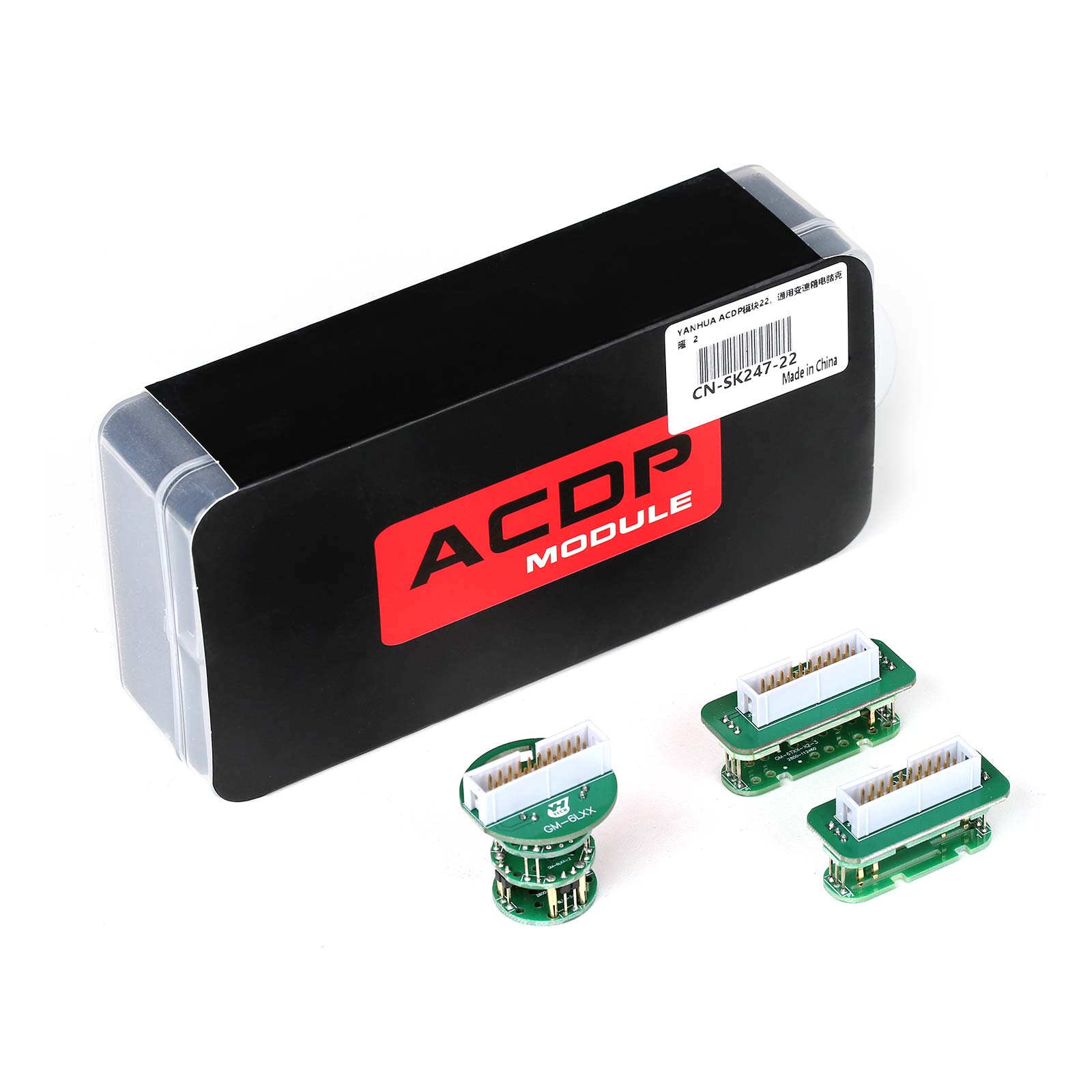

ACDP Module 22 Package List:

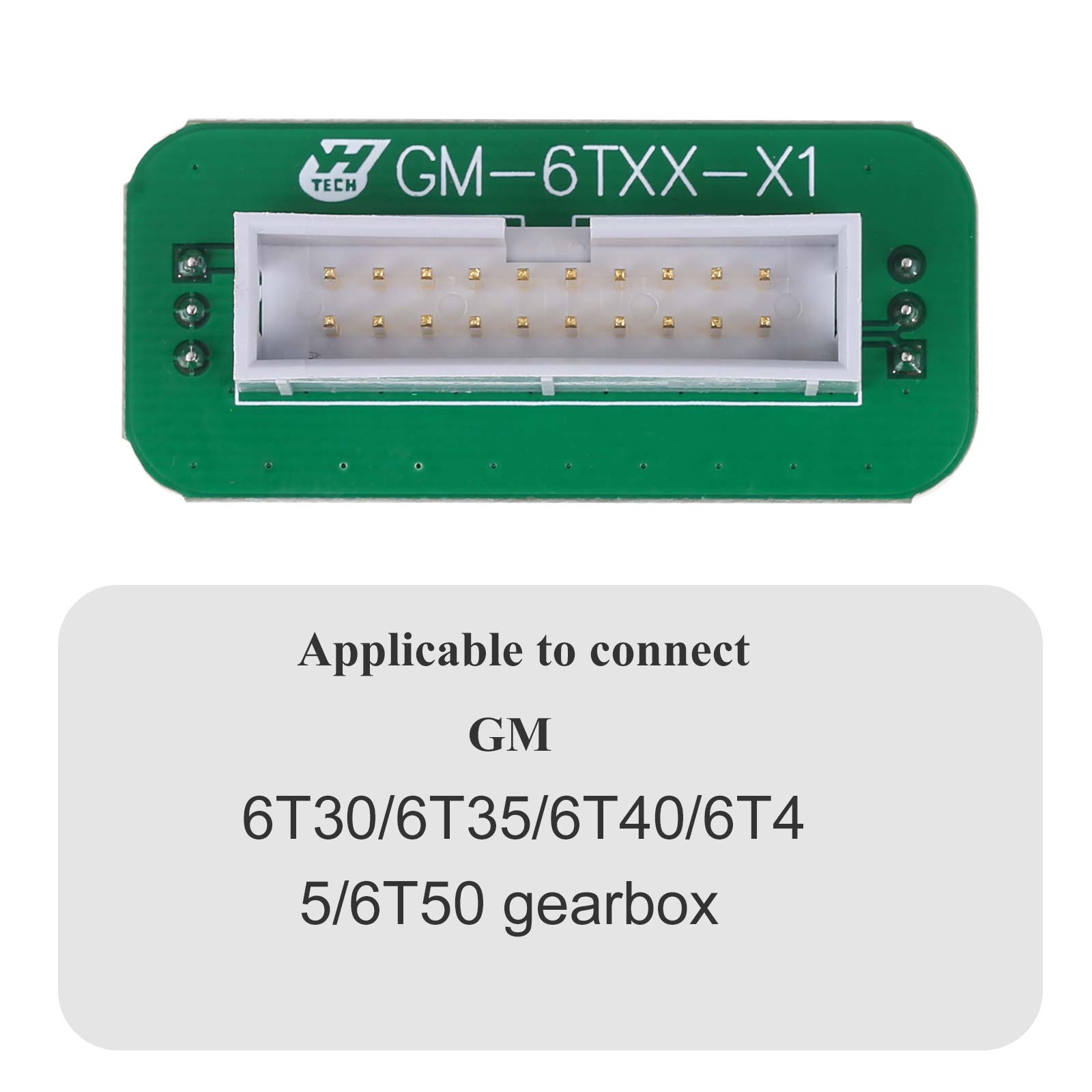

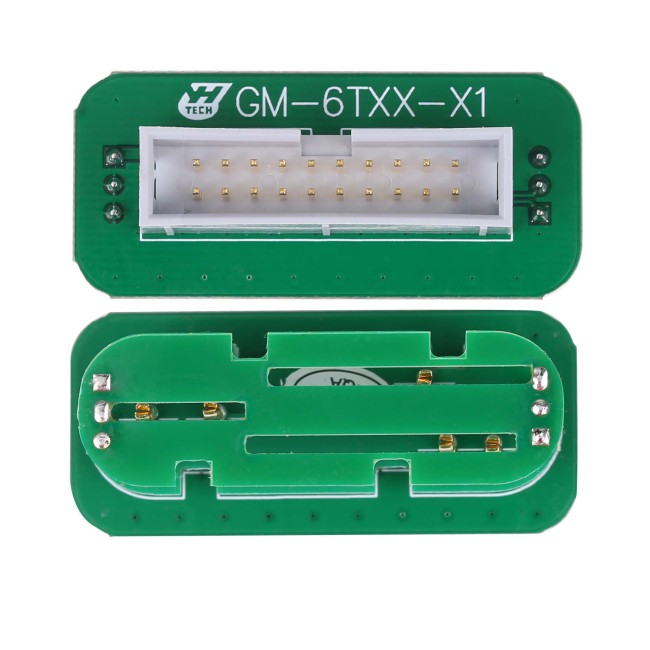

1PC x GT-6TXX-X1 interface board

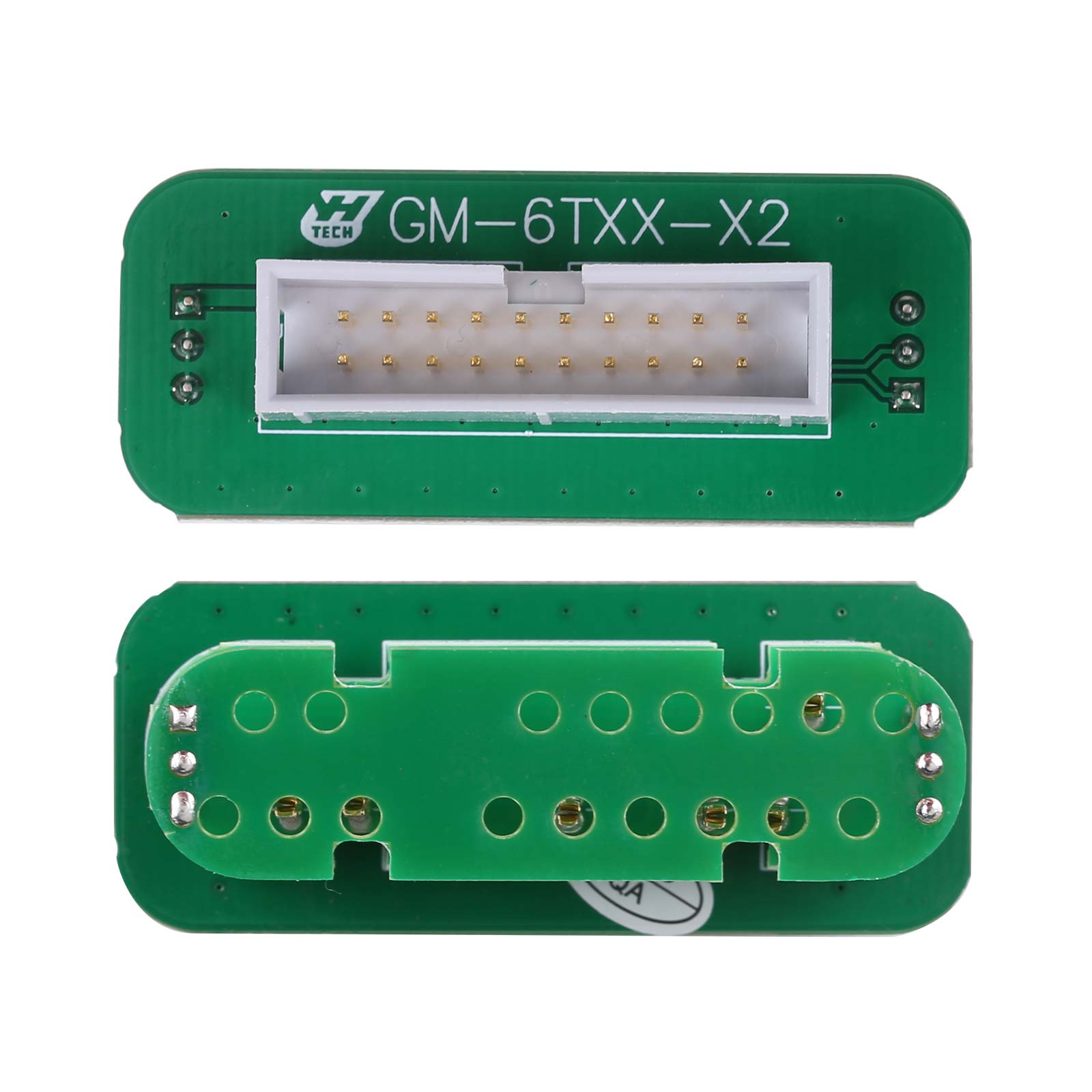

1PC x GT-6TXX-X2 interface board

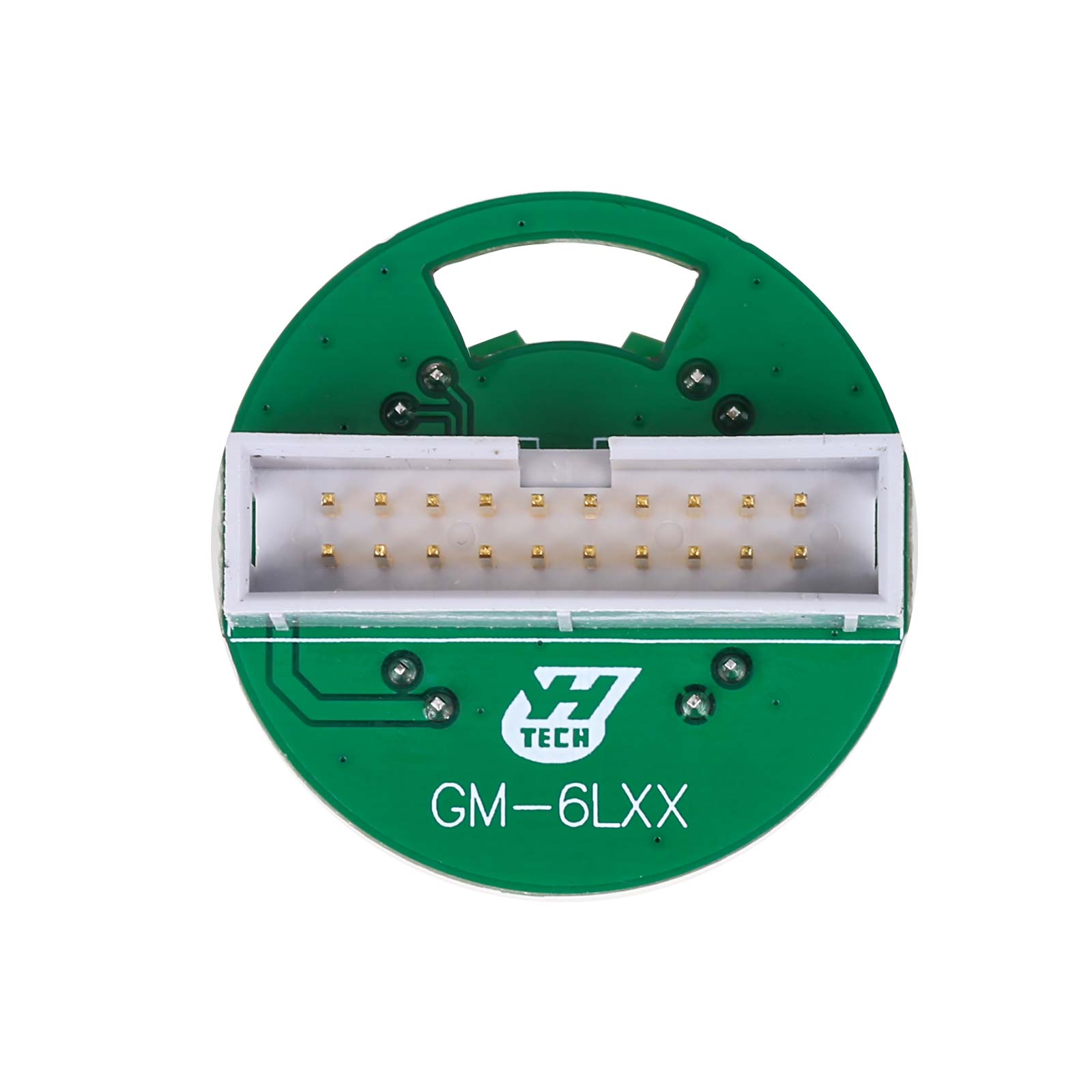

1PC x GT-6LXX interface board



---

Contact Us:

Email: Sales@OBDStore.eu

WhatsApp : +86 133 7268 9373

Shipping Policy

1. Czech and UK Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.
EU Check: Ship from Czech
UK Check: Ship from UK
2. DHL Shipping: Suitable for customers worldwide. Will take 3-5 working days.
3. Yanwen Express: TAX Free for European Countries. Will take 7-10 working days normally.

More shipping details check.
