YANHUA ACDP Module 28 ZF-9HP Gearbox Computer Clone with Authorization A703 Support Jaguar/ Land Rover/ Chrysler/ Dodge/ Fiat/ Honda/ Jeep





Support Jaguar, Land Rover, Chrysler, Dodge, Fiat, Honda, Jeep and other models of the ZF-9HP gearbox computer BOOT mode clone.





1. The interface board can be inserted blindly to align with the boot test point, no need magnifying glass for calibration or complex probe workbench operation.

2. BOOT test point with pin detection function, data read and write safe and reliable.

3. The special interface board replaces the cable, which is simple, efficient, safe and reliable.

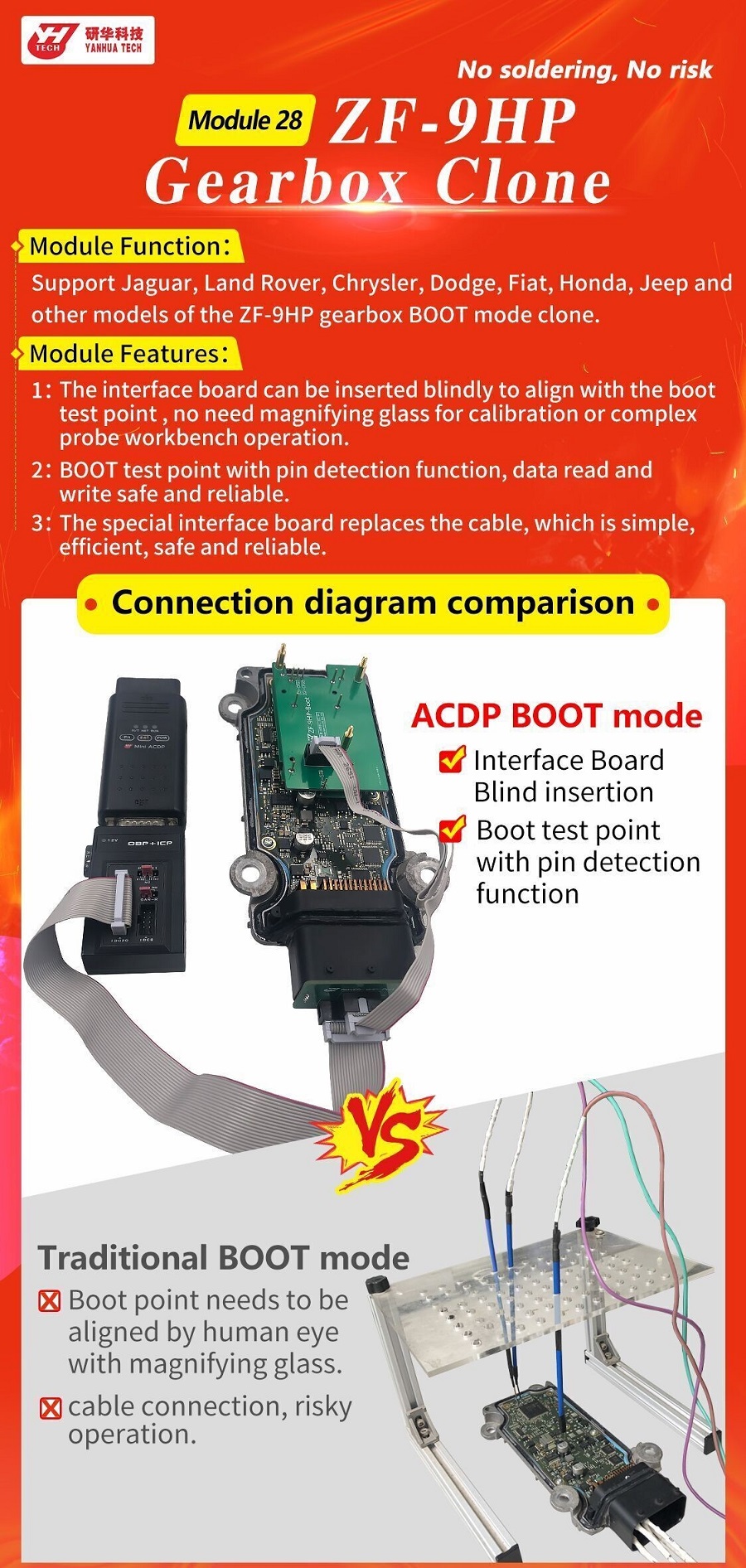

ACDP Module 28 Connection Diagram Details:

Step 1. Prepare ACDP host, OBP+ICP adapter, interface board, gearbox, and other accessories required for operation.

Step 2. Confirm the location and definition of the test points for ZF-9HP gearbox computer.

Step 3. Install the copper pillars.

Step 4. Install the ZF-9HP-BOOT interface board and lock it with copper pillars.

Step 5. Install the ZF-9HP-Port interface board to the gearbox interface.

Step 6. Connect the ZF-9HP-BOOT interface board and the ZF-9HP-Port interface board with 8PIN cable.

Step 7. Short the CAN resistor on the OBP+ICP adapter to the "CAN-R Join".

Step 8. Connect ACDP host, OBP+ICP adapter and ZF-9HP gearbox computer with 20PIN cable.

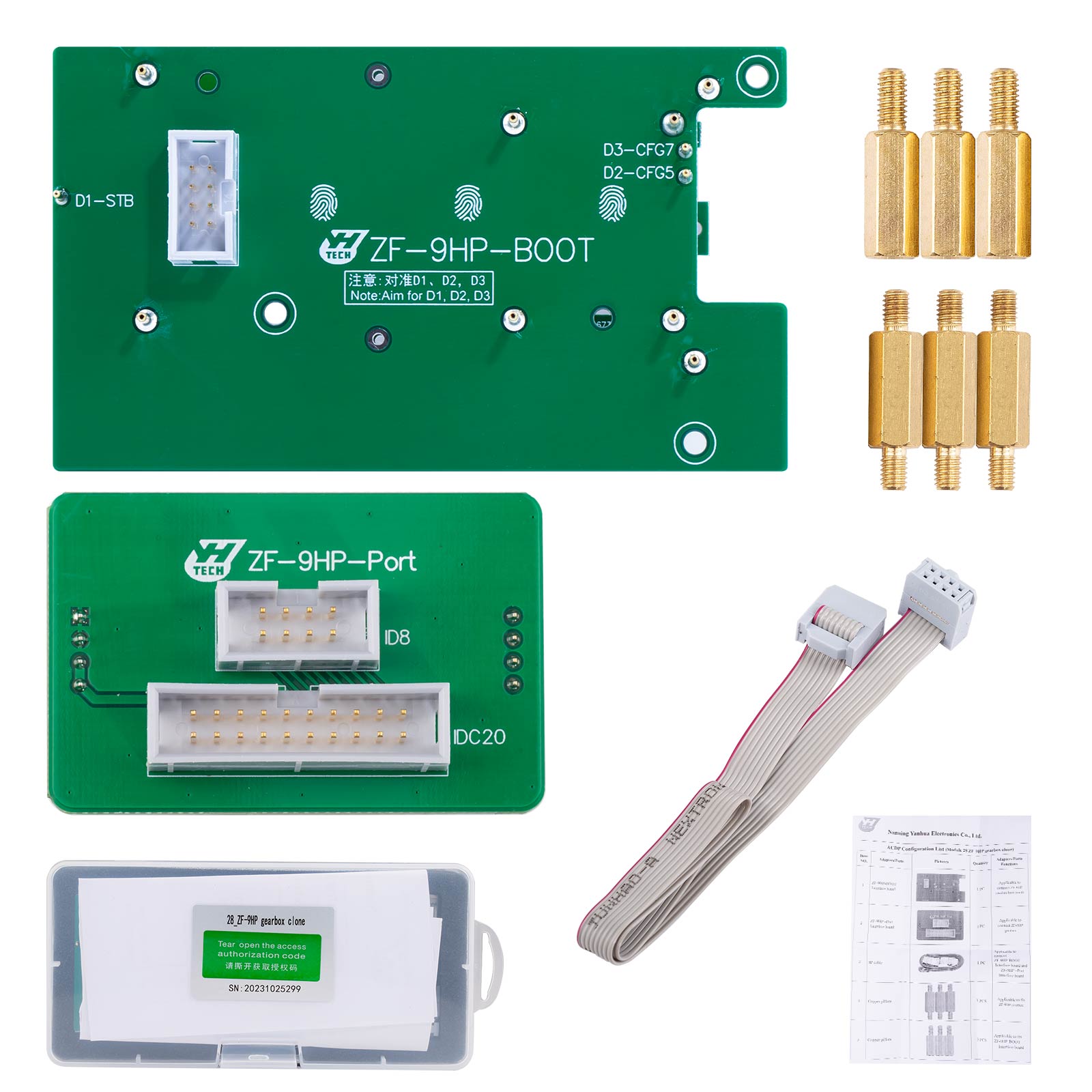

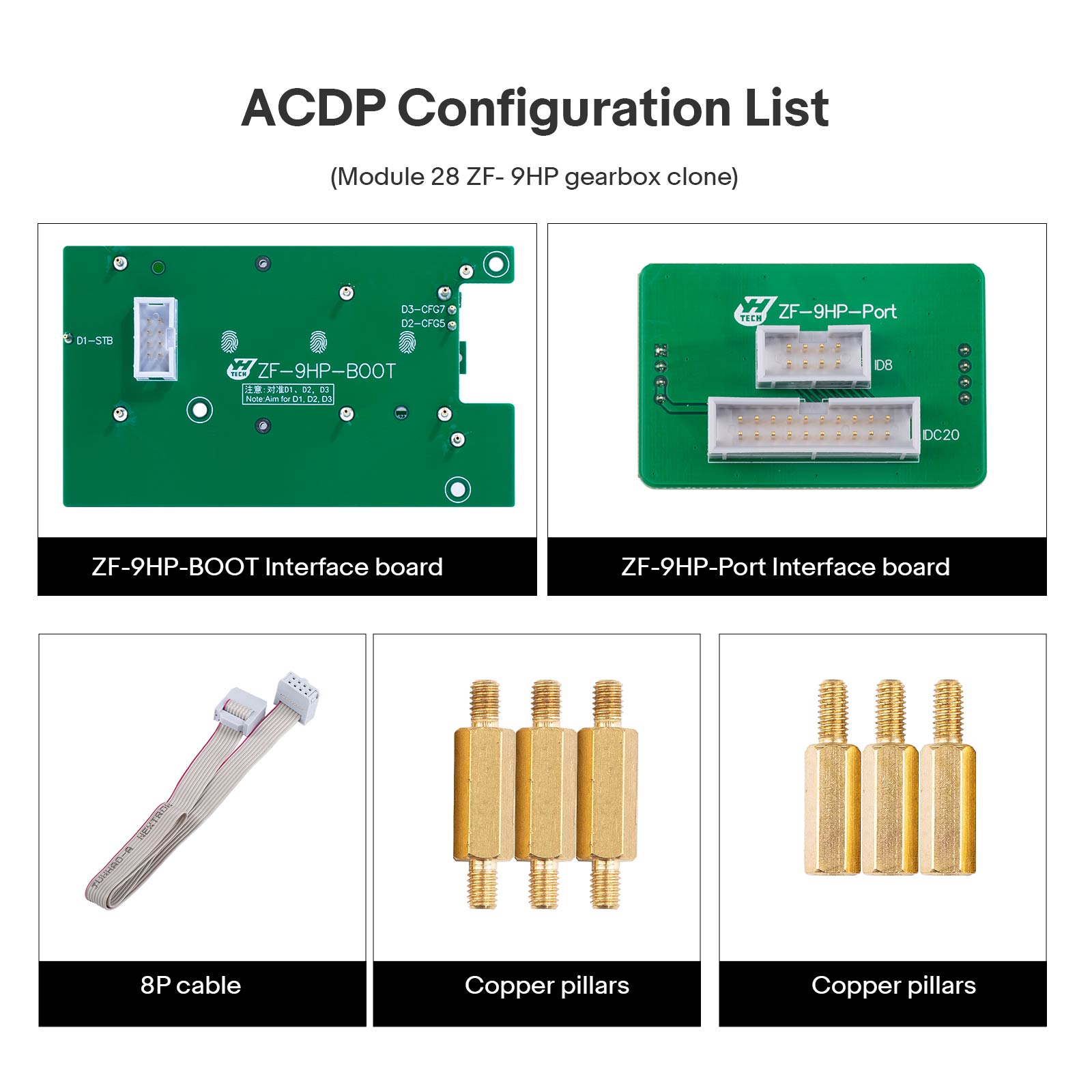

ACDP Module 28 Package list:

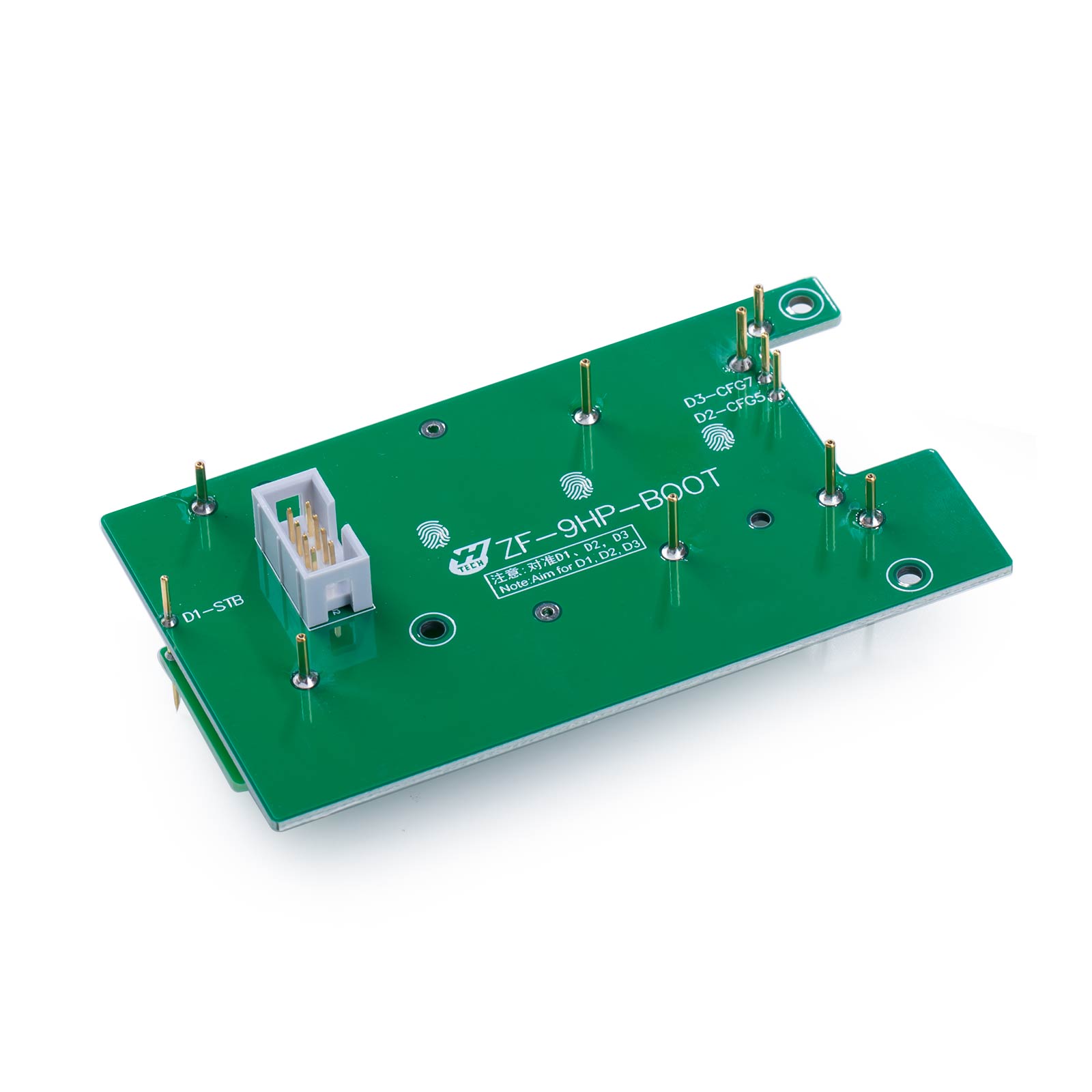

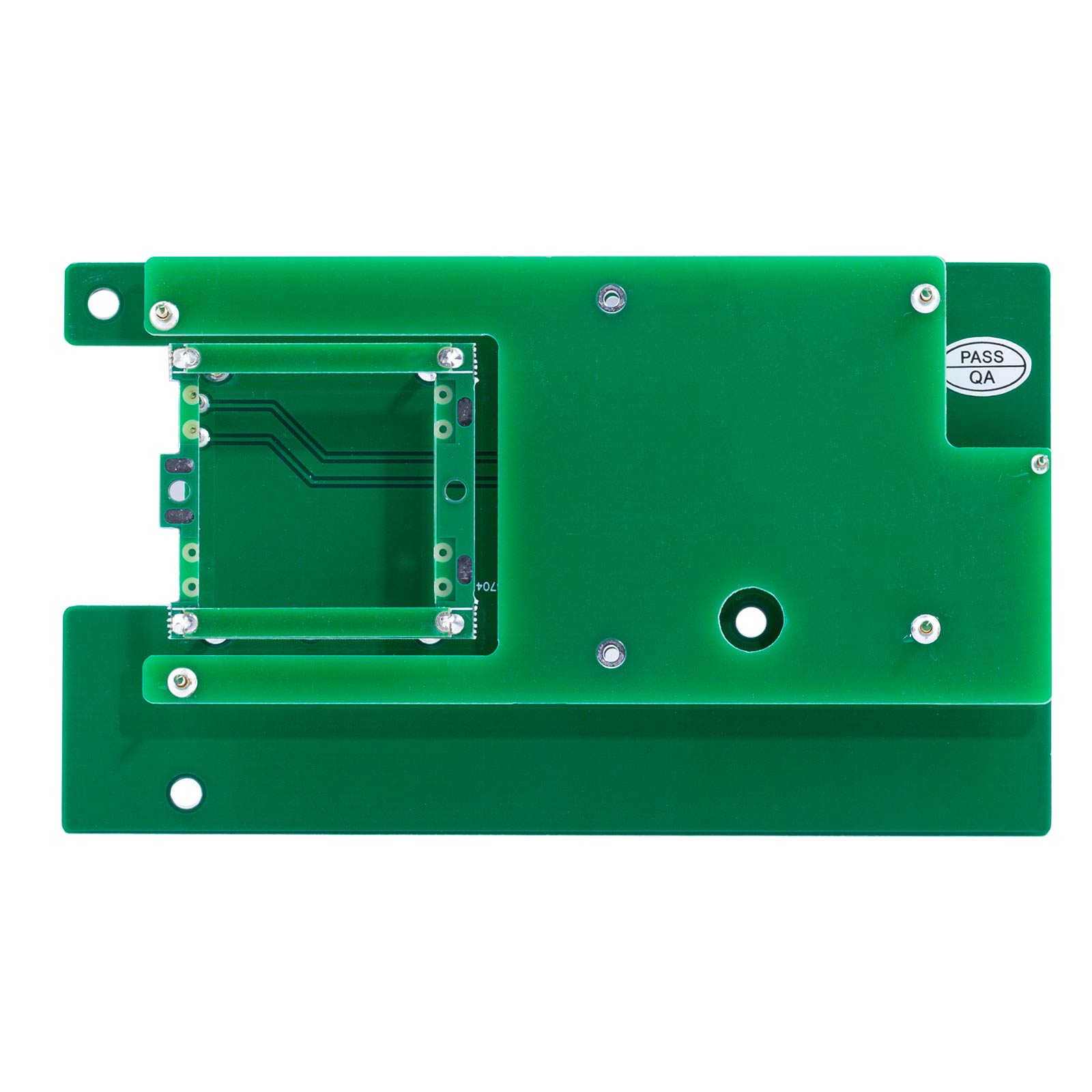

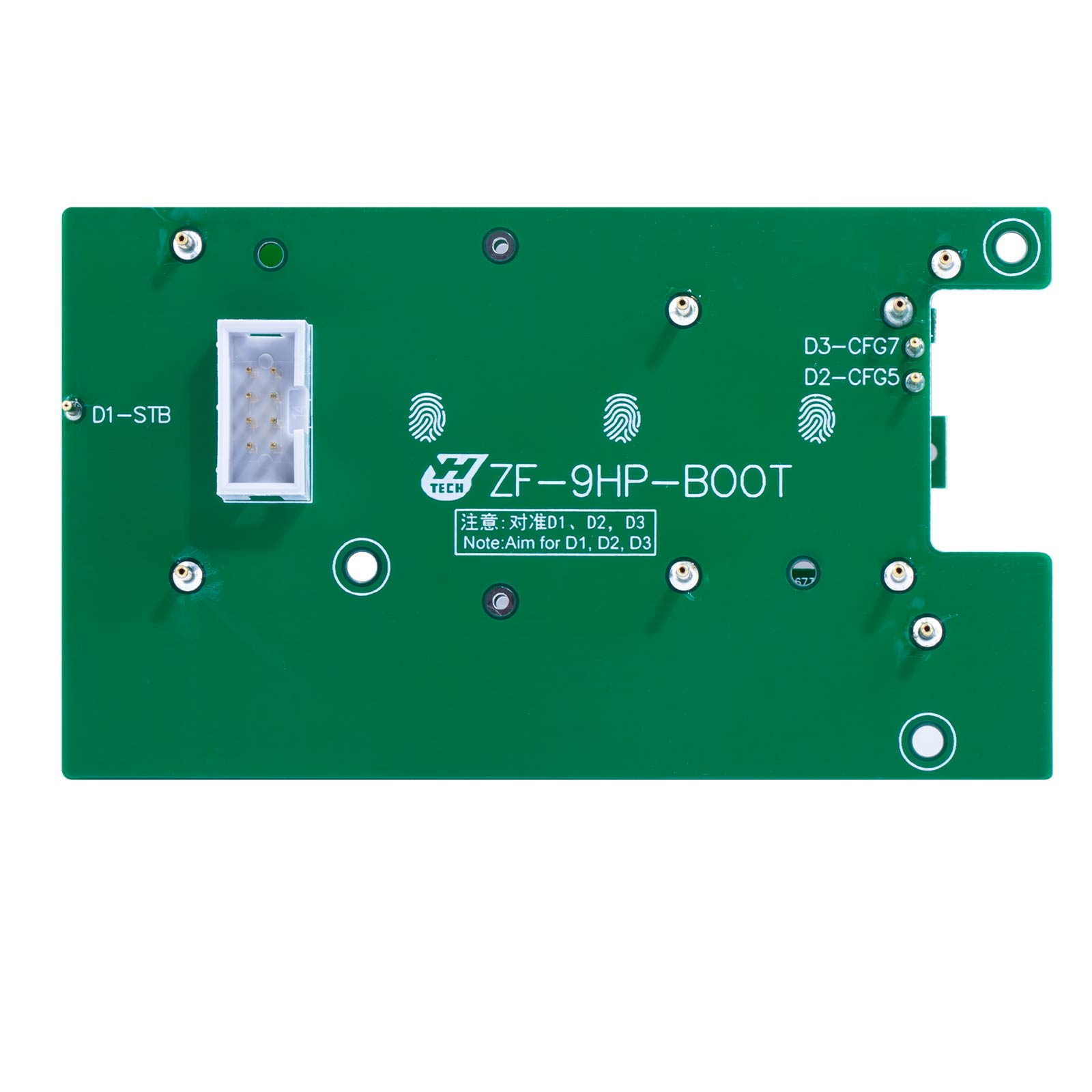

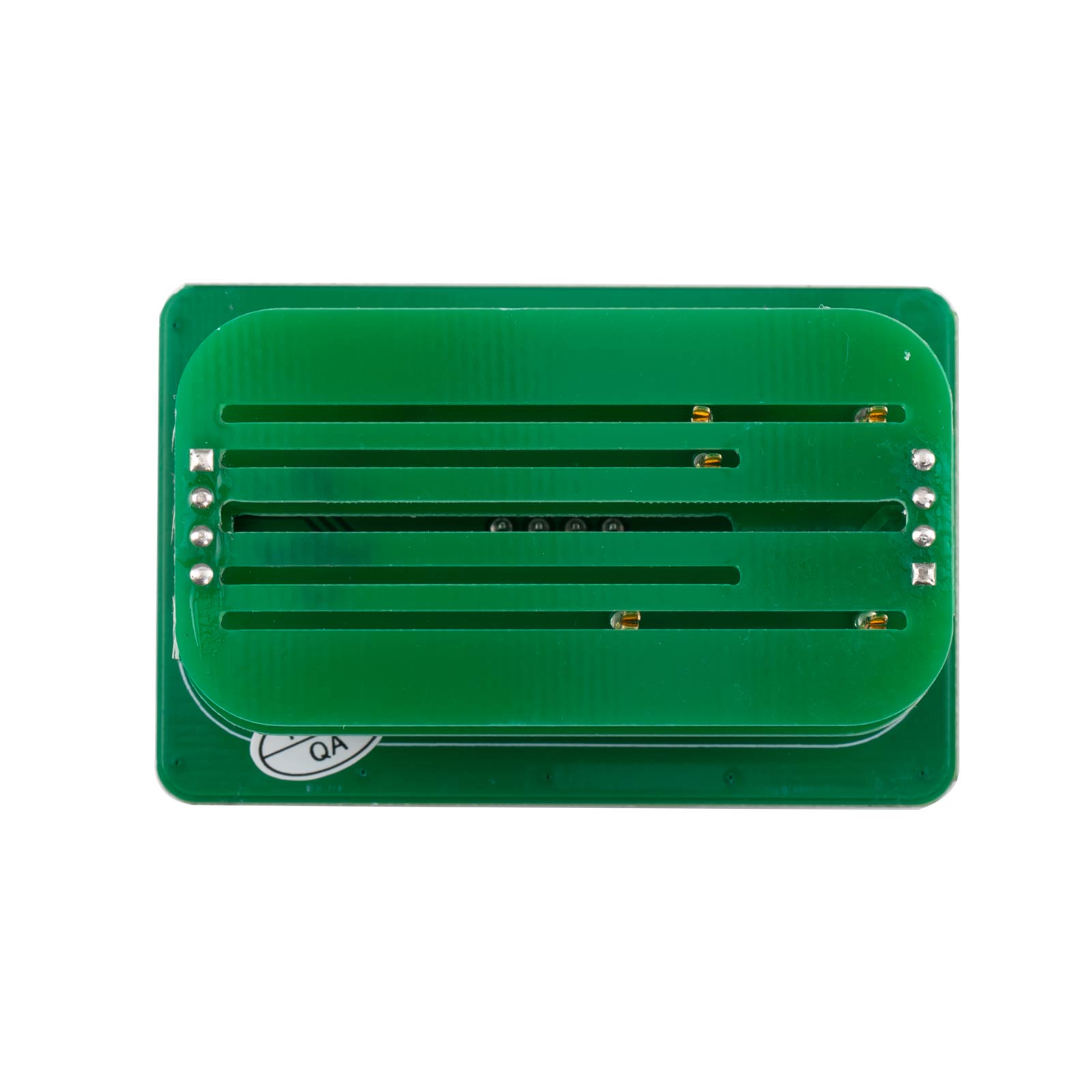

1pc x ZF-9HP-BOOT Interface Board

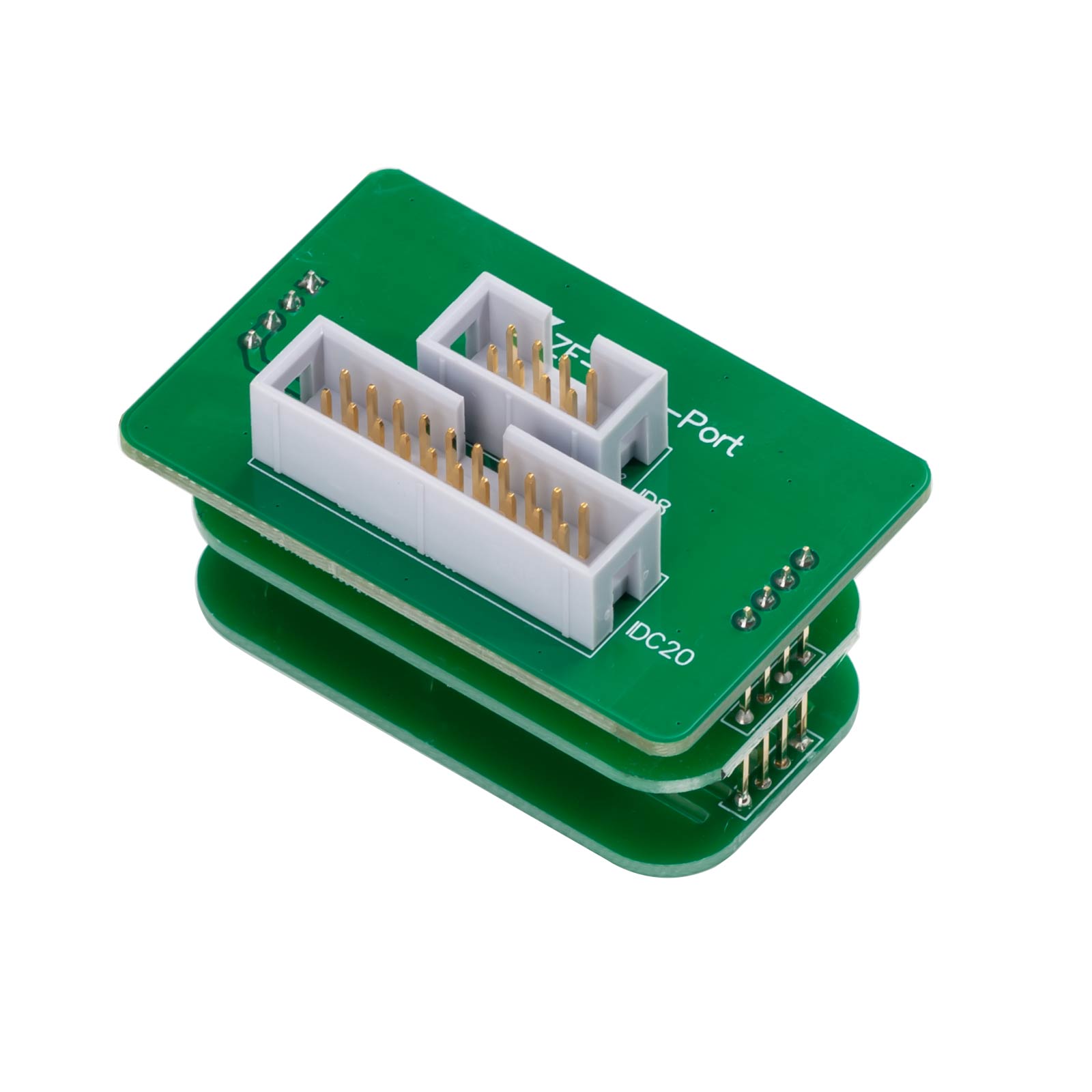

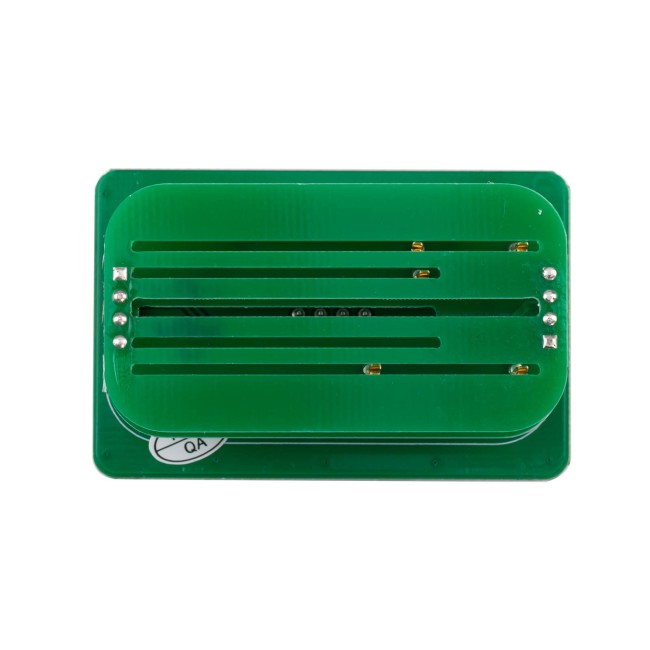

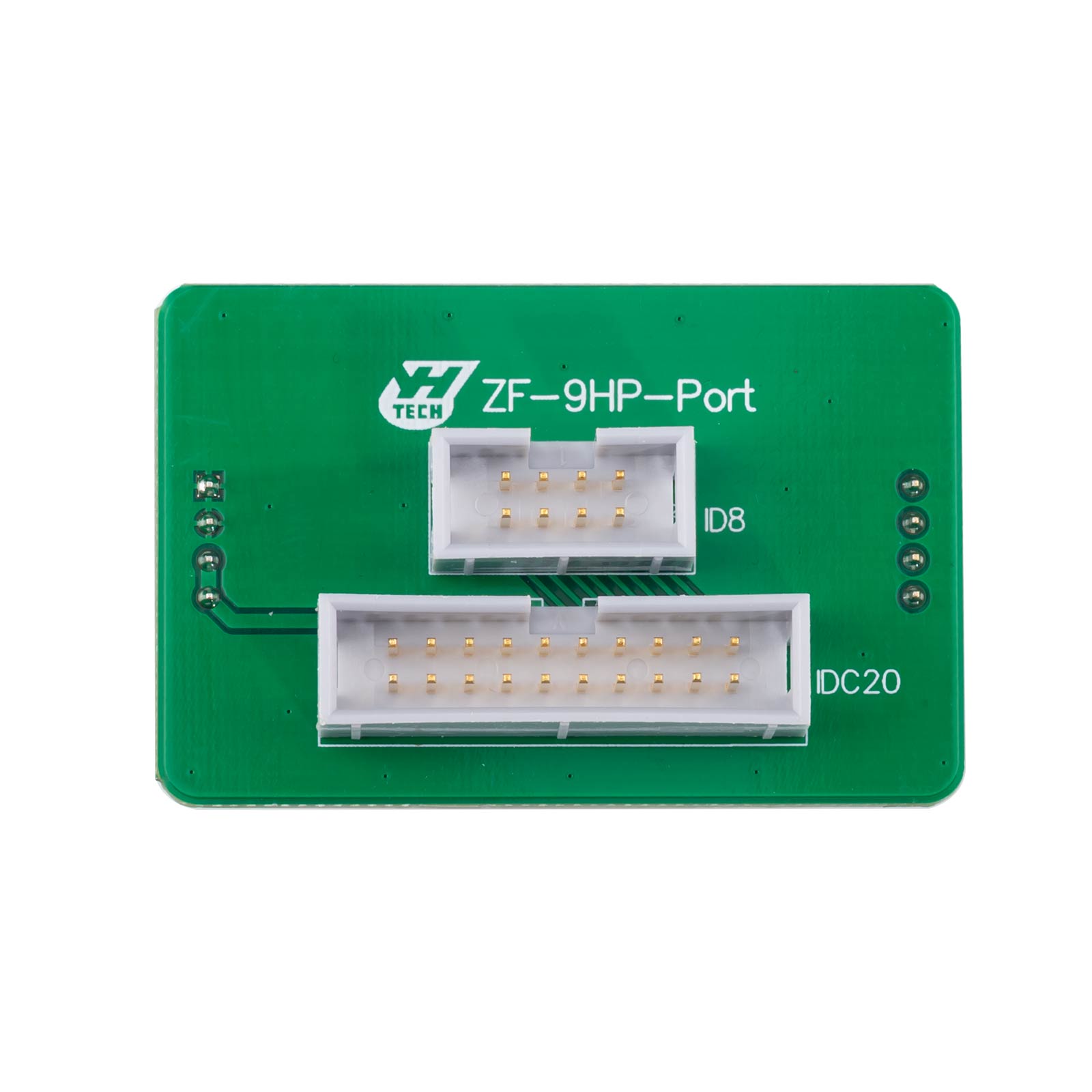

1pc x ZF-9HP-Port Interface Board
1pc x 8P cable
3pcs x Copper Pillars
3pcs x Copper Pillars
