YANHUA ACDP-1/ACDP-2 Module 25 for VW/AUDI 0DE Gearbox Mileage Correction

Product Description

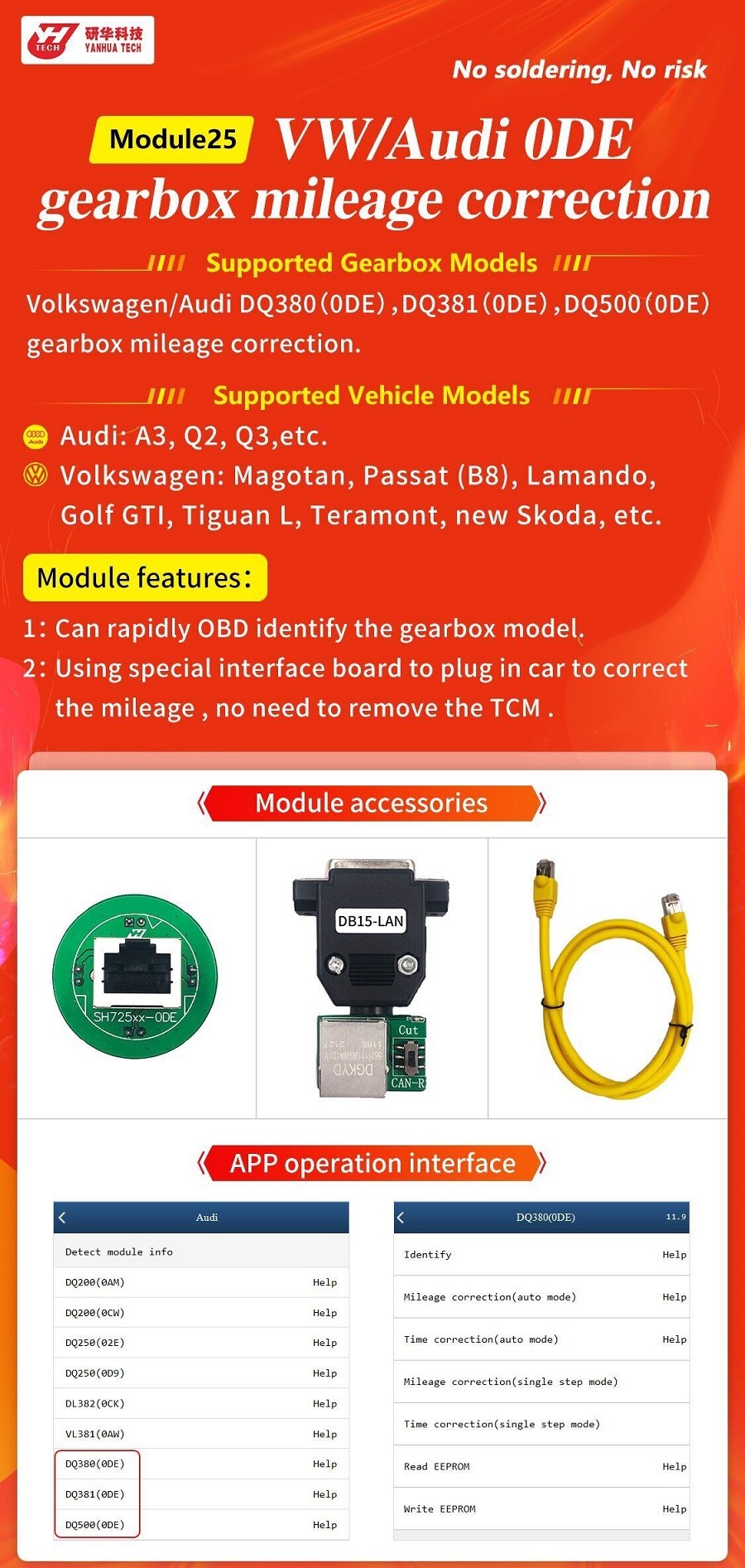

Yanhua Mini ACDP Module 25 for VW/AUDI 0DE Gearbox Mileage Correction

Software License Number: A606
Software Licensing Functions: Volkswagen Audi 0DE gearbox mileage calibration


ACDP Module 25 Support list:

Supported Gearbox Models:
Volkswagen/Audi DQ380(0DE), DQ381(0DE), DQ500(0DE)gearbox mileage correction.

Supported Vehicle Models:
Audi: A3, Q2, Q3, etc
Volkswagen: Magotan, Passat (B8), Lamando, Golf GTI, Tiguan L, Teramont, new Skoda, etc.


ACDP Module 25 features:

1. Can rapidly OBD identify the gearbox model
2. Using special interface board to plug in car to correct the mileage, no need to remove the TCM


Device connection operation steps:

Step 1. Please prepare ACDP, DB15-LAN adapter, interface board and gearbox.

Step 2. Connect the interface board correctly to the gearbox interface as shown.

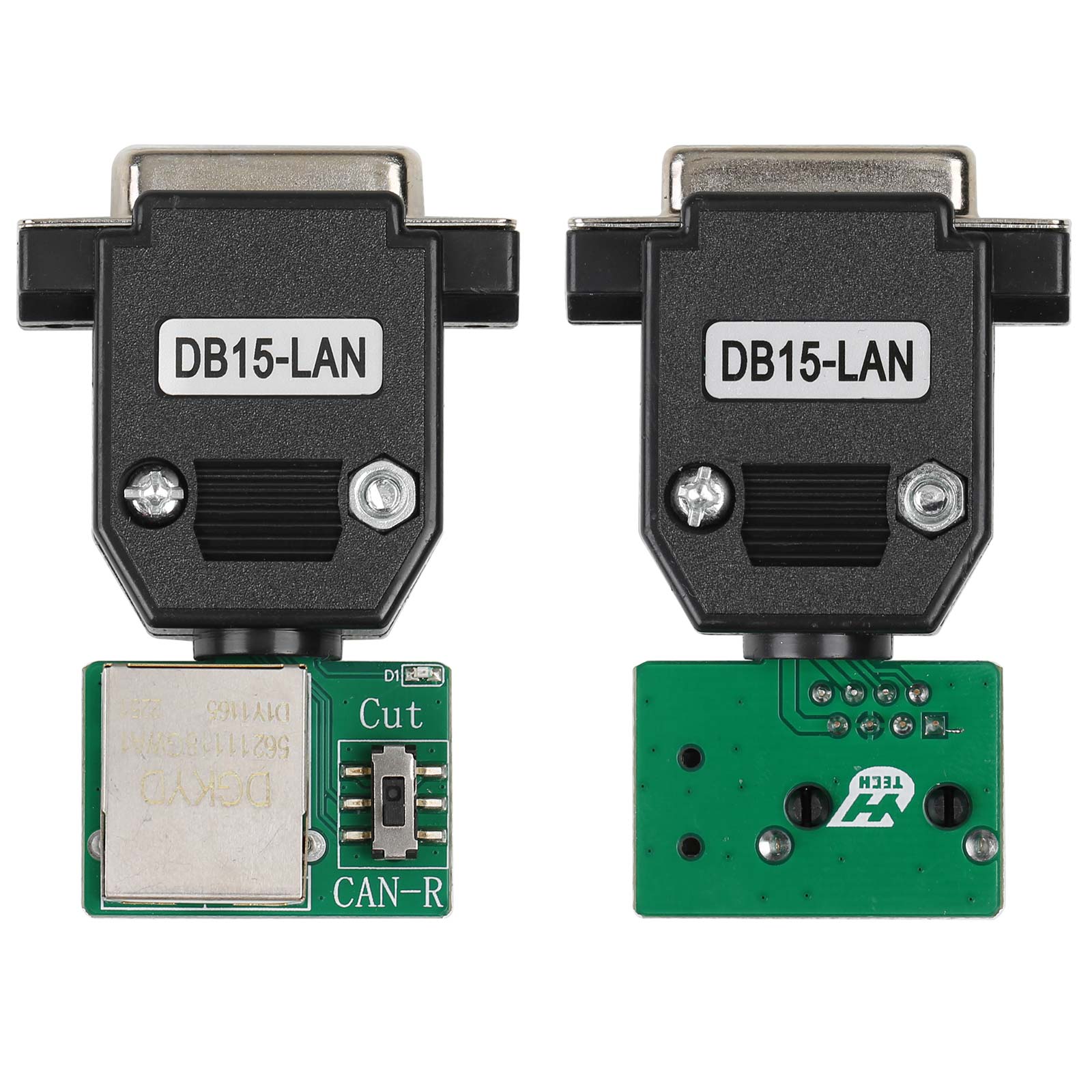

Step 3. Short the CAN resistor on the DB15-LAN adapter to the "CAN-R".

Step 4. Connect ACDP, DB15-LAN adapter, interface board and gearbox.

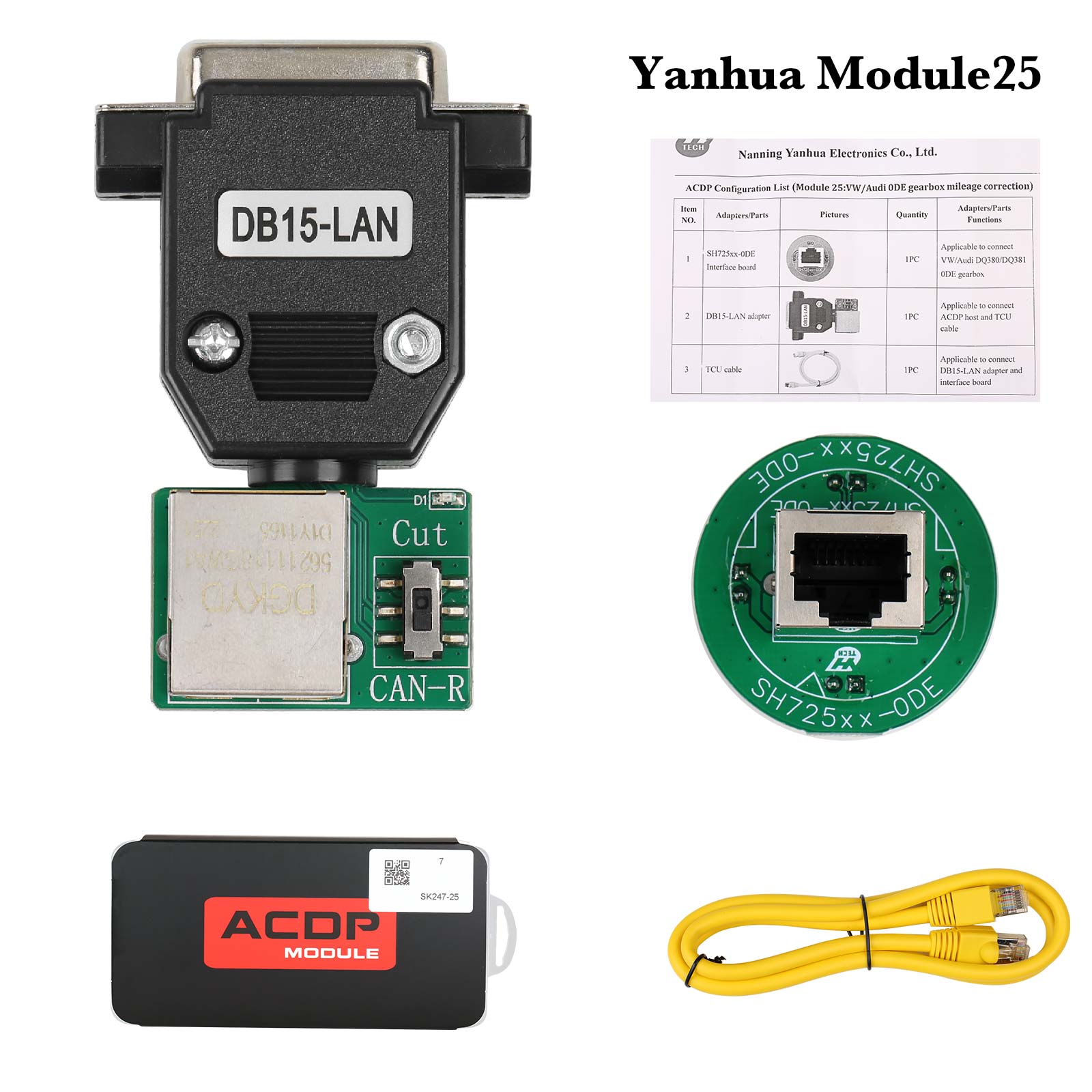

Package Includes:

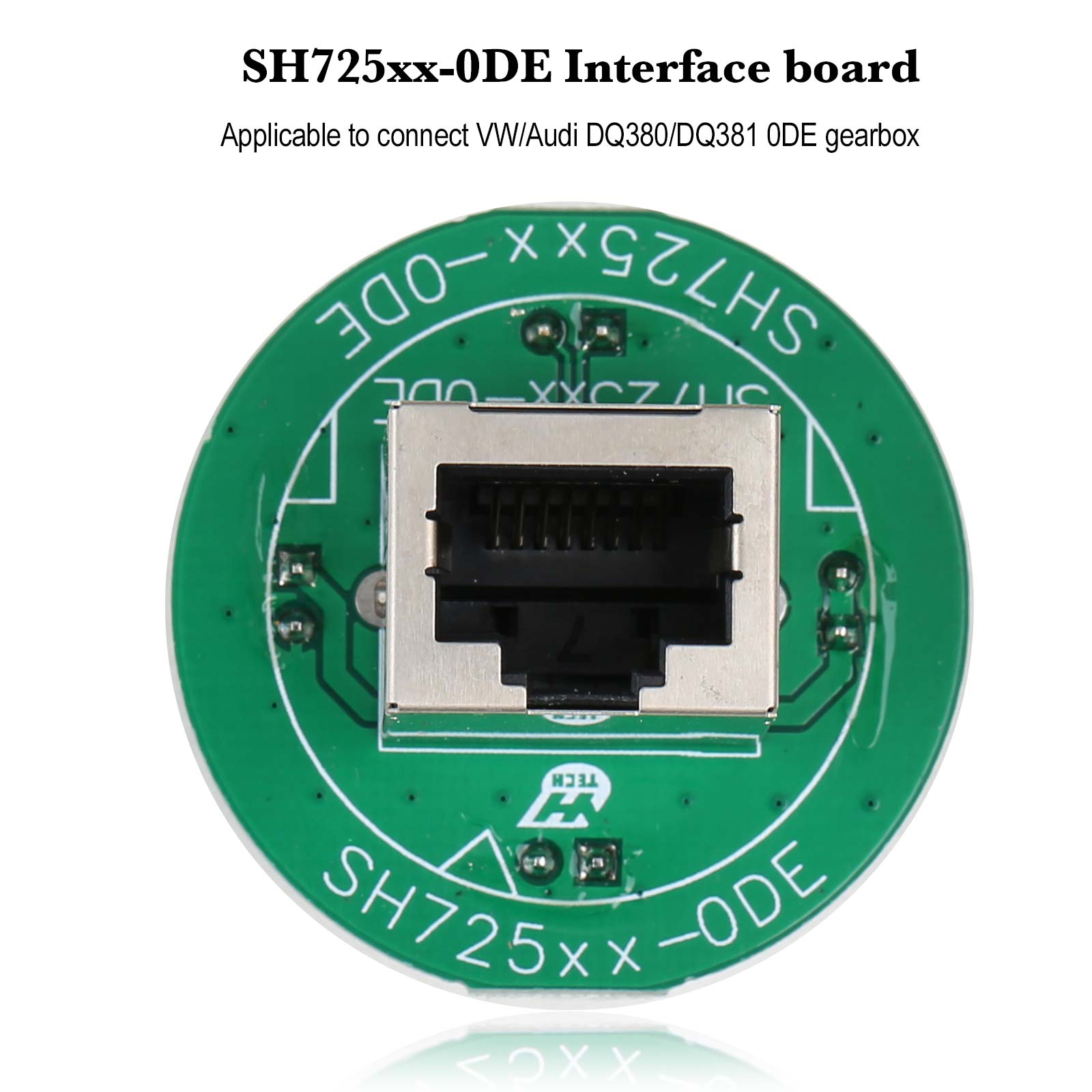

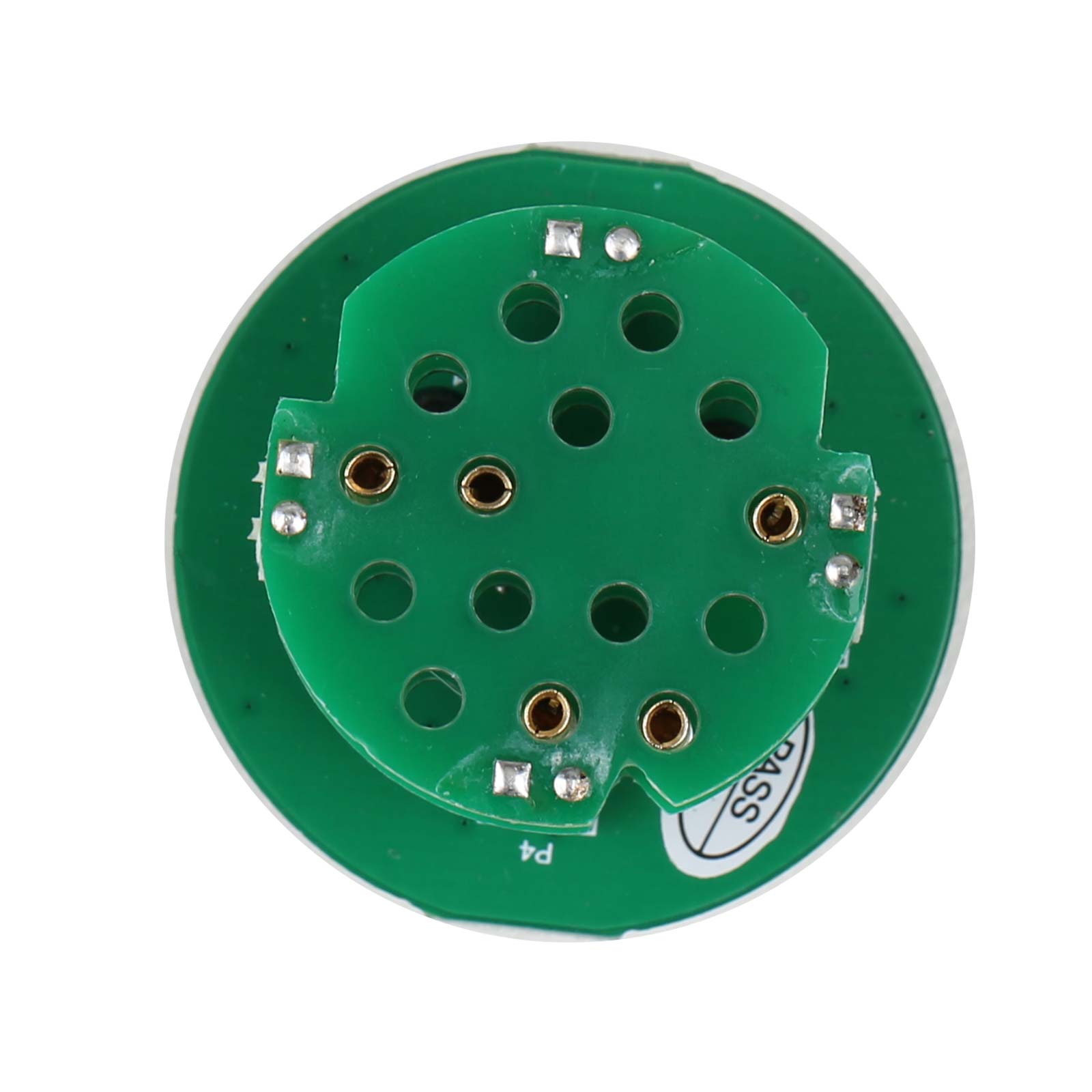

1pc x SH725xx-ODE interface board

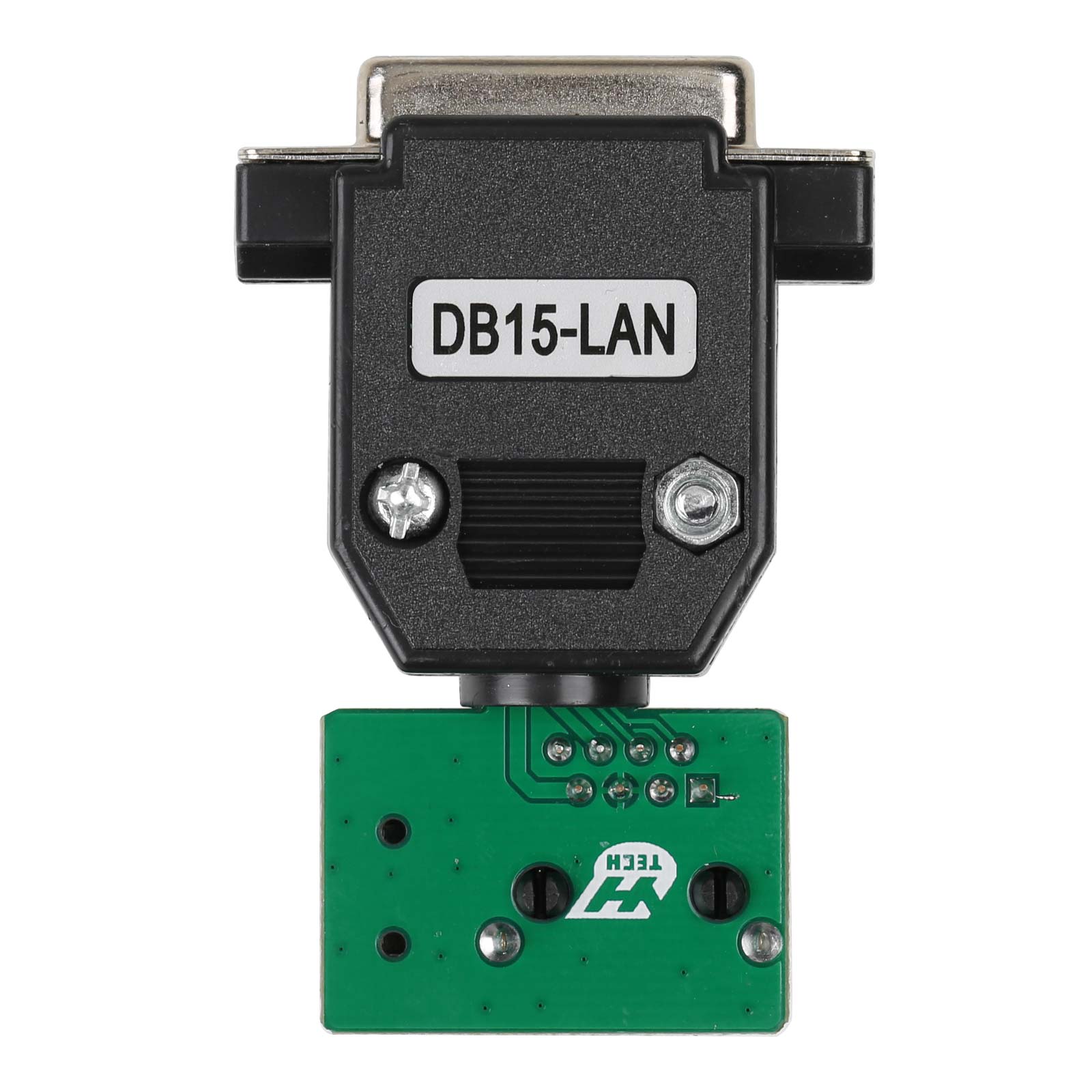

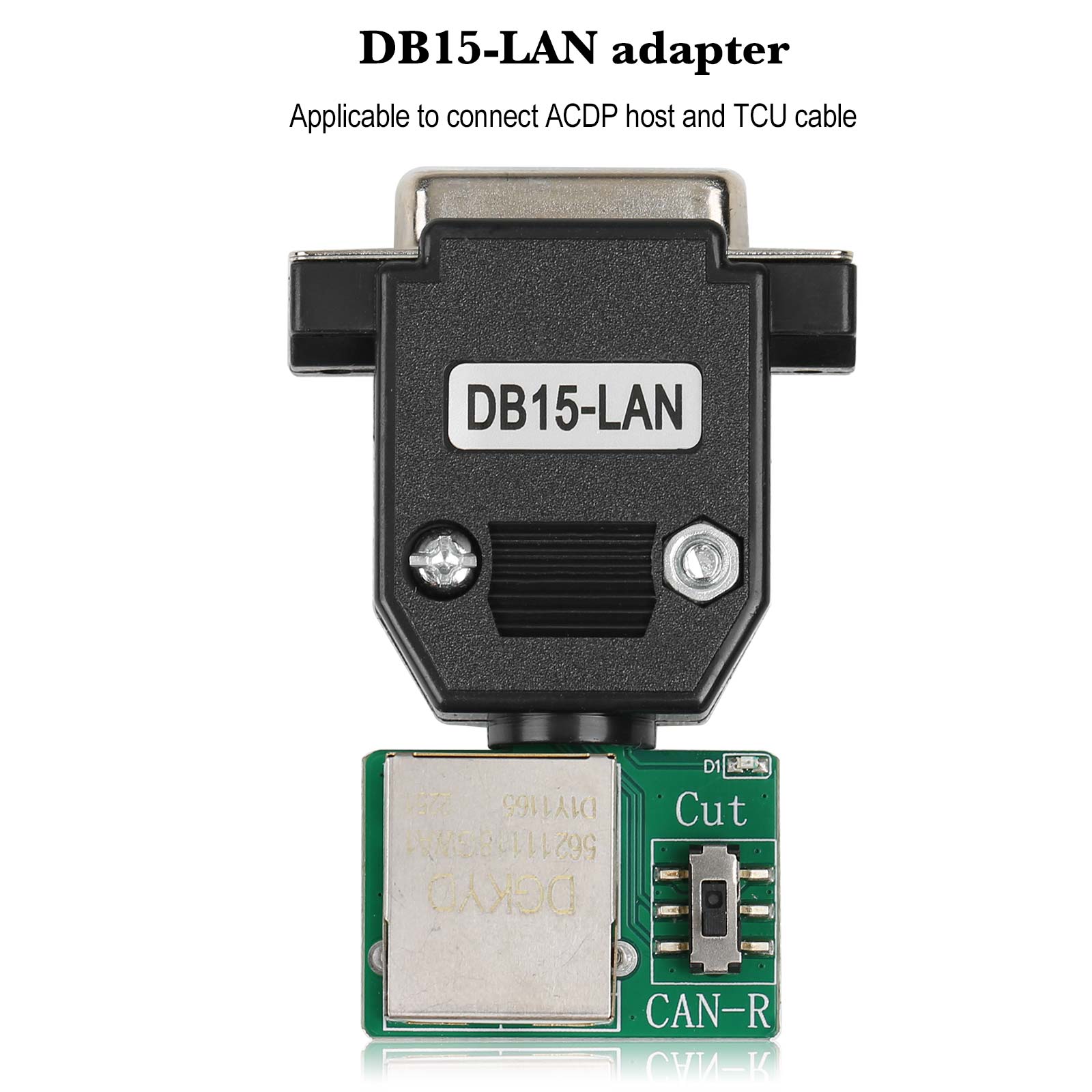

1pc x DB15-LAN adapter
1pc x TCU cable
1pc x ACDP module box




---
