YANHUA Module20 New VOLVO IMMO module Supports Reading CEM DATA by ICP mode/Programming new keys via OBD mode

Software License Number: A302
Software Licensing Functions: New Volvo IMMO Match
Work on both ACDP 1 and ACDP 2


ACDP Module 20 Functions:

1. Reading CEM DATA by ICP mode without soldering
2. Programming new keys via OBD mode


ACDP Module 20 Features:

1. Programming process

2. The special interface board connection replaces the traditional soldering, Intelligent pin detection, safe and reliable.


Module 20 Support vehicle models:

VolvoXC40 (2020-), VolvoXC60 (2018-), VolvoXC90 (2015-)
VolvoS60 (2020-), VolvoS90 (2017-)
VolvoV60 (2018-), VolvoV90（2016-)
Lynk & Co (2018-)


CEM connection diagram:

The CEM module is usually located on the main driver's side, under the steering wheel.

SPC5646C

SPC5647G/SPC5648G

Programming key area:

Volvo key learning area

Lynk&Co key learning area

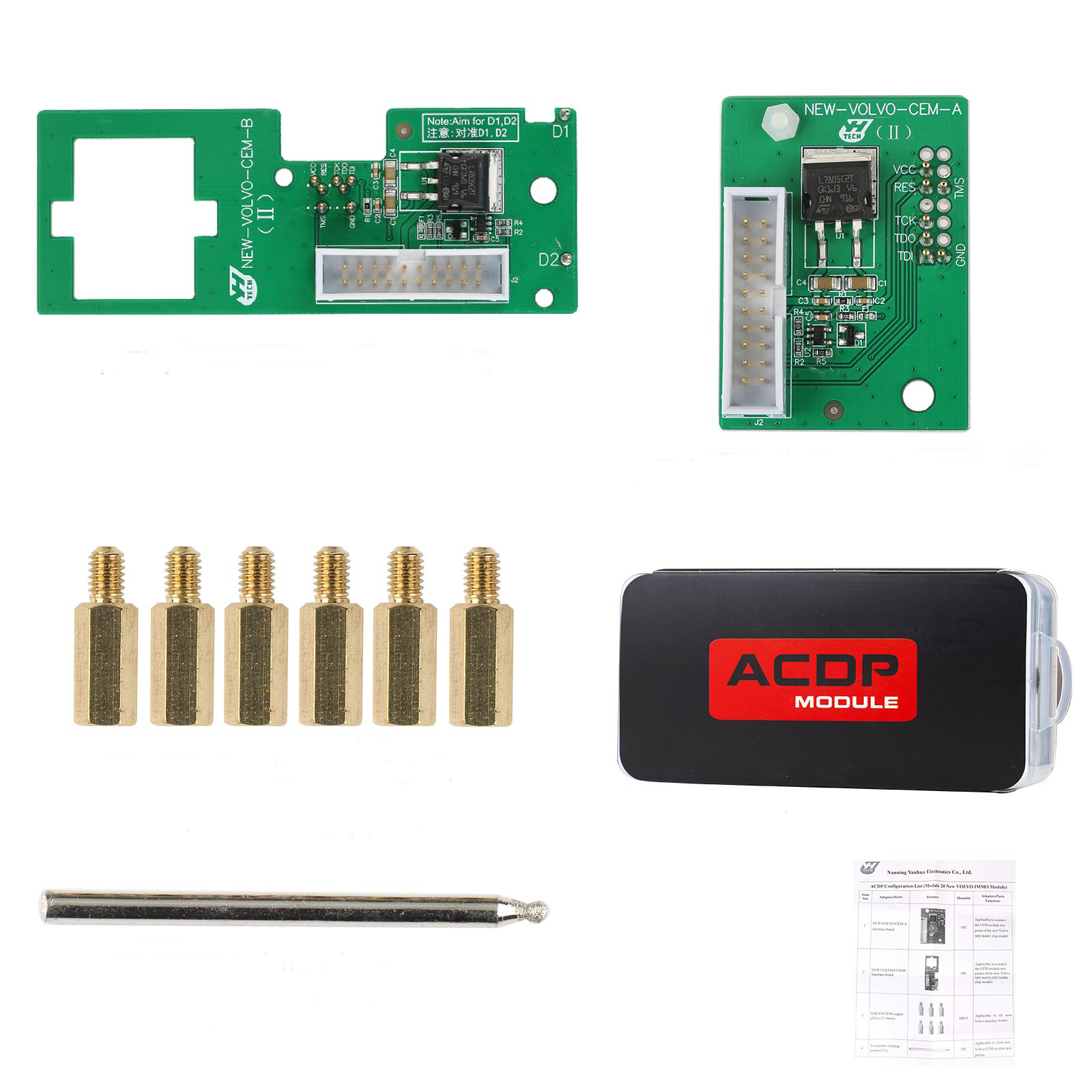

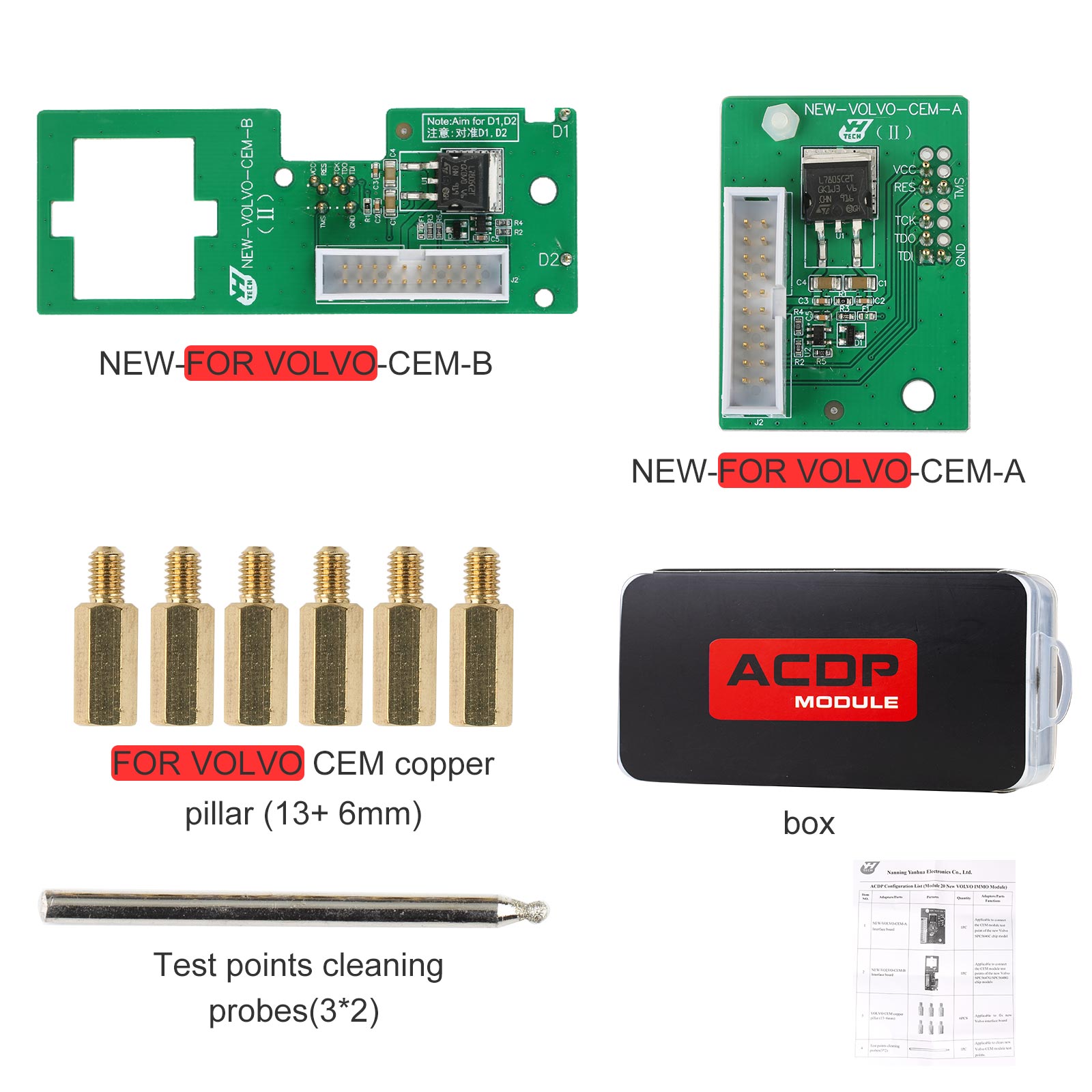

ACDP Module 20 Package List:

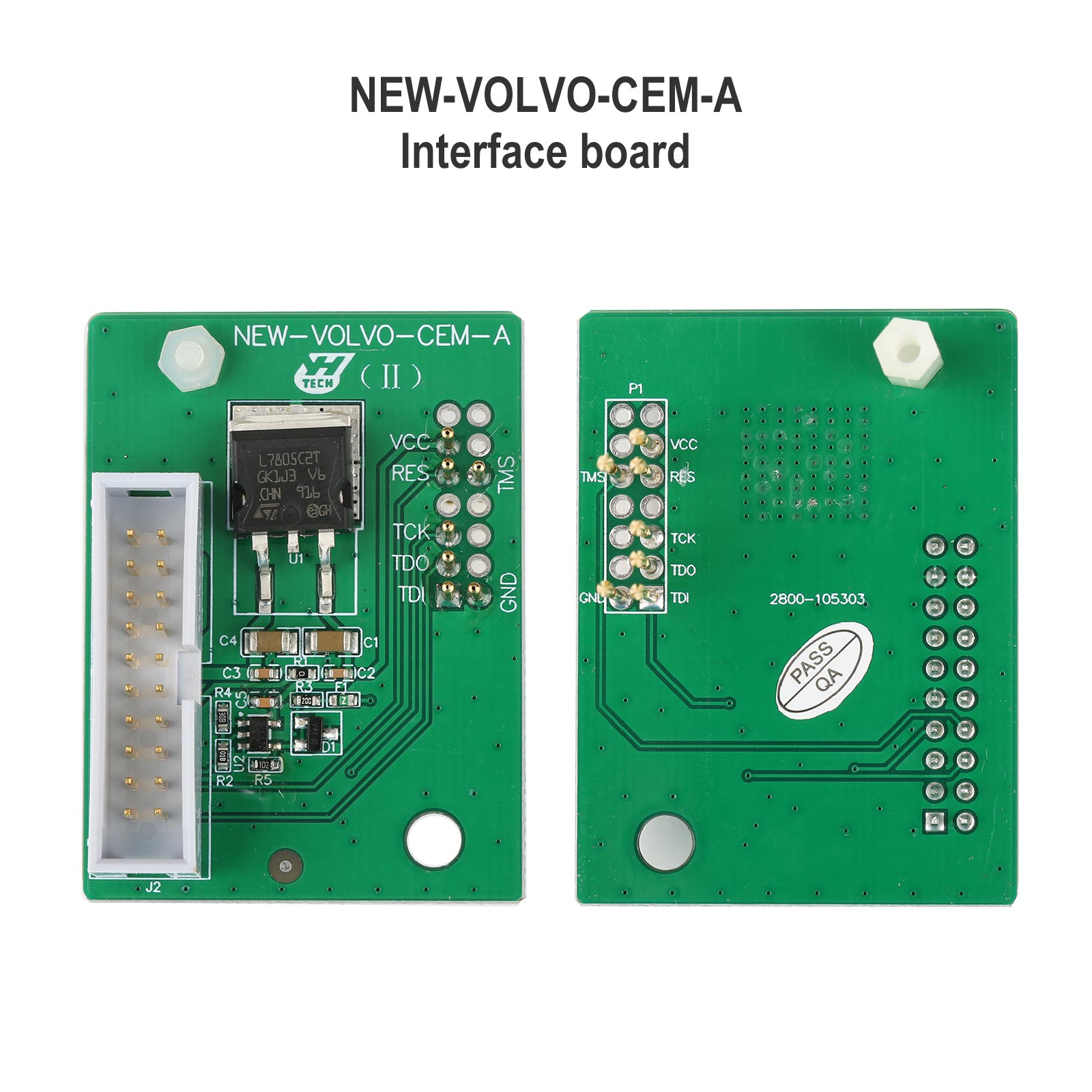

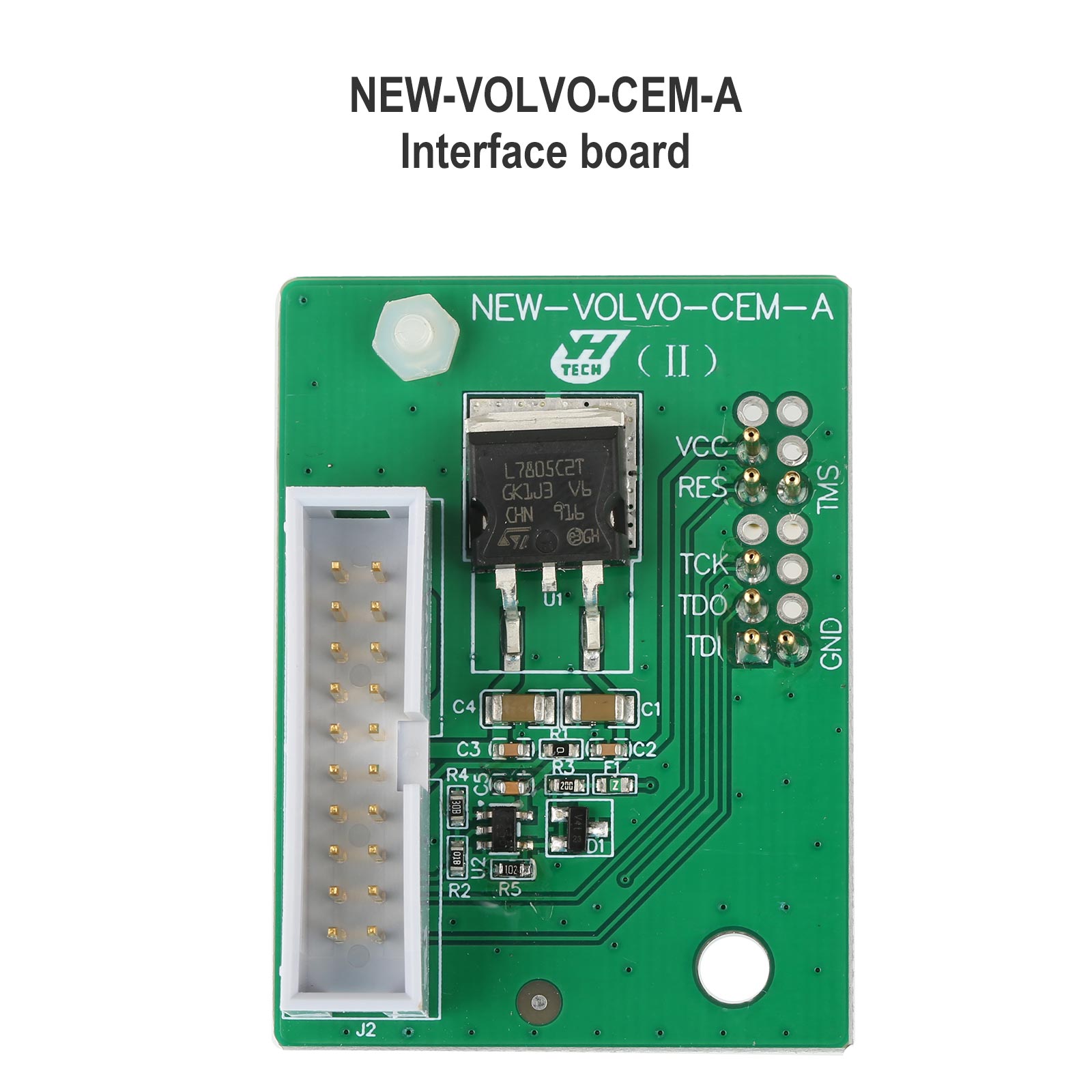

1 PC x NEW-VOLVO-CEM-A Interface board

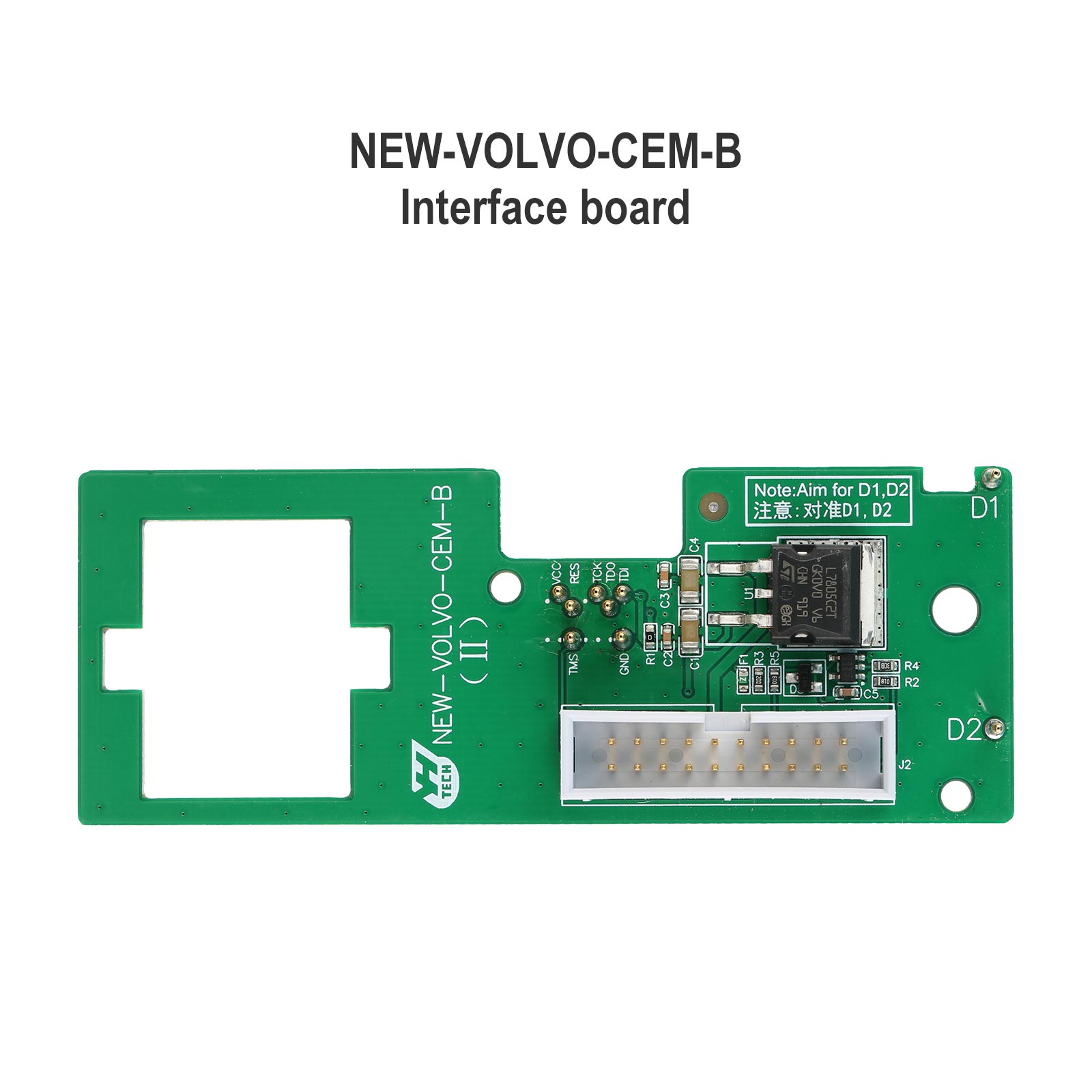

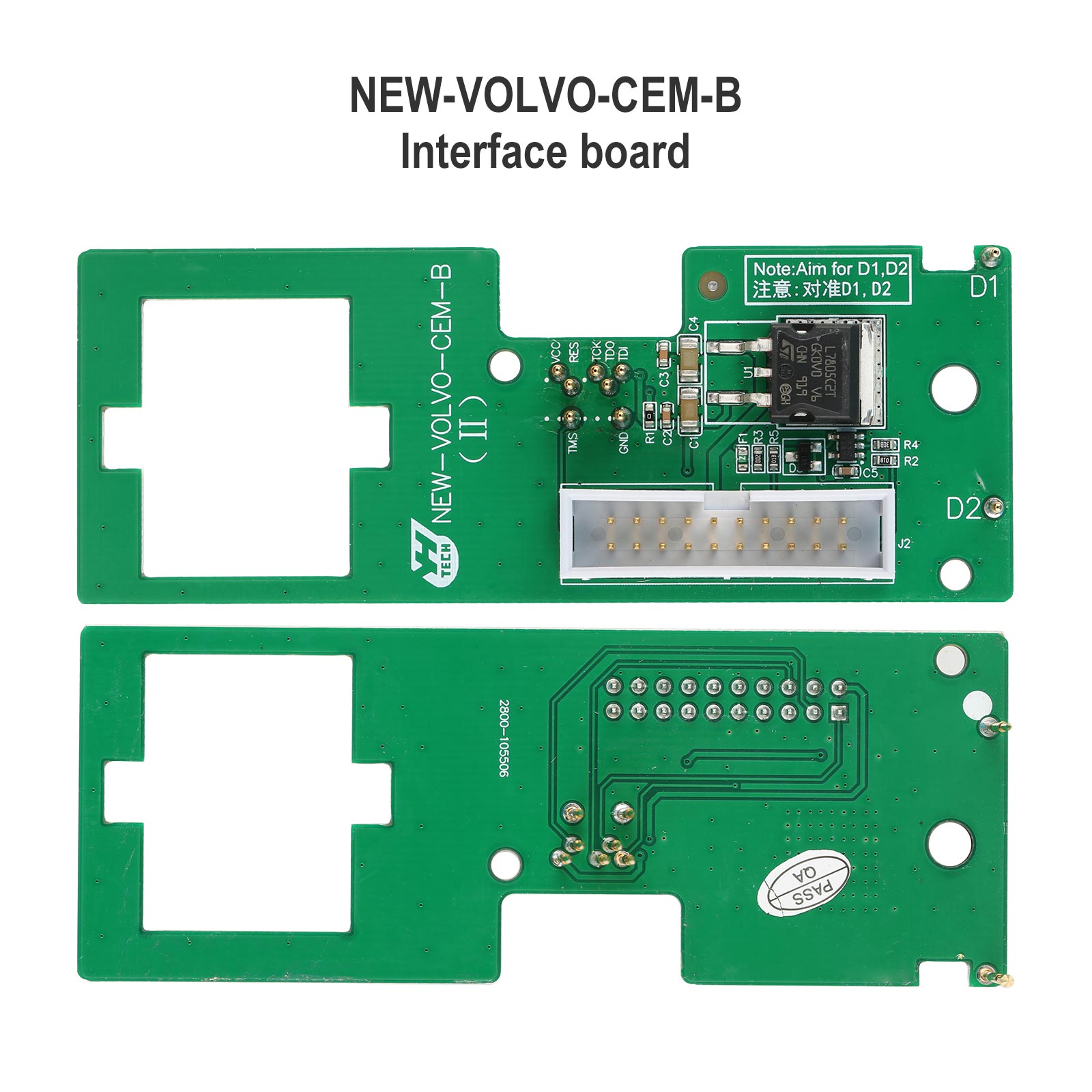

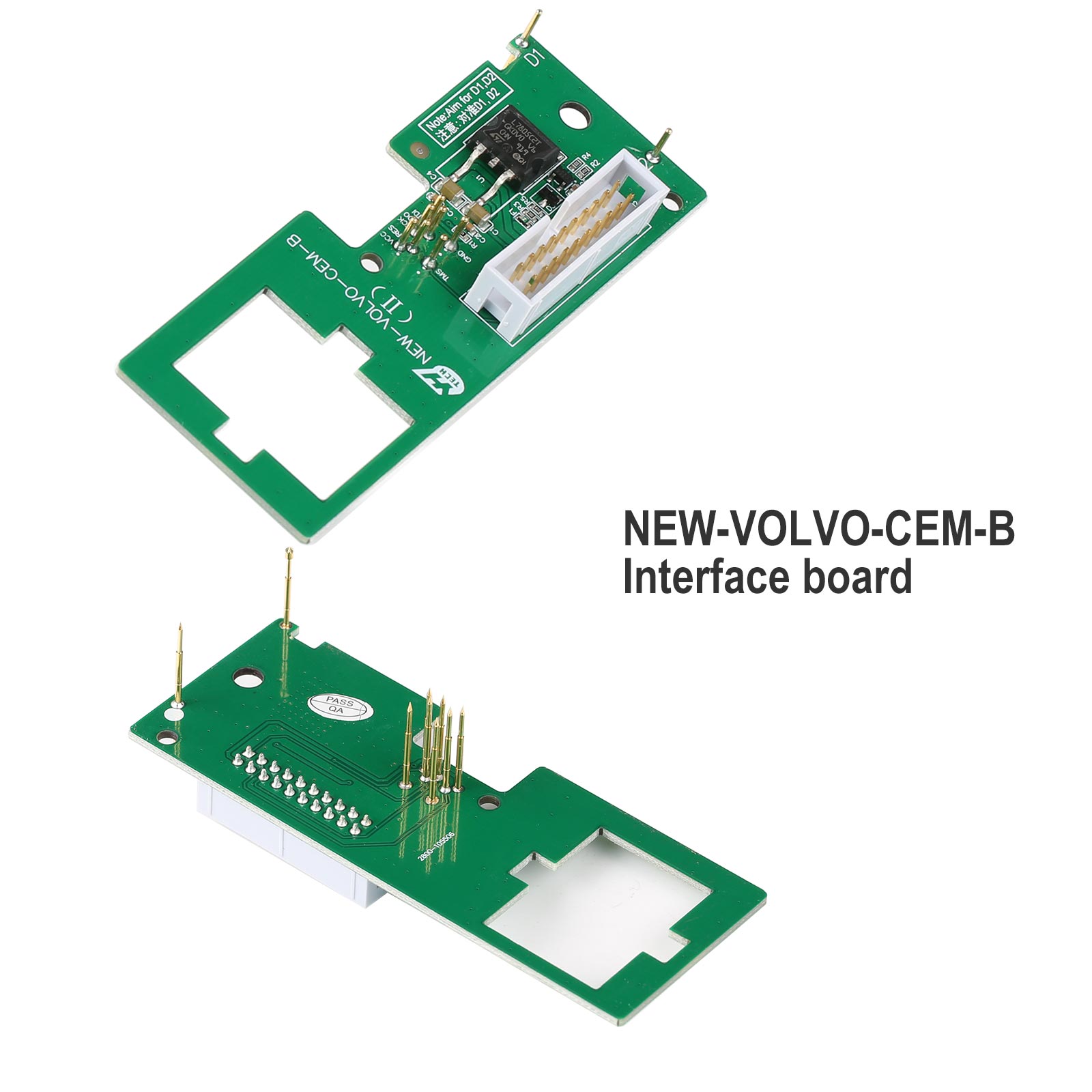

1 PC x NEW-VOLVO-CEM-B Interface board
6 PCS x VOLVO CEM cooper pillar (13+6mm)
1 PC x Test points cleaning probes(3*2)
