Product Description
Yanhua Mini ACDP Module 11 EGS Module supports ISN clearing of BWM 8HP (F/G Chassis)/ 6HP (F Chassis) gearbox.
Yanhua Mini ACDP Module 11 EGS Module
ACDP Module 11 Function:
Support clearing ISN of BWM 8HP (F/G Chassis)/6HP (F Chassis) Gearbox Module
ACDP Module 11 Features:
1. Support BWM 8HP (F/G chassis) gearbox refresh.
2. Support 6HP (F chassis) gearbox refresh and cloning.
Module 11 Connection Diagram:

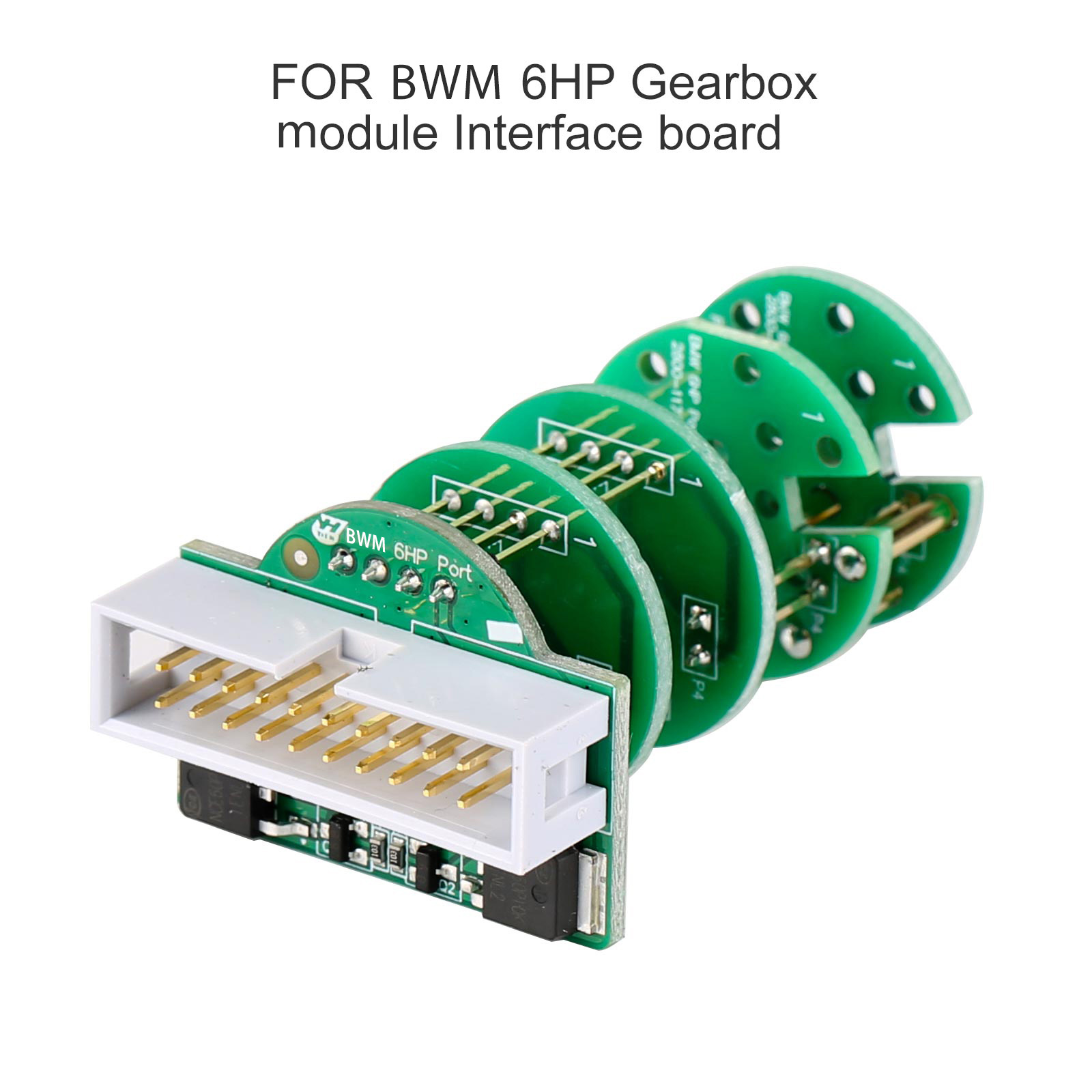

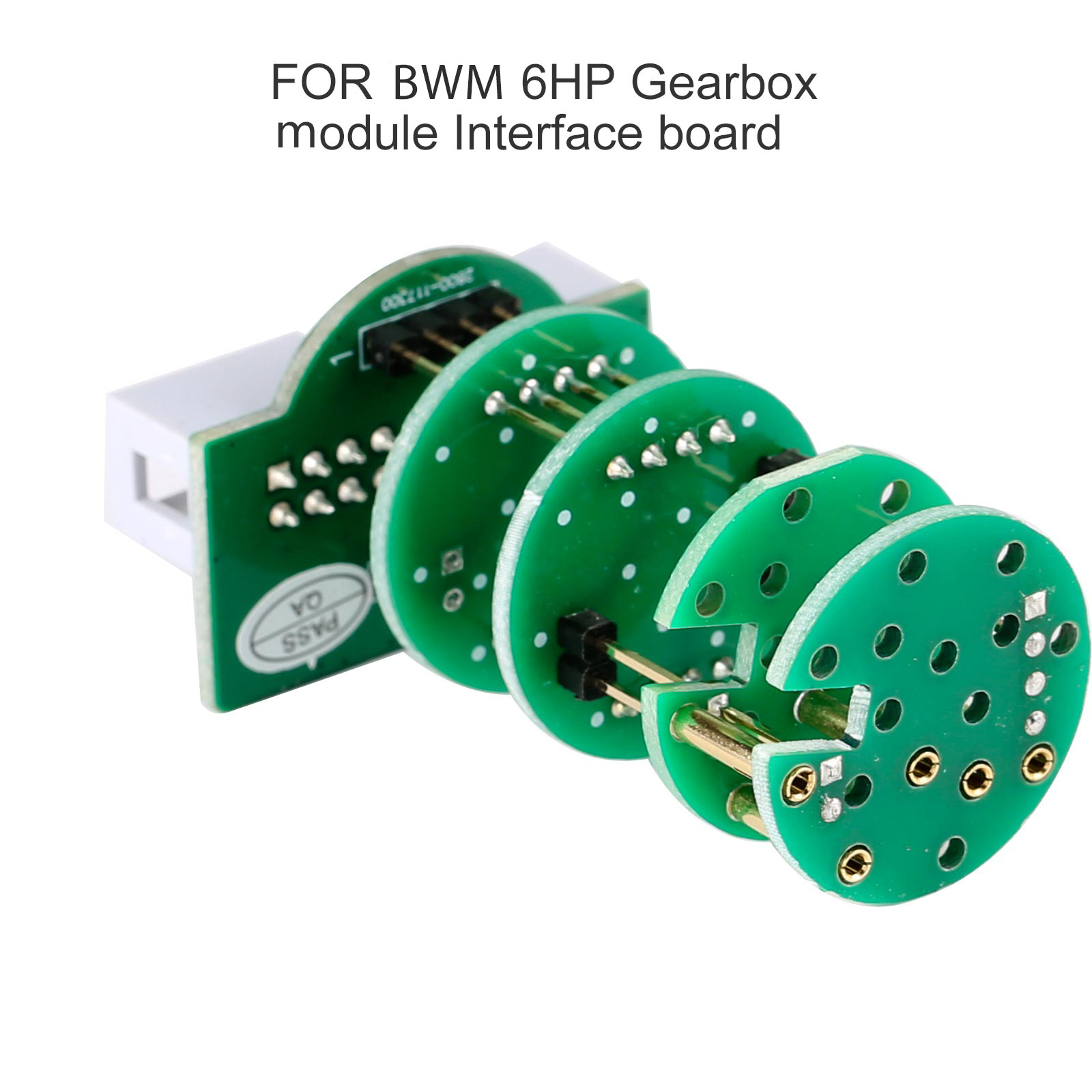

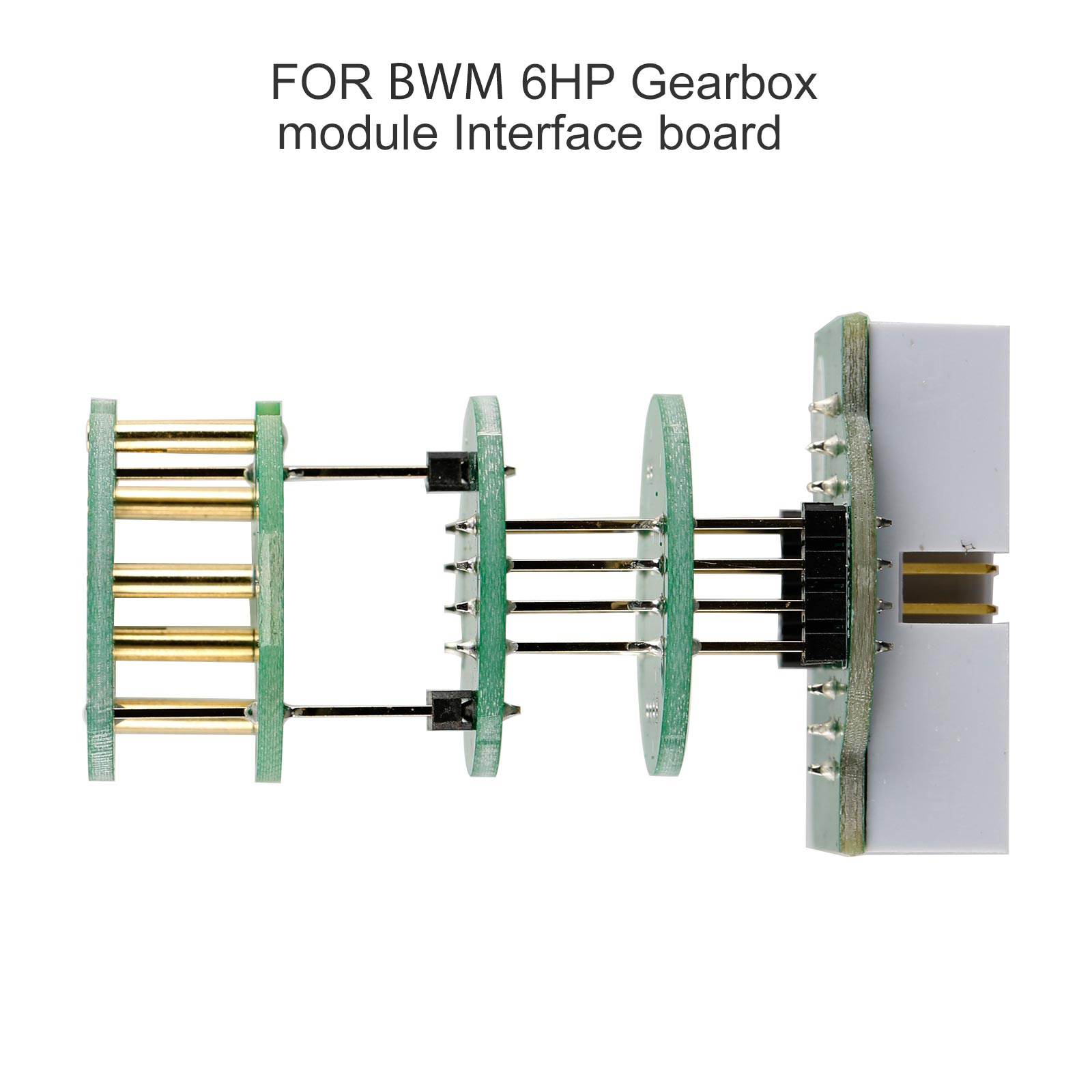

1. 6HP (F chassis)
Step 1. Prepare ACDP, OBP+ICP adapter, EGS interface board and EGS module.
Step 2. Connect the 6HP port of the EGS interface board to the EGS module interface.
Step 3. Short the CAN termination resistor on the OBP+ICP adapter to the “CAN-R-Join” terminal.
Step 4. Connect the ACDP, OBP+ICP adapter, EGS interface board and EGS module.

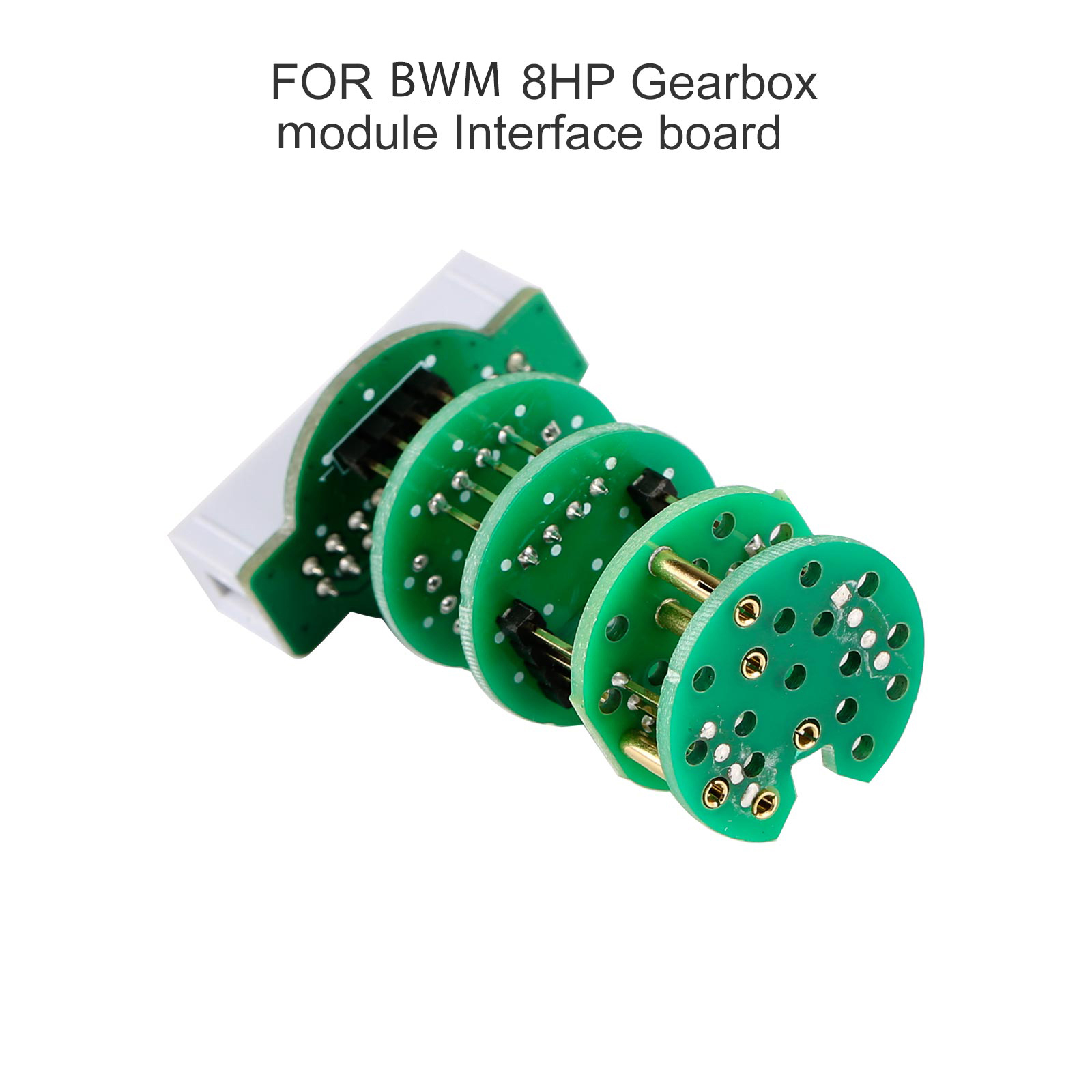

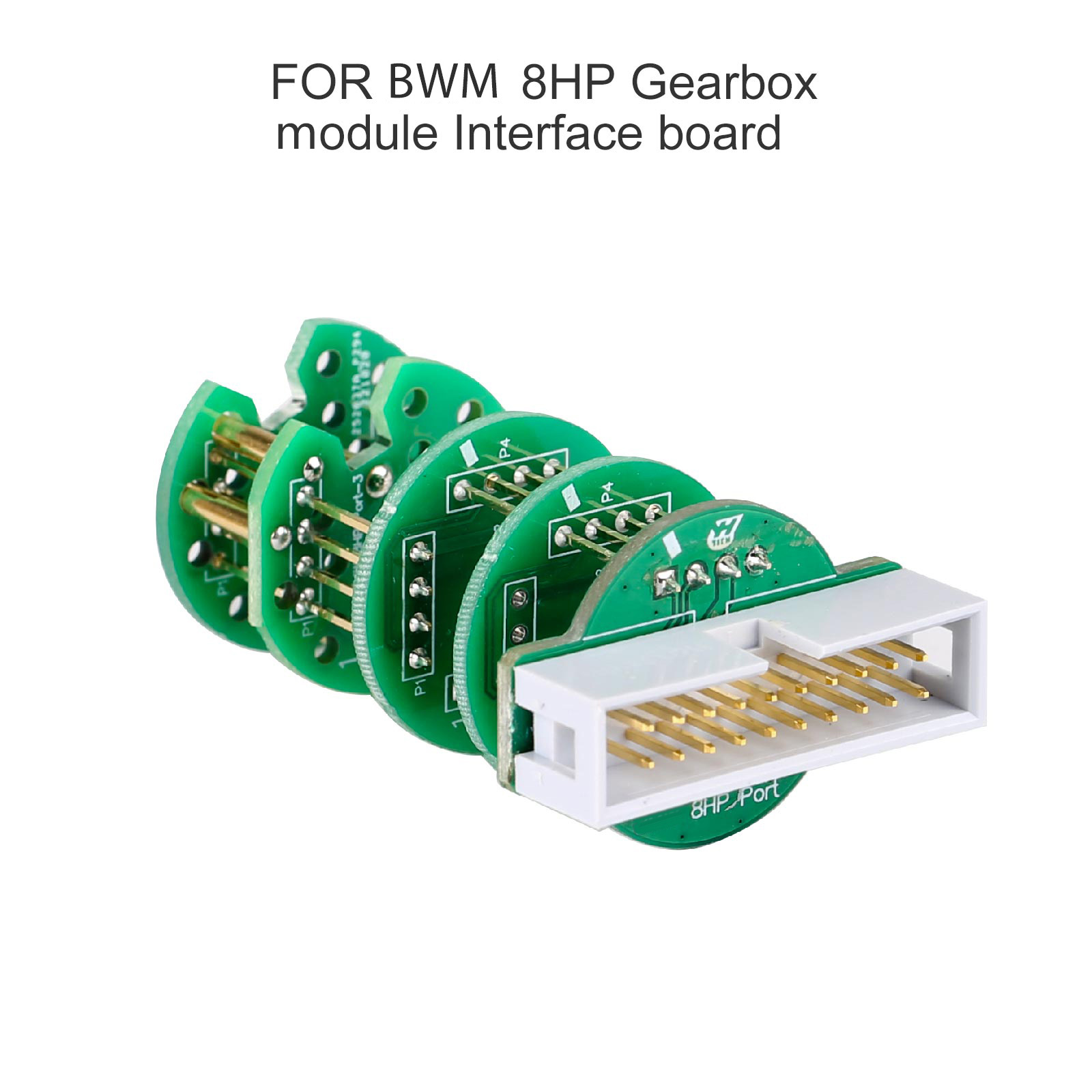

2. 8HP (F/G Chassis)
Connection method 1:
Step 1. Prepare ACDP, OBP+ICP adapter, EGS interface board and EGS module.
Step 2. Connect the 8HP end of the EGS interface board to the EGS module interface.
Step 3. Short the CAN termination resistor on the OBP+ICP adapter to the "CAN-R-Join" terminal.
Step 4. Connect the ACDP, OBP+ICP adapter, EGS interface board and EGS module.
Connection method 2:
Connect ACDP with vehicle OBD-II port.
Connection method 3:
Please connect ACDP to EGS interface according to the diagram.

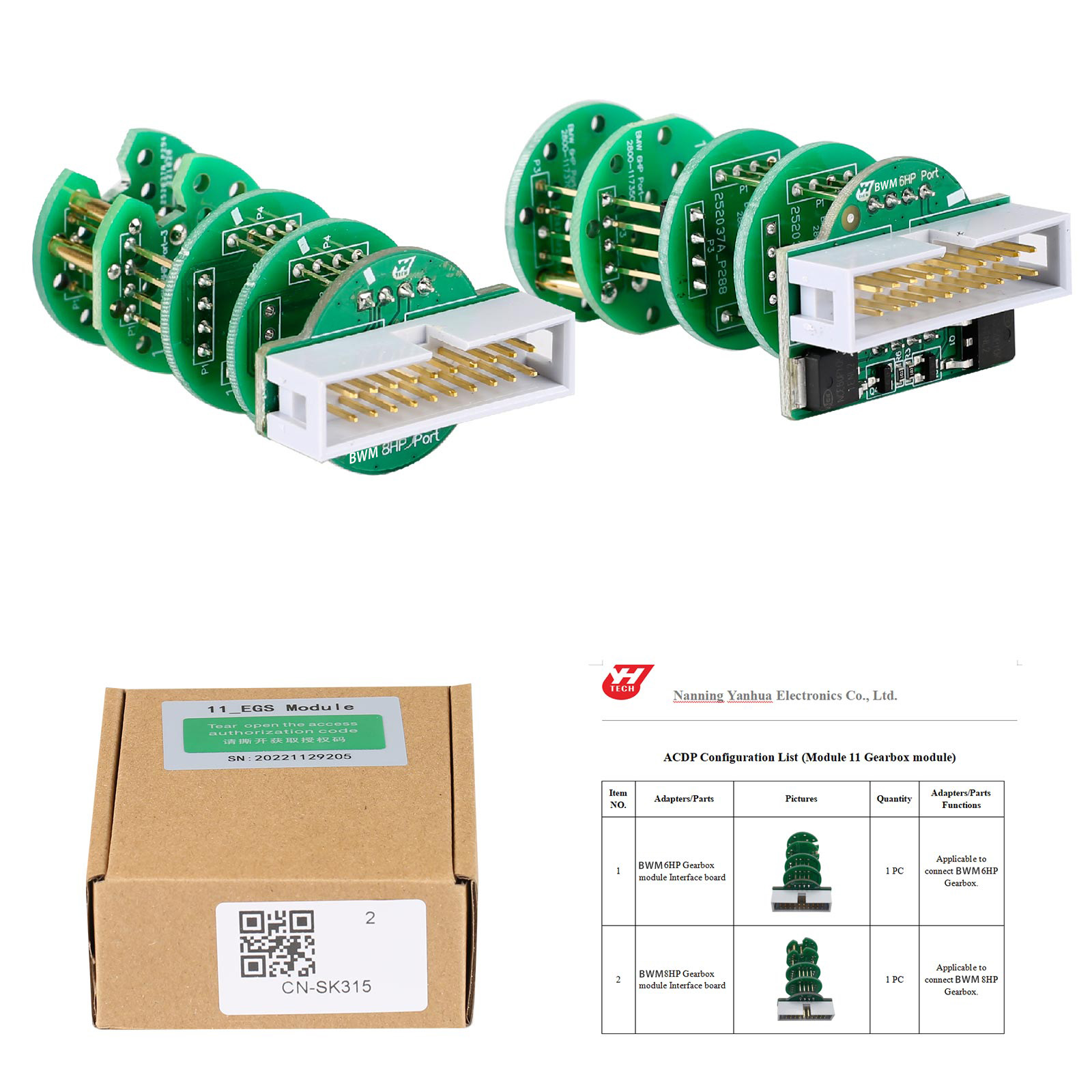

ACDP Module 11 Package List:
1PC x BWM Gearbox module interface board
1. 6HP (F chassis)
Step 1. Prepare ACDP, OBP+ICP adapter, EGS interface board and EGS module.
Step 2. Connect the 6HP port of the EGS interface board to the EGS module interface.
Step 3. Short the CAN termination resistor on the OBP+ICP adapter to the “CAN-R-Join” terminal.
Step 4. Connect the ACDP, OBP+ICP adapter, EGS interface board and EGS module.
2. 8HP (F/G Chassis)
Connection method 1:
Step 1. Prepare ACDP, OBP+ICP adapter, EGS interface board and EGS module.
Step 2. Connect the 8HP end of the EGS interface board to the EGS module interface.
Step 3. Short the CAN termination resistor on the OBP+ICP adapter to the "CAN-R-Join" terminal.
Step 4. Connect the ACDP, OBP+ICP adapter, EGS interface board and EGS module.
Connection method 2:
Connect ACDP with vehicle OBD-II port.
Connection method 3:
Please connect ACDP to EGS interface according to the diagram.
ACDP Module 11 Package List:
1PC x BWM Gearbox module interface board
