YANHUA ACDP Module 27 BWM MSV80/ MSD8X/ MSV90 DME Read/ Write ISN and Clone

Product Description

Yanhua Mini ACDP Module 27 For BWM DME Read/ Write ISN and Clone

ACDP Module 27 Function:

Support BWM E/F chassis MSV80, MSD80, MSD81, MSD85, MSD87 MSV90 DME read/write ISN and clone.
Supported DME types: Continental, SIEMENS.


ACDP Module 27 features:

1. No need to open the shell of DME nor program the DME, quickly read/write ISN and clone on bench mode.
2. Special interface board instead of plugging wire, simple and efficient, safe, and reliable.


Module 27 Connection Diagrams:

BWM MSV80

Step 1. Please prepare ACDP, OBP+ICP adapter, interface board and DME.

Step 2. Connect the interface board correctly to the DME interface as shown.

Step 3. Short the CAN resistor on the OBP + ICP adapter to the "CAN-R Join".

Step 4. Connect ACDP, OBP+ICP adapter, interface board and DME.


BWM MSD80/MSD81

Step 1. Please prepare ACDP, OBP+ICP adapter, interface board and DME.

Step 2. Connect the interface board correctly to the DME interface as shown.

Step 3. Short the CAN resistor on the OBP + ICP adapter to the "CAN-R Join".

Step 4. Connect ACDP, OBP+ICP adapter, interface board and DME.

BWM MSD85/MSD87

Step 1. Please prepare ACDP, OBP+ICP adapter, interface board and DME.

Step 2. Connect the interface board correctly to the DME interface as shown.

Step 3. Short the CAN resistor on the OBP + ICP adapter to the "CAN-R Join".

Step 4. Connect ACDP, OBP+ICP adapter, interface board and DME.

BWM MSV90

Step 1. Please prepare ACDP, OBP+ICP adapter, interface board and DME.

Step 2. Connect the interface board correctly to the DME interface as shown.

Step 3. Short the CAN resistor on the OBP + ICP adapter to the "CAN-R Join".

Step 4. Connect ACDP, OBP+ICP adapter, interface board, and DME.

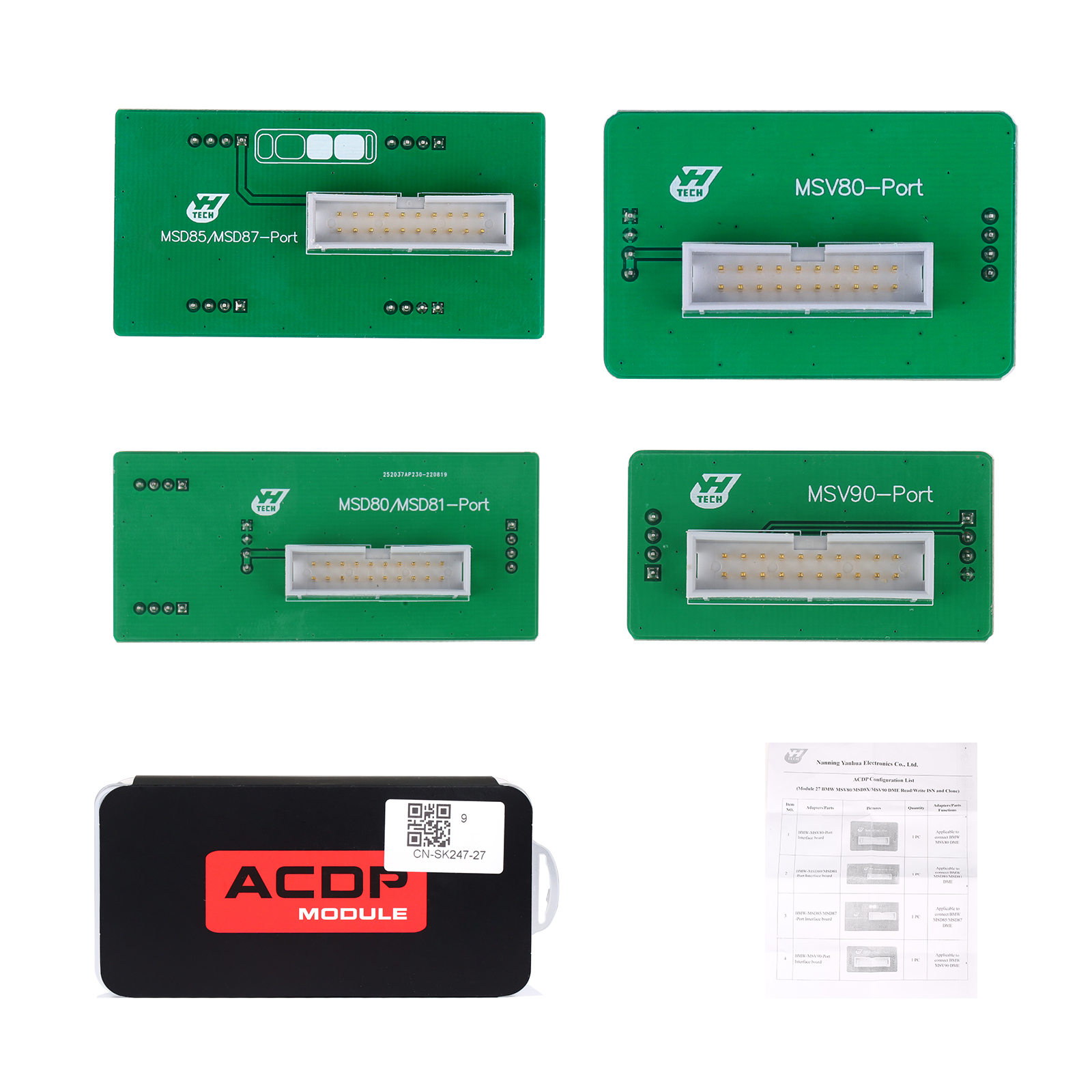

ACDP Module 27 Package List:


Item NO.	Adapters/Parts	Pictures	Quantity	Adapters/Parts Functions

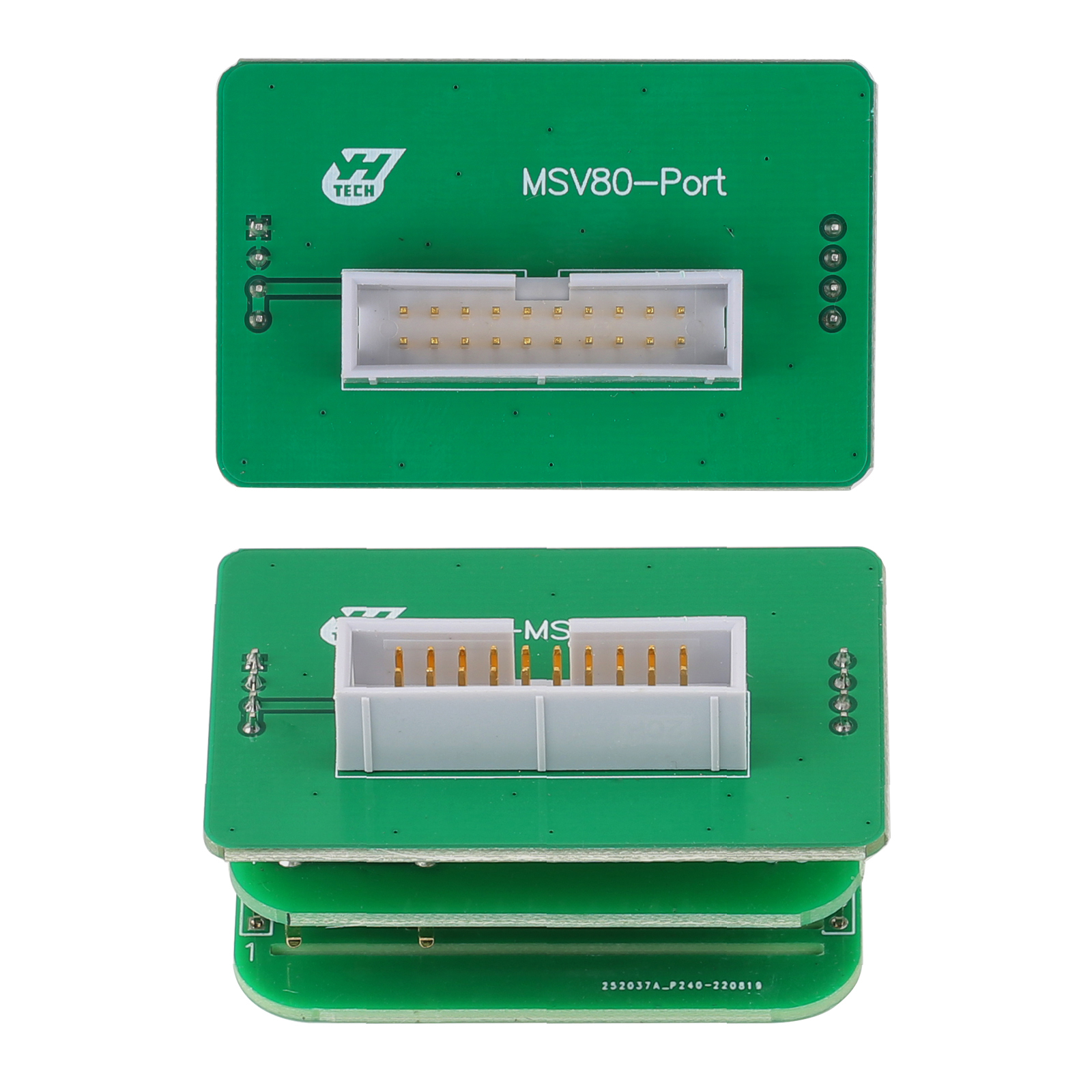

1	BWM-MSV80-Port Interface Board		1 PC	To connect BWM MSV80 DME

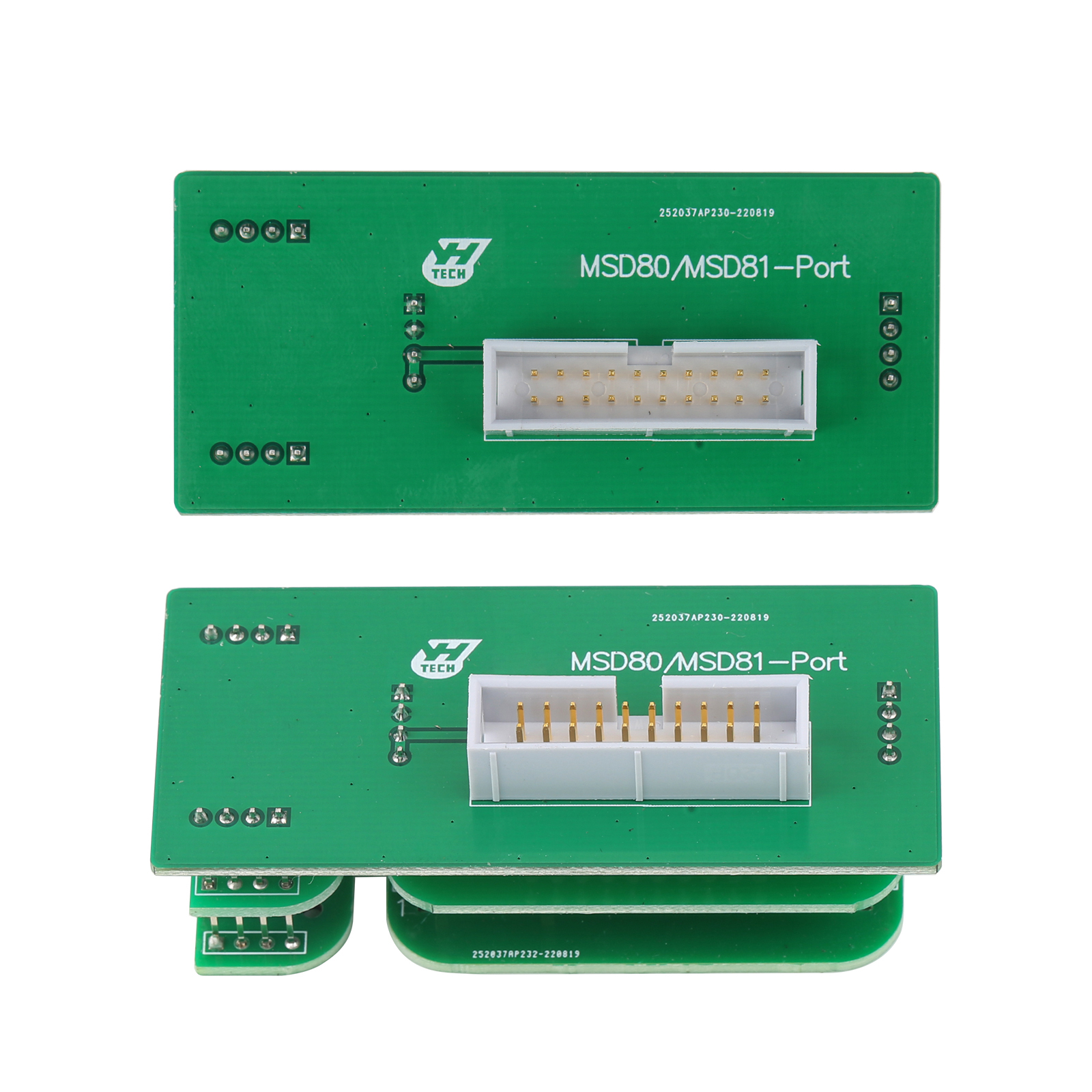

2	BWM-MSD80/MSD81 -Port Interface Board		1 PC	To connect BWM MSD80/MSD81 DME

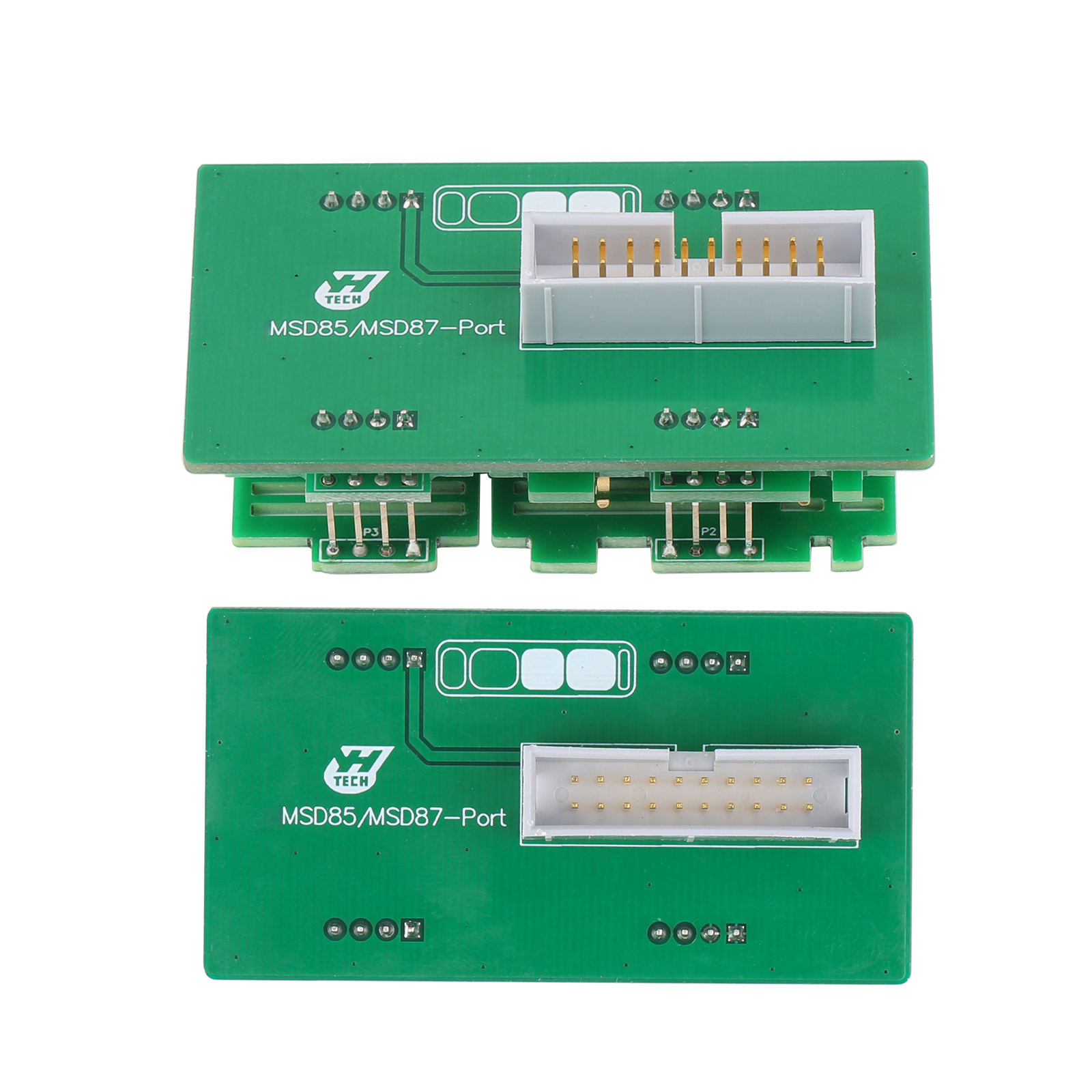

3	BWM-MSD85/MSD87-Port Interface Board		1 PC	To connect BWM MSD85/MSD87 DME

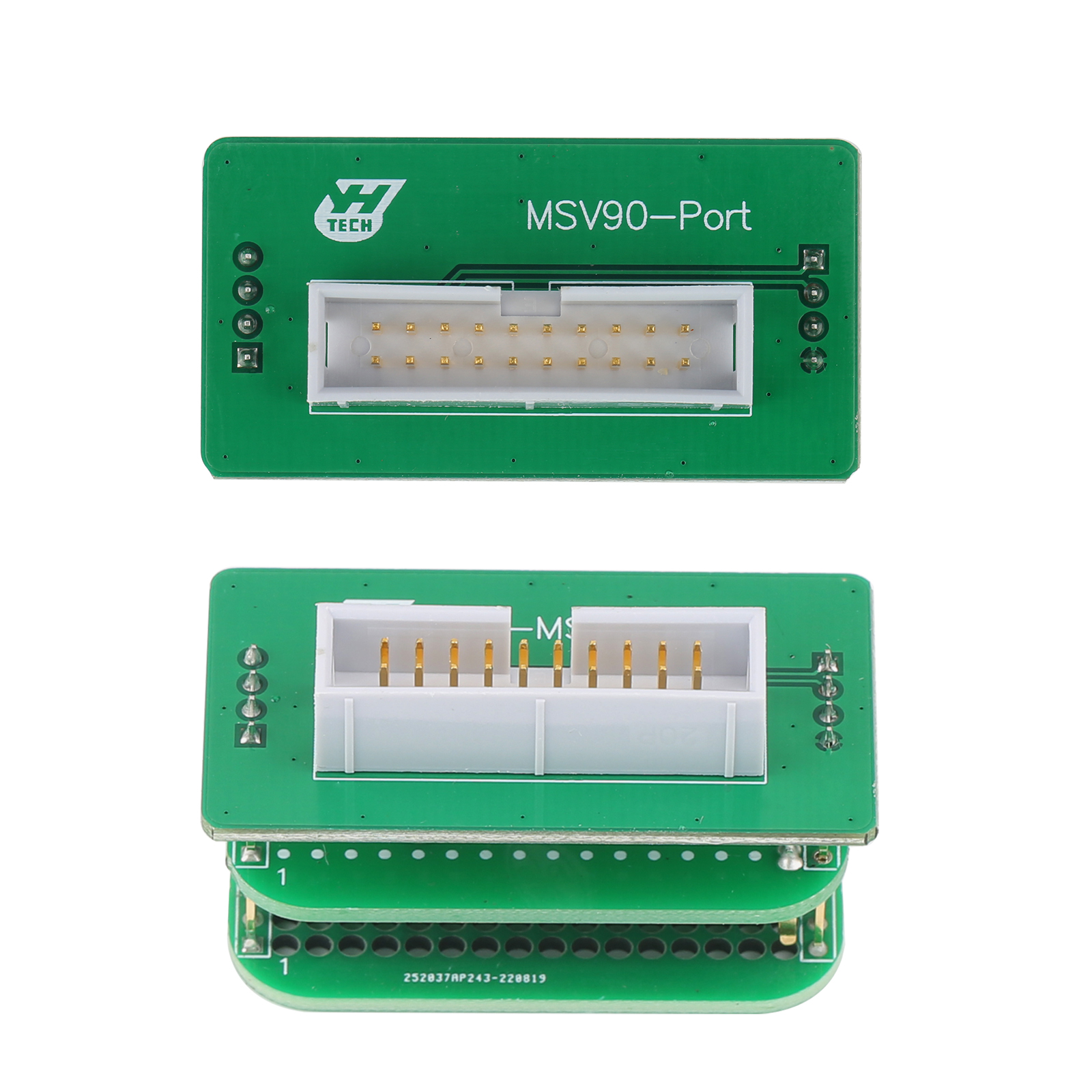

4	BWM-MSV90-Port Interface Board		1 PC	To connect BWM MSV90 DME



---
