YANHUA ACDP Master Module 1 for BWM CAS1-CAS4+ IMMO & ODO authorization and adapter

Product Description

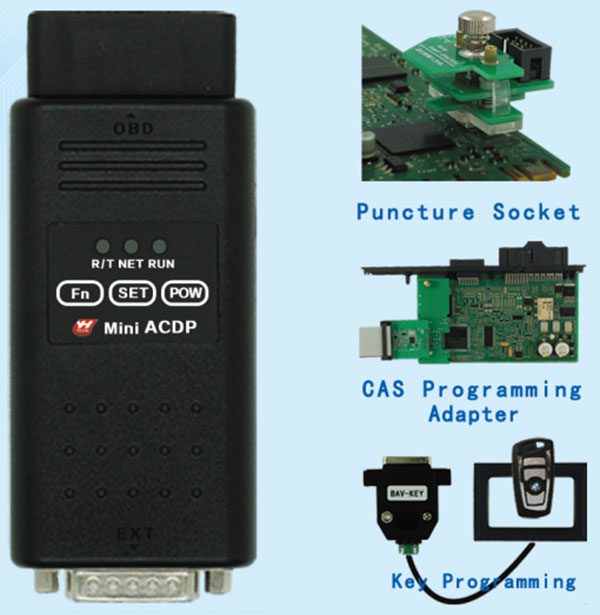

Yanhua Mini ACDP Programming BWM CAS1 - CAS4+ IMMO & ODO authorization and adapter

Module Number	Module Name	Function	Price (USD)
SK247	ACDP Programmer Basic Module	Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP), and parts of Freescale / NEC MCU in circuit programming（ICP）. This module is a necessary basic configuration for other modules.	159$
SK247-1	CAS Module	(1) Support CAS1 – CAS3+ IMMO key programming by OBD or ICP mode, Mileage reset, Read/Write EEPROM and FLASH data. (2) Support CAS4/CAS4+ IMMO key programming in circuit programming (ICP), Mileage reset, Read/Write EEPROM and FLASH data.	299$
SK247-2	FEM/BDC Module	Support FEM/BDC IMMO key programming by ICP or OBP mode, Mileage reset, Recover/Backup data.	339$
SK247-3	ISN Module	Read/write N20/N55/N13 ISN code via OBD. Read/write MSV80/MSD85 ISN code without opening DME shell. Read/write other DME ISN code by opening DME shell.	199$
SK247-4	35160 Module	Support erase/adjust mileage of 080DOWQ/T,160DOWQ/T EEPROM.	99$
SK247-5	Fujitsu CPU MB91F Module	Support Fujitsu CPU MB91F (Honda Fit, KIA K3/K5, Sonata 9, etc.) Mileage adjustment.	79$
SK247-6	MQB/MMC Instrument	upport parts of VDO mileage adjustment of VW MQB platform via OBD,and Passat MMC (NEC D70F3525 + 95320) instrument adjustment after years 2015 by ICP mode.	79$
SK247-7	Refresh BWM key	Refresh BWM E chassis/F chassis key to make BWM keys can be used repeatedly.	50$
SK247-8	FRM module (FRM Footwell module)	Read and write BWM FRM module (FRM Footwell module) 0L15Y chip EEPROM/FLASH data. Read and write 3M25J chip EEPROM/D-FLASH/P-FLASH data.	30$

Note: From SK247-1 to SK247-5, the package doesn't include the main unit. For the new user, you need to buy extra main unit (sk247), if you already have the main unit, just buy the authorization with adapter.

: CAS4/FEM/BDC/16ODOWT


Programming with security: (No need solder anything yourself)
WIFI connection Free connection
1. Overturn the traditional work mode - Single operation is changed to team cooperation
2. Change the operation mode - PC operation is changed to mobile phone operation

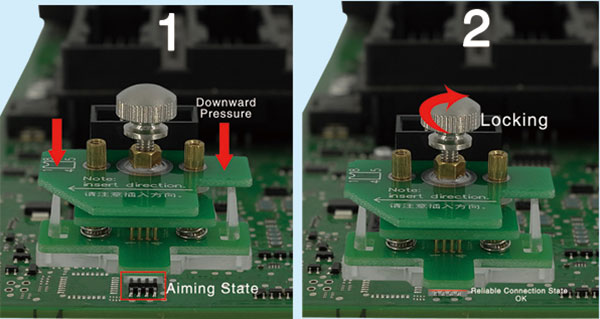

3. Change the test connection mode - Electric soldering iron is changed to no-solder dedicated connector

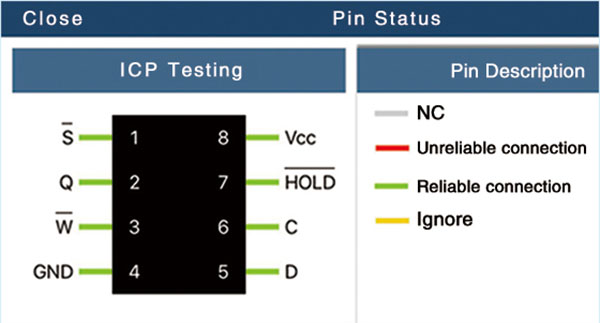

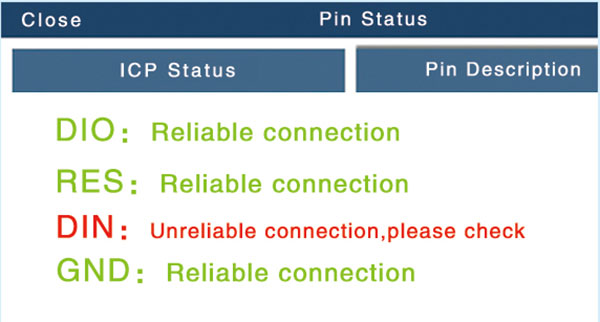

4. Changed from artificial observation to intelligent monitoring Artificial observation / trying is changed to automatic detection algorithm, grap hical in dication the relability of connection. Ensure the data is not damayed and lost
5. Change the service mode - Offline service is changed to online synchronous service

IMMO/Mileage Programming
No need to remove chip
No need soldering
No need to cut the line
No need to lift the pin

Functions
1. Memory programming:
Support 93/24/25/35/95 series EEPROM in circuit (ICP)and on board(OBP)programming and parts of Freescale/ NEC MCU in circuit programming(ICP).

2. BWMmodule programming:
(1) Support cas1-cas4+ and FEM/BDC IMMO key programming, mileage reset, program recovery.
(2) BWM engine ECU data reading and ISN code reading

3. VW module programming: MMC instrument
4. Instrument mileage and airbag ECU reset/maintenance is under development.
5. BENZ. BWM Audi and various models are upgraded successively

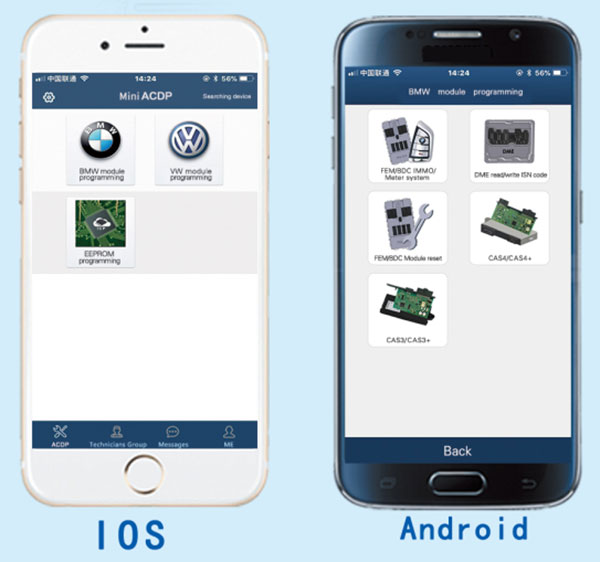

Install ACDP App from App Store.



ICP: Memory and MCU programming In Circuits

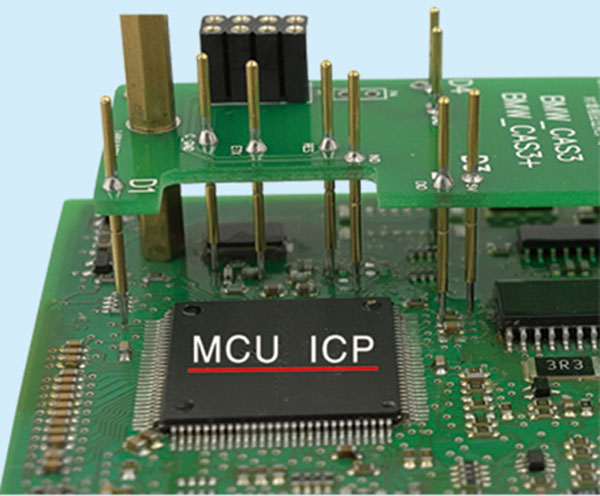

MCU programming in Circuits

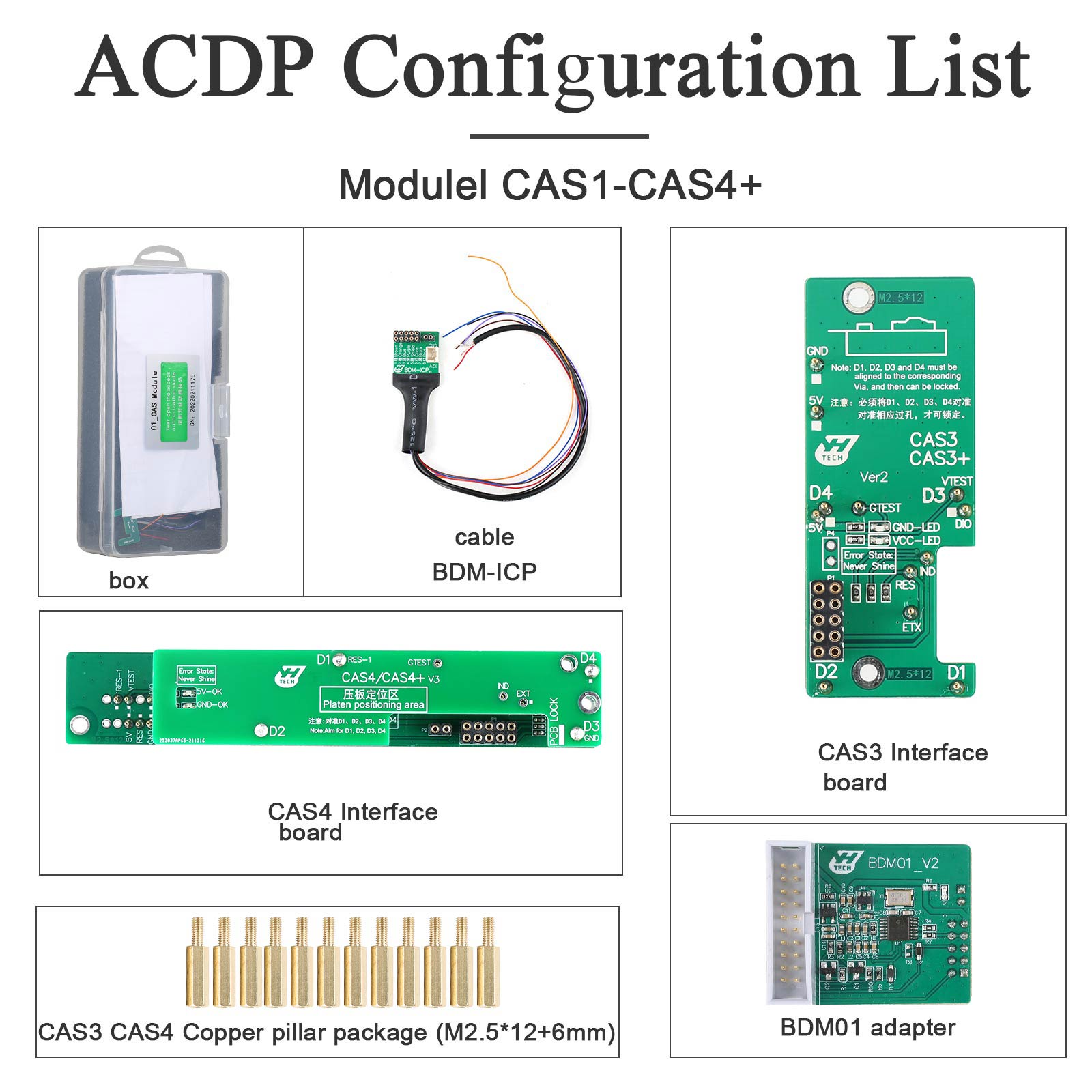

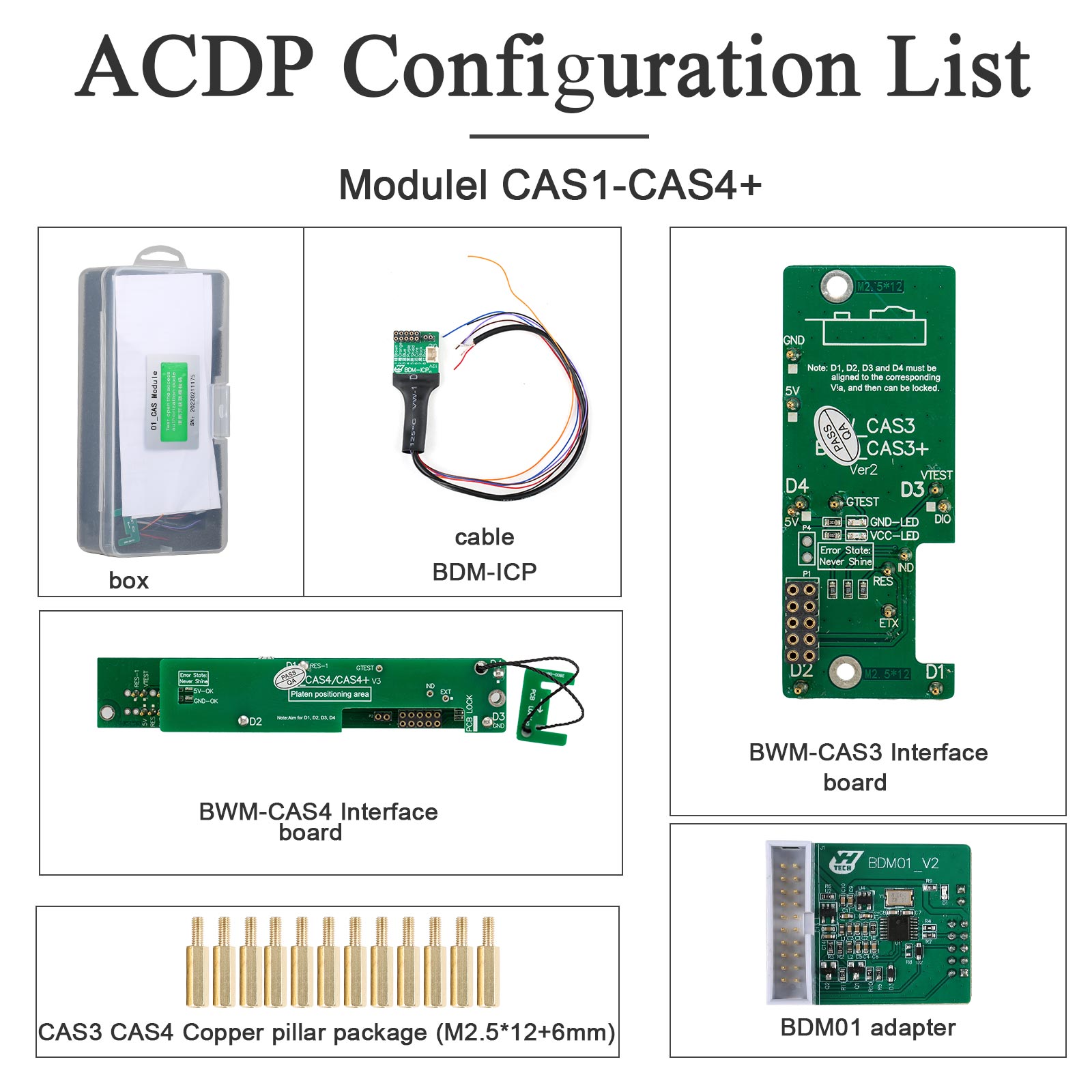

Package includes:

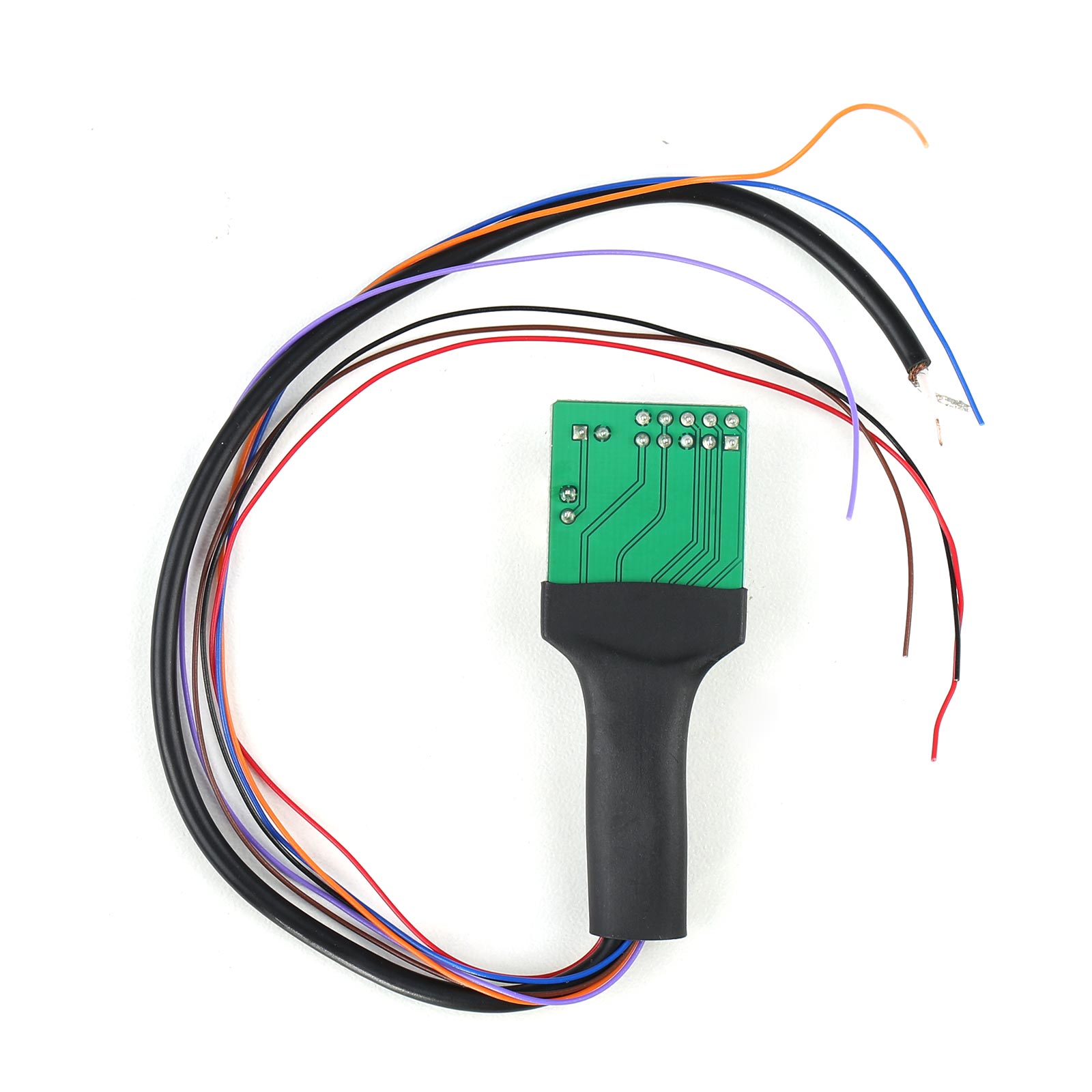

1pc x BAV-KEY adapter

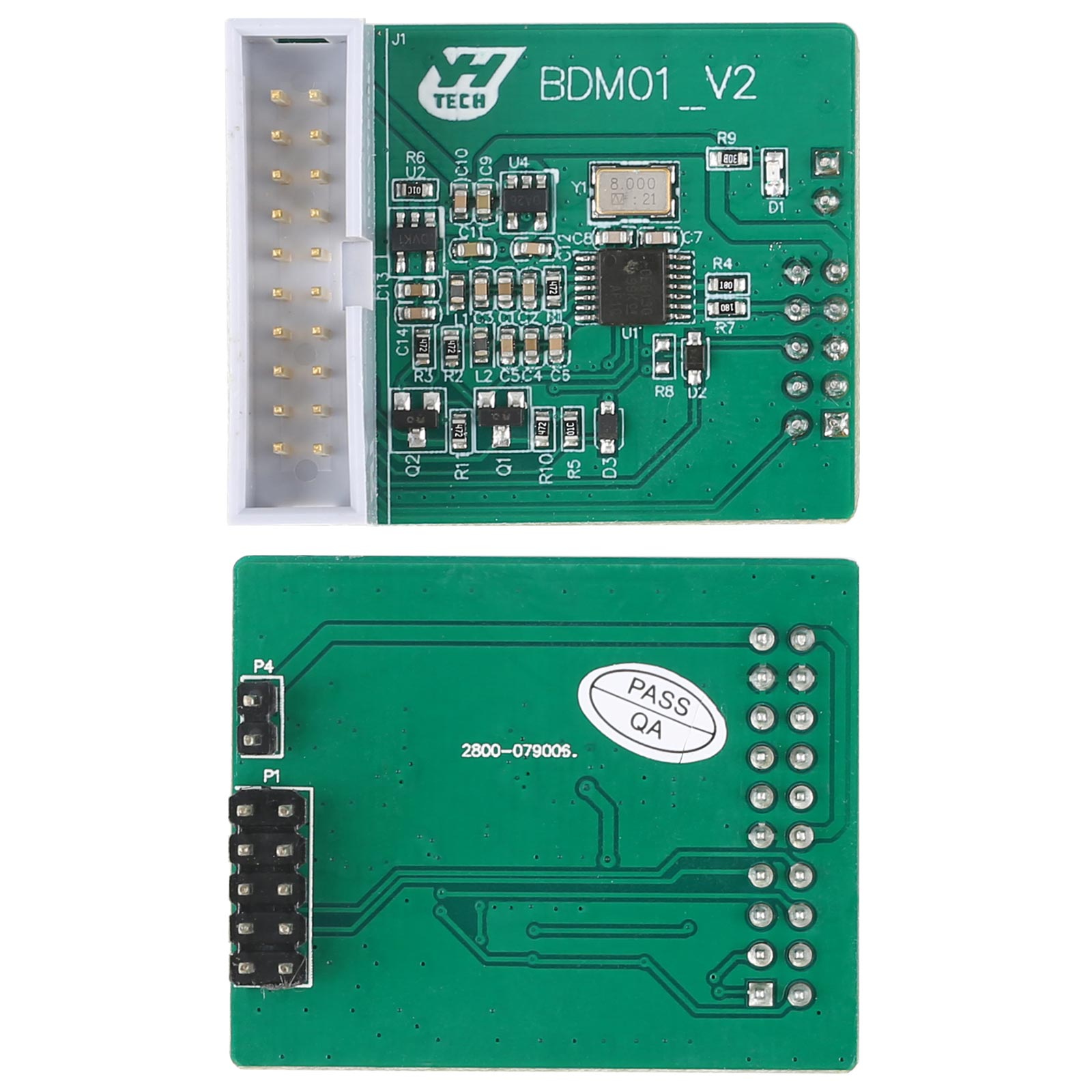

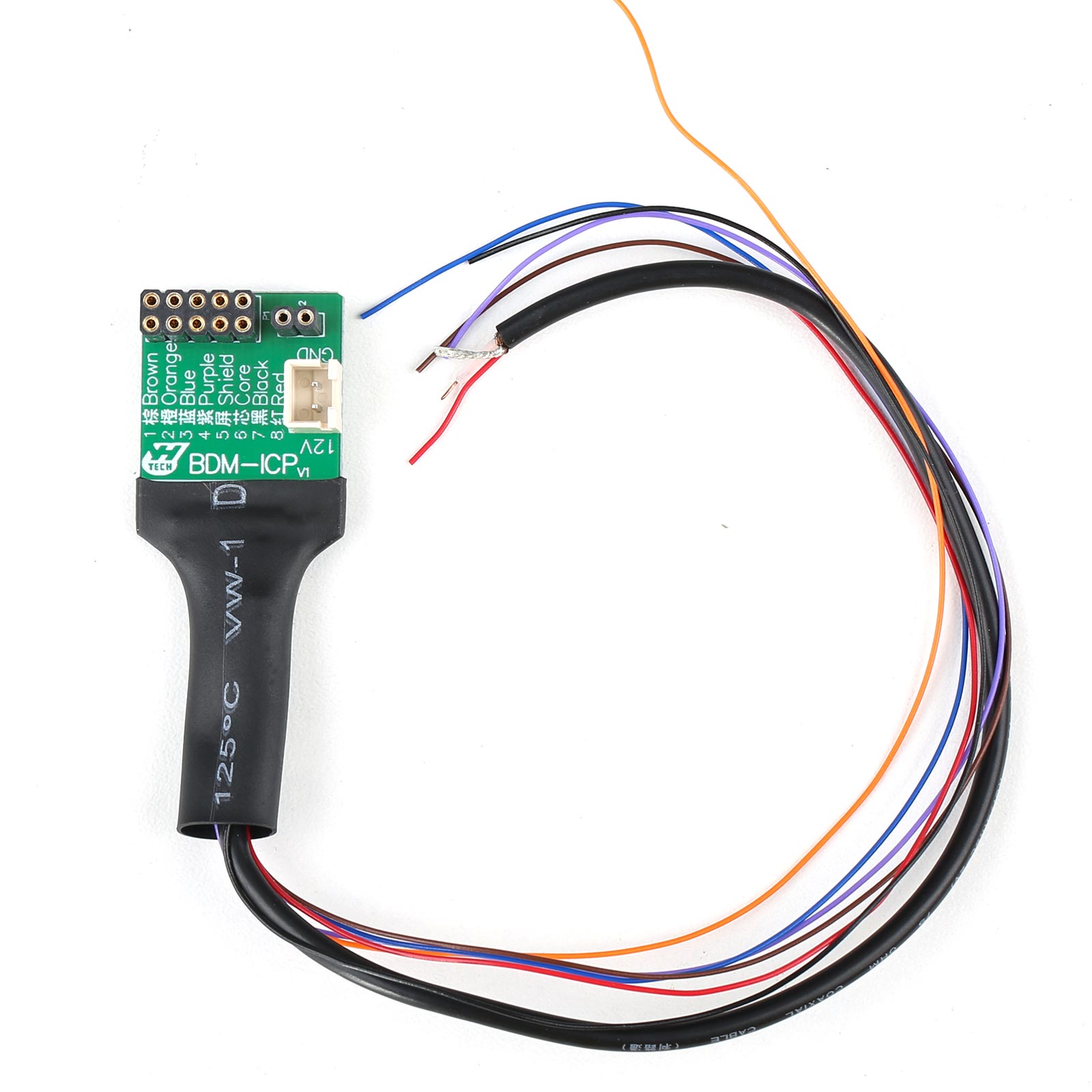

1pc x BDM01 adapter

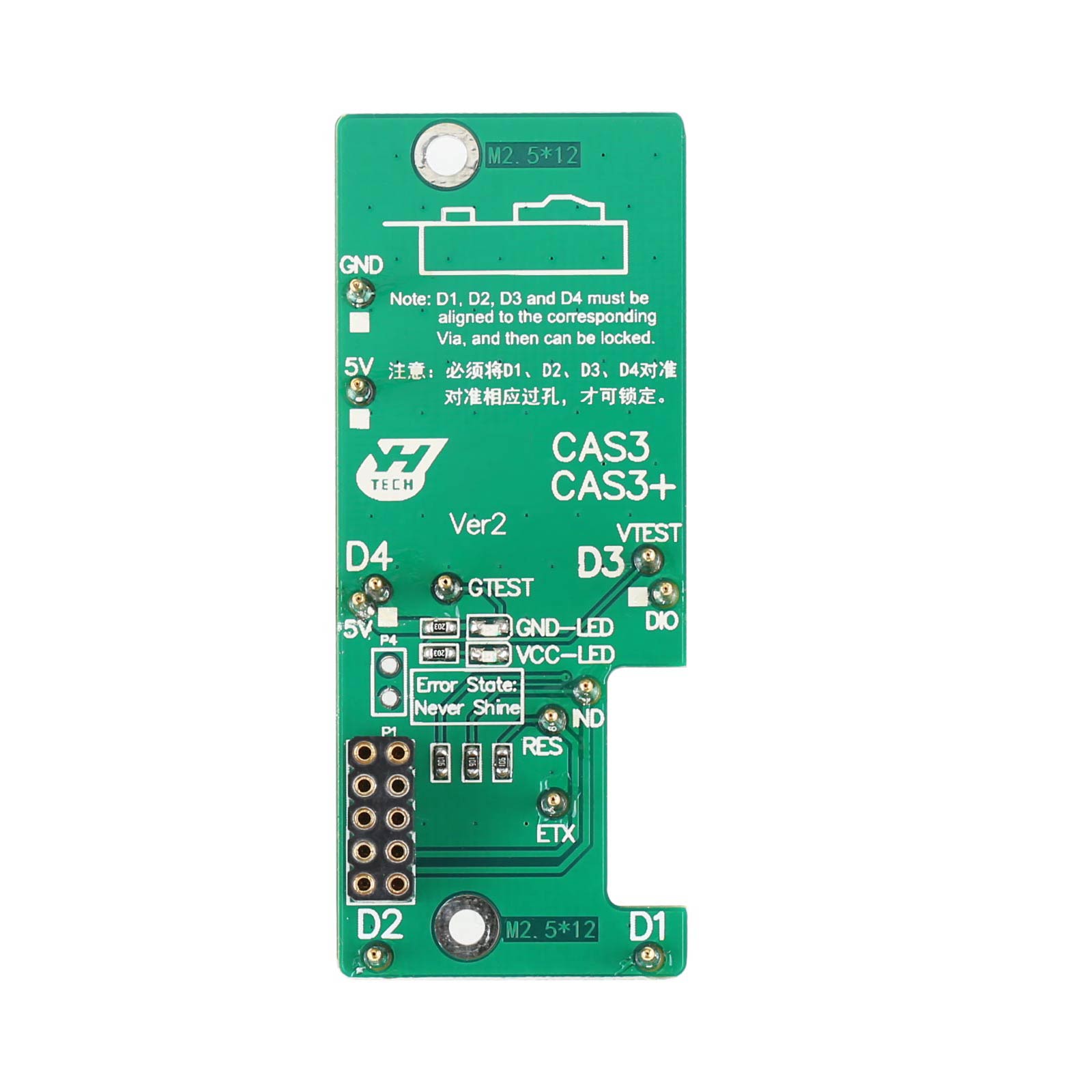

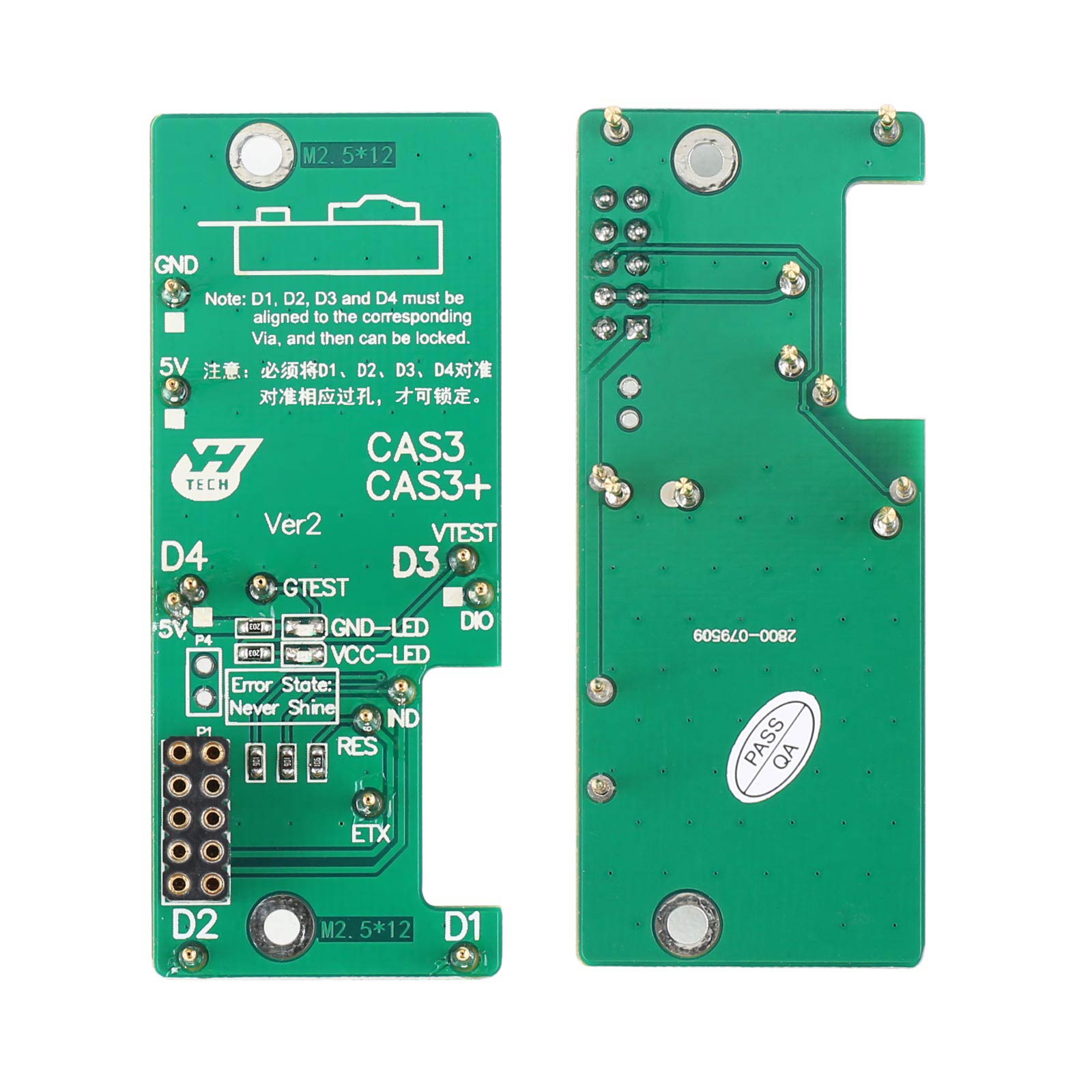

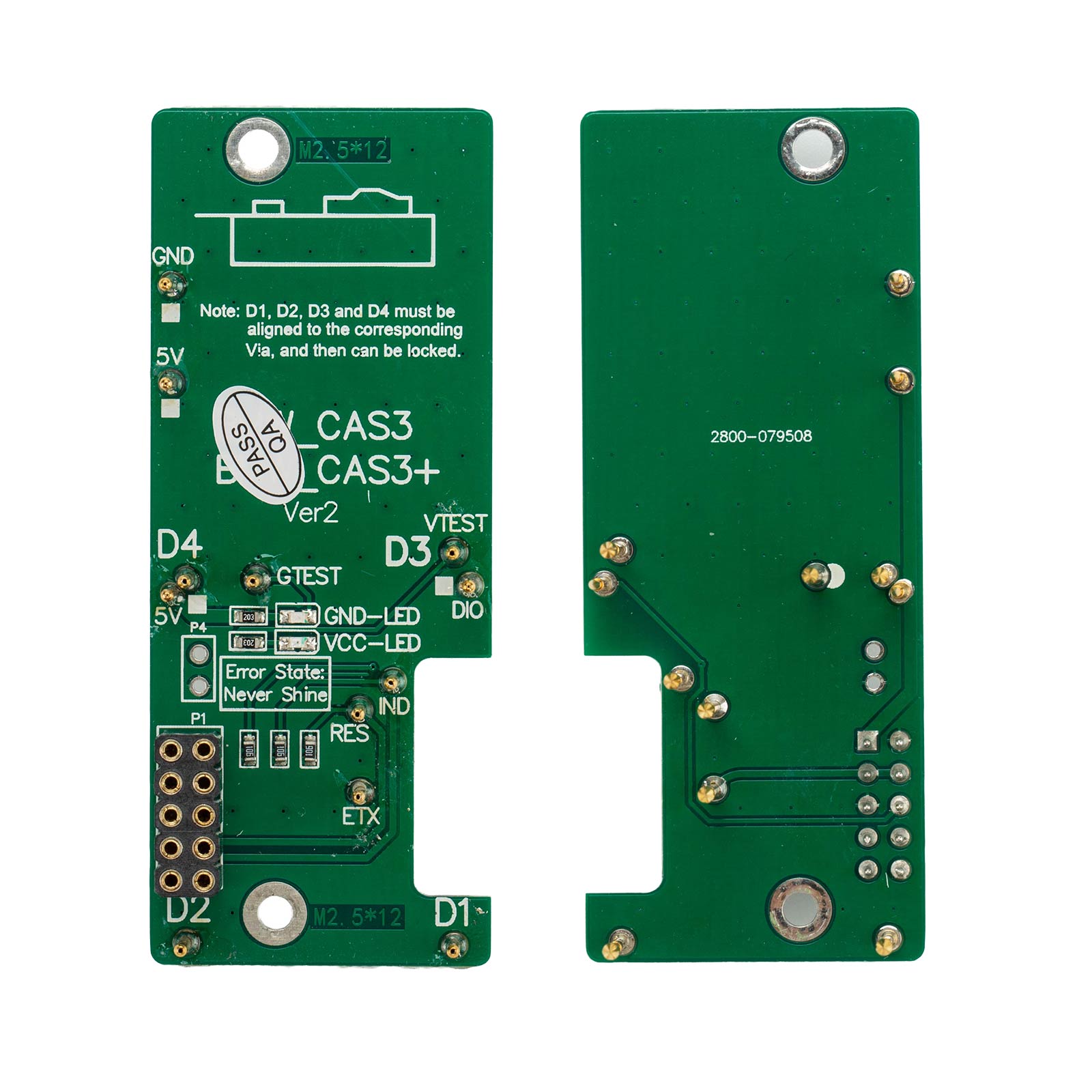

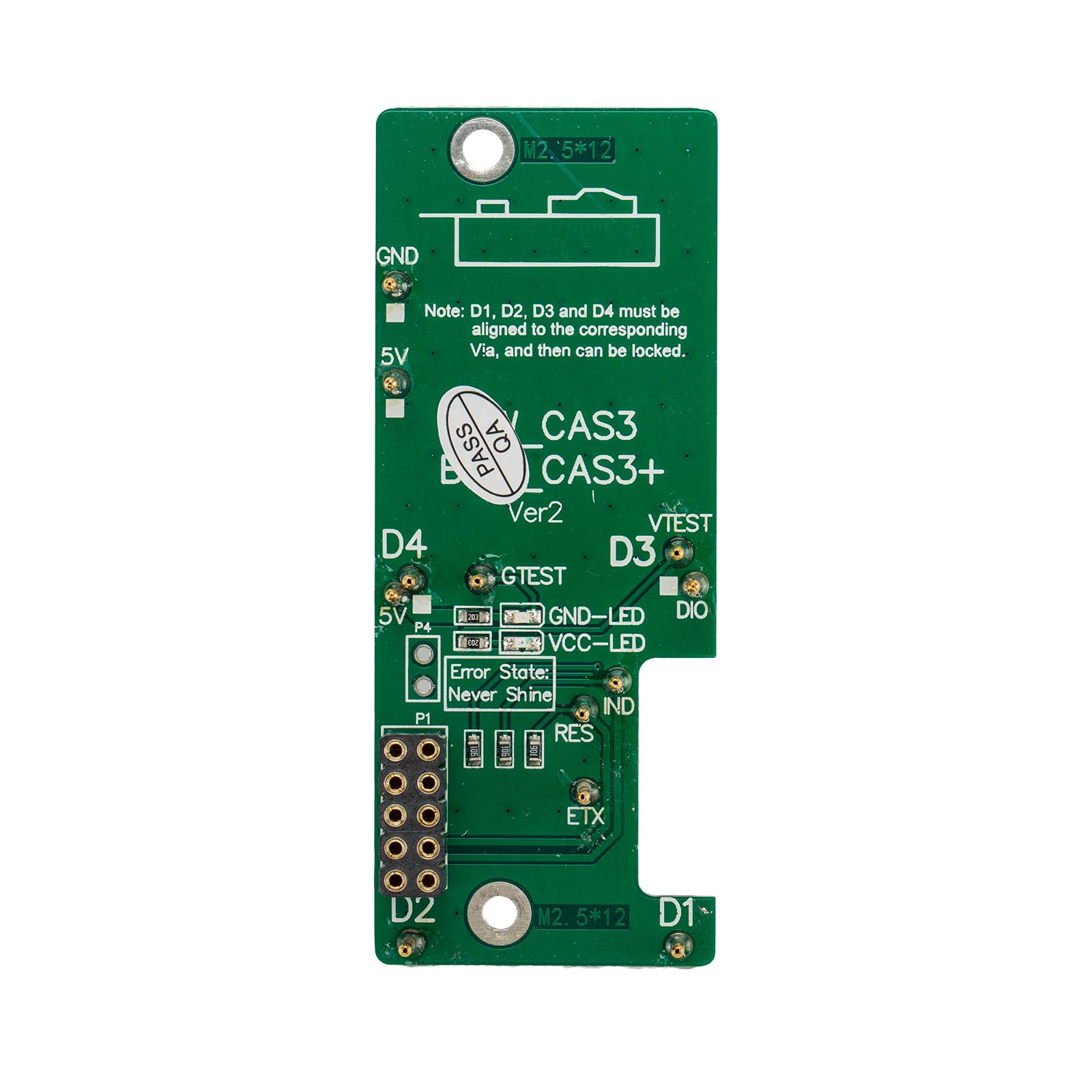

1pc x BWM-CAS3 board

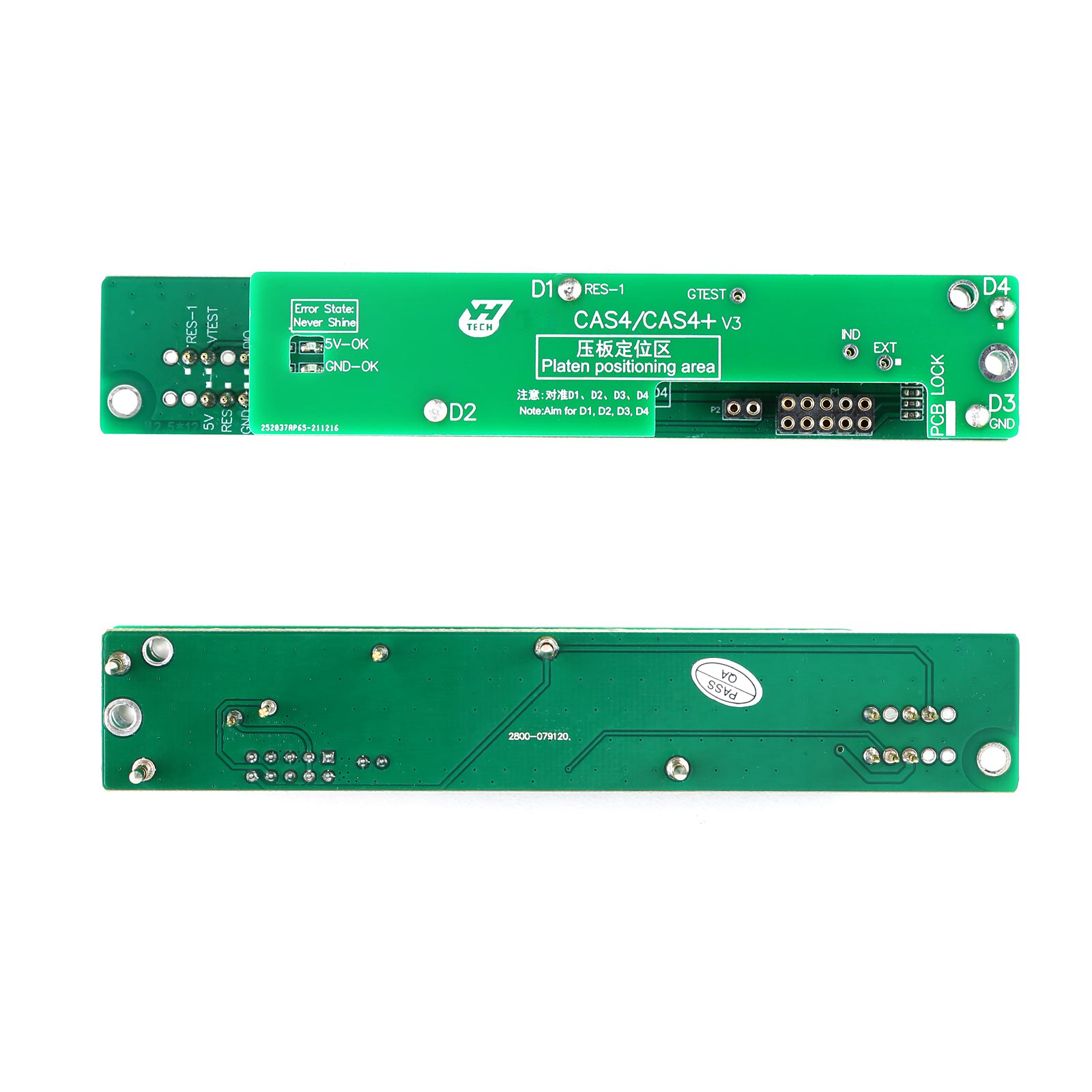

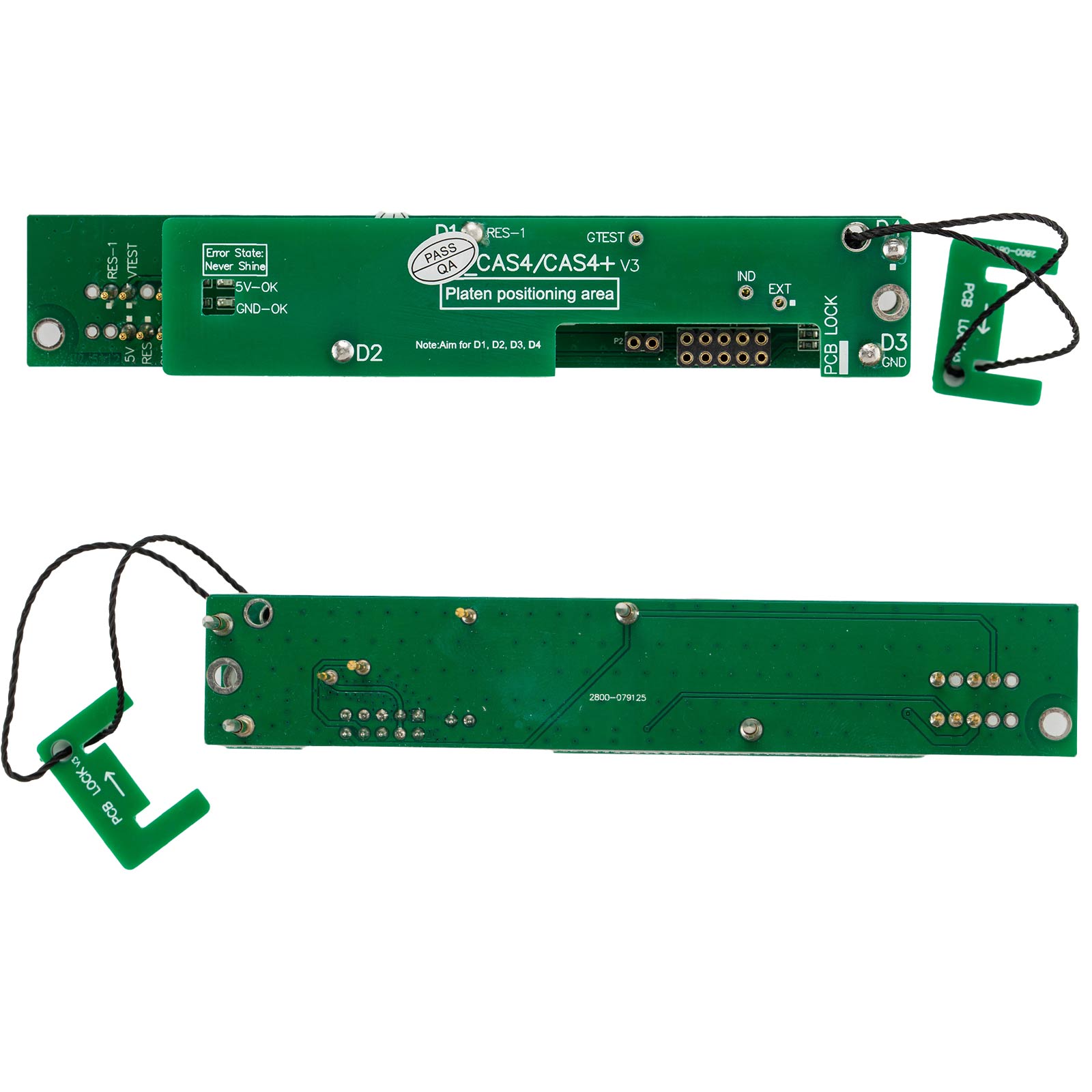

1pc x BWM-CAS4 board
1pc x CAS3 firmware package



---
