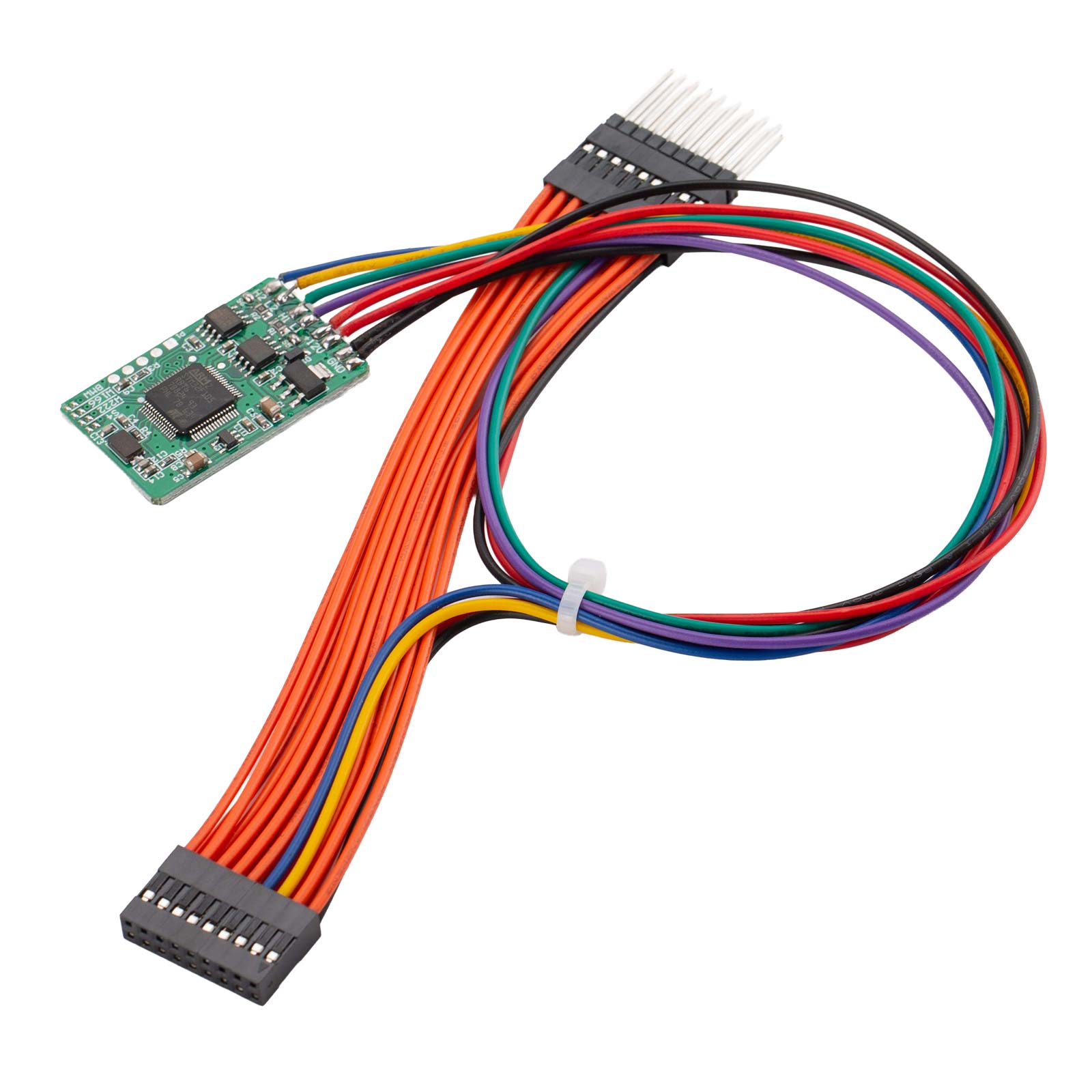

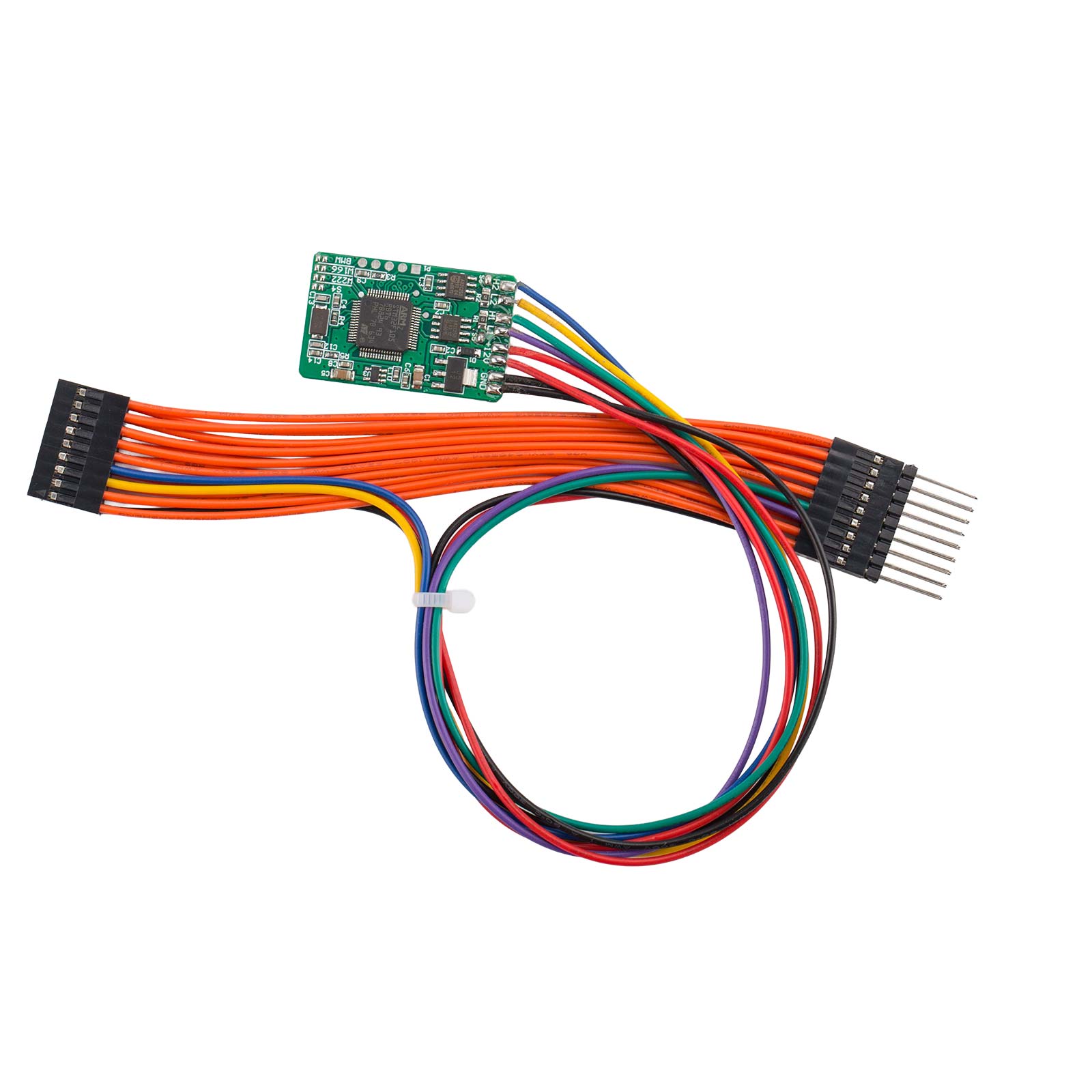

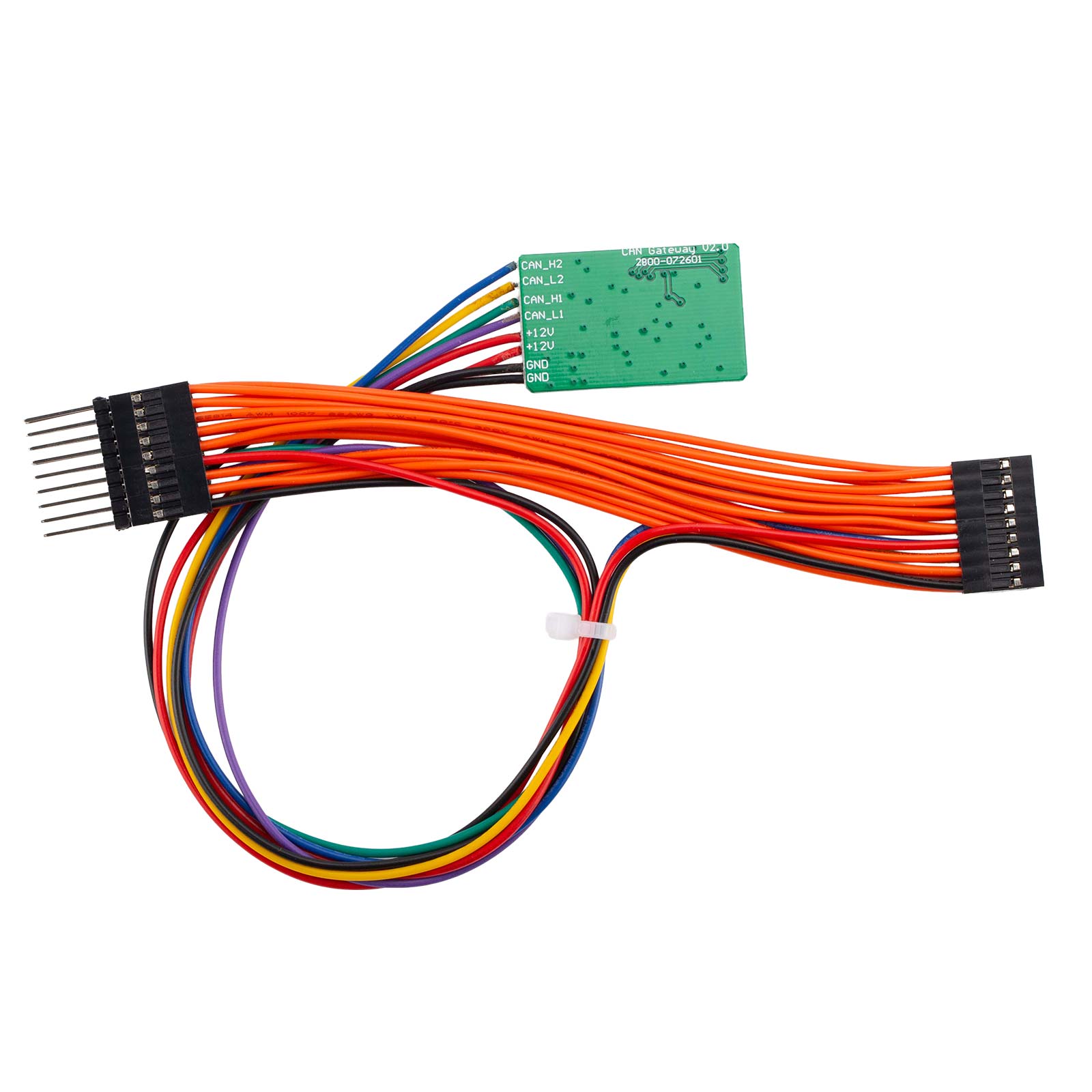

MB CAN Filter 18 in 1 for Benz / for BMW Universal CAN Filter

2. for BMW Model:

   for BMW 1 series F2X, 3 series F3X, for BMW X5 etc., FEM mileage adjustment( no need to remove FEM, connect directly to instrument panel);
   for BMW 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.( F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).

This filter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.

NOTICE!!
New style: 222/205/217
Old style: 166/212/463
CHECK the car model correctly before adjust.

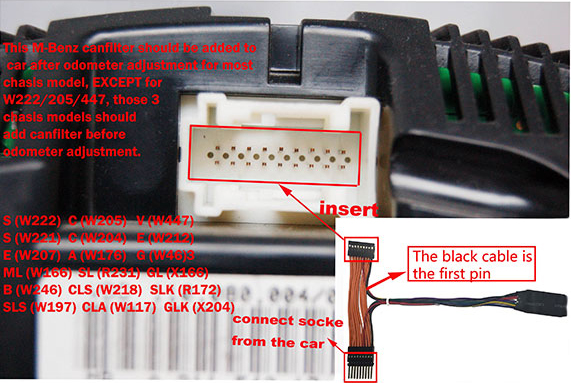

Old style W166 short circuit to GND
New style W222 short circuit to GND
Black wire connect to plug 1

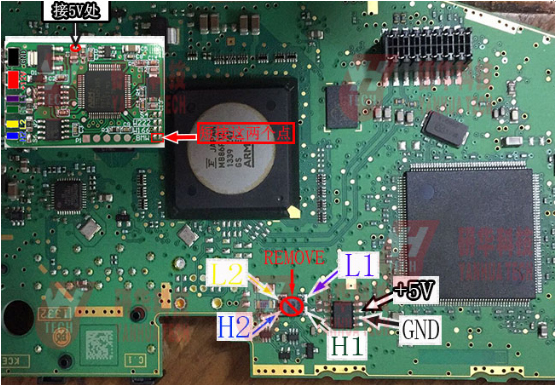

YH for Benz / for BMW Universal filter --- Diagram for BMW

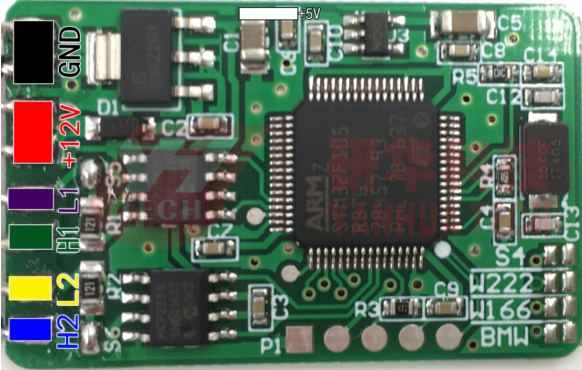

Below is wiring illustration:

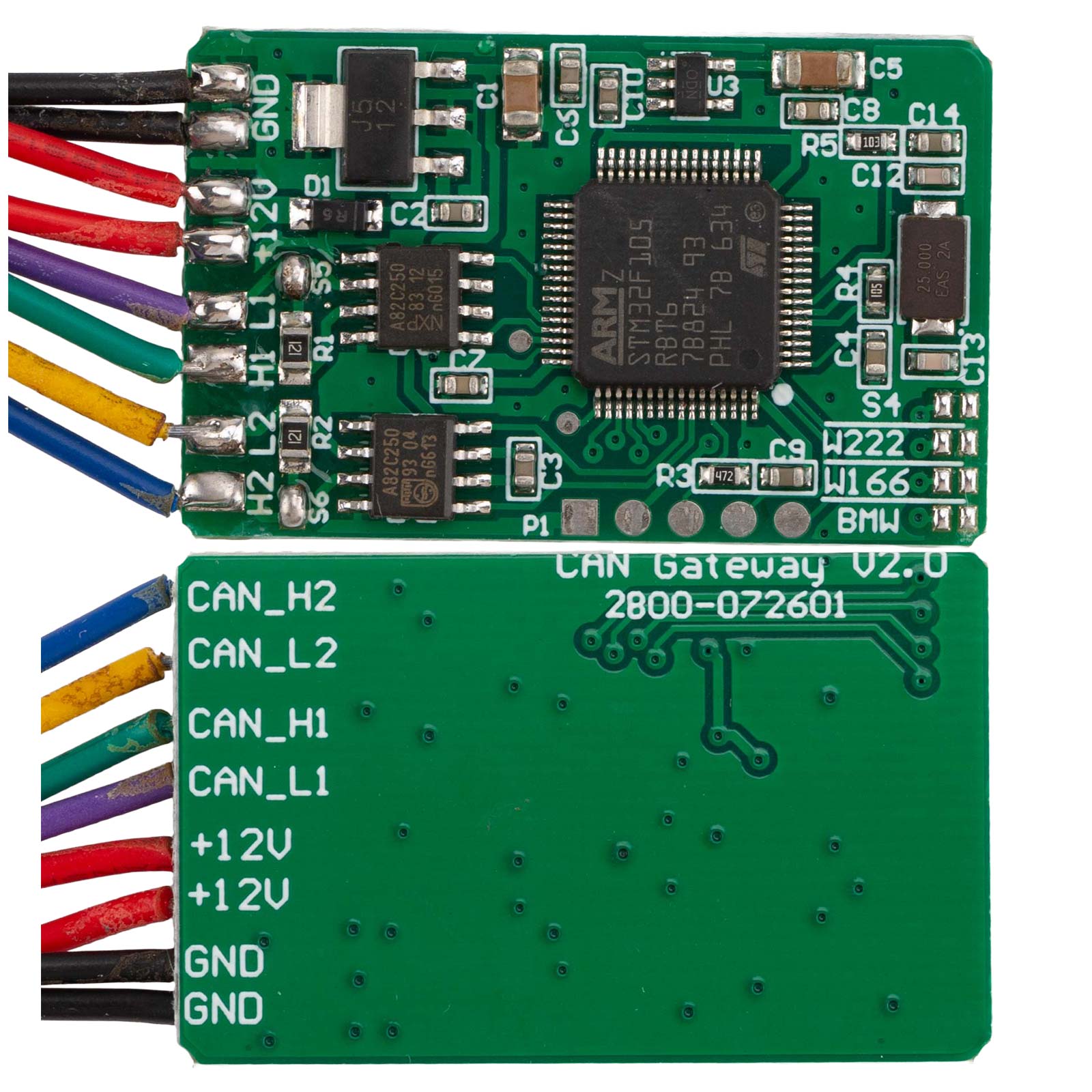

Black  --------- GND                   Red --------- +12V      White  --------- +5V
Purple  -------- L1(CAN_L1)    Green --------- H1(CAN_H1)
Yellow --------- L2(CAN_L2)    Blue --------- H2(CAN_H1)
NOTICE! Please connect the 2 for BMW dot together(short circuit) BEFORE connect to car!

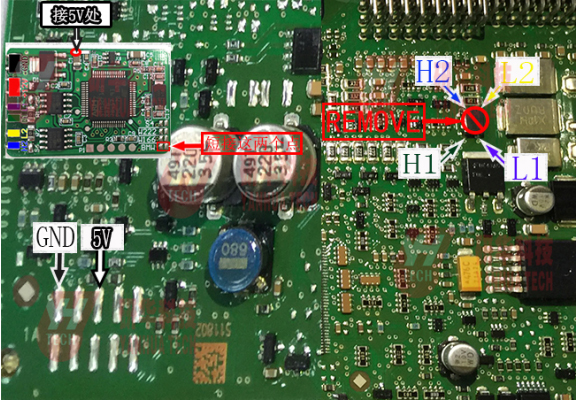

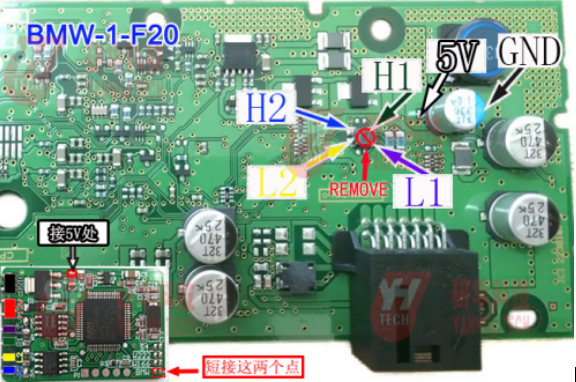

1.Below is the diagram for BMW 1 series F20 instrument:

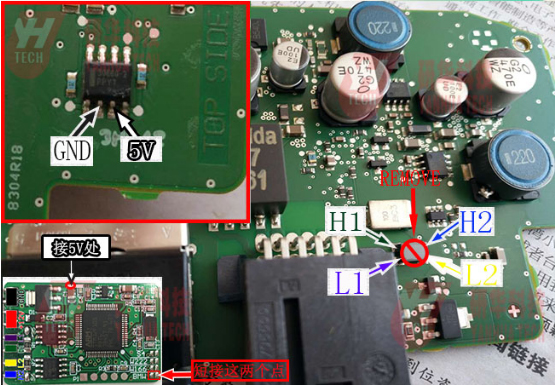

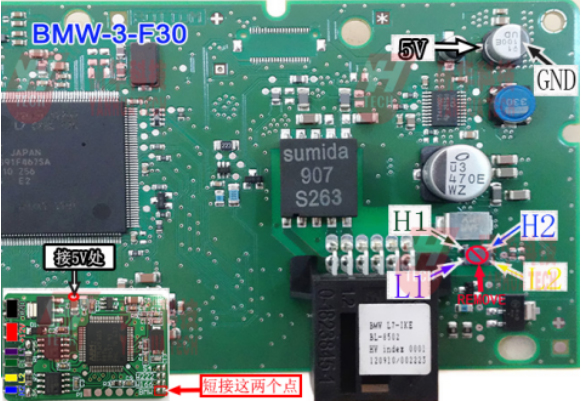

2.Below is the for BMW 3 series F30 instrument:

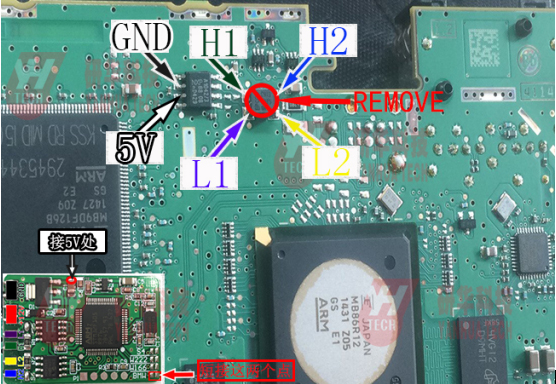

3.Below is the for BMW 3 GT series F30 instrument:

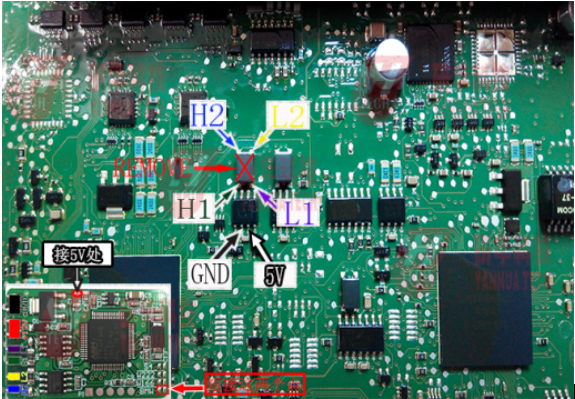

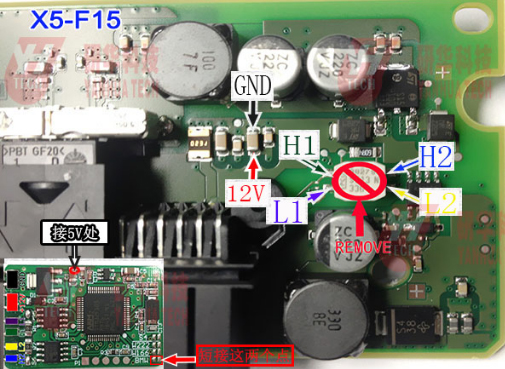

4.Below is the diagram for American Standard for BMW X5 F15 instrument:：



5.Below is the diagram for USA Strandard for BMW X5 F15 instrument:



6.Below is the diagram for BMW FEM:



7.Below is the diagram for BMW CAS4(1L15Y/5M48H/1N35H)



8.Below is the diagram for BMW X3 F25 instrument:



Package includeds:

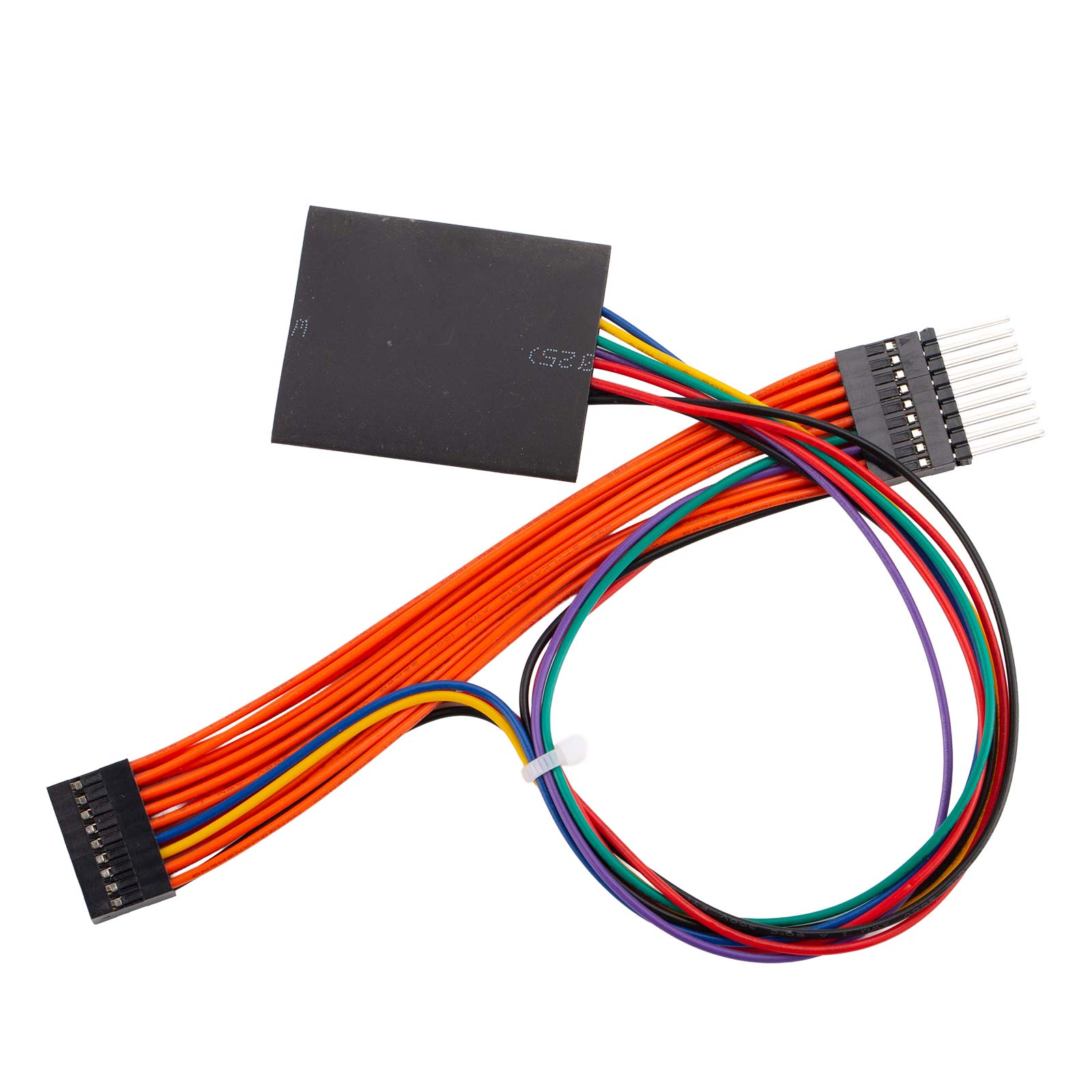

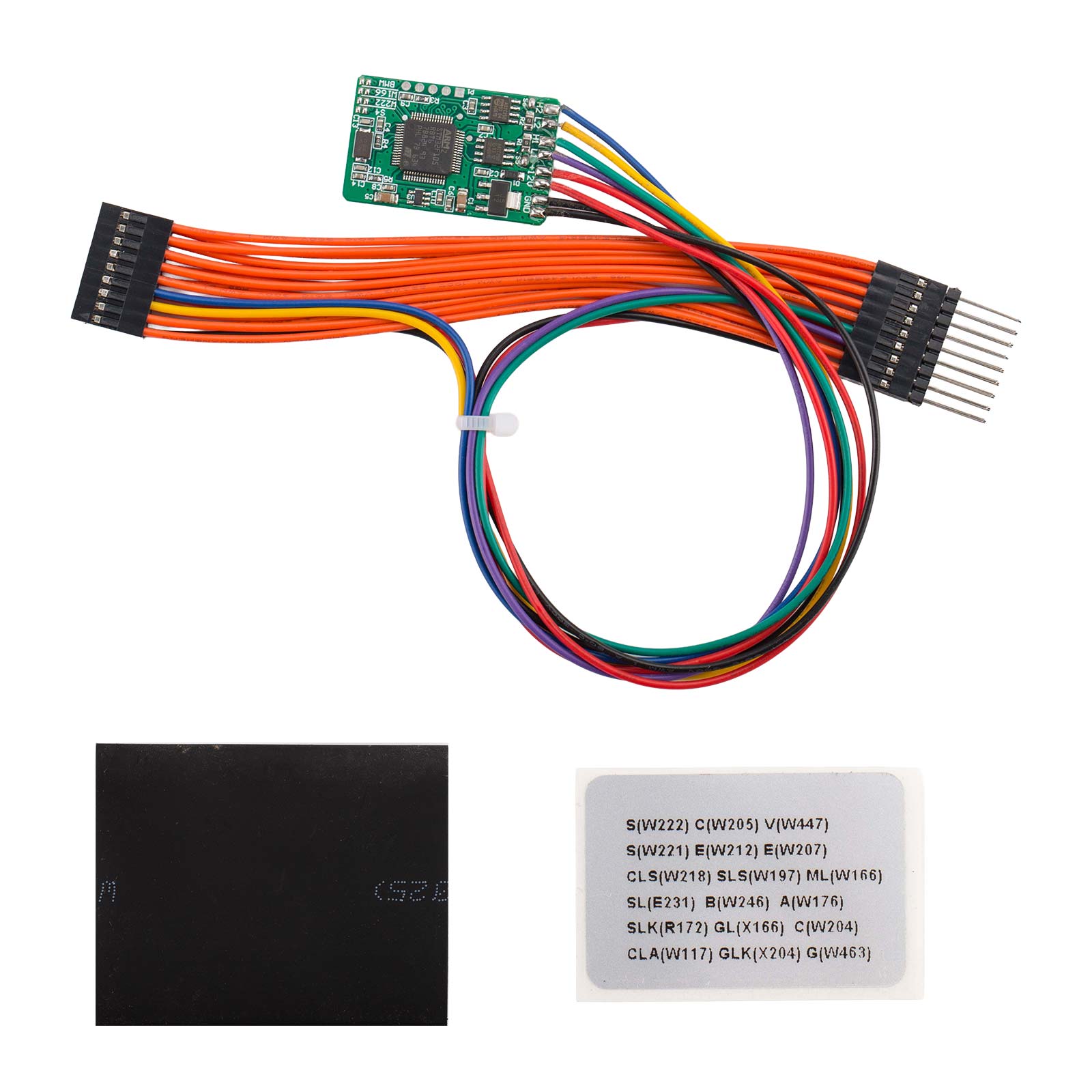

1pc x MB CAN Filter 18 in 1 for Benz/ for BMW Universal filter
