Ship from EU YANHUA ACDP Module 33 MQB-33 + Module 34 MQB-34 including Adapter and License Support MQB48 MQB49 Johnson Instruments

Product Description

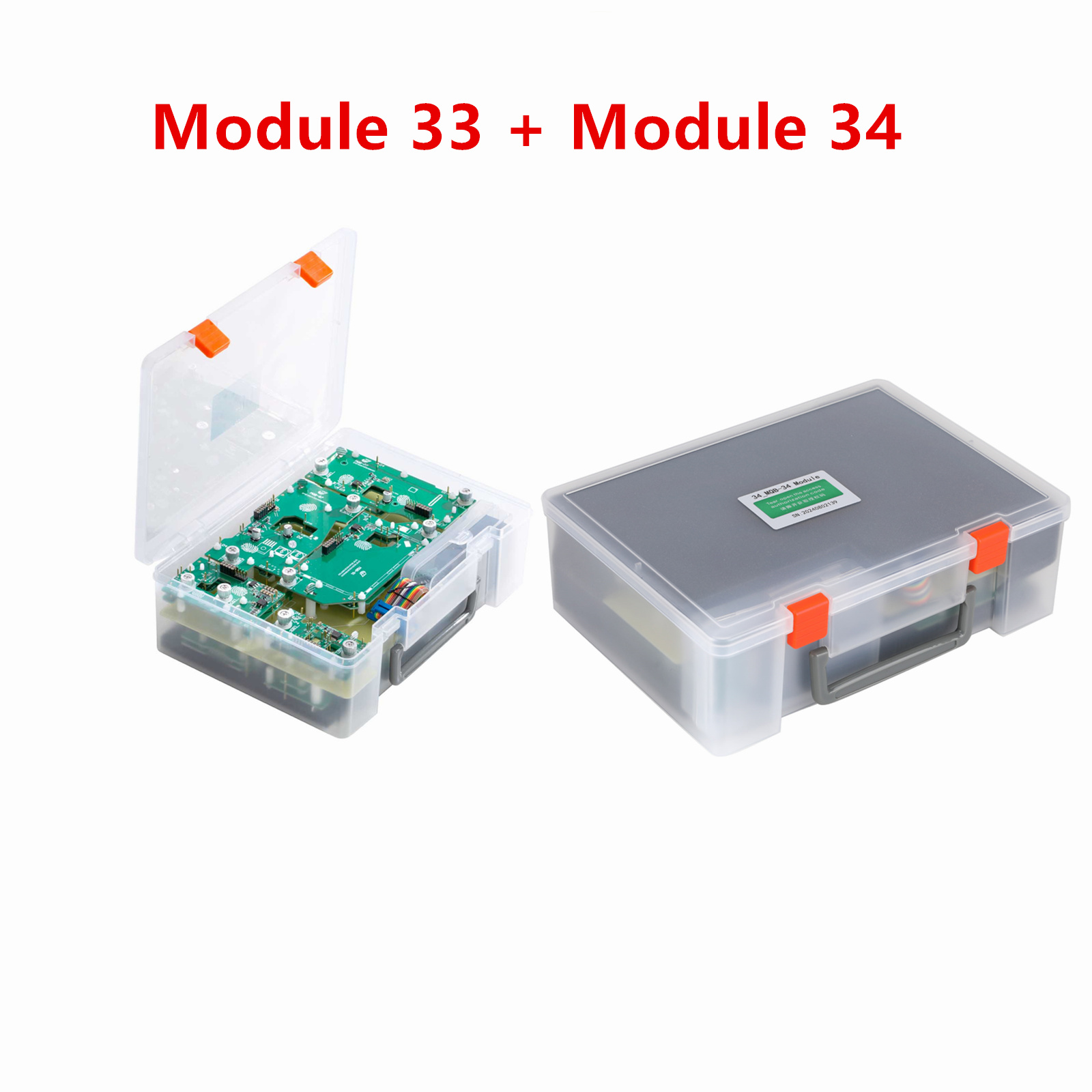

Yanhua ACDP Module 33 MQB-33 + Module 34 MQB-34

• Supports VW the 4th/4.5th generation and MQB 5A etc. IMMO and mileage correction.

• Using a quasi-blind plug-in interface board, no need to cut lines, no need to lift pins, and data can be read and written without welding or damage.
• The third generation PCB interface board locking technology independently developed by Yanhua Tech makes the interface board locking more accurate and firm,
• The software has a pin detection function, making data reading and writing safer and more reliable.

• D70F3524 (A2C00889000)
• D70F3525 (A2C81589600)
• D70F3526 (A2C81589700/A2C99606600)
• D70F3529
• D70F3532 (A2C81589500/A2C81589501)
• D70F3535 (A2C81589200)
• D70F3537 (A2C81589300/A2C81589800)
• D70F3536

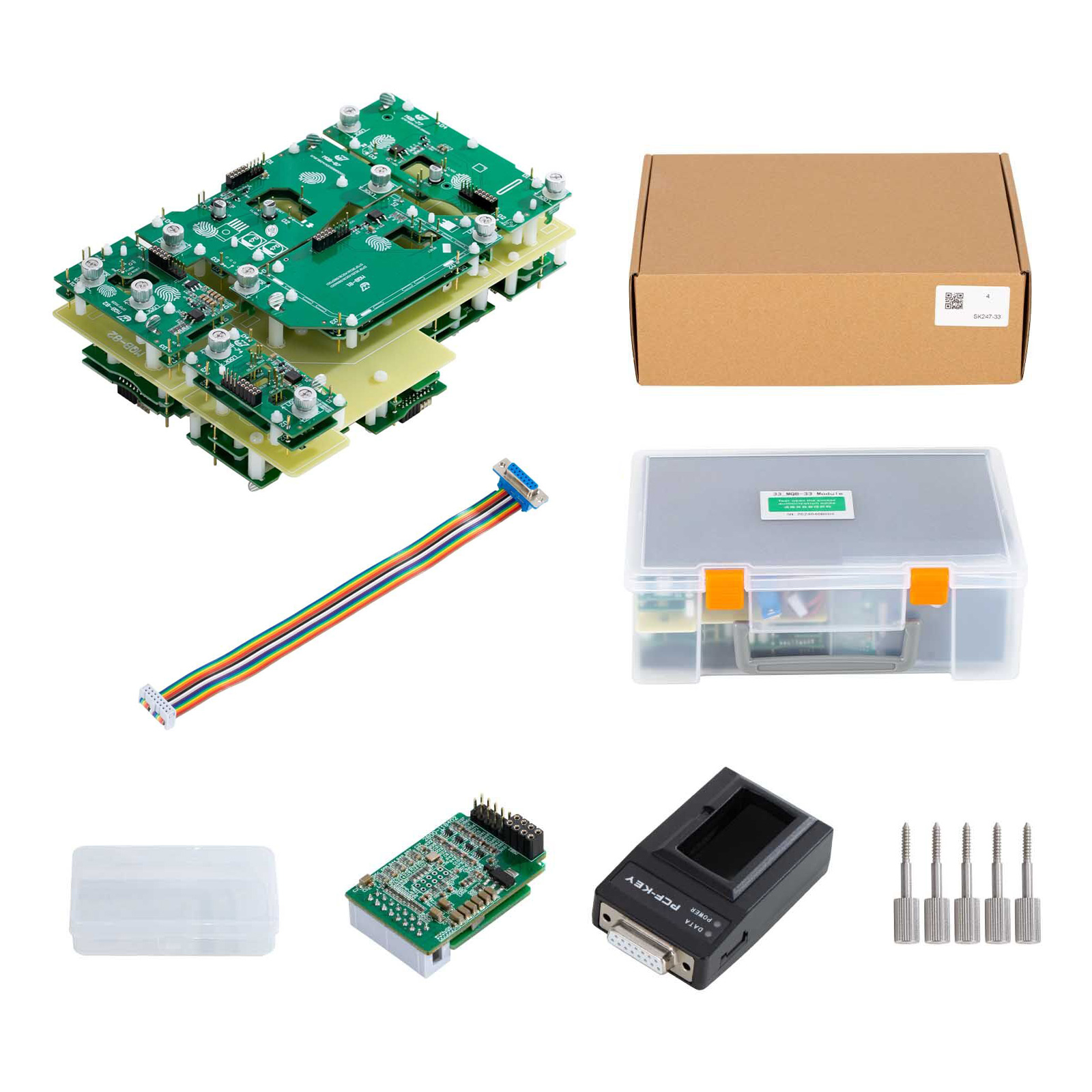

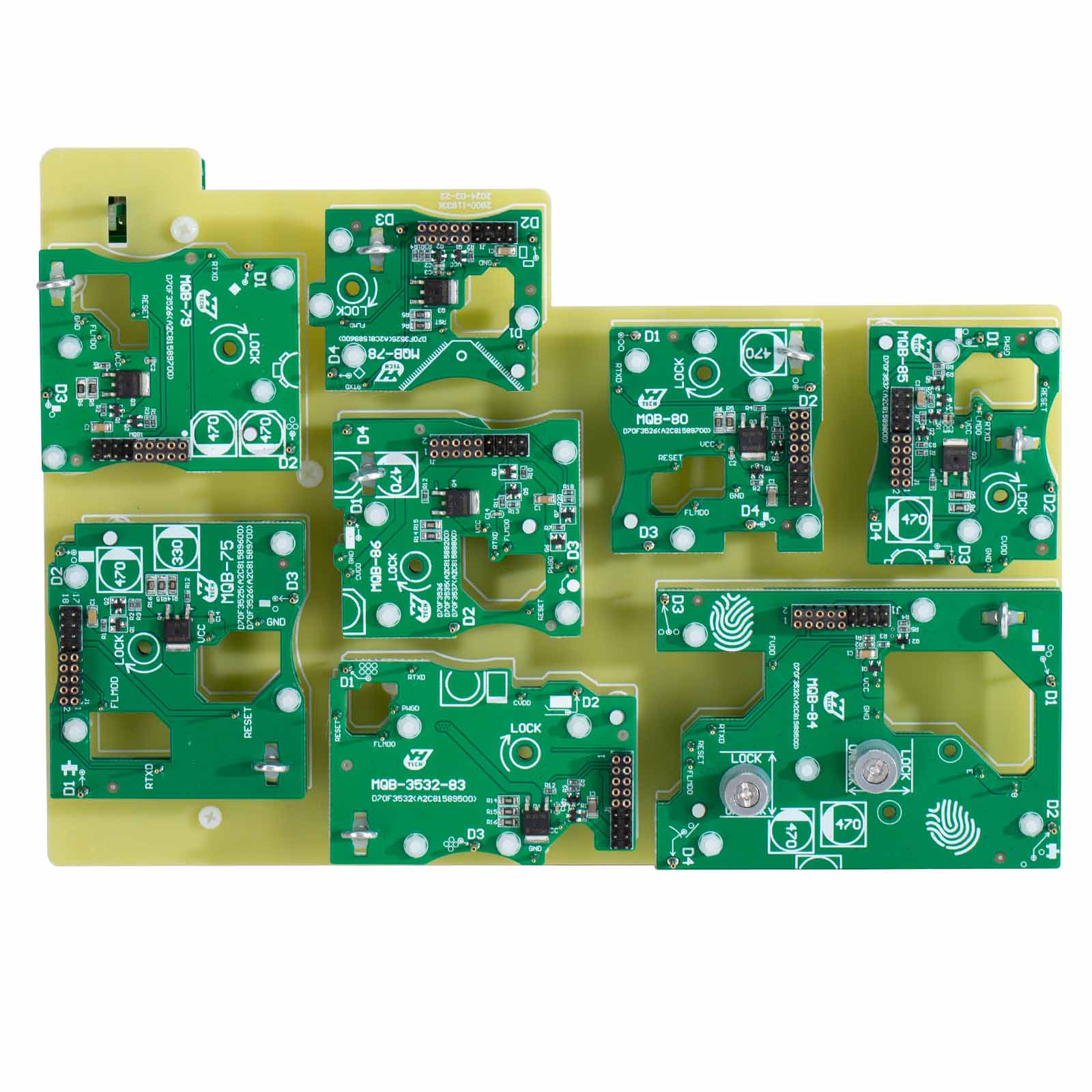

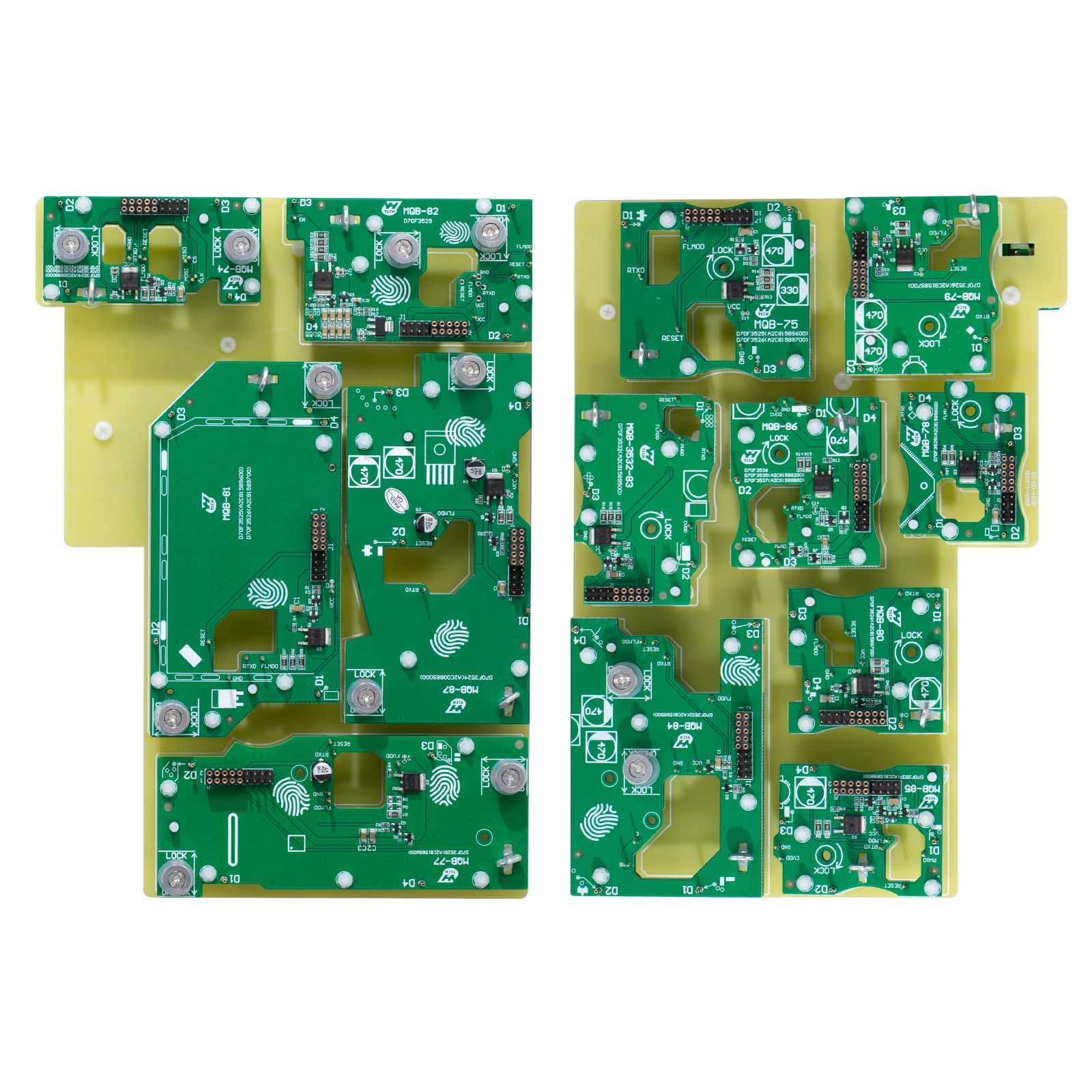

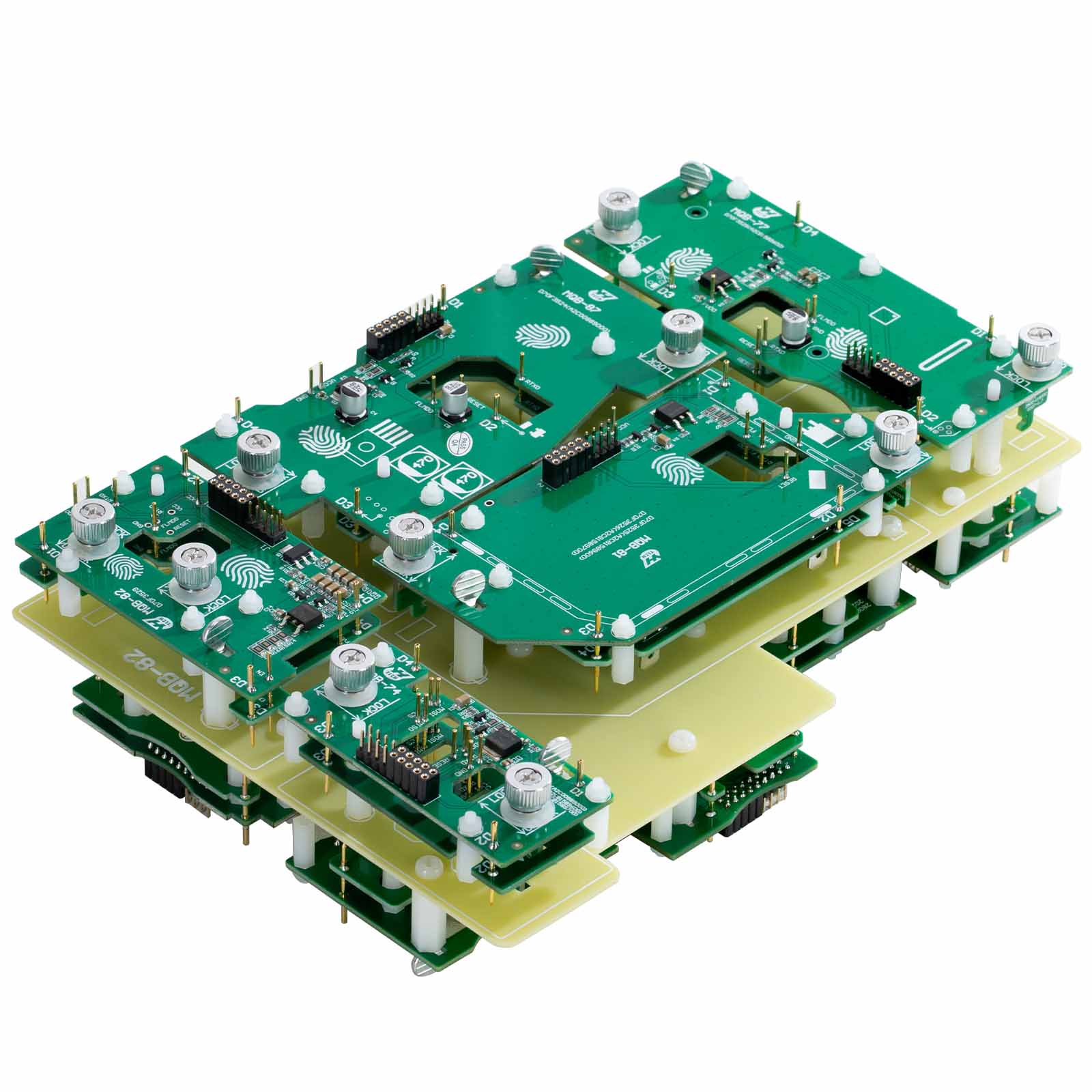

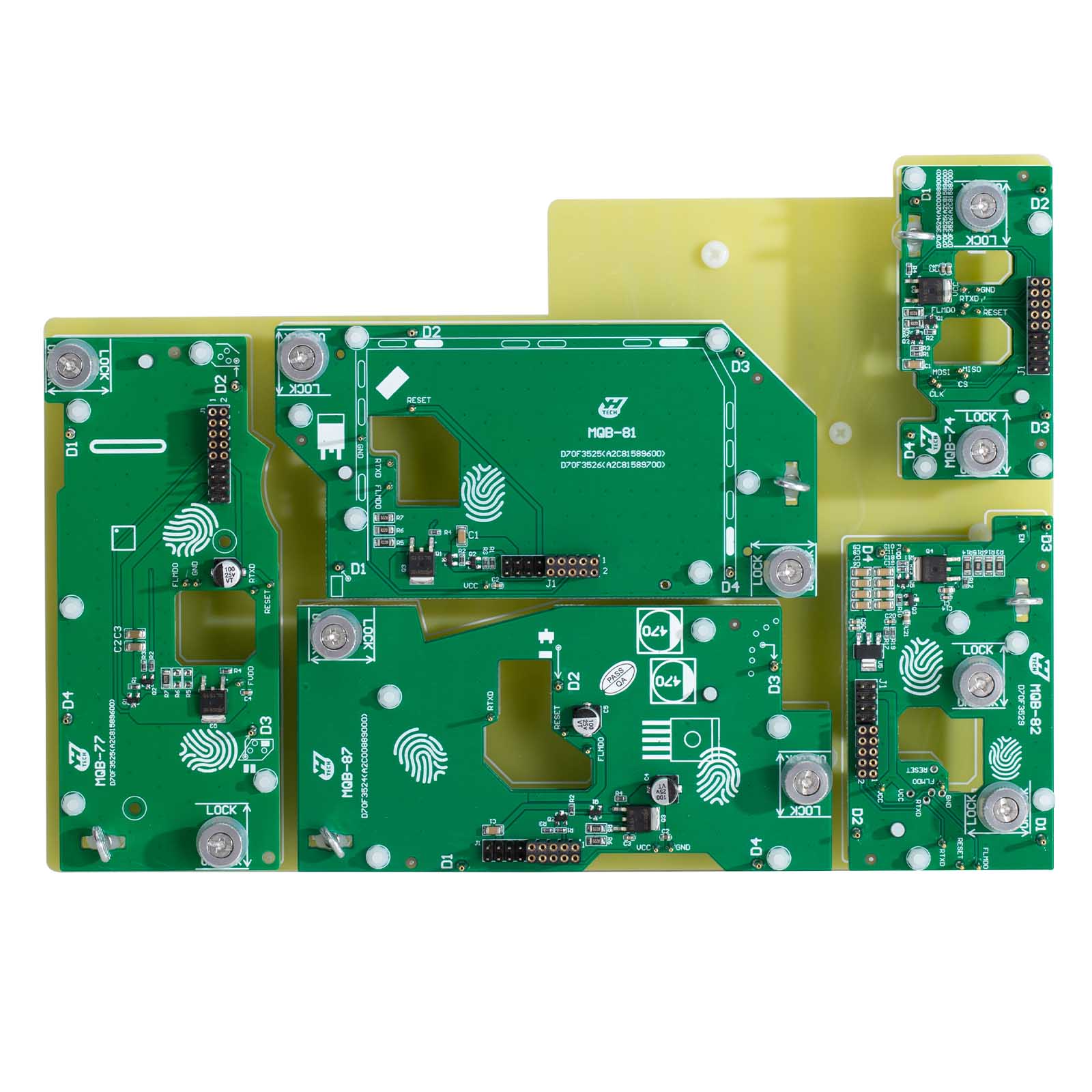

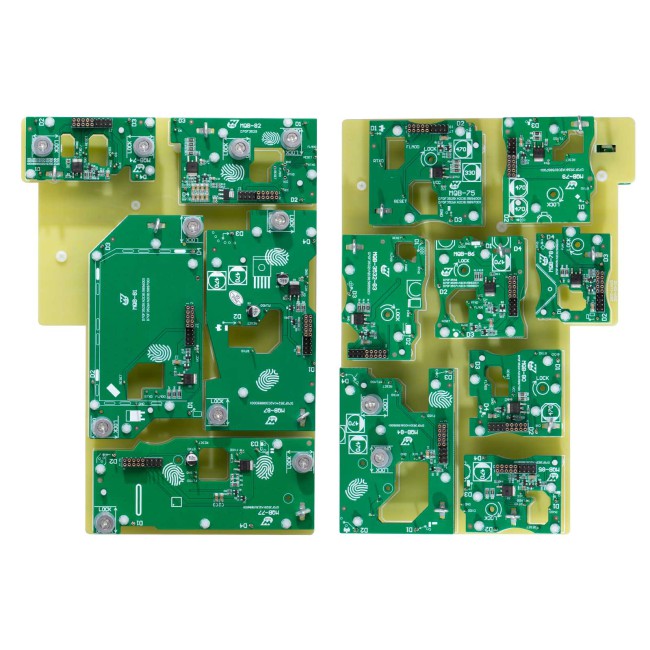

• 1 PC x MQB-74 Interface board
• 1 PC x MQB-75 Interface board
• 1 PC x MQB-77 Interface board
• 1 PC x MQB-78 Interface board
• 1 PC x MQB-79 Interface board
• 1 PC x MQB-80 Interface board
• 1 PC x MQB-81 Interface board
• 1 PC x MQB-82 Interface board
• 1 PC x MQB-83 Interface board
• 1 PC x MQB-84 Interface board
• 1 PC x MQB-85 Interface board
• 1 PC x MQB-86 Interface board
• 1 PC x MQB-87 Interface board
• 1 PC x PCF-KEY adapter
• 1 PC x MQB adapter
• 1 PC x 20 PIN cable
• 1 PC x screw

• Support IMMO and mileage correction for the 4th generation instrument with D70F3423 +95320 chip model.
• Supports IMMO and mileage correction for D70F3426 +95128 chip model MQB 5A instrument.
• Supports IMMO and mileage correction for RH850 series R7F701401, R7F701402, R7F701407 chip model 5A instruments.
• Support mileage correction for RH850 series R7F701401, R7F701402, R7F701404, R7F701406, R7F701407 chip model 5C instrument.

• Using a quasi-blind plug-in interface board, No soldering, No need to pry up the chip pins, No capacitor removal, and No soldering required to read and write data without damage.
• The third-generation PCB interface board locking technology independently developed by YanHua Tech makes the interface board locking more accurate and firm.
• The software has a pin detection function, making data reading and writing safer and more reliable.

• R7F701401/ R7F701402/ R7F701407 5A: 83A920700B, 83A920700, 8V0920740B, 81A920740L, 51G920640D, 55G920790, 2GD920790A, 5GD920790, 5NG920640C, 5NG920650C, 5ND920650C, 5NG920654, 2GG920640, 3GB920640, 3GB920790, 56G920790, 3VD920740B
• R7F701401/ R7F701402/ R7F701404/ R7F701405/ R7F701406/ R7F701407 5C: 3GB920640A, 3GB920640B, 3GB920640C, 3GD920640D, 19G920640B, 19G920640C, 19D920640B, 19D920640C, 17G920640A, 2GD920640B, 2GD920640C, 5GD920640D, 5ED920860C, 19G920650B, 19G920650C, 55G920650A, 55G920650B, 55G920650C, 5HG920340, 5HG920340A, 5HG920340B, 5HG920340C, 5NG920640D, 5NG920650D, 2GG920640A, 51G920640E
• D70F3423 +95320: 31G920850B, 18G920860B, 31G920850A,18G920860A, 31G920850F, 34D920850C, 31G920850C, 34D920850E, 31G920860A, 34D920850G
• D70F3426 +95128: 5GG920640, 5GG920860, 5GG920860A, 5G0920861A

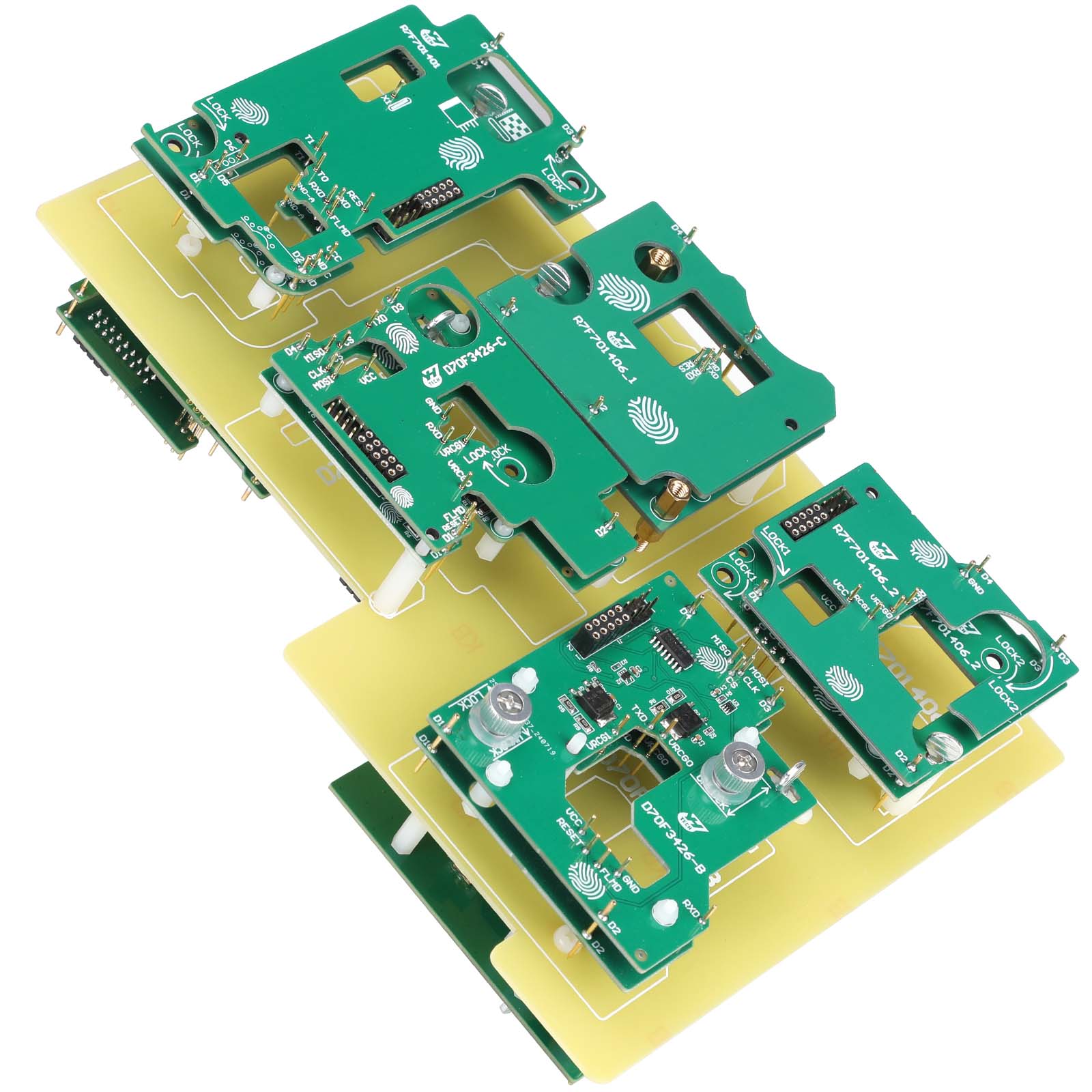

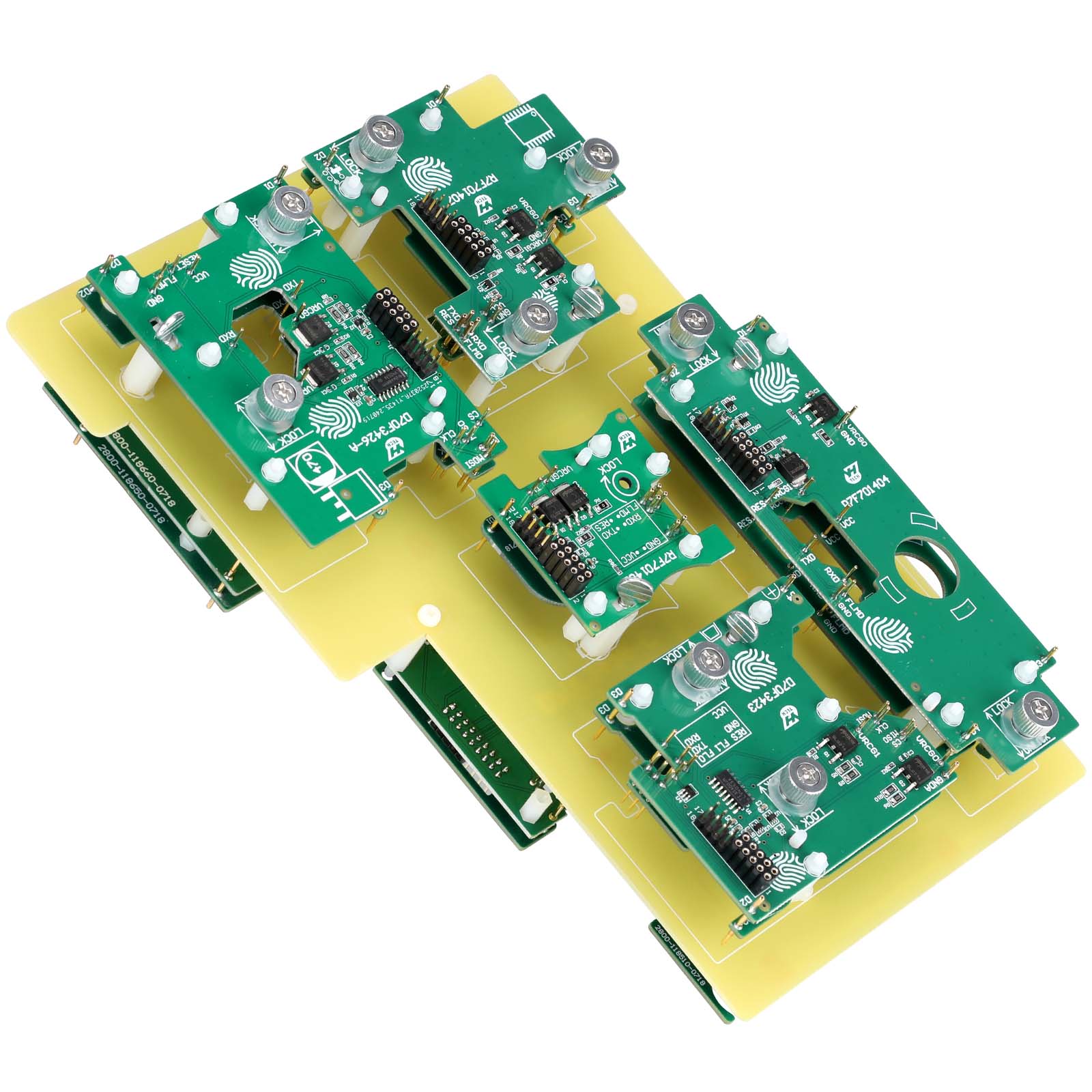

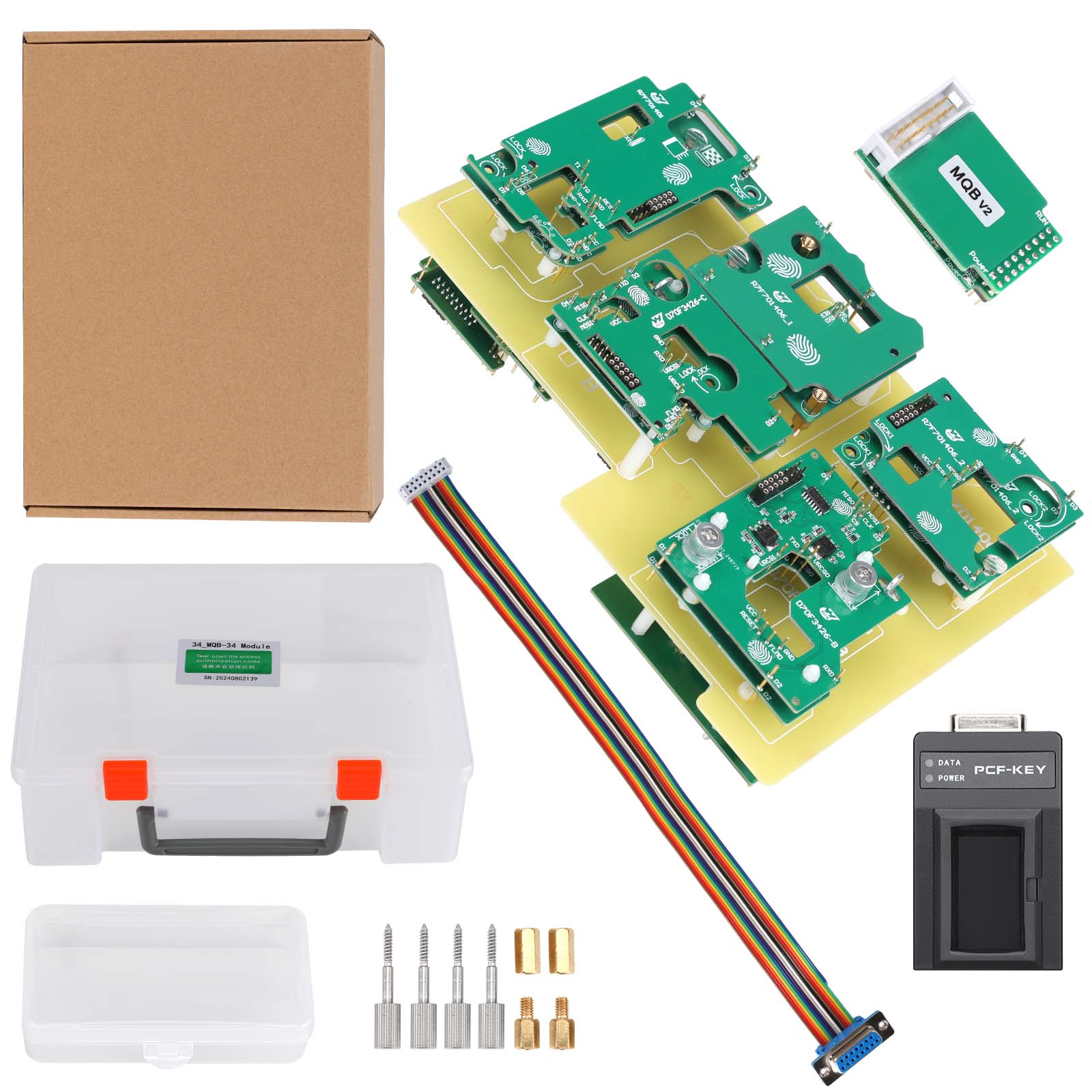

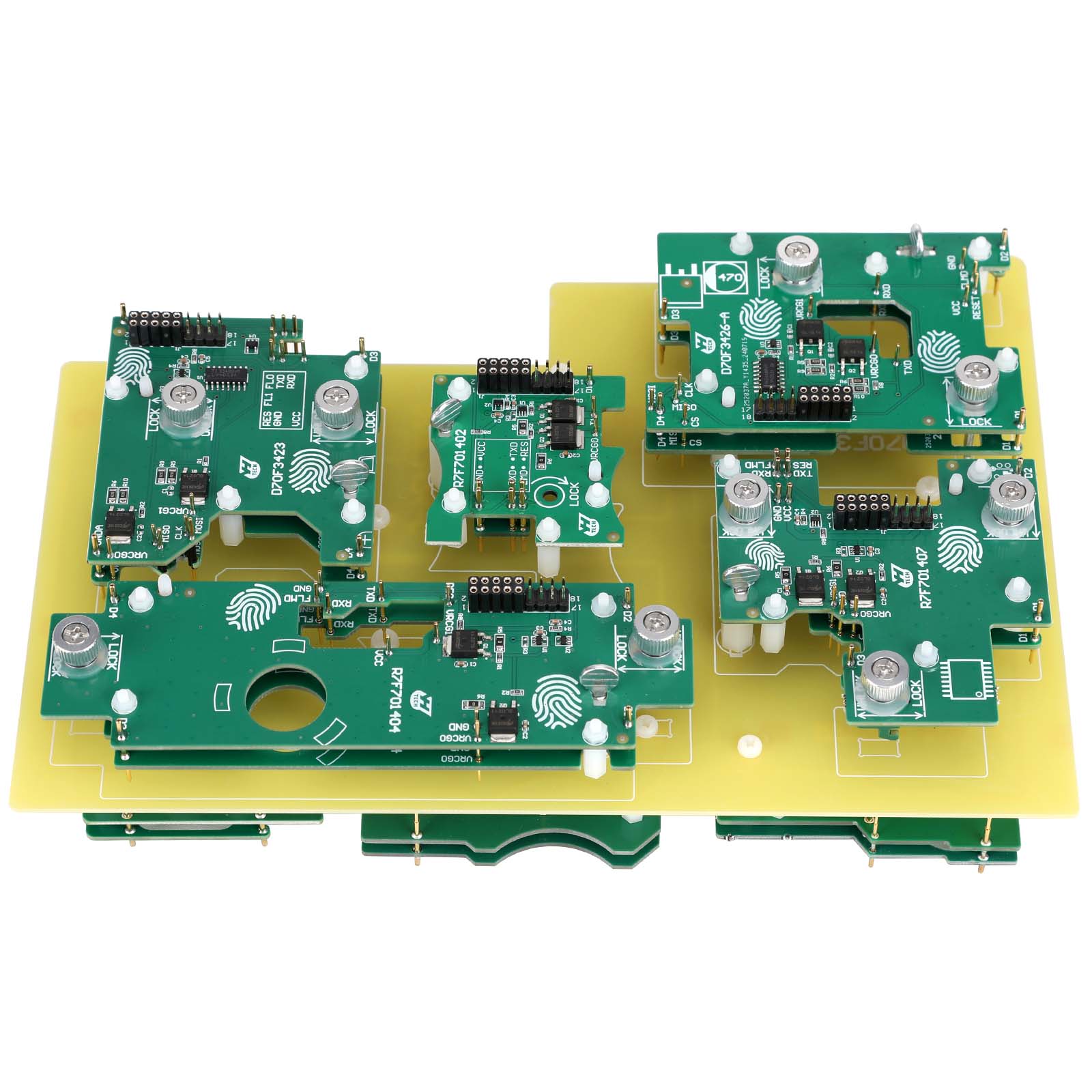

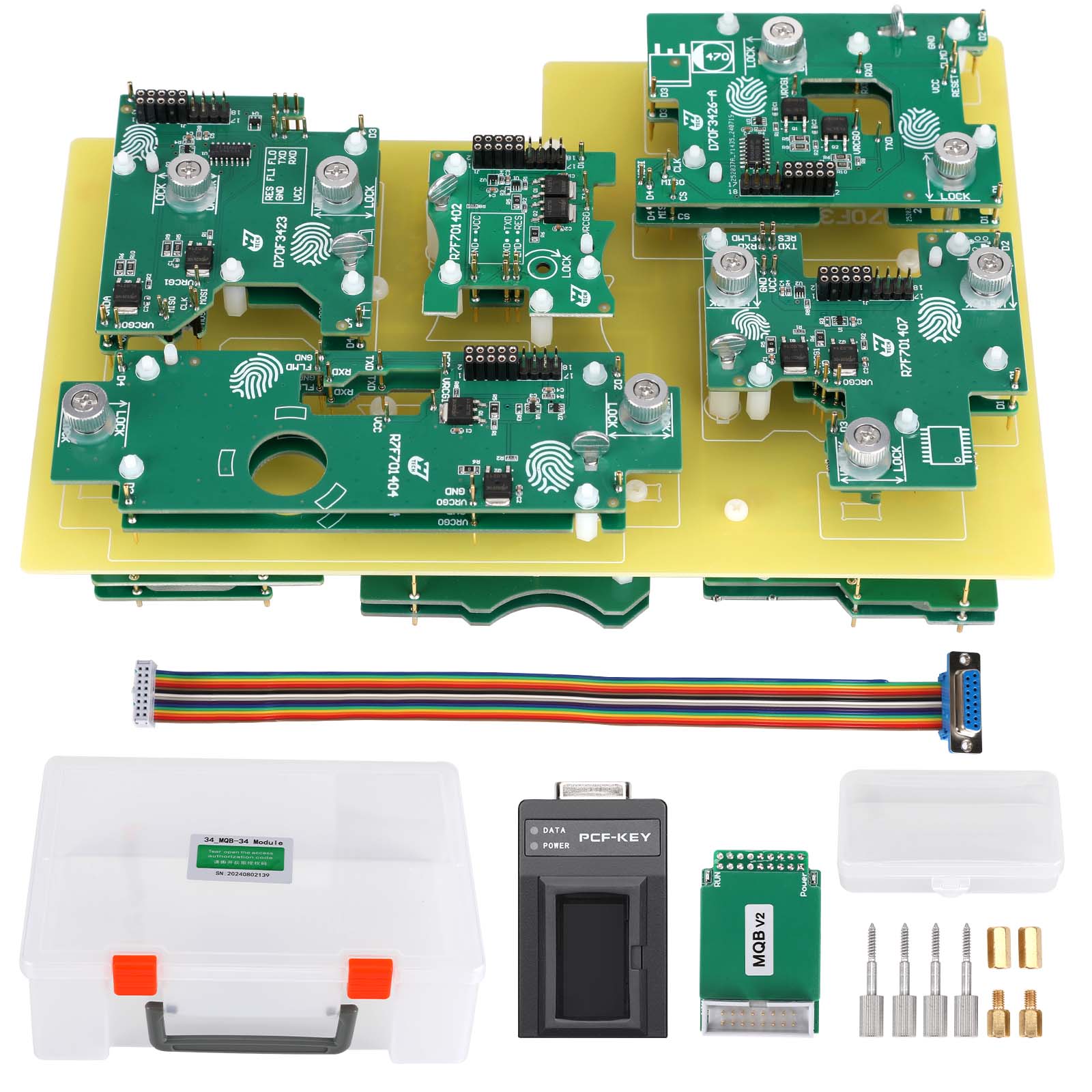

• 1pc x R7F701401 Interface board
• 1pc x R7F701402 Interface board
• 1pc x R7F701404 Interface board
• 1pc x R7F701406-1 Interface board
• 1pc x R7F701406-2 Interface board
• 1pc x R7F701407 Interface board
• 1pc x D703423 Interface board
• 1pc x D703426-A Interface board
• 1pc x D703426-B Interface board
• 1pc x D703426-C Interface board

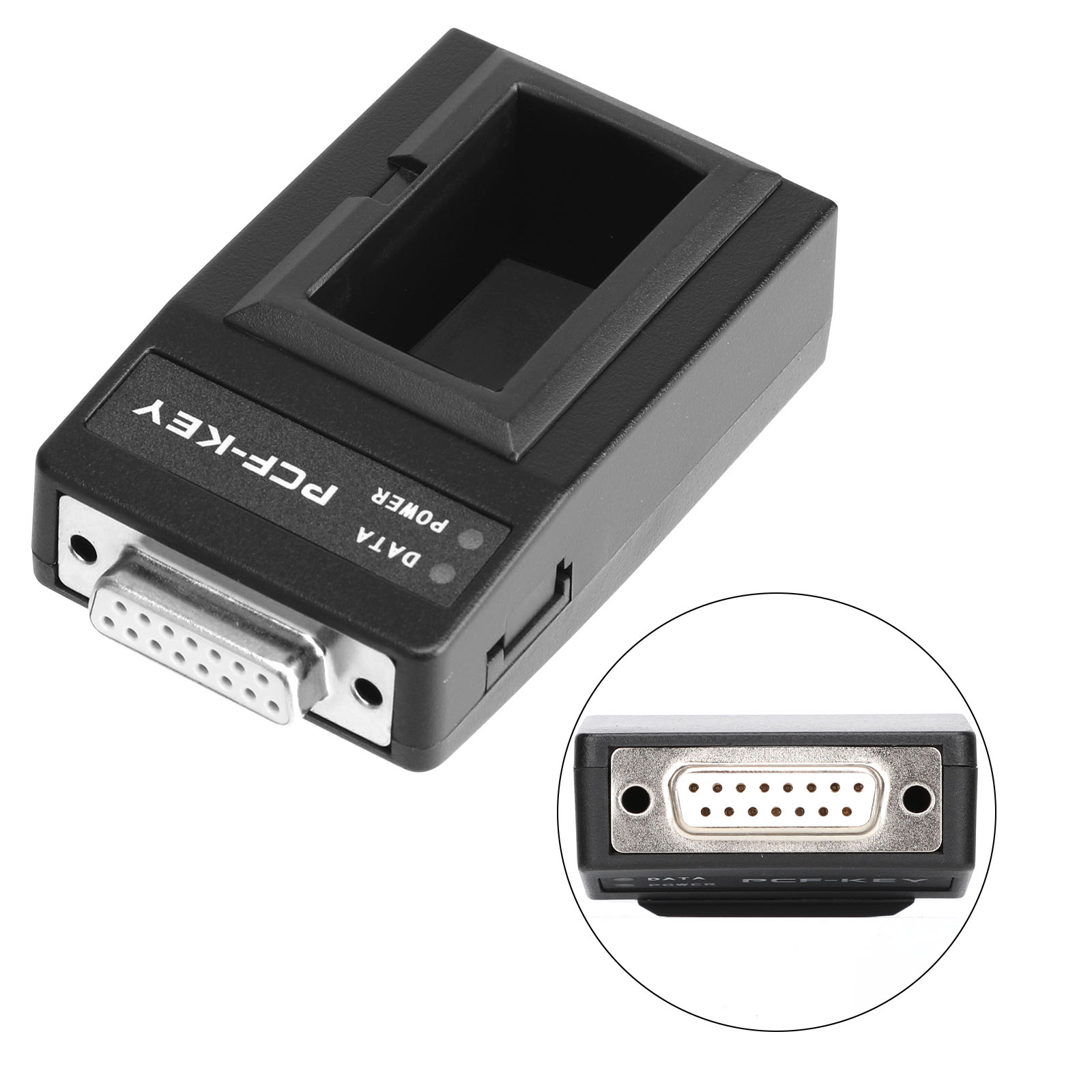

• 1pc x PCF-KEY adapter

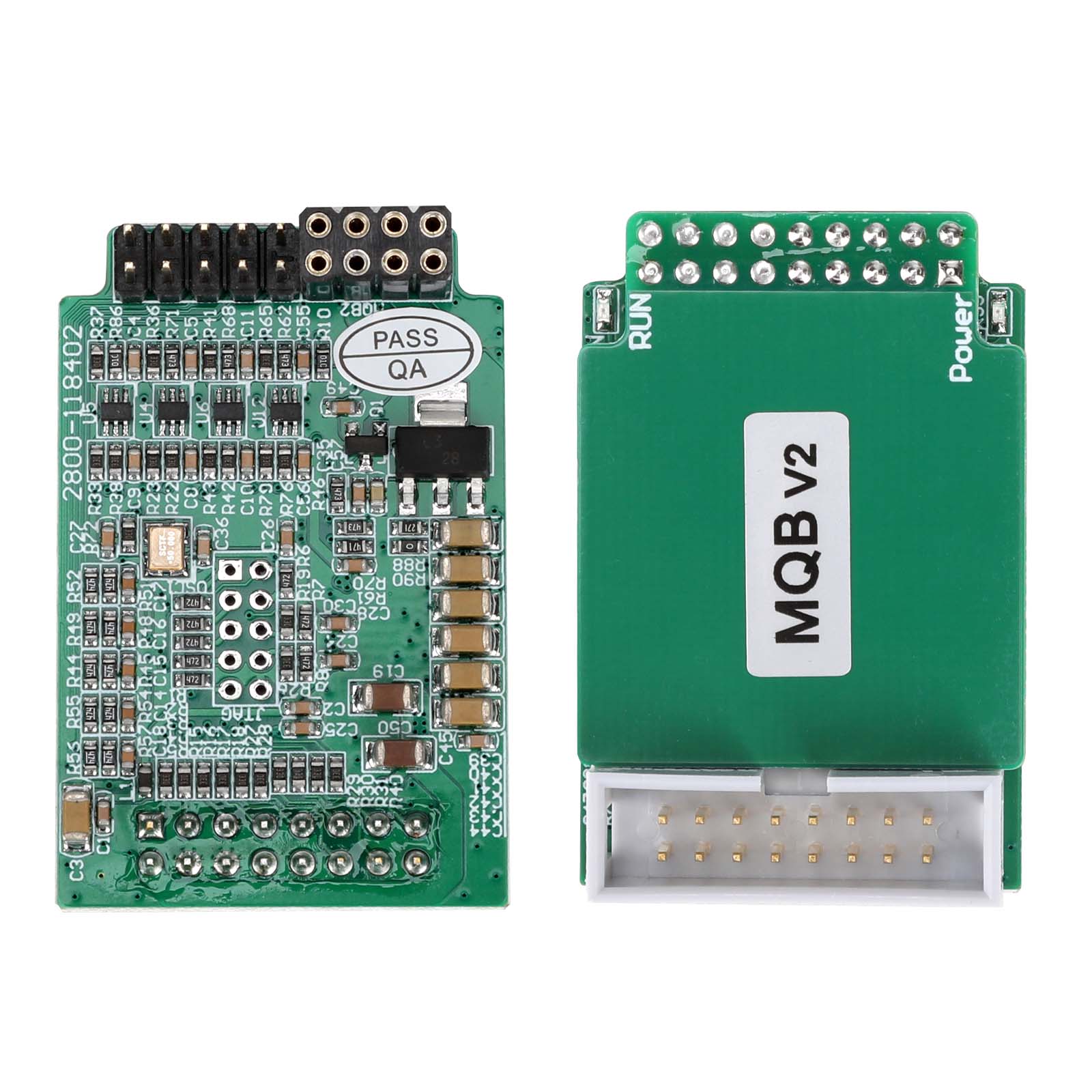

• 1pc x MQB V2 adapter

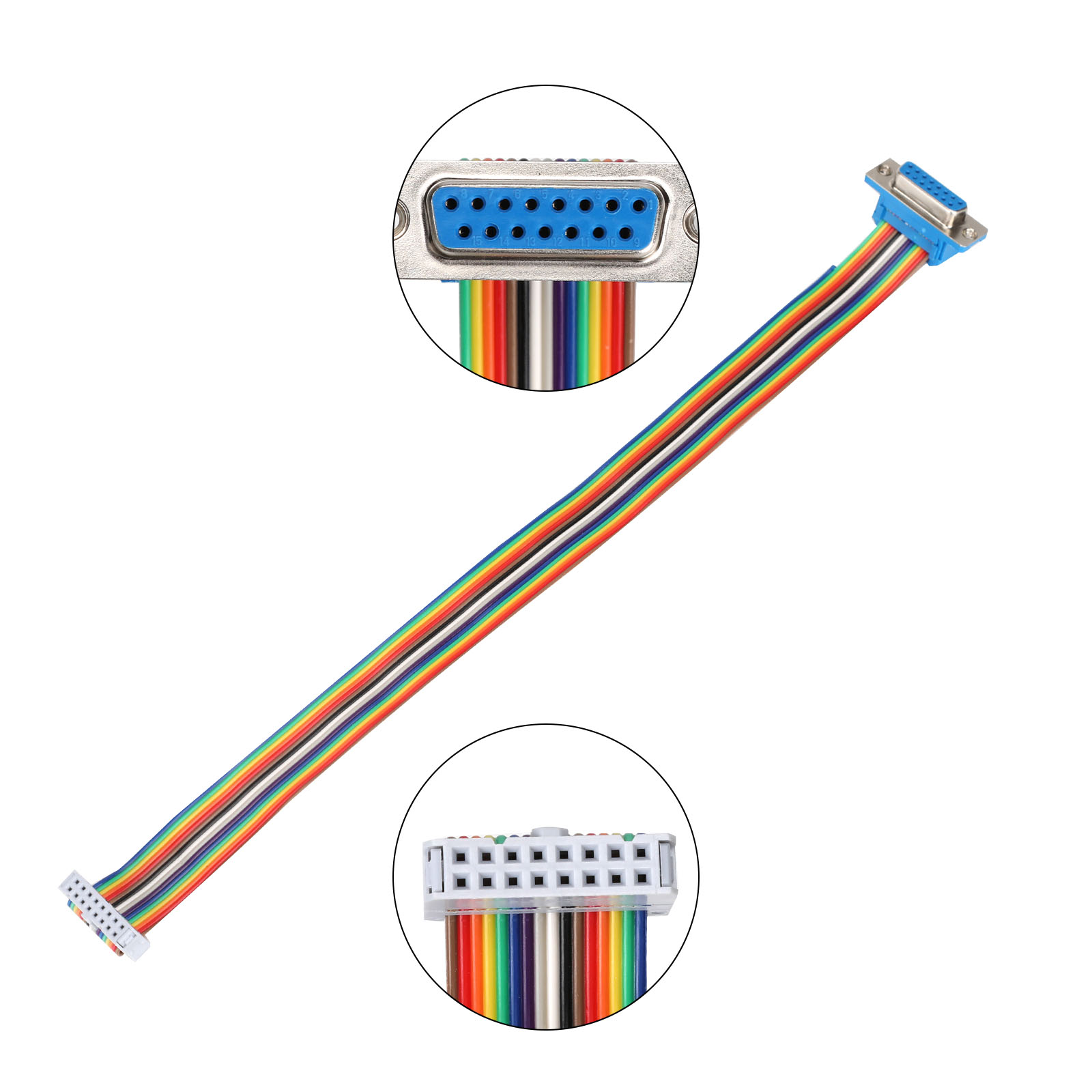

• 1pc x 20 PIN cable
• 8pcs x screws
• R7F701401/21-5D Interface Board ( buy separately)
• R7F701402-B Interface Board ( buy separately)
• MQB YH-OBD Platform Board ( buy separately)
