Xtool D7S Professional Scan Tool the Upgrade Version of Xtool D7

Product Description

Xtool D7S Professional Scan Tool

Xtool D7S Introduction:

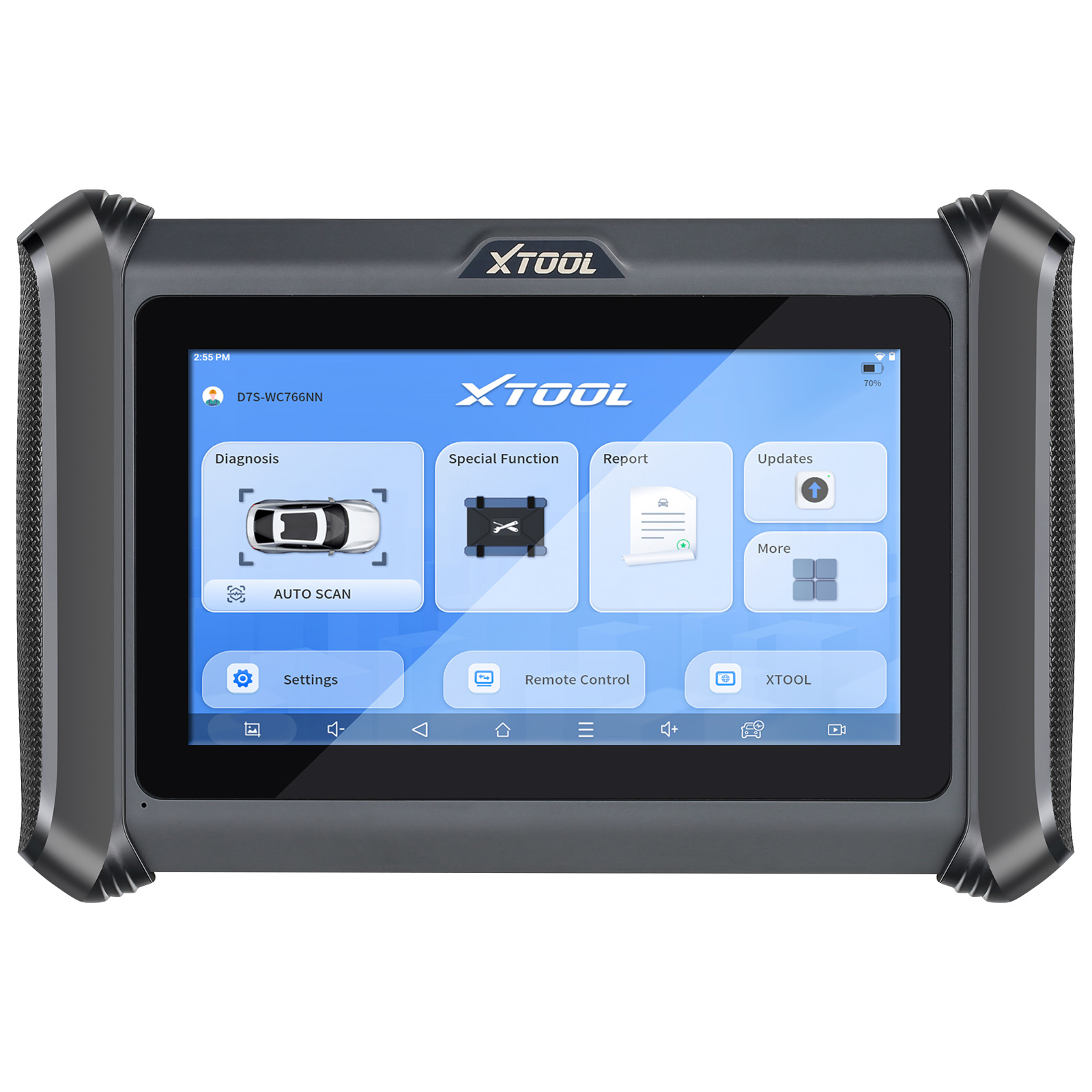

D7S is an automotive smart diagnostic system with a 7-inch LCD display and Android 10 OS, which is designed for mechanics, electricians, and car maintenance shops. It supports automotive diagnostics for full-system, including reading ECU version information, reading fault codes, live data, and freeze frames. 30+ common special functions are supported, such as throttle matching, ABS bleed, maintenance light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset. 98% vehicle coverage, work on more than 100 brands, 10000 cars.


Xtool D7S Advantages:

UK & EU version, can be used anywhere in whole UK and European

3 Years Free Software Updates: No subscription fees within 3 Years. This diagnostic tablet still stays fully functional even without a subscription after a 3-year period.
36 Services +: Come with 36 special functions like HV Battery, A/C relearn, ABS Bleeding, Injector Coding, etc., and various advanced features under each vehicle such as Cylinder Power Balance, Zero Point Calibration, Injector Quality Adjustment, Fuel Trim Reset, Service Bay Test, Fuel Injector Balance, Yaw rate sensor calibration, ABS Initialization, Crankshaft Relearn, etc.
Key Programming: Can work with KC100/KC501 to add keys for Mercedes, for Toyota, etc. Read PIN codes, program new keys/fobs, perform remote learning, disable lost keys, etc.
ECU Coding: Perform ECU Coding to customize the OE settings so as to improve the vehicle performance for some specific vehicles.
Bi-directional Controls/Active Tests: Perform bidirectional controls on specific systems or components to speed up the troubleshooting process and pinpoint the fault. For example, Window Up/Down, Door Locks/Unlocks, Compression Test, Cooling fan Test, EVAP Test, A/C Clutch, Sunroof open/close, Fuel Pump Relay, etc.
OE-Level Full System Diagnostics: Provide deep diagnosis for all available systems on vehicles to read/clear codes, display live data streams in text/graph, read freeze frame & ECU information, and perform actuation tests.
Can work with XTOOL Camera XV100: Help you better check the vehicle by viewing details via the endoscope.
8-IN-I Graphing: Graph up to 8 live data streams into 1 chart or display up to 8 individual graphs on one screen.
DoIP & CAN FD Protocol: Work on GM/ GMC/ Chevrolet/ Cadillac/ Holden/ Hummer, etc. manufactured after 2020 and vehicles with DoIP protocols.
10,000+ Vehicles: Cover over 10,000 vehicles from America, Europe, Asia, Australia and China. The coverage will grow continuously with updates.
Four Navigation Ways: Quickly enter diagnosis via AUTO SCAN/ Automatic Detection/ MANUAL INPUT/ Manual Selection.
Support 15 Languages: English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chinese. English is the language by default. Contact to us with S/N if you need another language option.








What's Different between the D7S and D7?

1. XTOOL D7S with Same Diagnostic Functions as D7.
2. D7S features a new UI, larger storage, and a larger battery.
3. D7S with CAN FD+ DOIP, but D7 not with.
4. D7S with Camera and can work with XV100.


Xtool D7S Functions:

Oil Light Reset, A/F settings, EPB, Start/Stop Reset, SAS, Airbag Repair, DPF, Instrument Cluster, BMS Reset, Language Change, Throttle, Transporter Mode, TPMS Reset, Tire Upgrade, ABS Bleeding, Gear Learning, Injector Coding, Power Balance, Key Programmer, EEPROM, Gearbox Match, Electronic Pump Activation, Suspension, Speed Limit, Window Initialization, Clutch Adaption, Seat Calibration, SRS, Headlight, EGR Relearn

Vehicle Coverage:


ABARTH	ACURA	ASTONMARTIN	AUDI
AUSFORD	BAOJUN	BENTLEY	BENZ
BJBENZ	BMWPRG	BUGATTI	BUICK
BYD	CADILLAC	CHANGCHENG	CHANGHE
CHEVROLET	CHRYSLER	CITROEN	CVVW
DACIA	DAEWOO	DAIHATSU	DEMO
DFCITROEN	DFPEUGEOT	DODGE	EURFORD
FERRARI	FIAT	GAZ	GM
GMC	HOLDEN	HONDA	HUACHEN
HUMMER	HYUNDAI	HYUNDAICV	INFINITI
ISUZU	JAC	JAGUAR	JEEP
JIAO	JILI	KIA	LAMBORGHINI
LANCIA	LANDROVER	LEXUS	LIFAN
LINCOLN	LUXGEN	MASERATI	MAYBACH
MAZDA	MINI	MIT	NISSAN
NISSANGTR	OPEL	PERODUA	PEUGEOT
PORSCHE	PROTON	QIRUI	RENAULT
RENAULTSAM	ROLLS	ROMEO	RONGWEI
SAAB	SATURN	SCION	SEAT
SKODA	SMART	SQTYWL	SQDTZY
SQMG	SSANGYONG	SUBARU	SUZUKI
TLISUZU	TOYOTA	TRANSPORTER	UAZ
USAFORD	VAUXHALL	VOLVO	VW
ZHONGHUA



Xtool D7S Specifications:


Items	Description
Operating System	Android 10
Processor	Quad-core processor 1.5GHz
Memory	2G RAM, 64 ROM
Display	7.0-inch touch screen with 1024×600 resolution
Communication Method	Wired

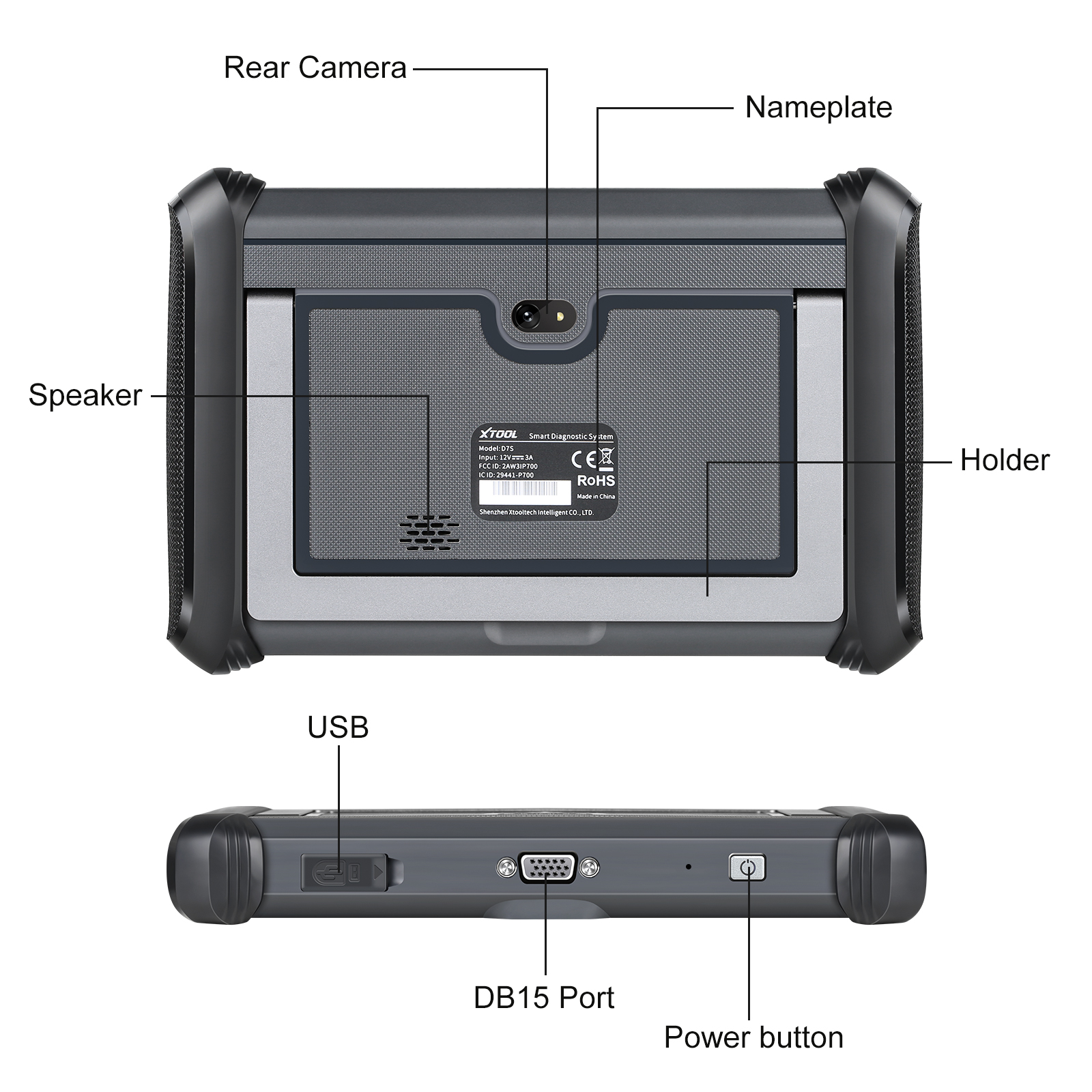

Connectivity	DB15 TO VAG USB 2.0 WIFI 2.4/5G
Sensors	Gravity Accelerometer, Ambient Light Sensor
Auto Input/Output	Microphone, Speaker
Battery	5000mAh, 3.65V lithium-polymer battery
Working Voltage	9-18V
Operating Temperature	-10 to 40℃
Storage Temperature	-40 to 60℃
Humidity	<90%
Protocol compatibility	CANFD, DOIP
Weight	2.64kg
L*W*H	33*29*12

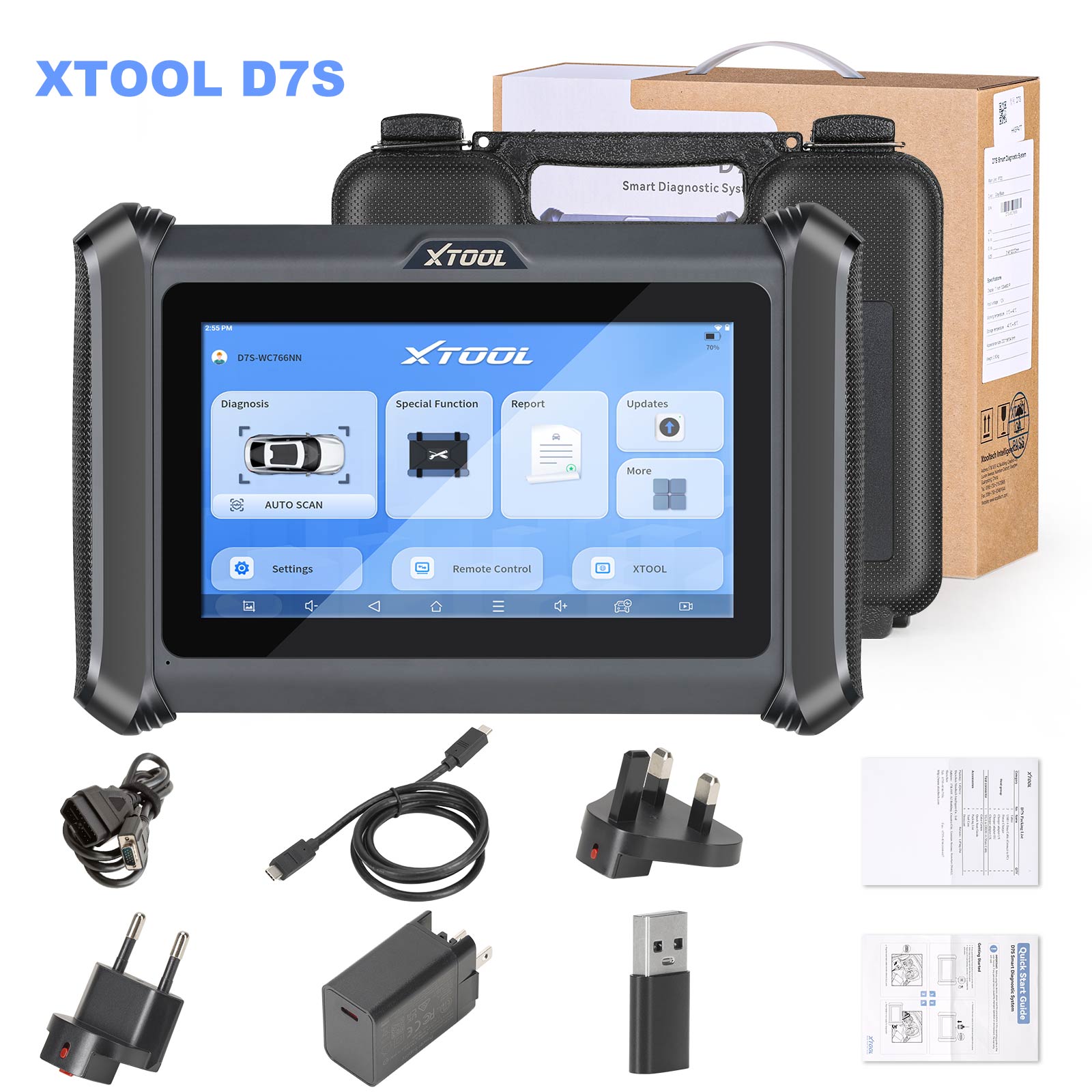

Package Includes:


Category	No.	Name	QTY
Test connector	1	VGA to OBD II Main Cable	1
Host group	2	USB Cable	1
	3	P720 Table	1
	4	Charger for Table	1
	5	Charger US Adapter	1
	6	Charger EU Adapter	1
	7	Charger UK Adapter	1
Accessories	8	Color Carton	1
	9	Packing List	1
	10	Certificate of Quality	1
	11	Tool Case	1
	12	Quick Start Guide	1



---
