[Full Version] Xhorse Key Tool Plus with All License Activated MQB48 License + BMW ISN Bosch Reading License + BMW Motorcycle OBD Key Learning License

Product Description

Xhorse Key Tool Plus Full Version with All Licenses Activated

Product Description:

This package includes the key tool plus an activated MQB48 License, a BMW ISN Bosch Reading License, and a BMW Motorcycle OBD Key Learning License.


Product Details:

1. VVDI Key Tool Plus

VVDI Key tool plus Functions:

① Remote Program & Clone
Above all, you need to understand the classification of car keys. Car keys are divided into the following types, and Xhorse has corresponding universal remote solutions for each type.

Ordinary remote
Xhorse: XK series wired remote
The ordinary remote features a separate immo transponder, supporting Toyota, Hyundai, Kia, etc.

Electronic integrated remote
Xhorse: XN series wireless remote/XE series super remote
Its immo and remote transponders are integrated, which means the remote function will take effect automatically after immo programming is completed.
It also supports Peugeot, Buick, Chevrolet, and other common electronic 46 models.

In addition to these two remote types, KEY TOOL PLUS also supports generating smart keys used by models with the PKE system. (passive keyless entry)
Two smart key solutions are widely used: the NXP solution and the TI solution.
We offer two series of products for that, XM38 smart key and NXP smart key.
The NXP smart key we provide supports the NXP solution, and the XM38 smart key supports the NXP solution and the TI solution.

Smart key NXP solution
Xhorse: XM38 smart key/NXP smart key
It supports Volkswagen, Honda, Buick, Renault, etc.

Smart key TI solution
Xhorse: XM38 smart key
It supports Toyota, Hyundai, Kia, etc.
Remote clone supports cloning various remotes that are mainly divided into three types: fixed code(PT2240, LX918, etc.), HCS300 rolling code with manufacturer password, and other special UNDEF remotes.

② Generate Transponder & Transponder Clone
Our super transponder, XT27A, is currently the most widely used in the global automotive aftermarket, supporting almost all types, such as 8A, 8C, 8E, 4C, 4D, 4E, 48, 7935, 7936, 11/12/13, etc.
When cloning the ID46 / ID48 transponder, you need to collect the signal on the vehicle. Some transponders require online calculation, while others can be cloned offline.

③ IMMO Programming

After being generated to the corresponding model option, the Xhorse universal remote can be directly programmed using its immo programming function, which is convenient and fast.

Simply follow these steps to easily complete the work:
Prepare a new remote that needs to be programmed.
Find the corresponding vehicle brand and select the option by remote type or model.
Read the function introduction of the option, then enter the menu and perform programming.

✅ MQB functions for Volkswagen, Skoda, and some Audi models, supporting MQB48 and 4th generation keys.
✅ Audi BCM2 and MLB functions
✅ Porsche functions
✅ BMW functions
✅ BMW Motorcycle functions
✅ Mercedes-Benz functions
✅ Toyota functions
✅ Land Rover and Jaguar functions
✅ Volvo & LYNK&CO
✅ Renault
✅ Cadillac, Buick, Chevrolet
✅ BYD
✅ Jeep, Chrysler, Dodge, Fiat
✅ Ford, Lincoln
✅ Nissan
✅ Hyundai & Kia, Peugeot, Citroën, DS, etc.

④ IMMO Data Tool
For some vehicles whose keys are all lost and OBD fails to communicate, you can obtain their IMMO data by reading the IMMO box or ECU chip data, loading the data into KEY TOOL PLUS, and directly generating a transponder to start the vehicle.

⑤ PROG
When programming certain vehicles, you may need to read the BCM and ECU data and then complete programming. KEY TOOL PLUS comes with a programming feature.
✅ Read and write EEPROM
✅ Read and write VW MQB dashboards
✅ Read and write VW gearbox
✅ Read and write BMW ECU ISN
✅ Read and write AUDI BCM2, MB EIS, Jaguar Land Rover RFA， BMW CAS， Porsche BCM modules, etc.
Note: Certain accessories and adapters are required to finish the programming feature. Please refer to the instructions displayed.

⑥ Special Functions

✅ File Management
You can find files from the IMMO data tool and files read from immo data right in the Local file. My data file enables you to transfer between KEY TOOL PLUS and PC through the Xhorse cloud disk.

✅ Remote renew
Some original remotes cannot be regenerated after being used. In this case, we need to renew them. After renewing the remote, it becomes a brand-new original key again and can be programmed into various vehicles.
As there are multiple types of keys, please note that make sure your PCB must be the same as the picture shown on KEY TOOL PLUS. Otherwise, it may fail.
But rest assured. It won't damage your PCB. As long as you choose the right option, it'll work.

✅ IC/ID Clone
To use this function, you have to use a cloneable IC or ID card. Otherwise, KEY TOOL PLUS is not able to write the data into the card.

✅ VVDI remote function
There are many features here, including detecting the remote, customizing key button type, etc. All these features are targeted towards VVDI remotes.
And they are quite useful. For example, after generating a remote and you find the buttons do not match, you can change the button configuration here.
You can also search the usage record of the remote or which options the remote has been generated. All this info can be found here.

✅ Ignition switch coil signal detection
If you don't know the type of vehicle remote transponder, say 46, 47, or 4D, you can put the collection antenna of the device close to the ignition switch and turn the key several times.
The device will identify the type of vehicle remote transponder.
Please note that it only supports 46, 47, and 4D, and now 8A can not be recognized.

✅ Remote charge battery
The feature is used for old keys like old BMW and Land Rover keys. These keys come with rechargeable and unremovable batteries inside. When the battery is running out, you can place them in KEY TOOL PLUS for charging.
As for the charging time, it's not for sure. It could be two hours, three hours, or however long. As long as the screen is on, it charges. That's the charging function of our key.

✅ Unlock the Toyota smart key
The feature can wipe out the info of a programmed Toyota smart key and make it programmable again.
One thing you need to know is that it supports 4D 40/80 keys. During the unlocking process, the LED flashes to indicate that the unlocking is successful. Otherwise, it fails.
It also supports unlocking certain 8A keys. But RF430 series chips are not covered yet.

✅ Honda cycle key renewal
Certain Honda motorbike keys can be renewed here and become programmable again.

✅ 8E remote upgrade/unlock
It is mainly for VVDI 8E remotes, such as Audi 8E. Audi Q7 and A6 keys can be unlocked after being programmed into a vehicle. You can unlock the keys and set the frequency through this function.

✅ Mazda ID49 smart key light repair
It's acknowledged that the Mazda 49 key has a special feature.
If the original remote is a two-button remote, then you may be able to program it with a three-button remote.
However, after successful programming with the car start function, there will be a light display on the instrument.
We can fix the light display with this function.

✅ Smart key password calculation
It is mainly for Great Wall models and BAIC MOTOR 46 models.
The password is used for programming.
This is how it works. When programming, you're gonna need the password, and the password can be acquired via KEY TOOL PLUS.

✅ Set the type of VVDI super remote
Set type of VVDI super remote function is used to set the XT27 transponder to these types.
When it's not able to recognize the transponder, and you're not sure whether the transponder is workable or not, you can try the reset VVDI super chip feature.
After successful resetting, it will be workable and can be generated for different types.

✅ Set the type of VVDI wireless remote
It's a pretty simple feature to set the type of VVDI wireless remote.

✅ Remote test function
It is mainly used to assist our engineers in solving certain problems. For instance, when a customer has a remote whose type is unknown, the data of the vehicle can be obtained via this feature, which helps us update our database.

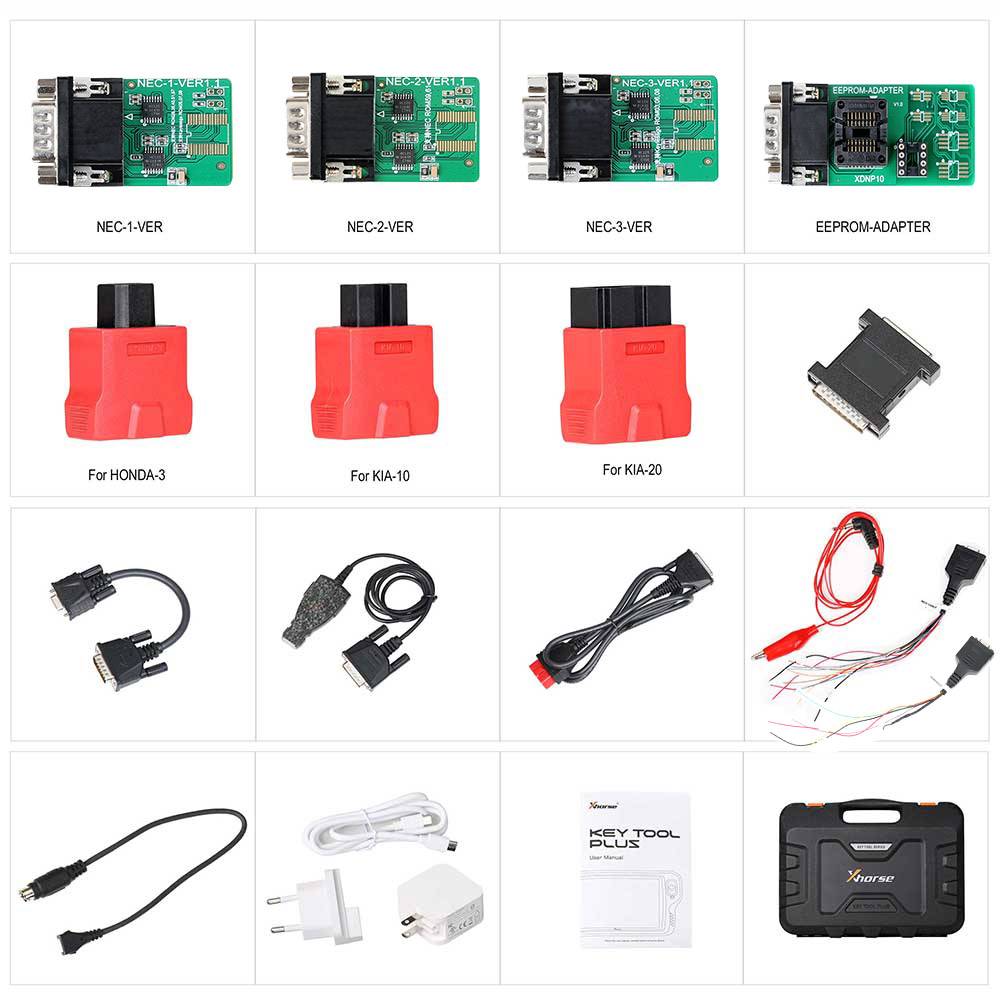

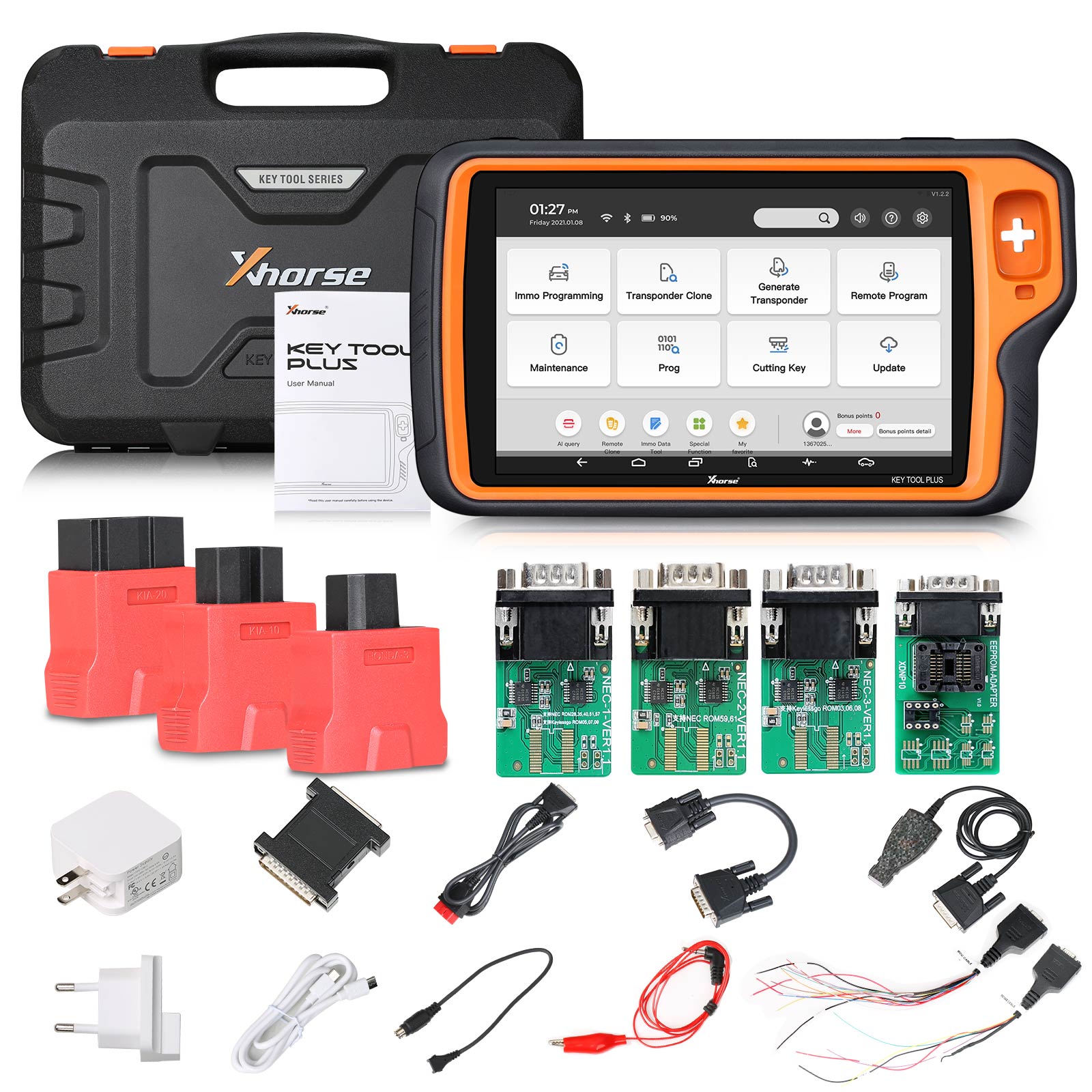

Xhorse Key Tool Plus Package List:

1pc x Key tool plus
1pc x User manual
1pc x Certification and warranty card
1pc x Charger
1pc x USB 3.0 Type-C cable
1pc x OBD_DB25 connector
1pc x OBD_KIA_10 connector
1pc x OBD_KIA_20 connector
1pc x OBD_HONDA_3 connector
1pc x Remote_PS2 programming cable
1pc x Transponder box
1pc x Prog_DB15_15 cable
1pc x Prog_EEPROM adapter
1pc x Benz_IR reader
1pc x Benz_NEC1 adapter
1pc x Benz_NEC2 adapter
1pc x Benz_NEC3 adapter
1pc x Benz_power adapter
1pc x 9s12xE cable
1pc x MCU cable

2. Volkswagen MQB48 License

This is the Xhorse Volkswagen MQB Add key & AKL license for Key Tool Plus/VVDI2+VVDI Prog.

Support List:

For Volkswagen: Golf 7, Magotan, CC, T-Roc, Tayron, Bora, Sagitar, Lamando, Variant, Passat, Lavida, TiguanL, Teramont
For Audi: A3, Q2, Q3L
For Skoda: Octavia, Kodiaq, Superb, Karoq

3. BMW ISN Bosch Reading License

① Function requires to use Bosh ECU Adapter XNDP30.
② The authorization belongs to the device, does not belong to the Xhorse account, so once the authorization is released, it will go to your device and will not disappear.
③ The Bonus and points belong to the xhorse account, so after unbinding, the points and bonus will not disappear; everything will recover after you bind back the account.

Supported types:
MSV80
MSV90
MSD80
MSD81
MSD85
MSD87
N20
N55
B38
B48
B58

4. BMW Motorcycle OBD Key Learning License

BMW Motorcycle OBD Key Learning Features:

Unlock X_SLZ/X_EWS
Upgrade original file(X_SLZ/X_EWS)
Read the PIN code
Erase key
OBD add key
Read key information
Coding function
Restore coding

Supported models:
BMW C400GT
R1200GS
R1200R
K1600B
K1600GA
K1600GTL
F750
F850
R1250
R1250RT
BMW C400X
BMW C650GT
F750GS
K1600
K1300
C600
F800
K19
