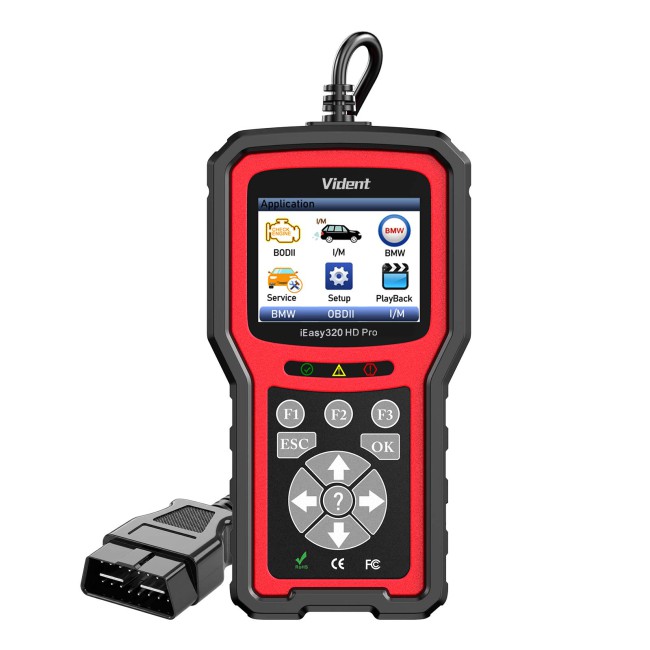

Vident iEasy320HD Diesel Truck Diagnostic Tool OBD2 Scanner Automotive Code Reader Trucks Cars OBD2 Diagnostic Tool

Product Description

Vident iEasy320HD Diesel Truck Diagnostic Tool OBD2 Scanner Automotive Code Reader Trucks Cars OBD2 Diagnostic Tool

Product Introduction

iEasy320HD Pro is specially developed for heavy-duty vehicles(Diesel) and passenger cars(Gasoline or Petrol), which enables users to read DTCs, clear DTCs and view the datastream with a live color graphing.
It covers a wide range of vehicles since it offers multiple data bus protocols, such as J1587, J1939, J1850VPW, J1850PWM, ISO9141, KWP2000(ISO14230-4) and CAN(Control Area Network ISO15765-4).

Product  Features:

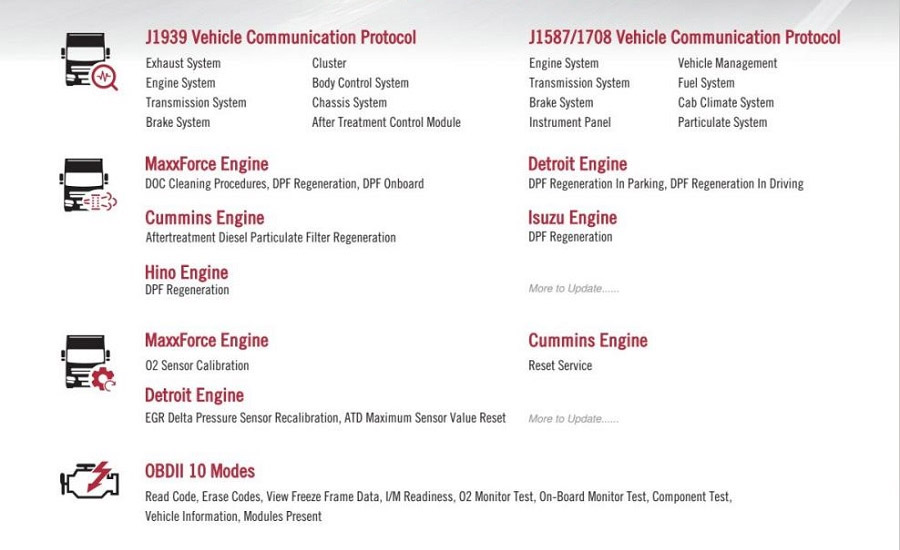

Supported Vehicle Communication Protocols:

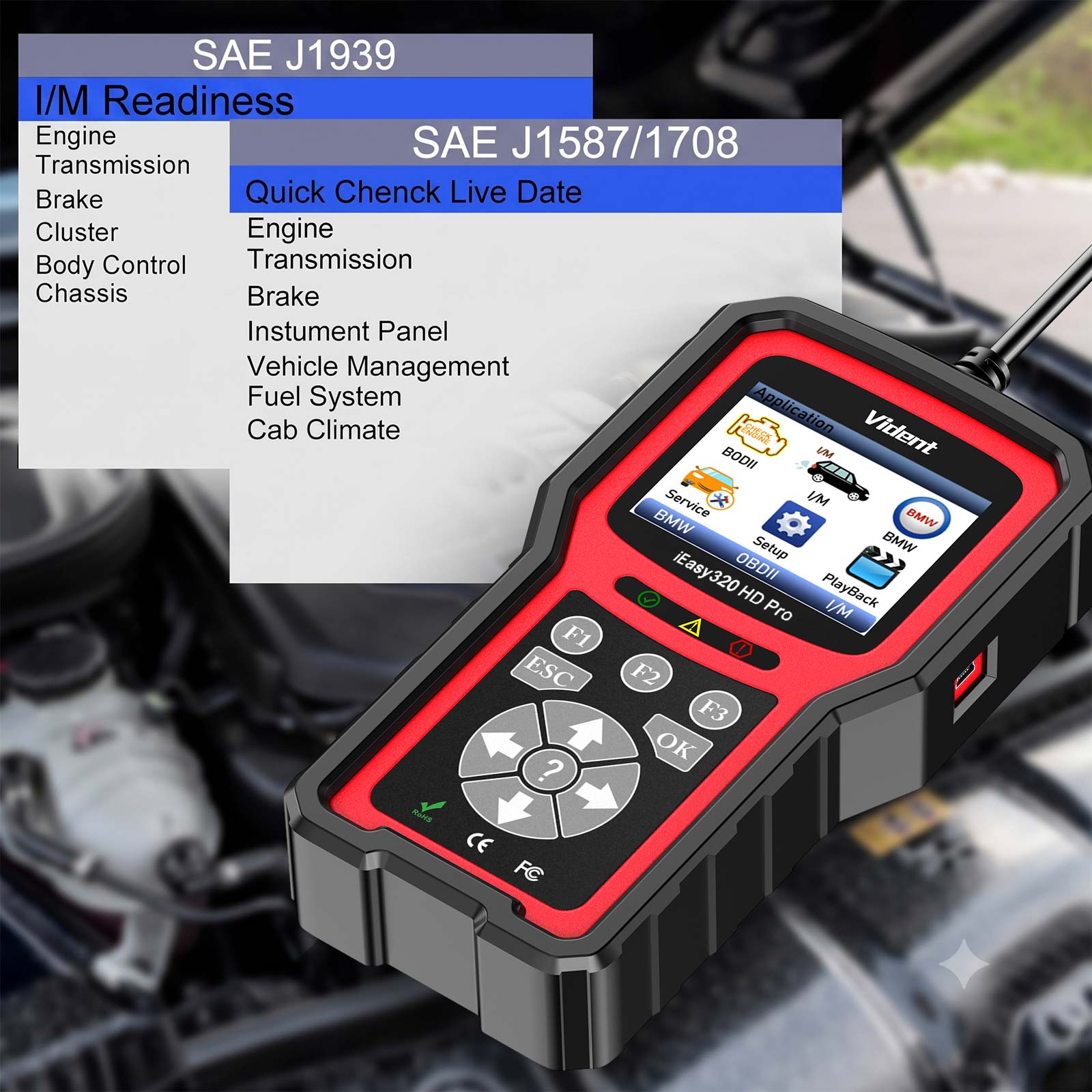

J1939, J1587/1708, J1850VPW, J1850PWM, ISO9141, KWP2000(ISO14230-4) and CAN(Control Area Network ISO15765-4)
6PIN, 9PIN, 16PIN DLC
Display with 2.8" TFT panel
Support 5 Languages: English, French, Spanish, Germany and Russian
D&P&F Reset for MaxxForce Engine, Cummins Engine, Detroit Engine...




Support all the 10 OBDII test modes, enhanced Mode 6 functions—Non-continuous Monitored Systems test results.
Multi-systems, e.g: Engine, Transmission, Brake, Fuel, Body Control, Chassis, etc
I/M Readiness: Red-Yellow-Green LEDs and build-in speaker indicate emissions monitor status. They can also help catch intermittent problems or confirm repairs during a drive cycle.
Graph live data on-screen
Retrieve protocol, VIN, Cal ID and CVN identifiers from ECU (dependent on vehicle support)

Vehicle Coverage:

All gas car and diesel truck for OBD code reader

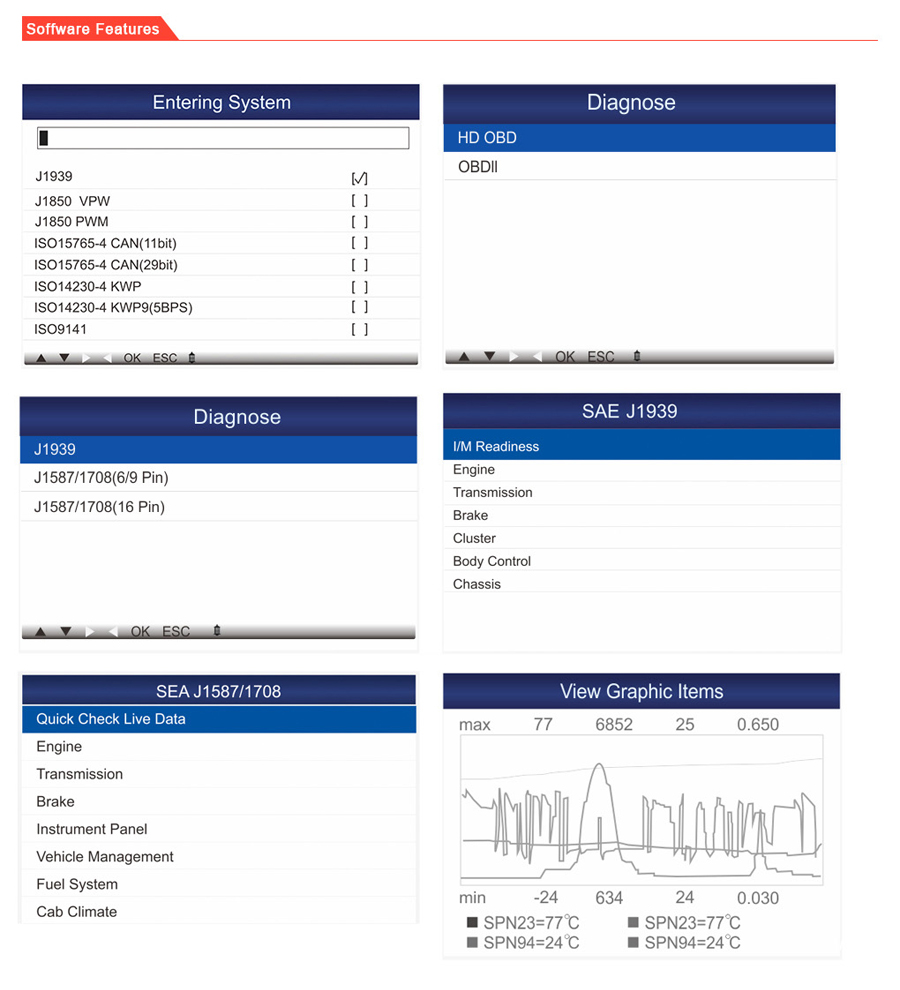

Software Features:

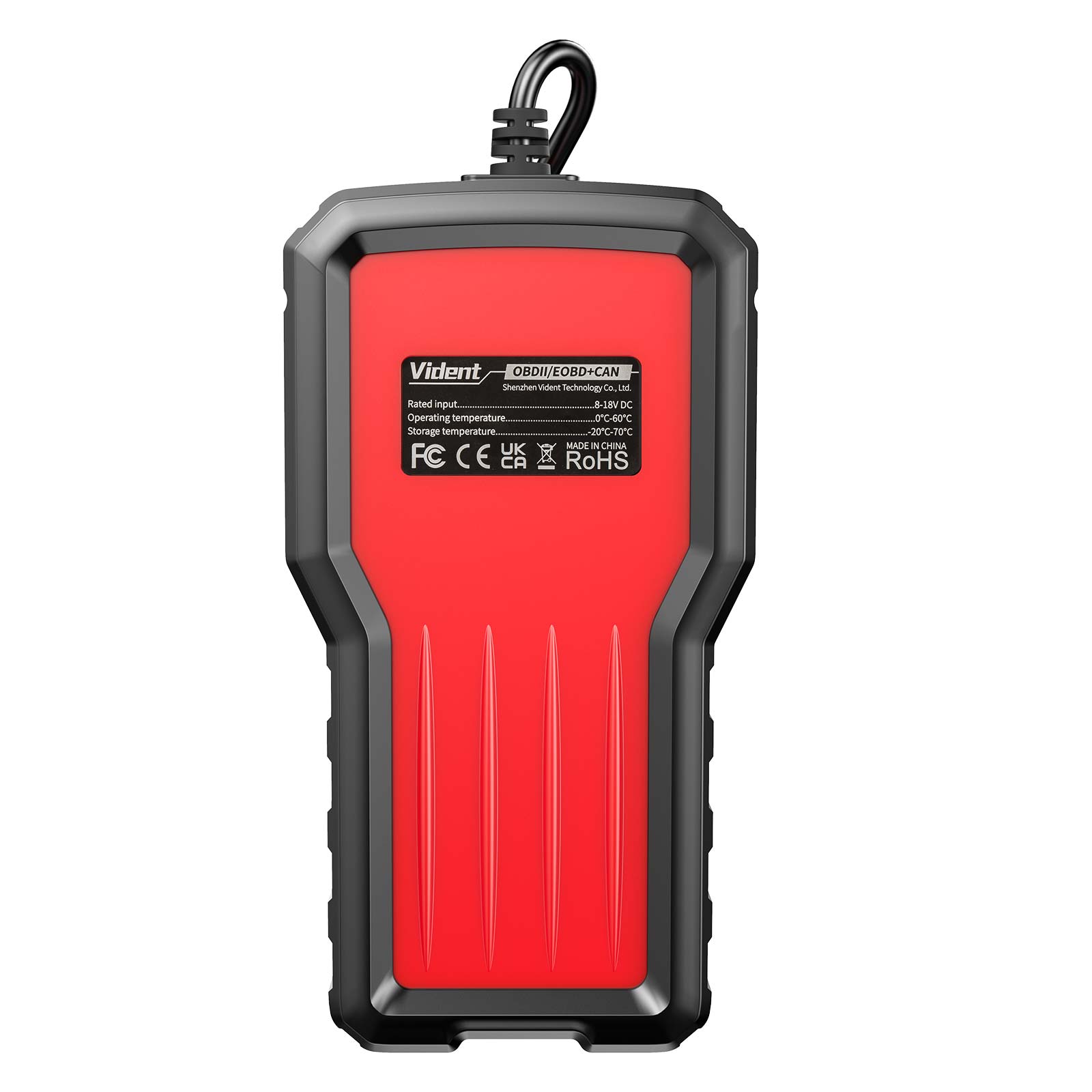

Product Specifications:

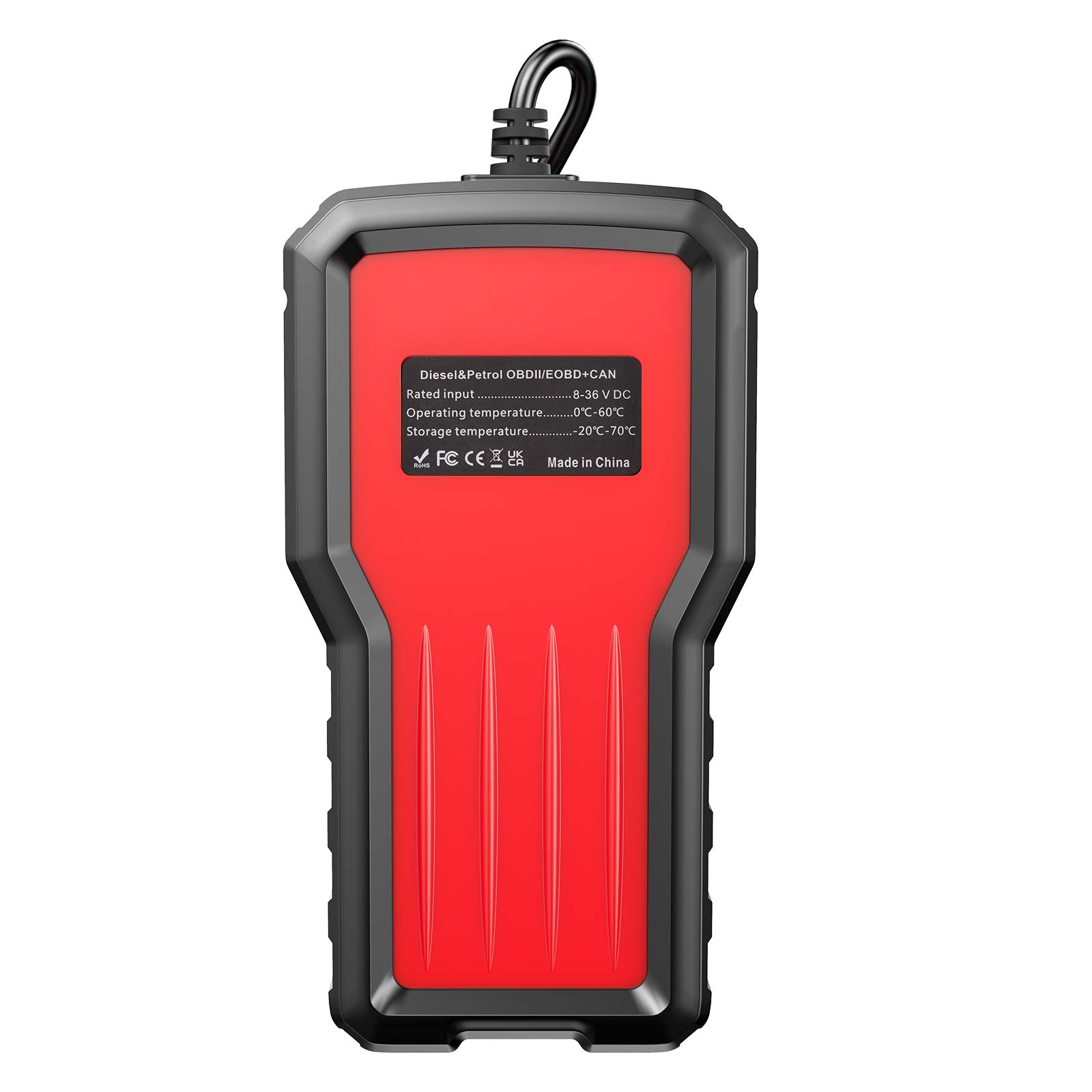

Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Power: 8 to 18 V provided via vehicle
Supported Protocols: J1939, J1587/1708, J1850VPW, J1850PWM, ISO9141, KWP2000(ISO14230-4) and CAN(Control Area Network ISO15765-4)

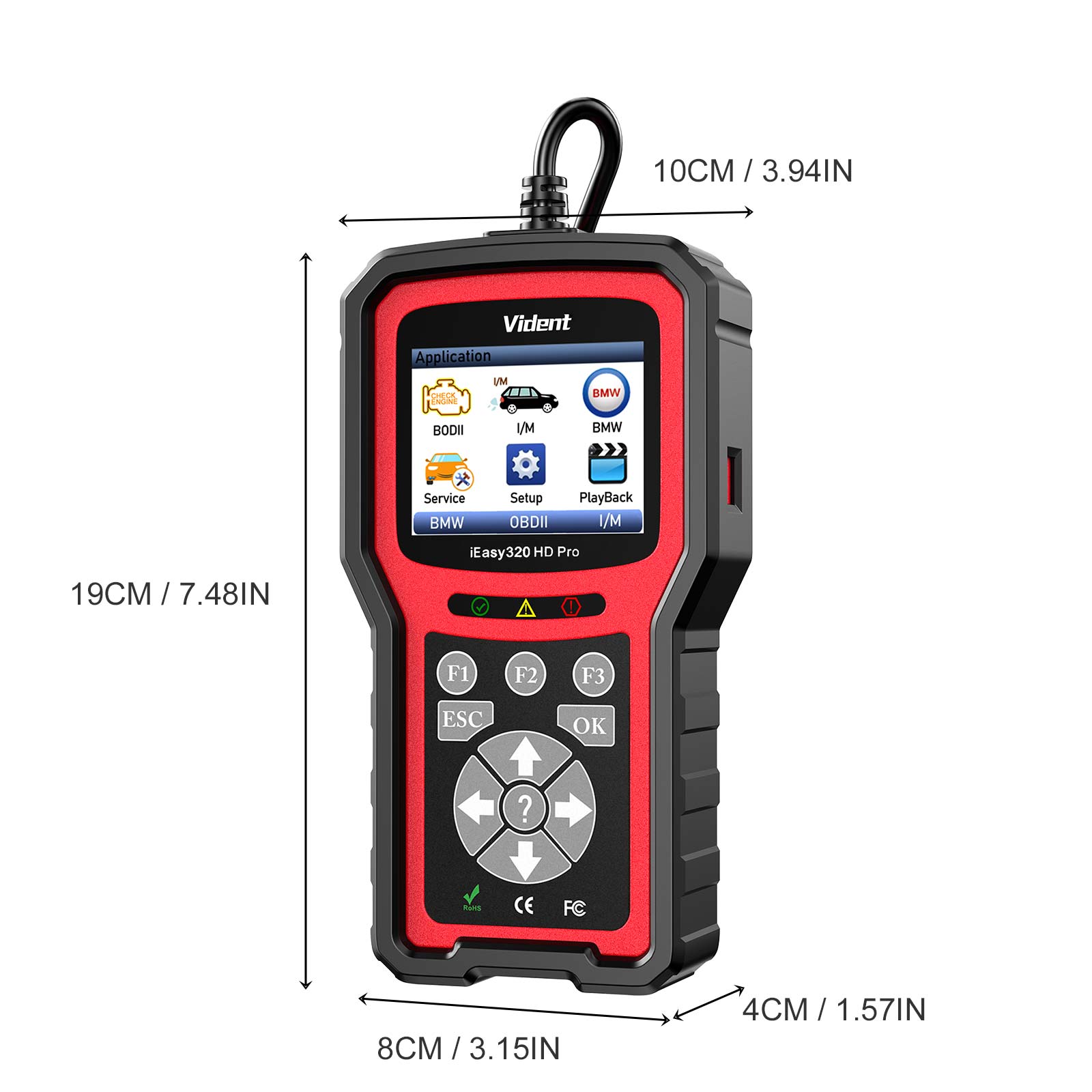

Unit Dimensions : 190mm(7.5”)*100mm(3.9'')*35mm(1.4”)
Weight: 380g

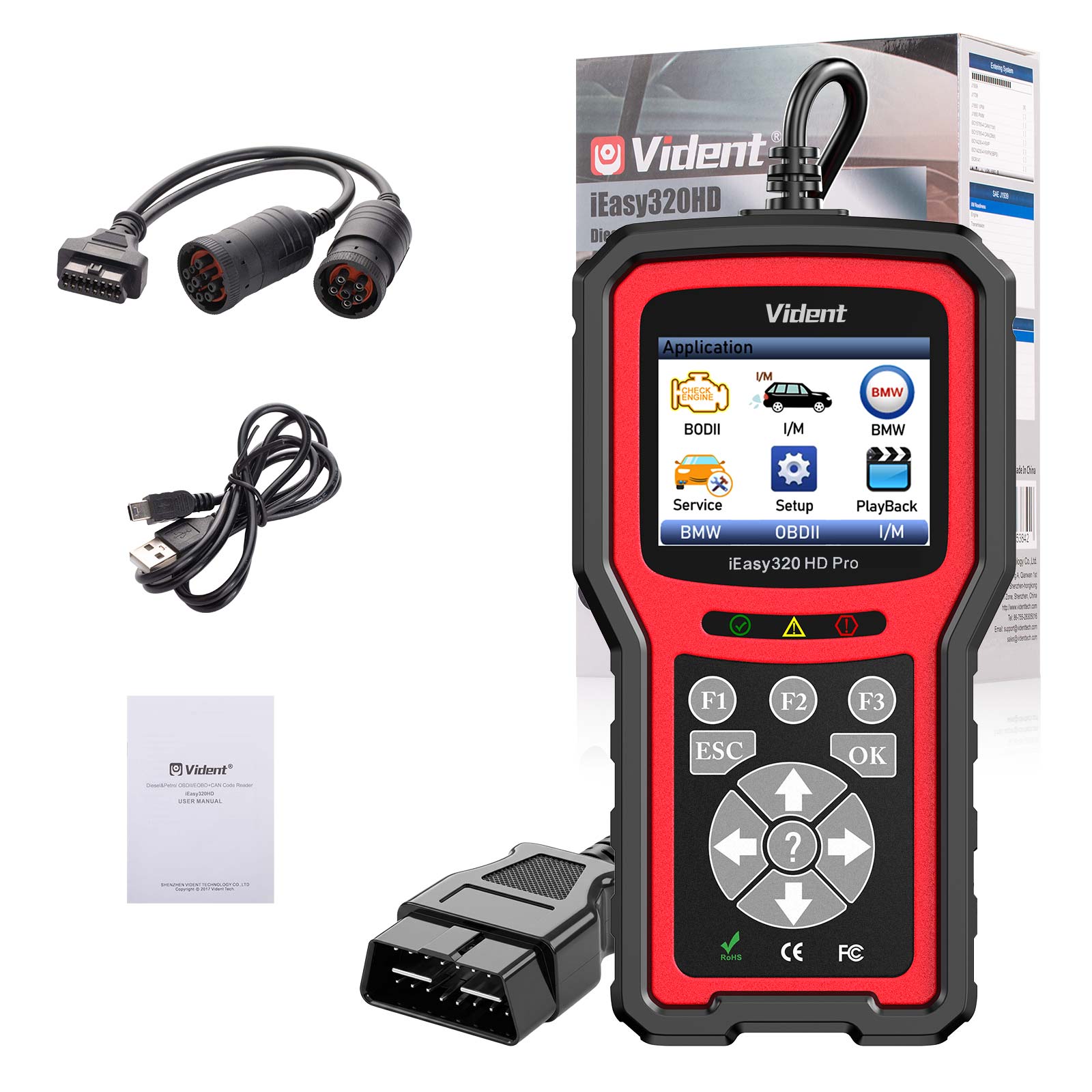

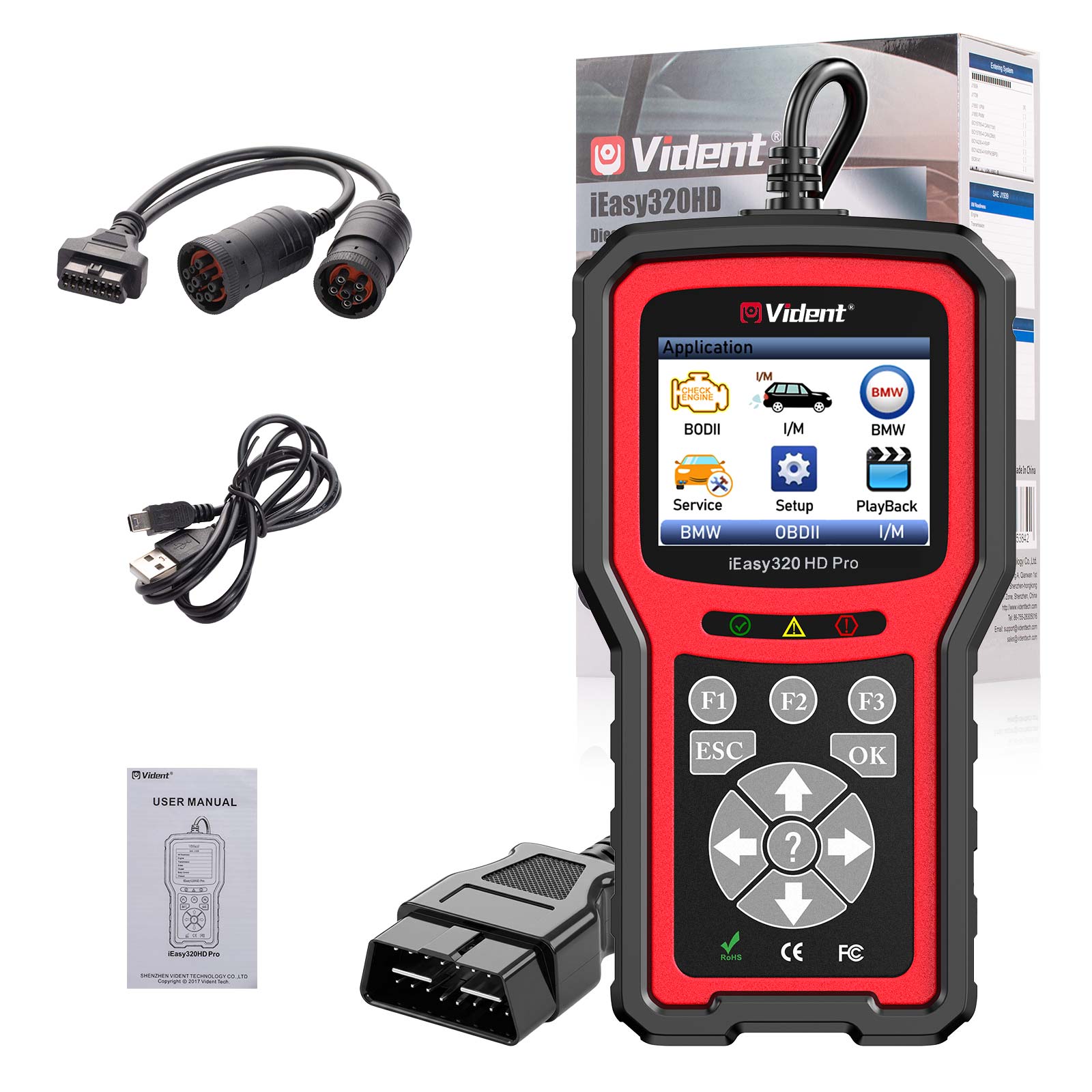

Package includes:

1pc x Vident iEasy320HD Pro Code reader
1pc x USB PC cable for updating software
1pc x 6+9 diagnostic cable
1pc x User Manual

---
