VAPON VP100 Key Programmer for BMW G Chassis Model Key Adding Support 2015-2021 Free Update Get Free 2pcs BMW G Series Key PCB & BDC2 BDC3 Adapter Set

VP100 Features



Supported Vehicles



Model	Chassis Code	Year
X3	F97	2019/04-2021/07
X3	G01	2017/12-2021/07
X4	G02	2018/04-2021/07
X4	F98	2019/04-2021/07
5 Series	G30	2016/11-2020/06
5 Series	G31	2017/03-2020/06
5 Series	G38	2017/05-2020/08
6 Series	G32	2017/07-2020/06
7 Series	G11/G12	2015/07-2019/02
X3/iX3	G08	2018/05-2021/08
M5	F90	2017/11-2020/06

VP100 How to Add Key TO bmw g Chassis Model

1.Connect the vehicle to backup BDC code by OBD

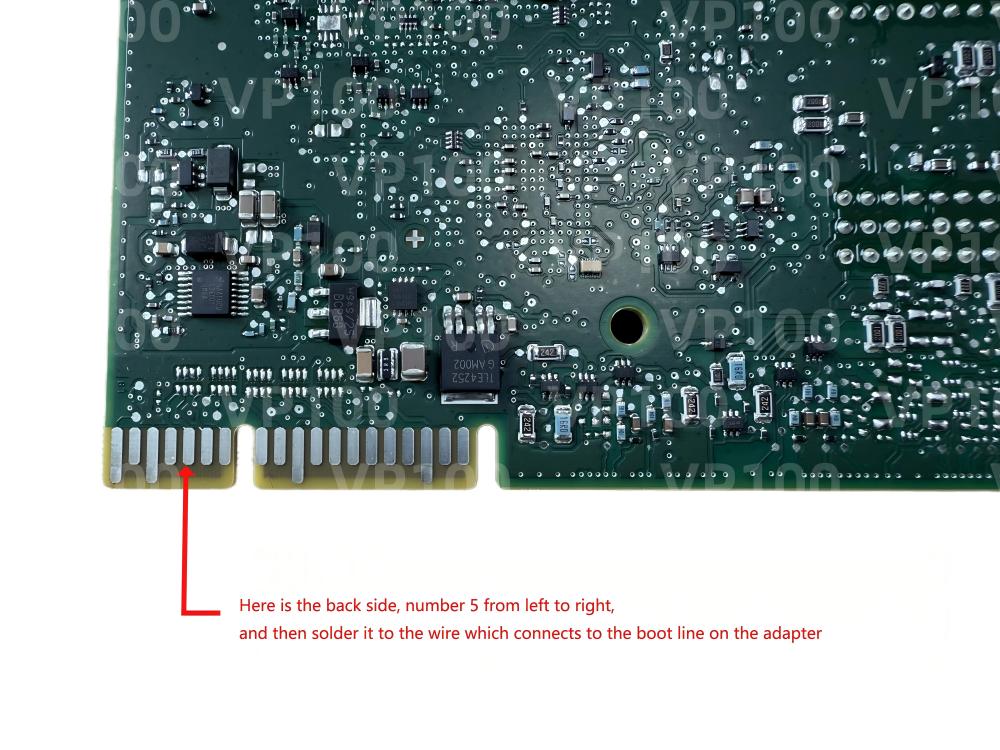

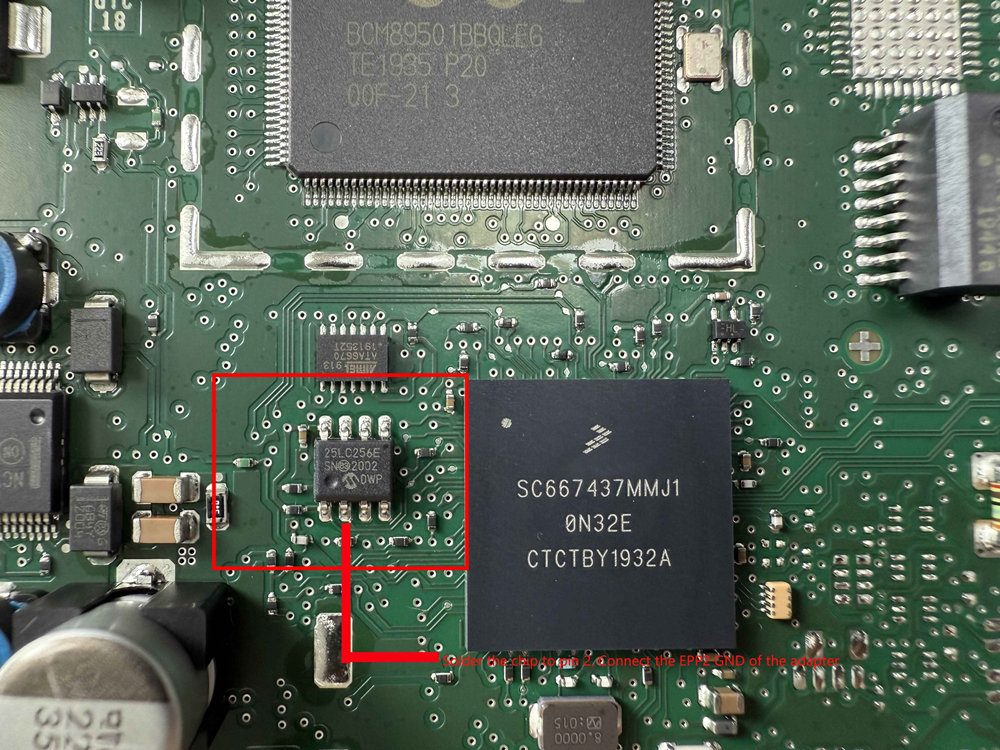

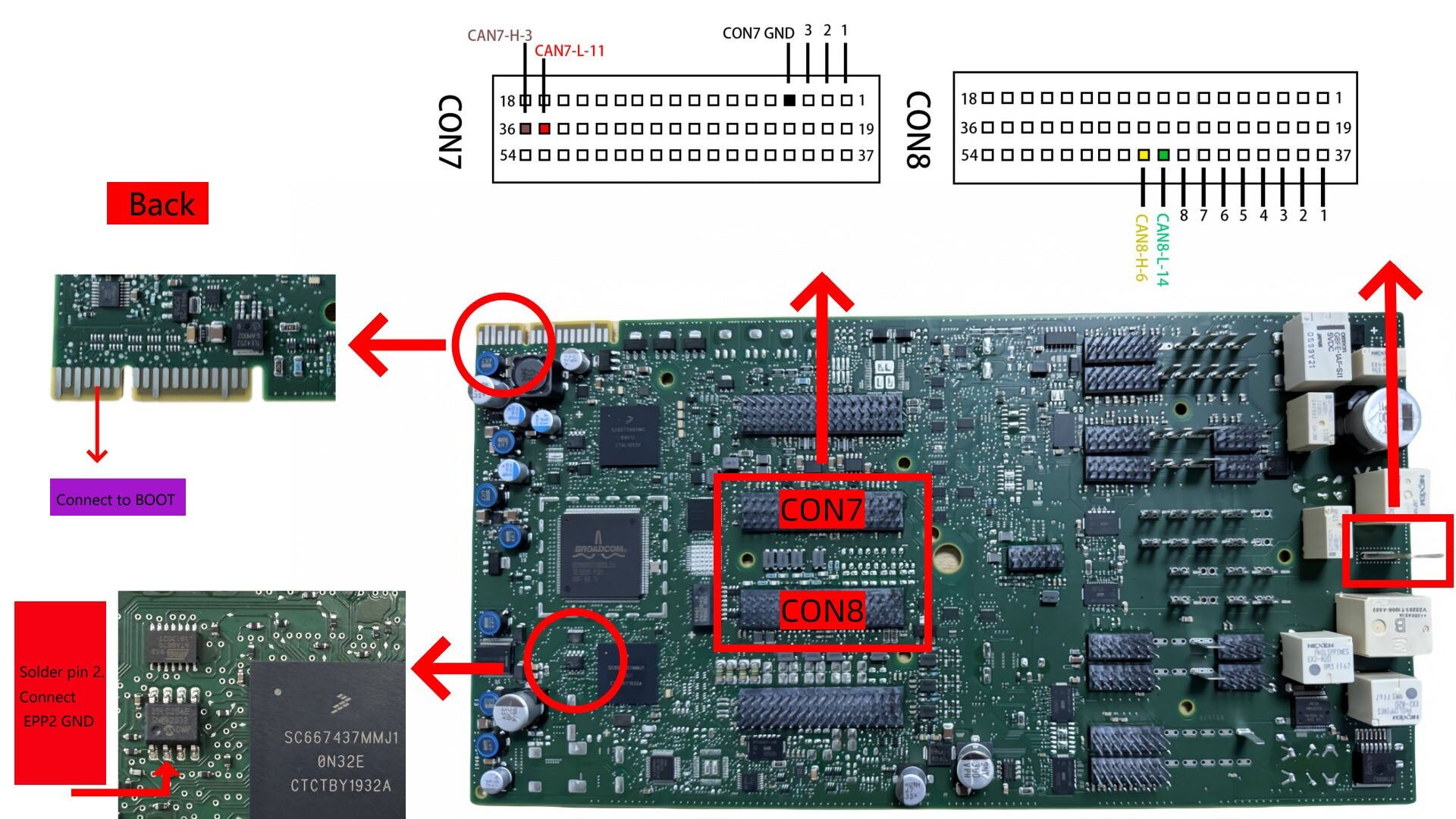

2.Remove the BDC2 module from the vehicle and use the VP100 adapter to perform pre-processing (see the wiring diagram and wiring tutorial below)

3.After the pre-processing is completed, install the BDC2 back to the vehicle to generate the dealer key

4.Place the generated dealer key close to the key induction coil (usually on the right side of the steering column) and press and hold the start button for 20 seconds.After the matching is successful, check whether the key is working properly

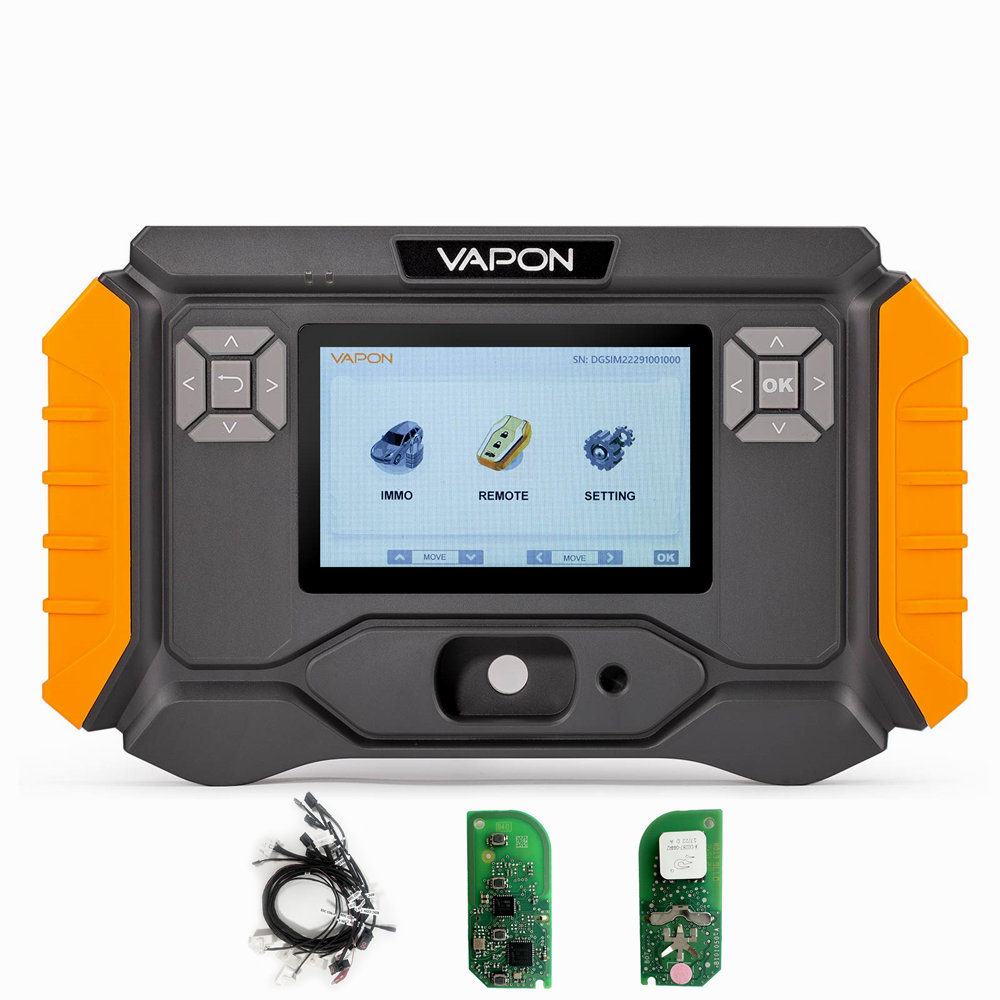

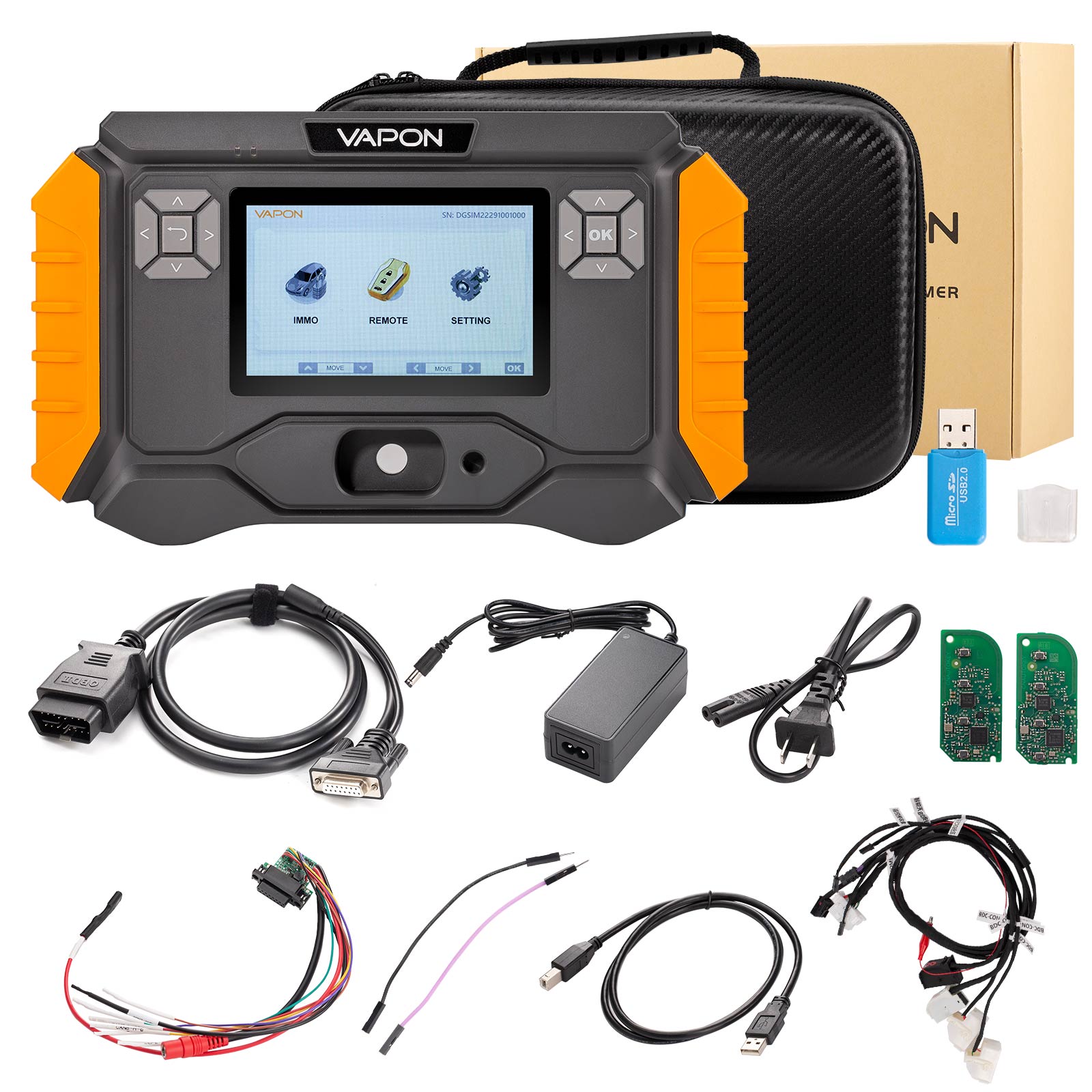

Package includes:

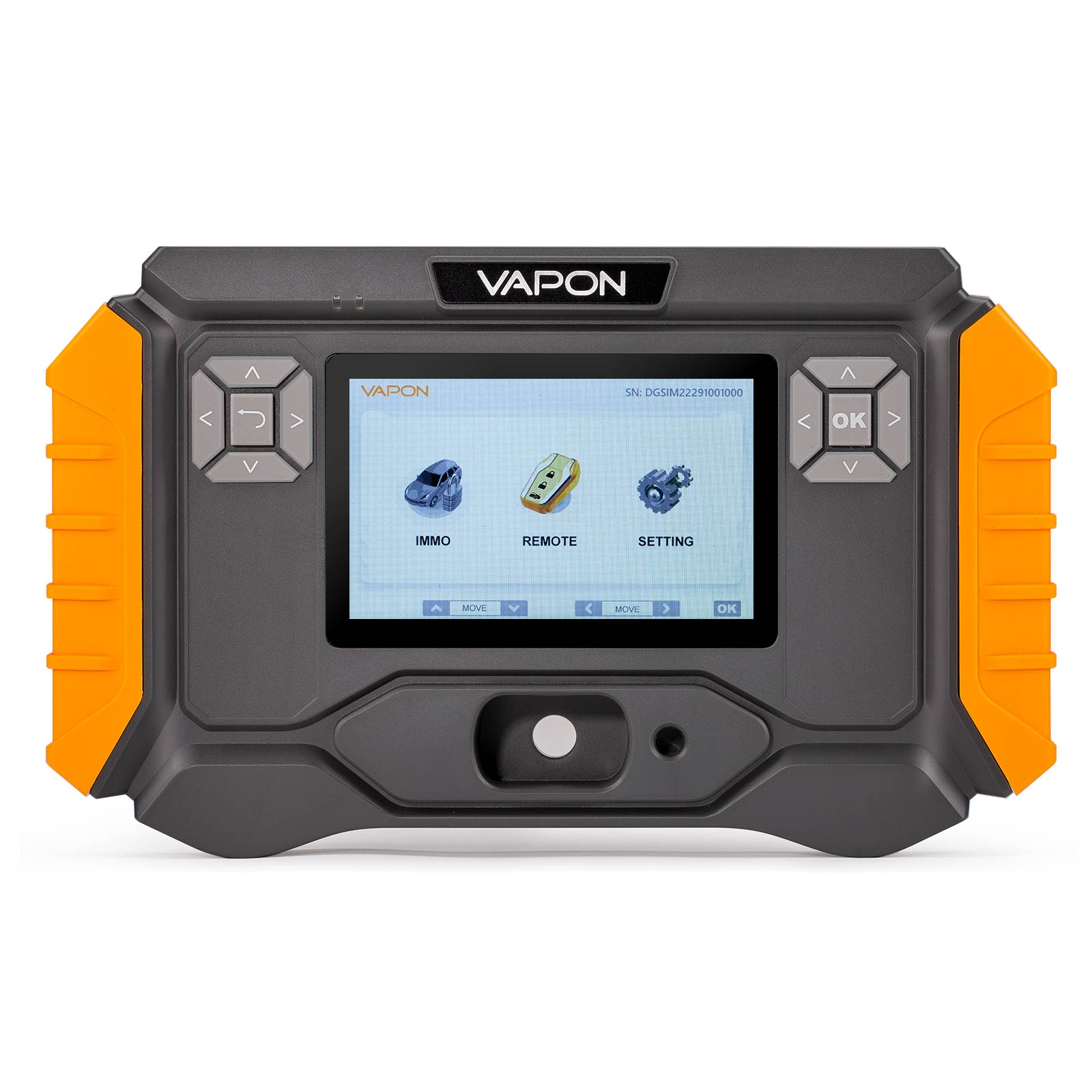

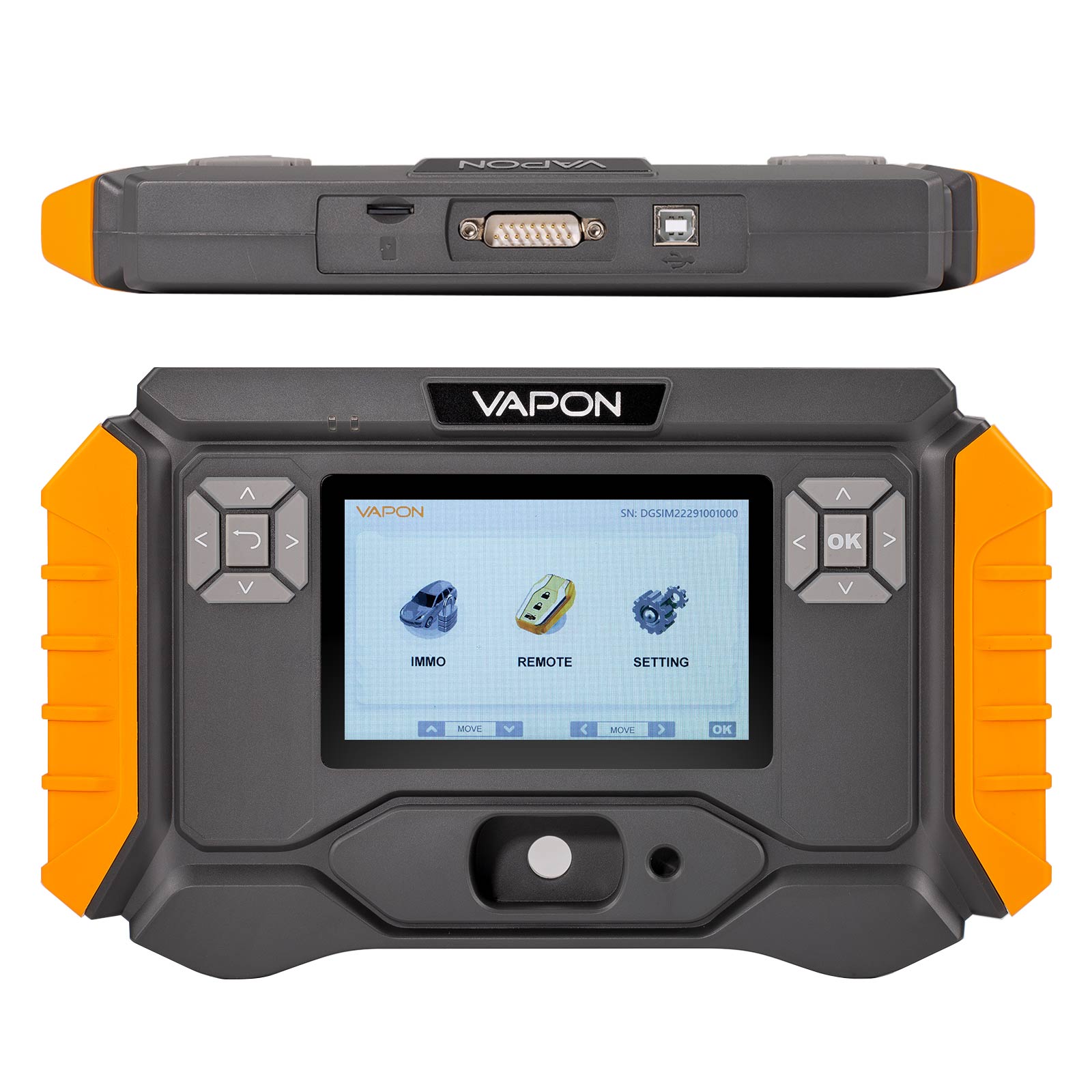

1pc x VAPON VP100 Host
1pc x OBD Cable
1pc x Card Reader
1pc x USB Cable
1pc x BDC Adapter
1pc x Bag

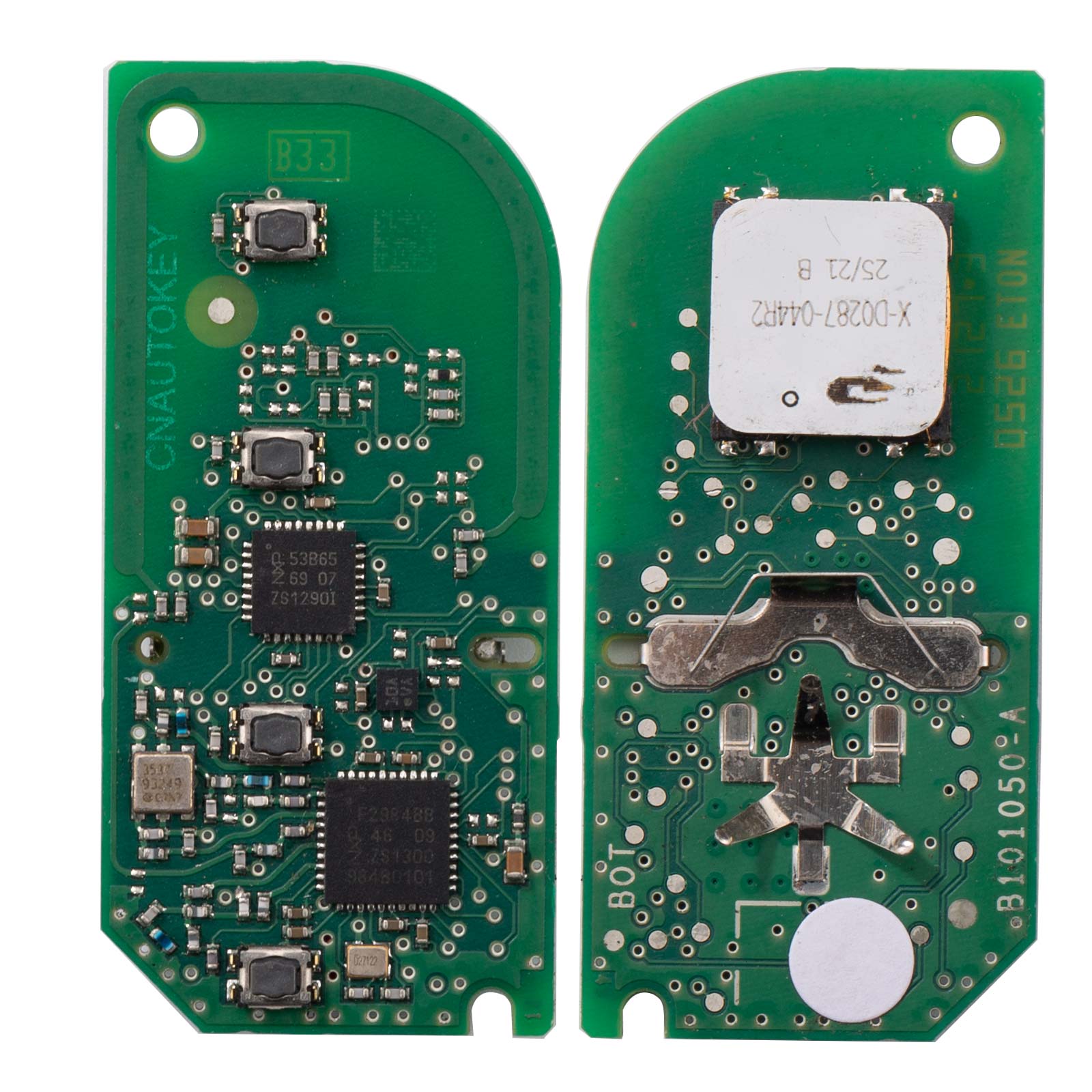

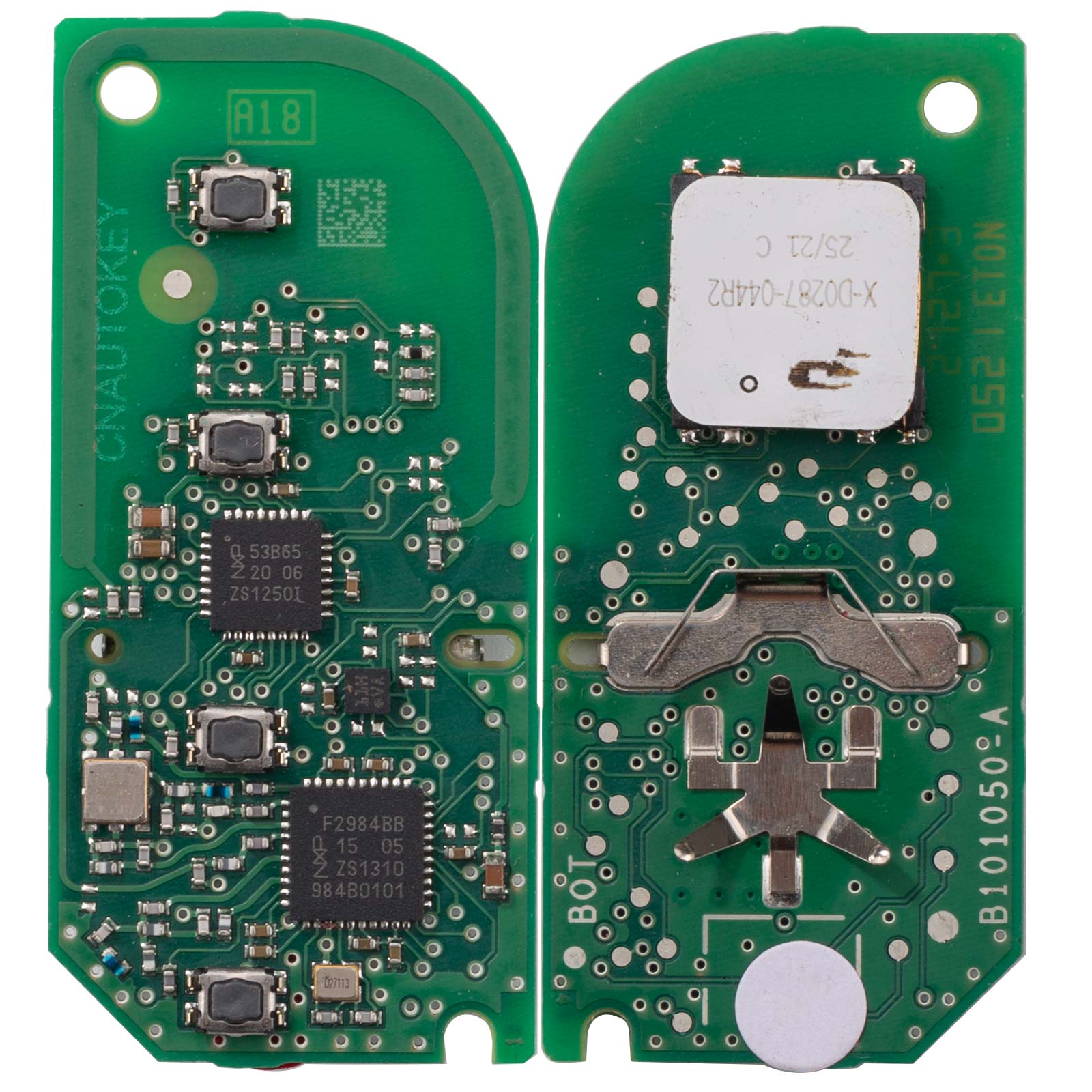

 Free 2pcs BMW G Series Key PCB and BDC2 BDC3 Adapter Set
