TOPDIAG P200Pro New Generation of Intelligent Circuit Detectors

Item No. AD214 In Stock. History 10 sold.
0 rating
|
Latest price: €179.00
Buy Now: €152.00
EUR 152.00 USD 168.72 GBP 131.81
15% off
EU No-Tax Fast Delivery

Contact us for better price!
WhatsApp: +86 133 7268 9373
Email: sales@obdstore.eu
Shipping:
Free Shipping Express Shipping ServiceEstimated delivery time: 3-7 Working Days See details »
Weight:
1.9KG ( 0.86LB )
Package:
30.7cm*23.7cm*11cm ( Inch: 12.06*9.31*4.32 )
Returns:
Return for refund within 30 days, buyer pays return shipping. See details »

Product Description

TOPDIAG P200Pro is a new generation of enhanced circuit system testers dedicated to providing comprehensive circuit diagnostics for all 9V-48V circuit system equipment. It is widely used in motorbikes, cars, trucks, boats, construction machinery, etc.

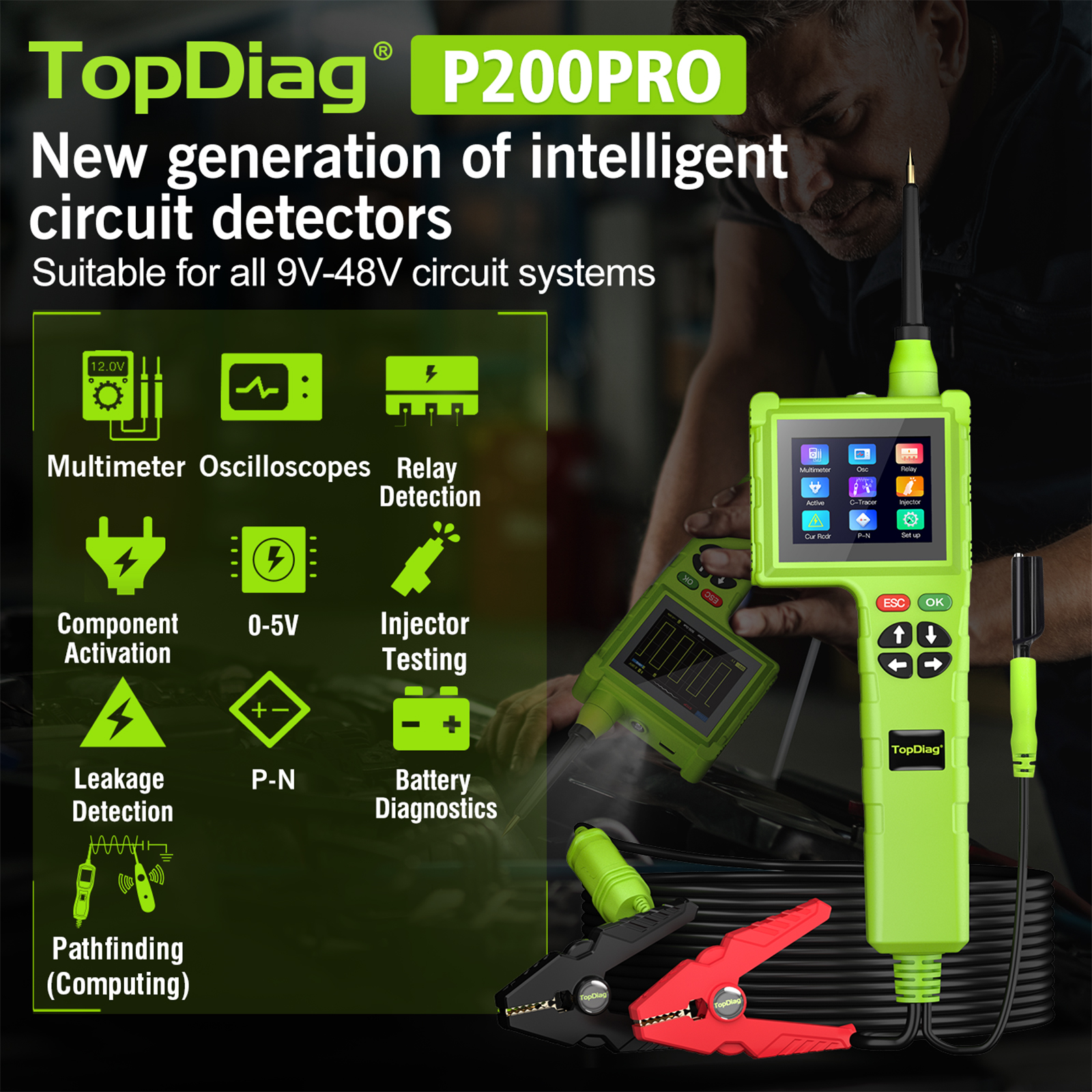

TOPDIAG P200Pro New Generation of Intelligent Circuit Detectors


TOPDIAG P200Pro Introduction:

TOPDIAG P200Pro is a new generation of enhanced circuit system testers dedicated to providing comprehensive circuit diagnostics for all 9V-48V circuit system equipment. It is widely used in motorbikes, cars, trucks, boats, construction machinery, etc.

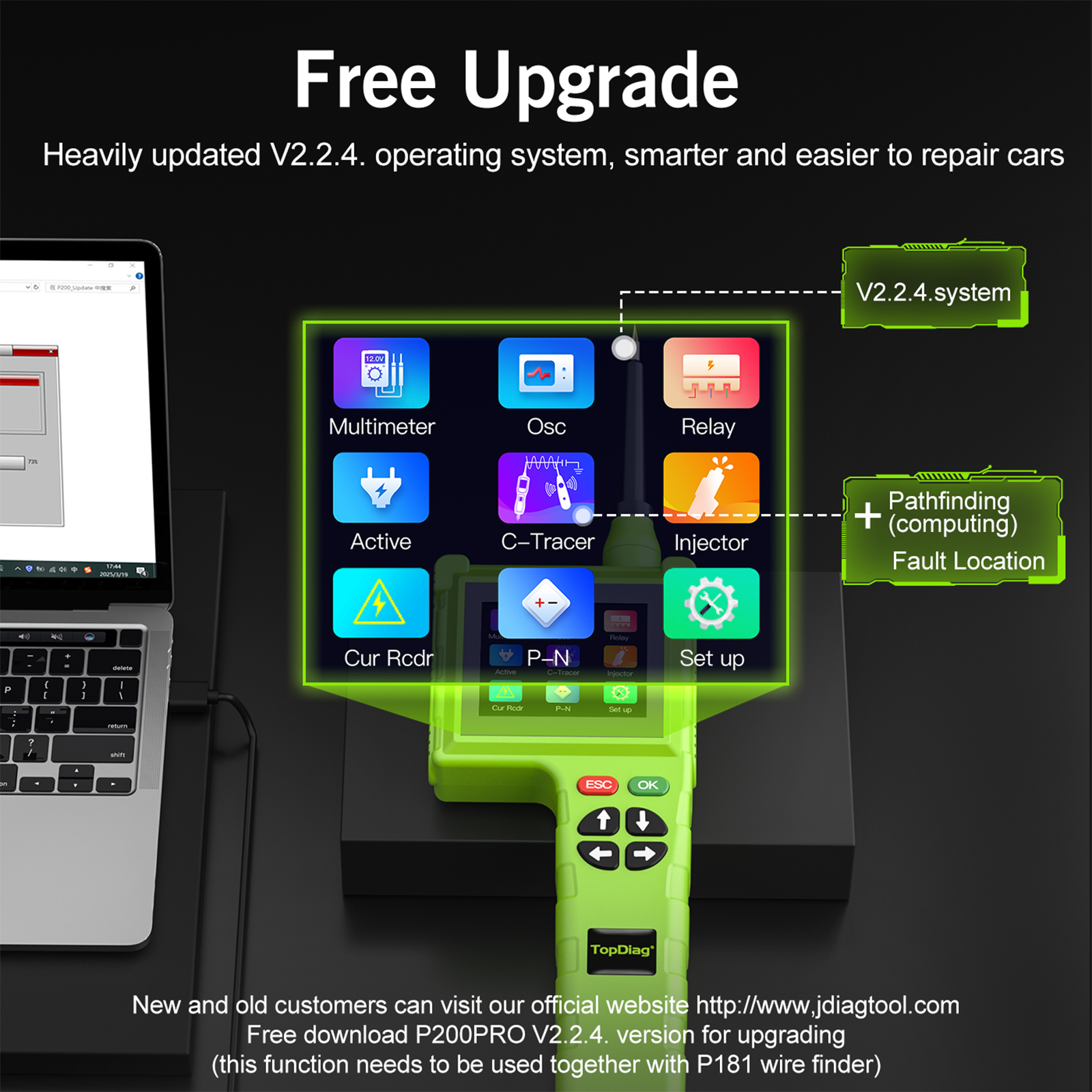

TOPDIAG P200Pro Circuit Tester Functions:

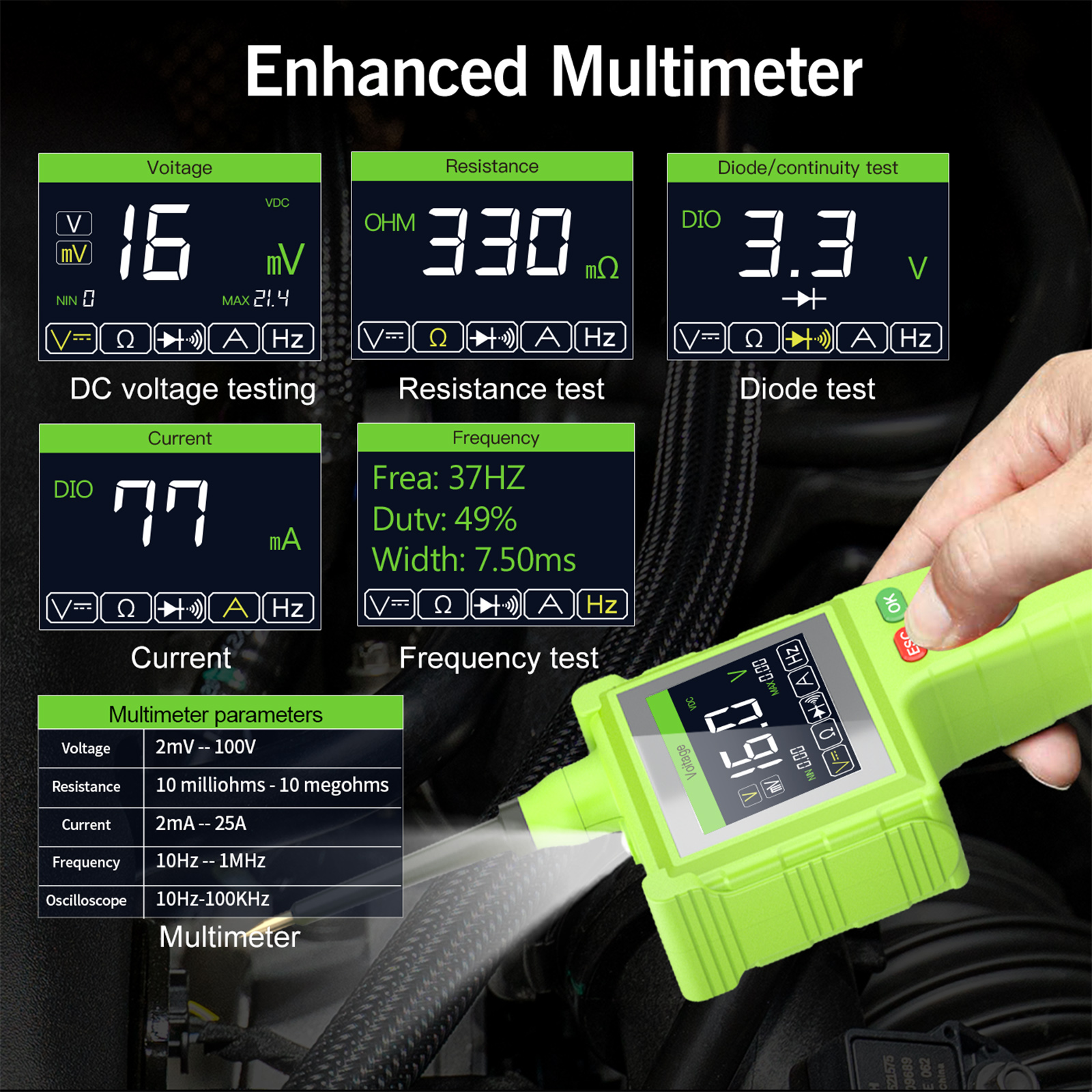

Multimeter, Oscilloscope, Relay Detection, Component Activation, Injector Testing

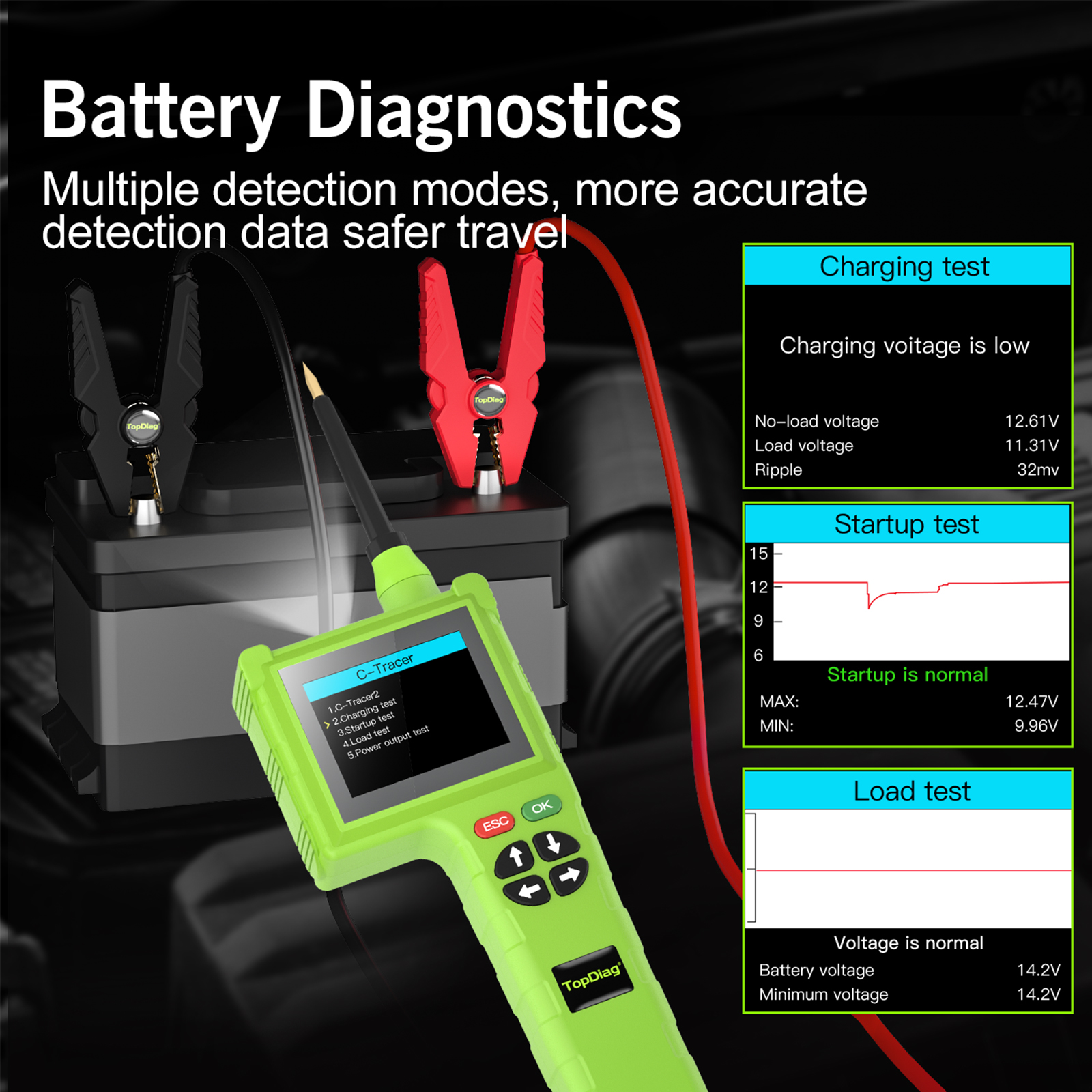

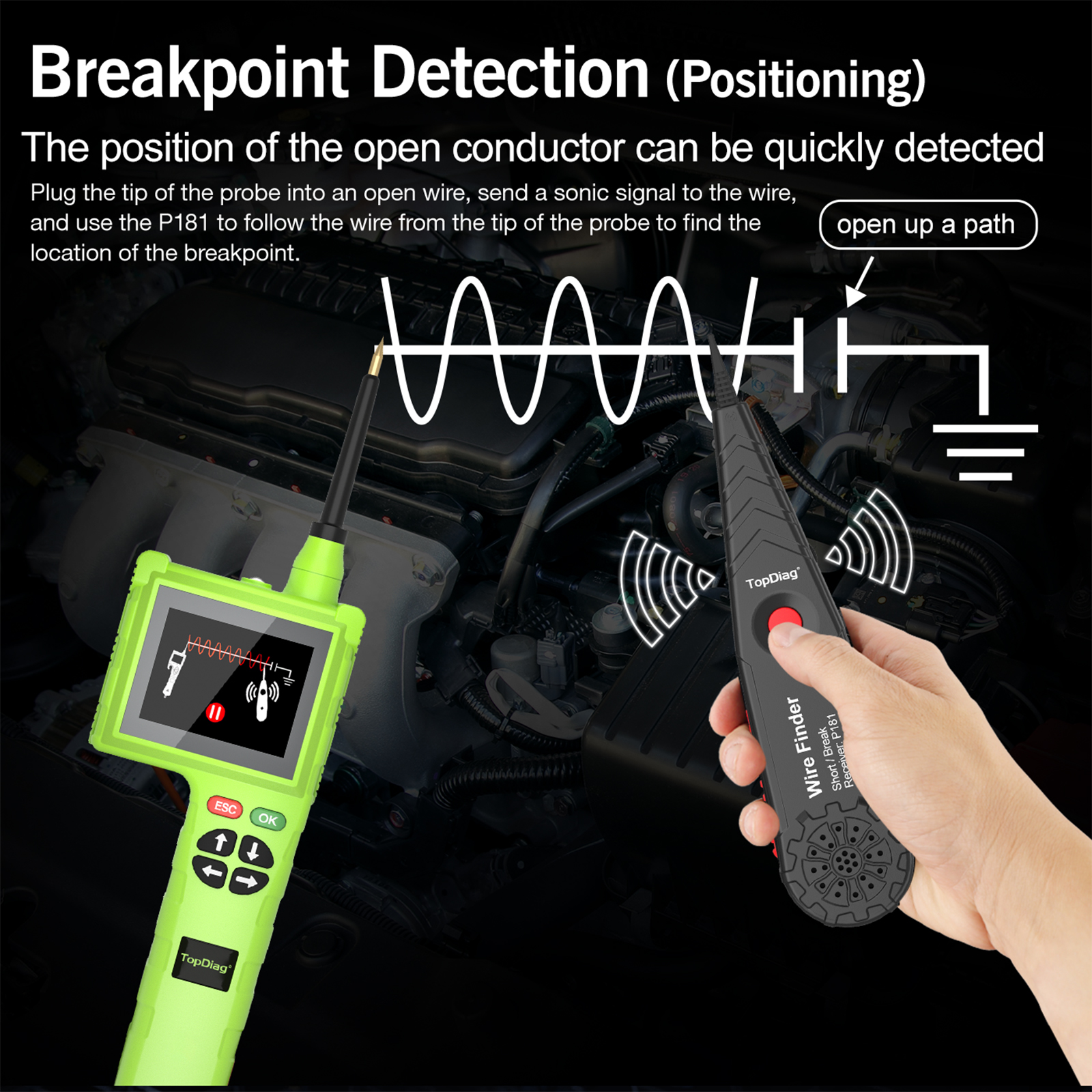

Leakage Detection, Battery Diagnostics, Pathfinding(Breakpoint Localization)


Features:

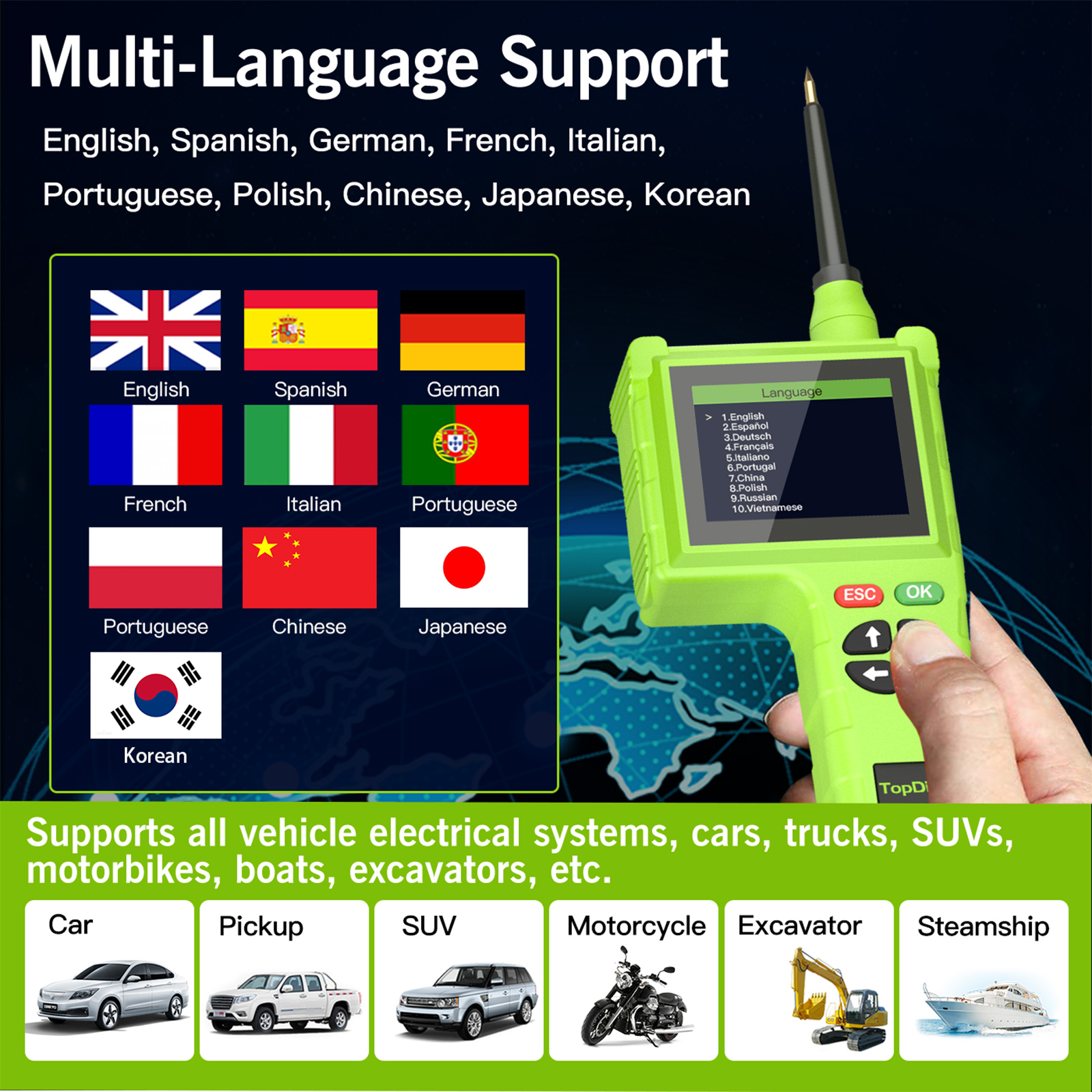

Multi-language Support
English, Spanish, German, French, Italian, Portuguese, Polish, Chinese, Japanese, Korean.

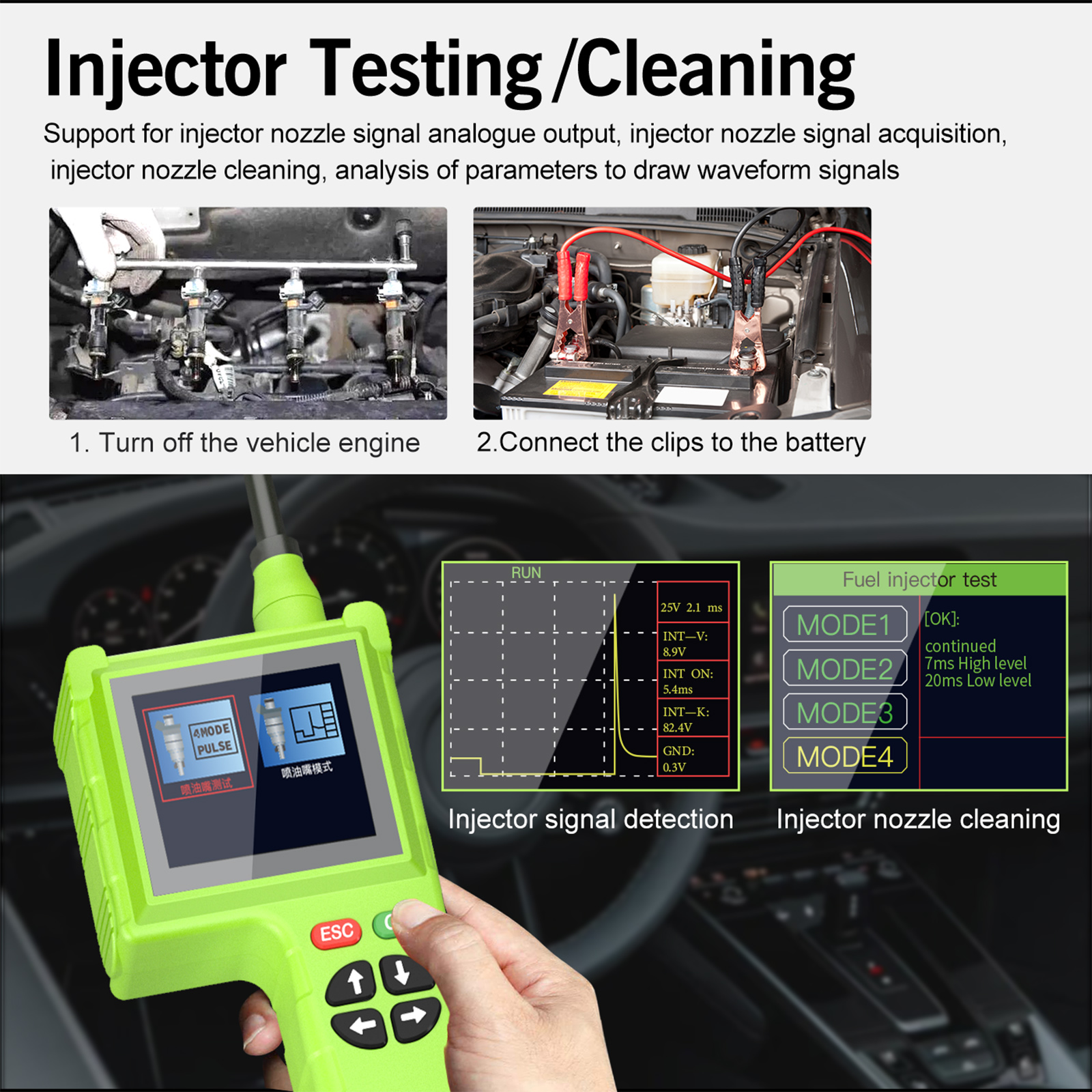

Injector Testing/Cleaning
Support injector nozzle signal analogue output, injector nozzle signal acquisition, injector nozzle cleaning, and analysis of parameters to draw waveform signals.

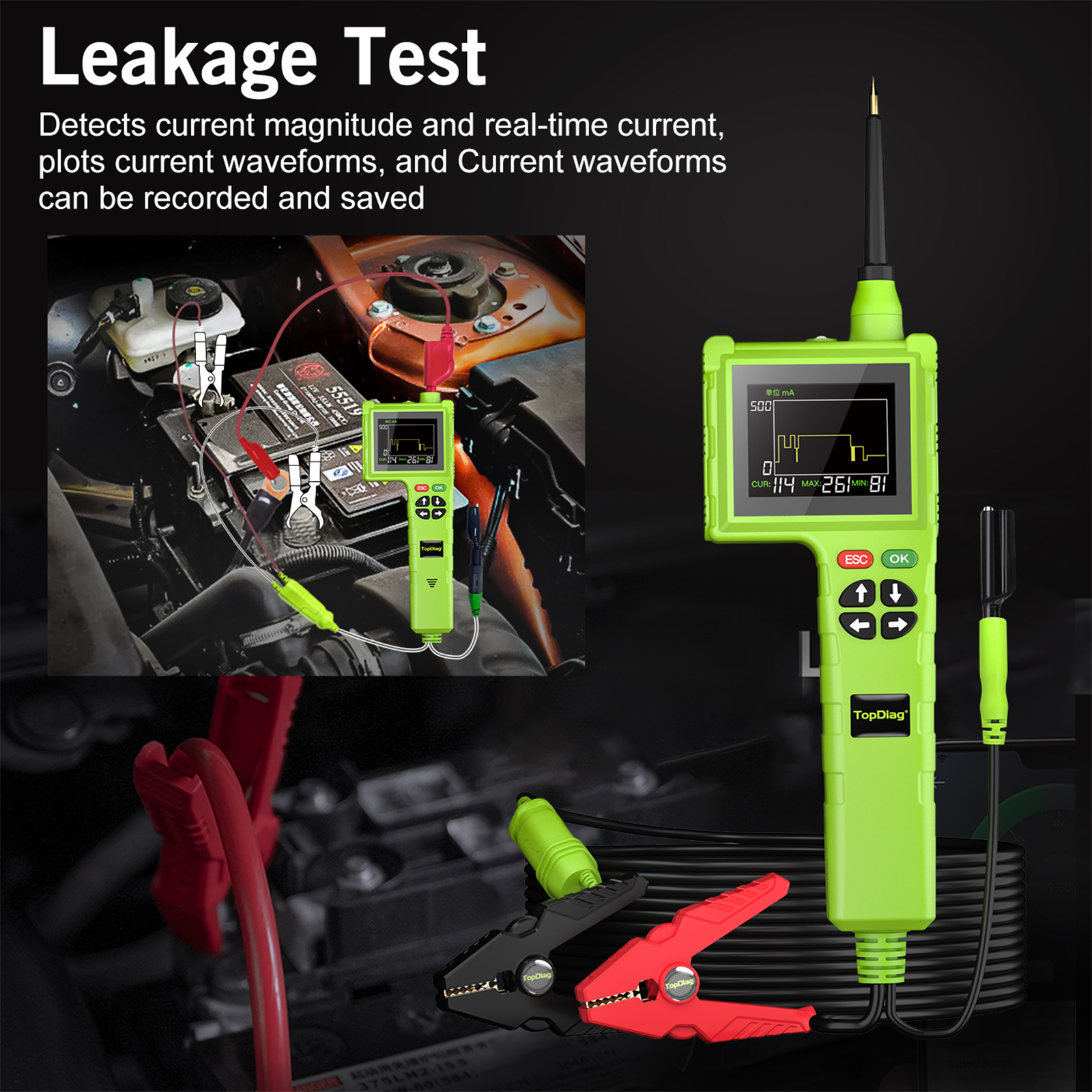

Leakage Test
Detects current magnitude and real-time current, plots current waveforms. Current waveforms can be recorded and saved.

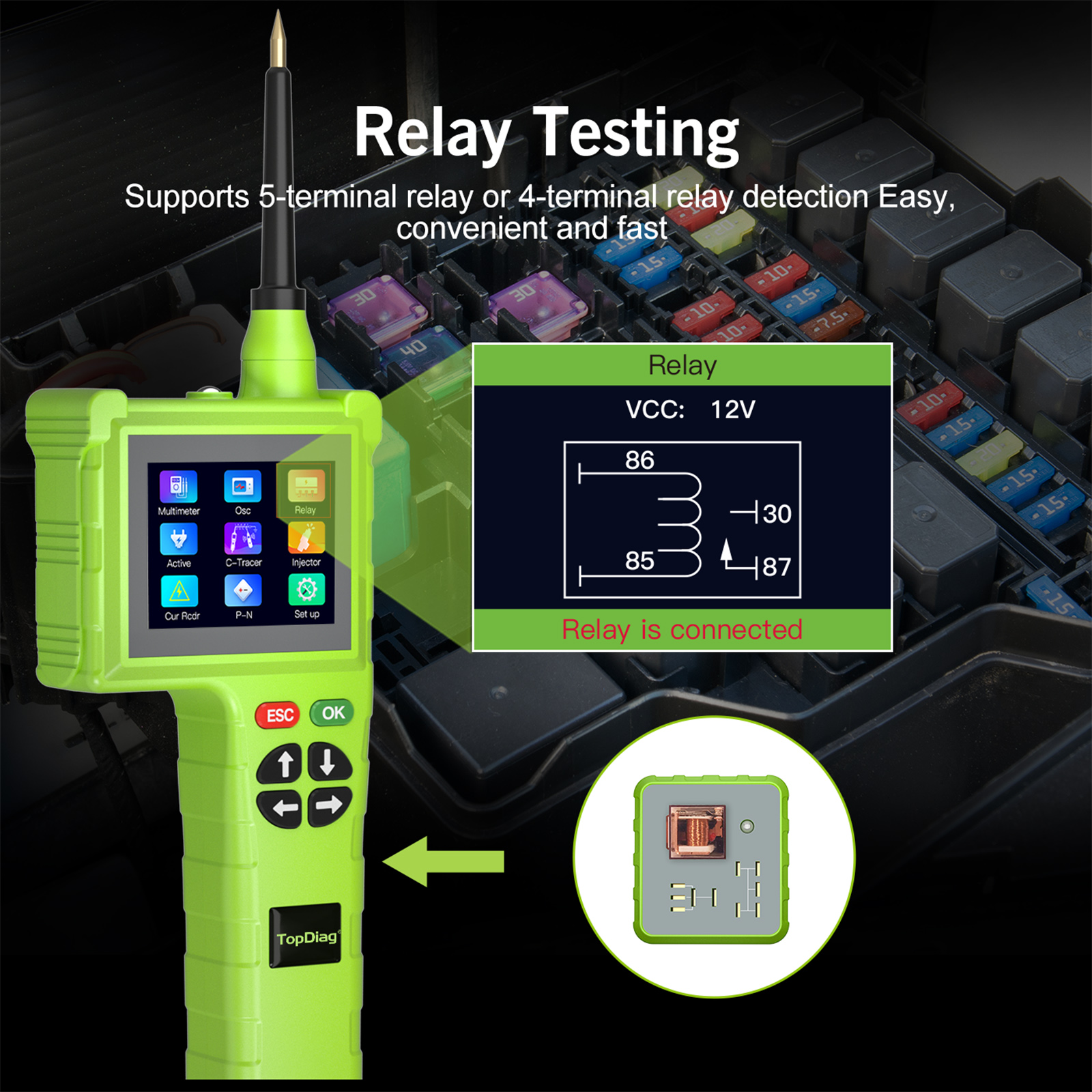

Relay Testing
Supports 5-terminal relay or 4-terminal relay detection, Easy, convenient, and fast.

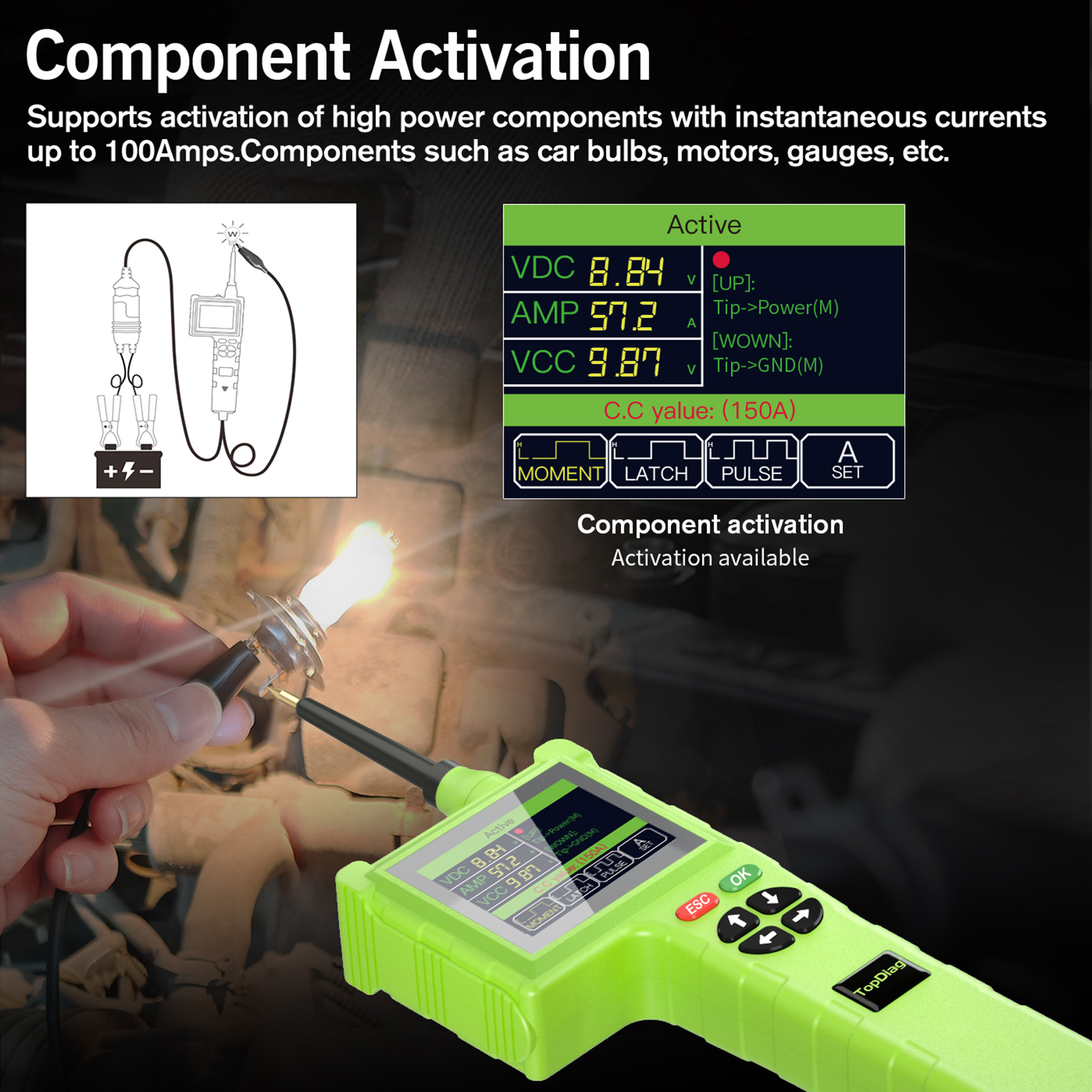

Component Activation
Supports activation of high power components with instantaneous currents up to 100Amps. Components such as car bulbs, motors, gauges, etc.

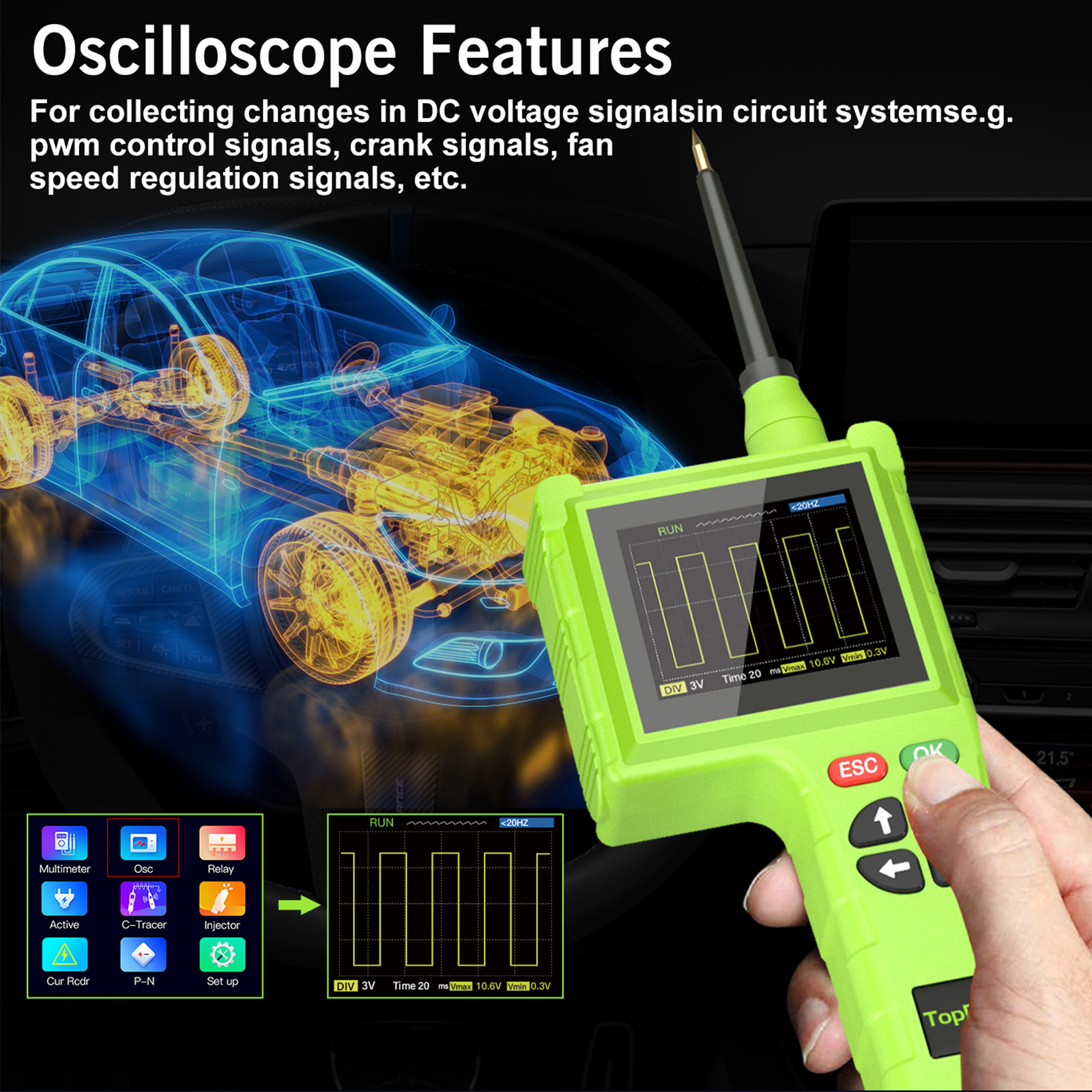

Oscilloscope Features
For collecting changes in DC voltage signals in circuit systems. e.g., PWM control signals, crank signals, fan speed regulation signals, etc.

Support A Wide Range of Models
Supports all vehicle electrical systems, cars, trucks, SUVs, motorbikes, boats, excavators, etc

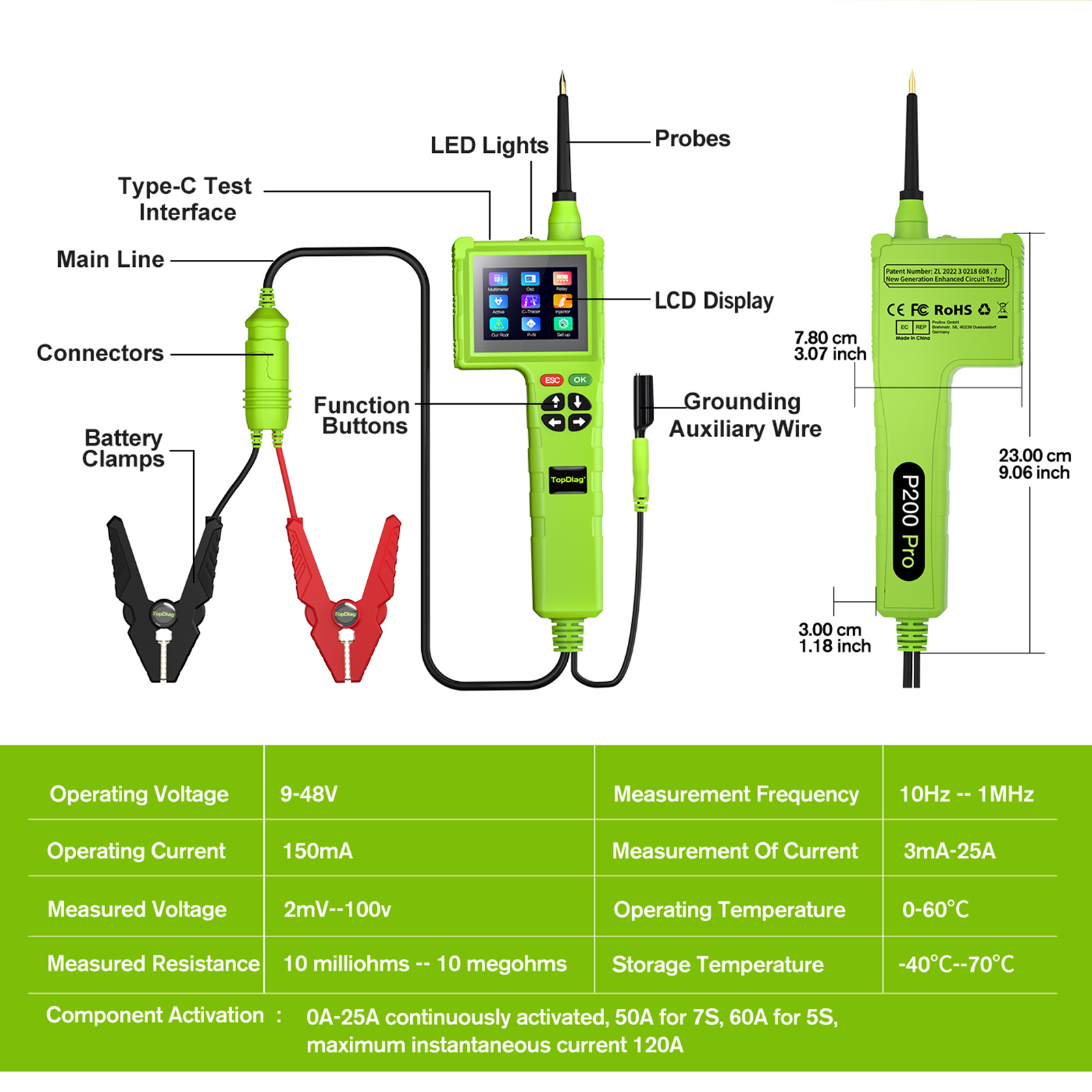

Product Specifications:

Operating voltage: 9- 48V
measurement frequency: 10Hz-1Hz
Operating current: 150mA
Measurement of current: 3mA-25A
measured voltage: 2mV-100V
Operating temperature: 0-60℃
storage temperature:-40℃-70℃
measured resistance:10 milliΩ-10 megaΩ
Component Activation: OA-25A continuously activated, 50A for 7S, 60A for 5S, maximum instantaneous current 120A

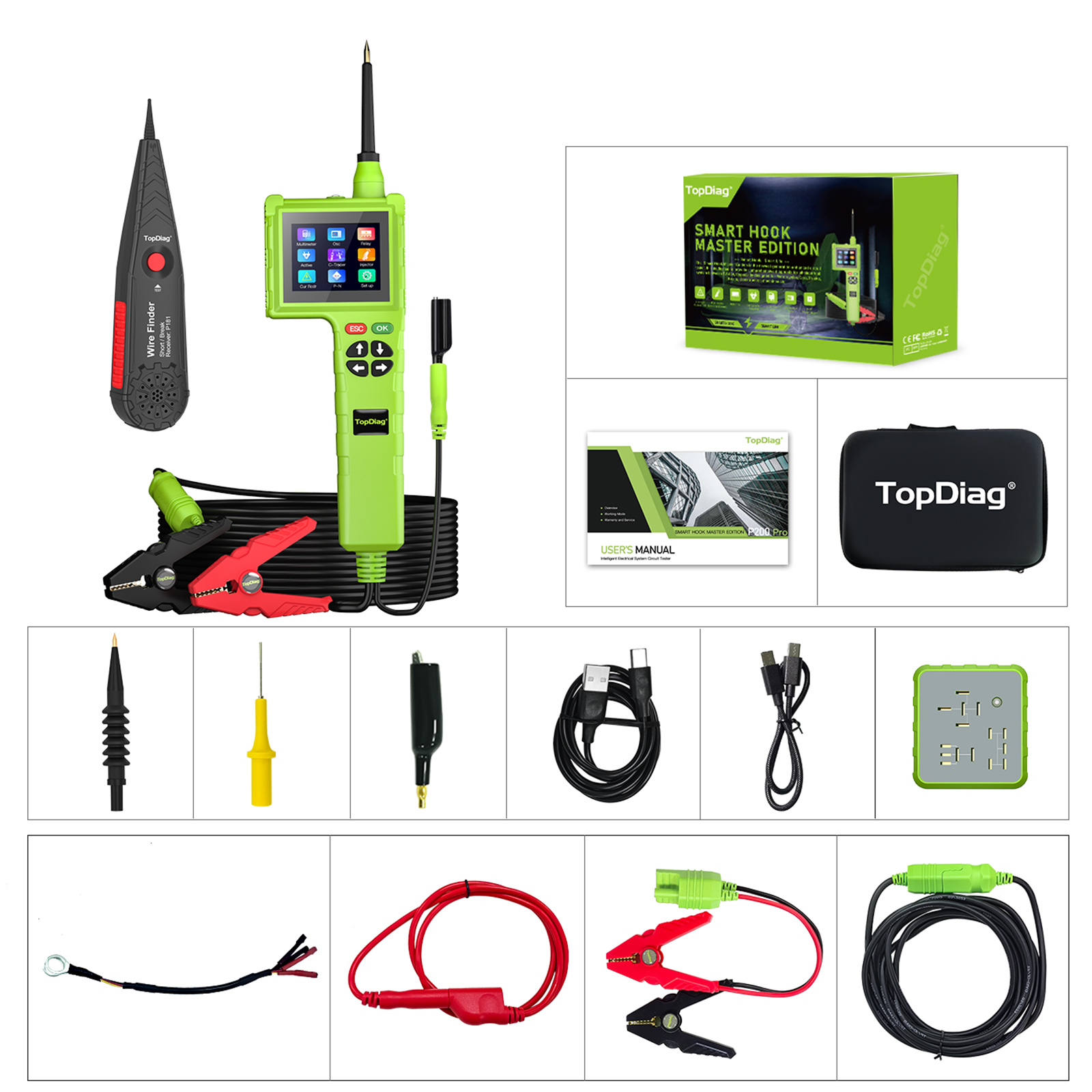

Package Includes:

1pc x TOPDIAG P200Pro
1pc x Wire Finder
1pc x Probe
1pc x Spring pen
1pc x Alligator clip
1pc x USB to Type C cable
1pc x Type C cable
1pc x Clip cable
1pc x Relay test box
1pc x Injector test wire
1pc x Banana wire
1pc x Extension cable
1pc x black bag
