PADFLASH Full Version ECU Programmer Master Version with USB Dongle Free Update OBD Bench Boot Supports Checksum VR Files

PADFLASH Description:



PADFLASH is a professional tool for automotive workshops and chip tuners designed to diagnose, repair and reprogram engine and transmission control units of cars, trucks, special vehicles, boats, and yachts, bikes, agricultural and many other vehicles.

Padflash software download

Advantages for PADFLASH:


PADFLASH Full Version Software

1: Car ( OBD BENCH BOOT JTAG FULLCONNECTION BOOT JTAG/BDM)
2: TURCK(( OBD BENCH BOOT JTAG FULLCONNECTION BOOT JTAG/BDM)
3: TRACTOR/MARINE ( OBD BENCH BOOT JTAG FULLCONNECTION BOOT JTAG/BDM)
4: MOTOBIKE ( OBD BENCH BOOT JTAG FULLCONNECTION BOOT JTAG/BDM)



PADFLASH Supported ECU:

Bosch, Delphi, Denso, Siemens, Magneti, Hitachi and more

PADFLASH vs Foxflash vs Other Tools:


Model	PADFLASH	FOXFLASH	Other Tools
TCU Support	Average	Good(Strong Support on TCU)	Only some tools support
BENCH	Yes	Yes	Only some tools support
Supported Vehicle Types	CAR,TRUCK,TRACKTOR,MARIN,BIKE	CAR,TRUCK,TRACKTOR,MARIN,BIKE	Car or truck, or BIKE, CANT Cover ALL
SUB Fee	NO	NO	SOME ABOUT 600 USD / YEAR SOME NO
Dongle	Yes	NO	Some tools have.
Read Method	BENCH,OBD,FULL CONNECTION ,BOOT,JTAG,BDM	BENCH,OBD,FULL CONNECTION ,BOOT,JTAG,BDM	Some tools partially support.
Virtual READ	Yes	Yes	SOME YES , SOME NO
Internet Connection	Yes	Yes	Yes
EMS2.4	Yes	NO	SOME YES , SOME NO
SID6 SID8	Yes	NO	SOME YES , SOME NO
MD1CS018 MG1CA811	Yes	NO	Some can, some can’t.
PSG16 CLONE	BENCH Read, Can be cloned.	OBD Read, Can't be cloned.	Some can, some can’t.
M10JA	BENCH Read, Can be cloned.	OBD,BOOT, OTB, Can't be cloned.	SOME OBD. SOME BENCH. SOME BOOT
PSG16	BENCH	OBD	:OBD OR BOOT
Order Option	Can be ordered separately	Just one full version	SOME CAN, SOME CANT
Master or Slave	Master	Master	MASTER OR SLAVE
Languages supported	16	Less than 16	ABOUT 6
Speed Modification	YES but partly supported	NO	Some can, some can’t.
Counter Reset	Yes	NO	Some can, some can’t.
Conclusion	IF you need clone without opening ECU, PADFLASH is a better choice.



PADFLASH Device Installation Process:

After receiving the device, please follow the steps below to install it

1: Please install Teamviwer remote control software on your computer
2: Connect the device host USB cable to the computer
3: Insert the USB KEY that comes with the device into the computer
4: Maintain a good working network
5: Turn on your teamviwer device and send the remote control ID and password to your sales, or send an email to info@padflashr.uk
6: Remote technology is online to assist you with installation online.
7: Activation time is
1: CET, UTC+1 11:00-14:00
2: CEST, UTC+2 12:00-15:00
Spanish time
8: For the convenience of customers, please leave a WhatsApp or email address to facilitate technical flexibility to connect with customers for installation and activation.
9: Operating system requirements: Currently, WIN7 64 is recommended as the main choice for better stability. WIN10 is currently under testing, and customers are not recommended to install WIN10 64. If it is stable, the win10 64 operating system will be released.
10: Computer hardware requirements: RAM not less than 4GB, CPU not less than 2.5GHz
Warm reminder: Users should not disassemble the device casing by themselves, otherwise the machine will be damaged and the warranty will be void.

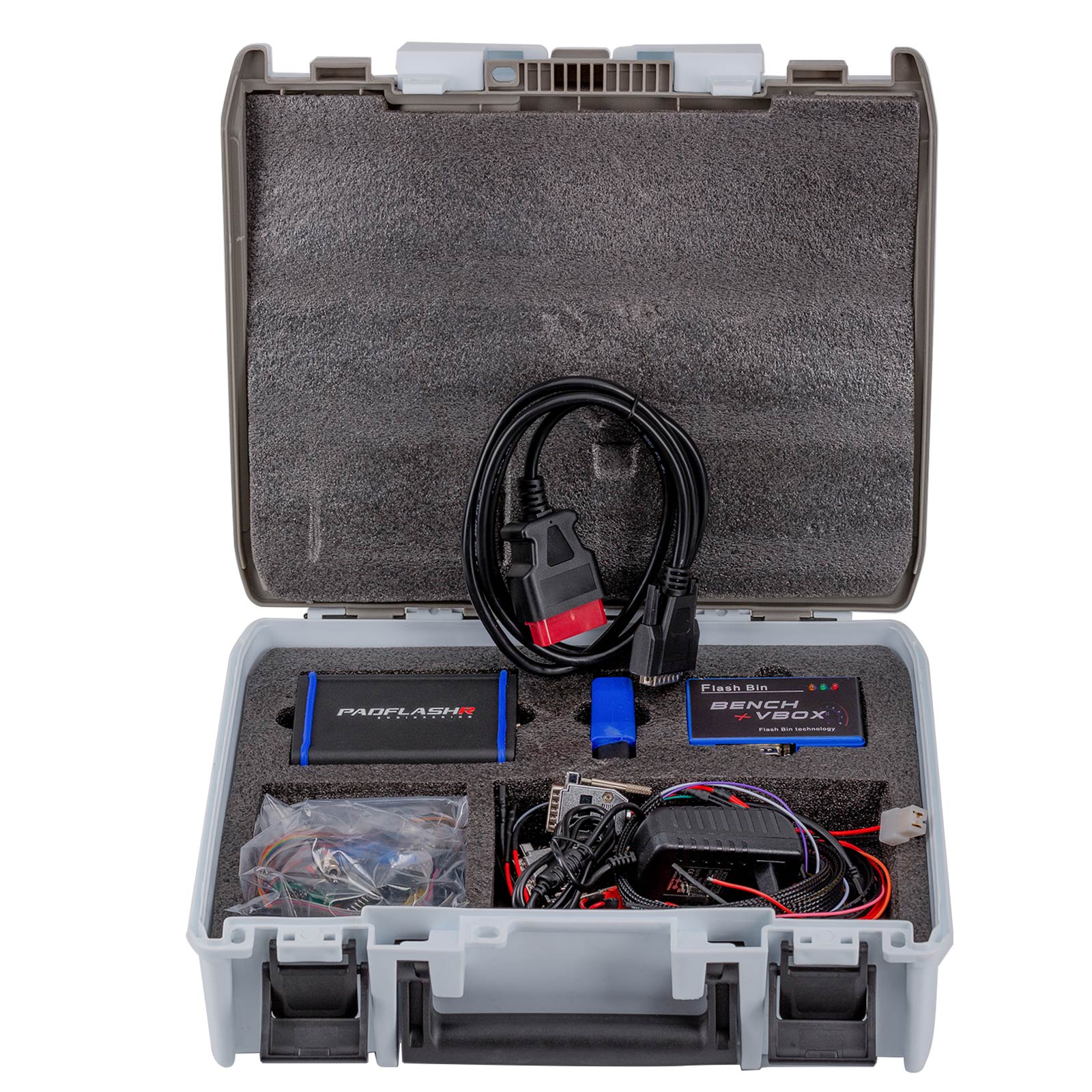

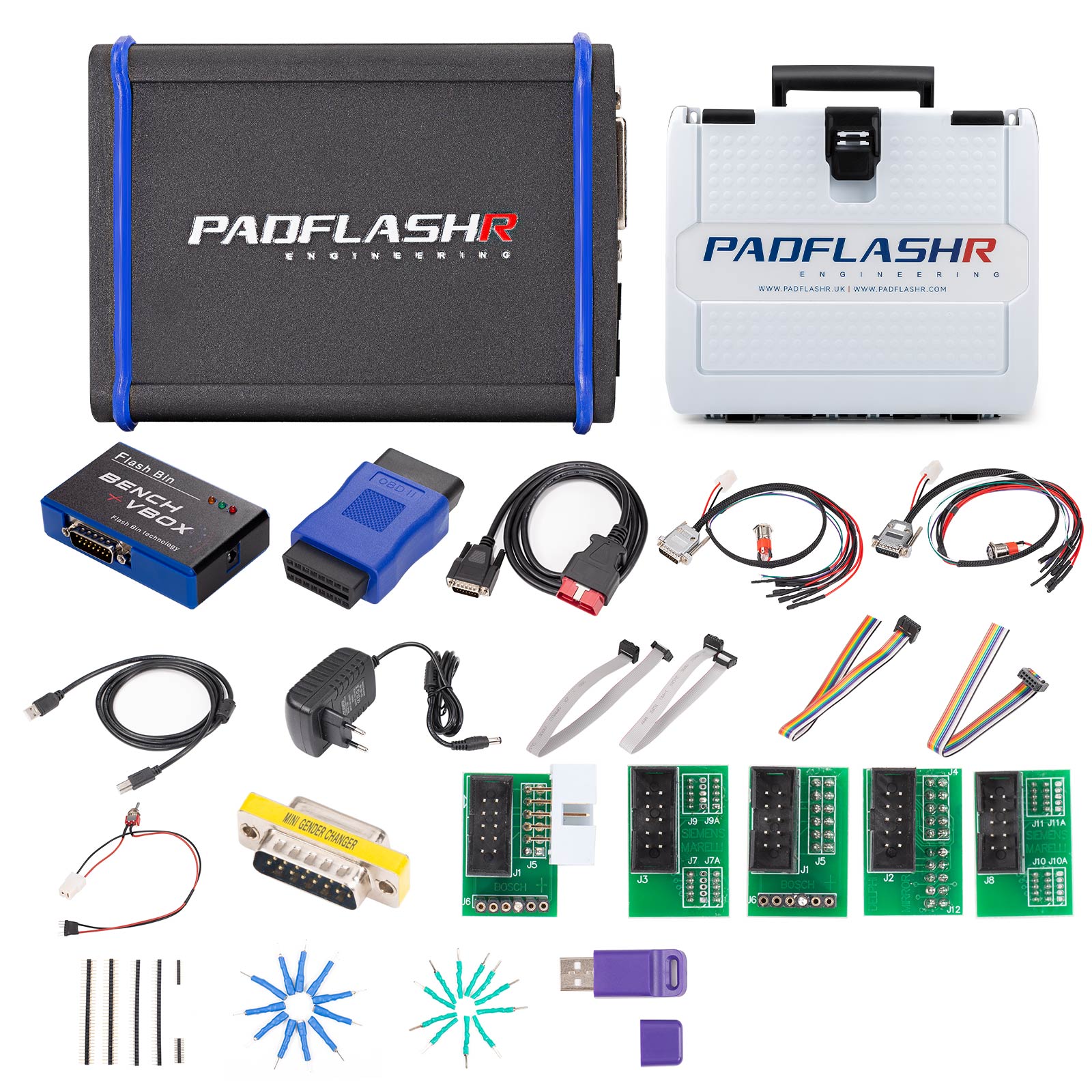

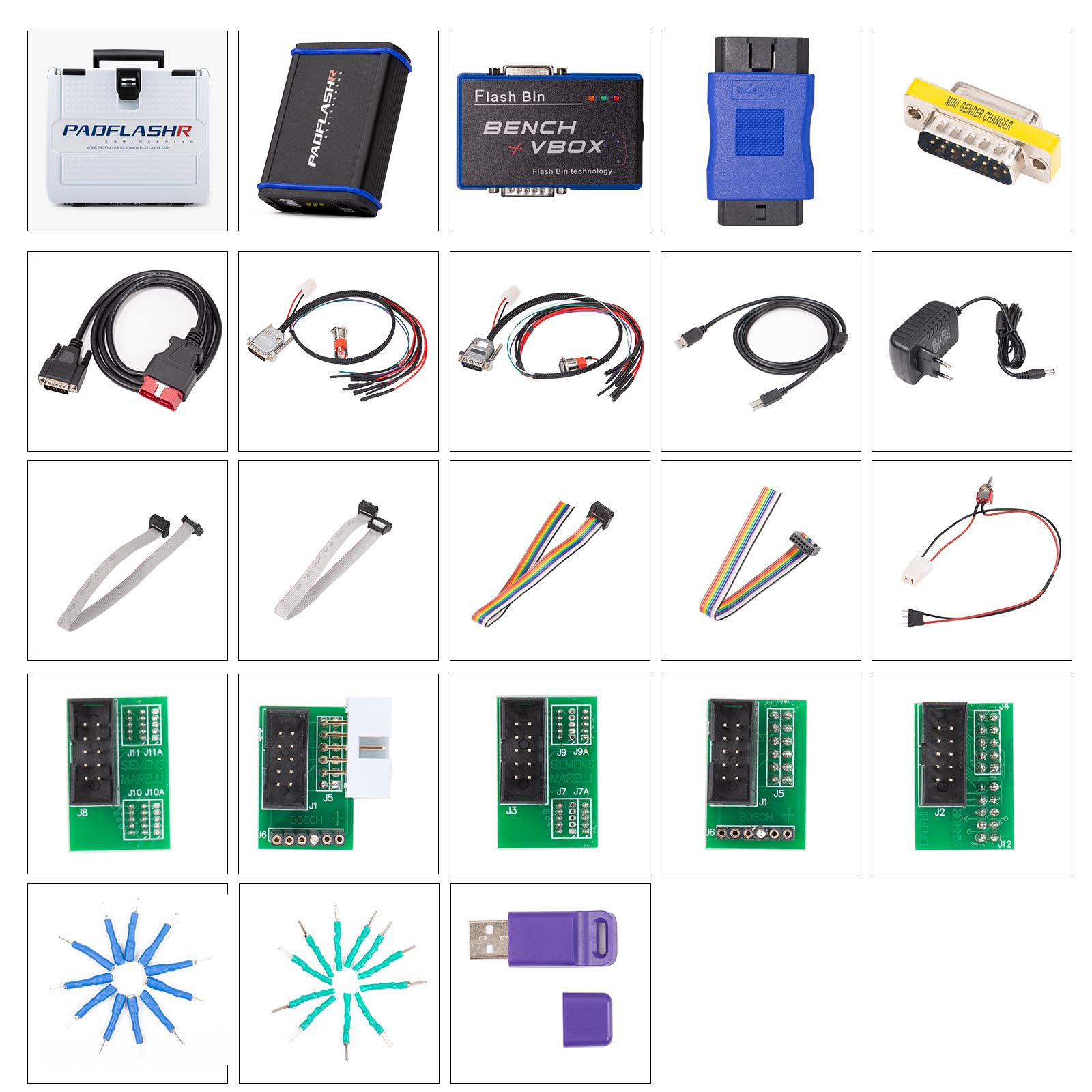

1pc x main unit

1pc x BENCH VBOX

1pc x OBDII main cable

1pc x Truck OBD adapter(for Old Style Trucks)

1pc x Bench Boot Cable(for New Style Trucks)

1pc x Bench Boot Cable

1pc x power adapter

1pc x MINI adapter

1pc x USB Key

5pcs x BDM JTAG adapters

4pcs x wiring pins

2pcs x wiring pins

1pc x adapter cable

2pcs x bdm jtag cables

2pcs x bdm jtag cables(grey)

11pcs x adapter pins(green)11pcs x adapter pins(blue)
