Ship from EU OBDSTAR X300 Classic G3 A1+A2 Intelligent Programming Tool for E-cars Motorcycle Marine (jet-ski) with Free Key Sim 5 in 1 and Motor Adapters

Product Description

OBDSTAR X300 Classic G3 Intelligent Programming Tool

OBDSTAR X300 Classic G3 Description:

X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, marine (jet-ski), etc. A good helper for automotive locksmith masters.

Supported vehicle types:
Car, HD, E-Car, MOTO, Marine (jet-ski)
Check X300 Classic G3 support list ( Latest)
Buy X300 Classic G3, get free KeySim 5 in 1 Key Simulator + Motor cable adapters set including M034, M037, M040, M041, M042, M043, M053, M054 for free.


OBDSTAR X300 Classic G3 Functions:

Software functions:
Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.

Hardware Advantages:
1. Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test, and RFID;
2. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High-Performance VCI Processor.

Advanced Functions:
1. Support MOTO key programming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others; (note:  KTM or husquavna not support this moment, engineer will add in futuer update)
2. Support Marine key programming function for BRP, KAWASAKI, YAMAHA, and others;
3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;
4. Support unlock ECU function for ALFA ROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
7. Support pin code reading function that has lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN, and Samsung QM6\SM6 models.
8. pay activation services for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform, and other functions are available.




X300 Classic G3 Vs.X300 DP Plus:


Products Details		X300 DP Plus C	X300 Classic G3
Hardware	Operation system	Android 5.1.1	Android 11
	OTA	x	√
	Screen recording	x	√
	Wireless screen casting	x	√
	CPU	qual core ARM cortex A9 1.4GHz	Quad-core 64-bit Cortex-A55  2.0GHz
	Battery	3700mAh	9000mAh
	Storage capacity	1+32GB	4+64GB
	LCD	8.0 inch	8.0 inch fully laminated sunlight readable screen
	Camera	Rear camera 500W pixels	Rear camera 800W pixels, auto-focus
	Bluetooth	Bluetooth 4.2	Bluetooth 5.0(Compatible with BT 4.2)
	External interfaces	x	RJ-45√
		x	HDMI√
		TYPE-A	TYPE-A,TYPE-C
	WiFi	2.4G	Dual-band 2.4G/5GHZ
	VCI	STM32F105	STM32H723
		CANFD Adapter Required	CANFD built in√
		x	DOIP built in√
		x	Low Speed(Fault Tolerant) CAN  built in√
		x	RS232、RS485  built in√
		All other common protocol types	All other common protocol types
	RFID	P001 Required	Built in√
	Remote Test	RT100 Required	Built in√
	Renault Converter	Renault Converter Required	Built in√
	Weight	About 1kg	1.5kg (main unit)
	Dimension	254mm*174mm*35mm	270.5mm*165mm*39mm
Functions	Diagnosis	√	x
	OBDⅡ	√	√
	Car IMMO	√	√
	MOTO IMMO	√	√
	HD IMMO	√	√
	Marine IMMO	x	√
	E-Car IMMO	x	√
	RFID	x	√
	Make key	x	√
	Unlock Smart key	x	√
	Renew key	√	√
	Read/Write EEPROM MCU	√	√
	ECU advanced（Includes ECU unlock）	x	√
	Oil/Service reset	√	√
	Other service function	√	x
	Remote test	x	√
	ECU flasher IMMO（IMMO OFF、ISN、IMMODATA）	x	√
	ECU flasher（Clone）	√ Limited supported models, different with DC706 and G3	Paid activation
	Car/Motorcycle cluster recalibration	√	Paid activation
	Airbag reset	√	Paid activation
	Test Platform	x	Paid activation

X300 Classic G3 Latest Update Information

AUTO IMMO SOFTWARE

VWAUDI/SEAT/SKODA [Version:V45.48]

1.Add key programming function (supported AKL)for VWIAUDI/SEAT/SKODA MQB48-5A keys,which supports online synchronization code
(Need to use with RH850/V850 Adapter Kit)

2.Add IMMO data reading function (all keys lost)for VWIAUDI/SEAT/SKODA IMMO IV NEC24C64 and NEC24C32 dashboards by BENCH,calculation.without removing IC,soldering PCB and making server data.
(Need to use with VW4-AKL cable)

3.Optimized software.

Highlights Added：

               Add BENZ DSM(FBS4) C207/C292/W166/W212/W218/W447 3 part numbers(A0002703252/A0002703352/A0002703452) the following functions support:

               ECU Info.;

               Read Data(Backup);

               Reset Virgin;

               IMMO Data Synchro;

               Write VIN;

               Write Data.

               Add BENZ DSM222(FBS4) C217/W205/W222/W907/W910 3 part numbers(A0002704252/A0002704452/A0002704652) the following functions support:

               ECU Info.;

               Read Data(Backup);

               Reset Virgin;

               IMMO Data Synchro;

               Write VIN;

               Write Data(Recover).

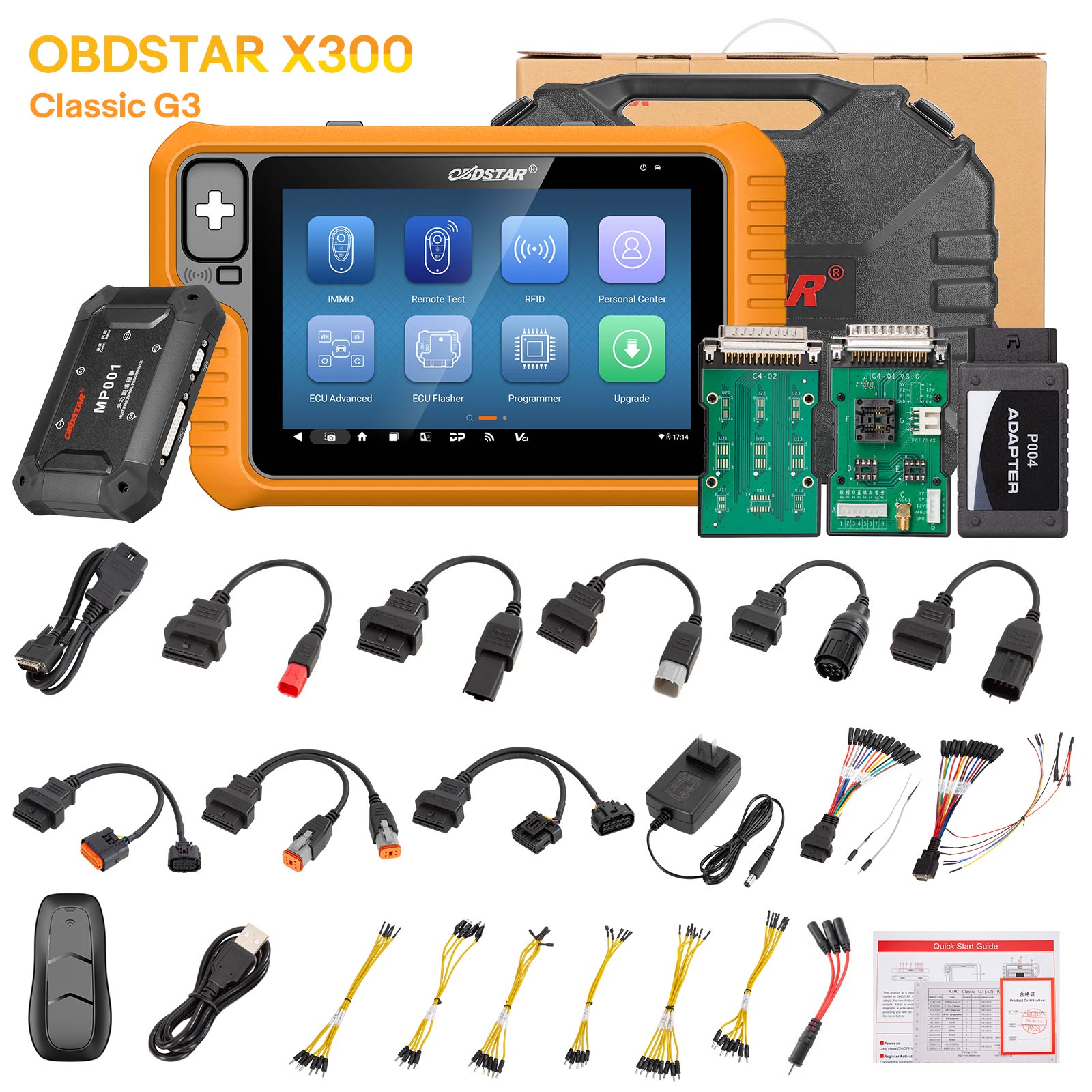

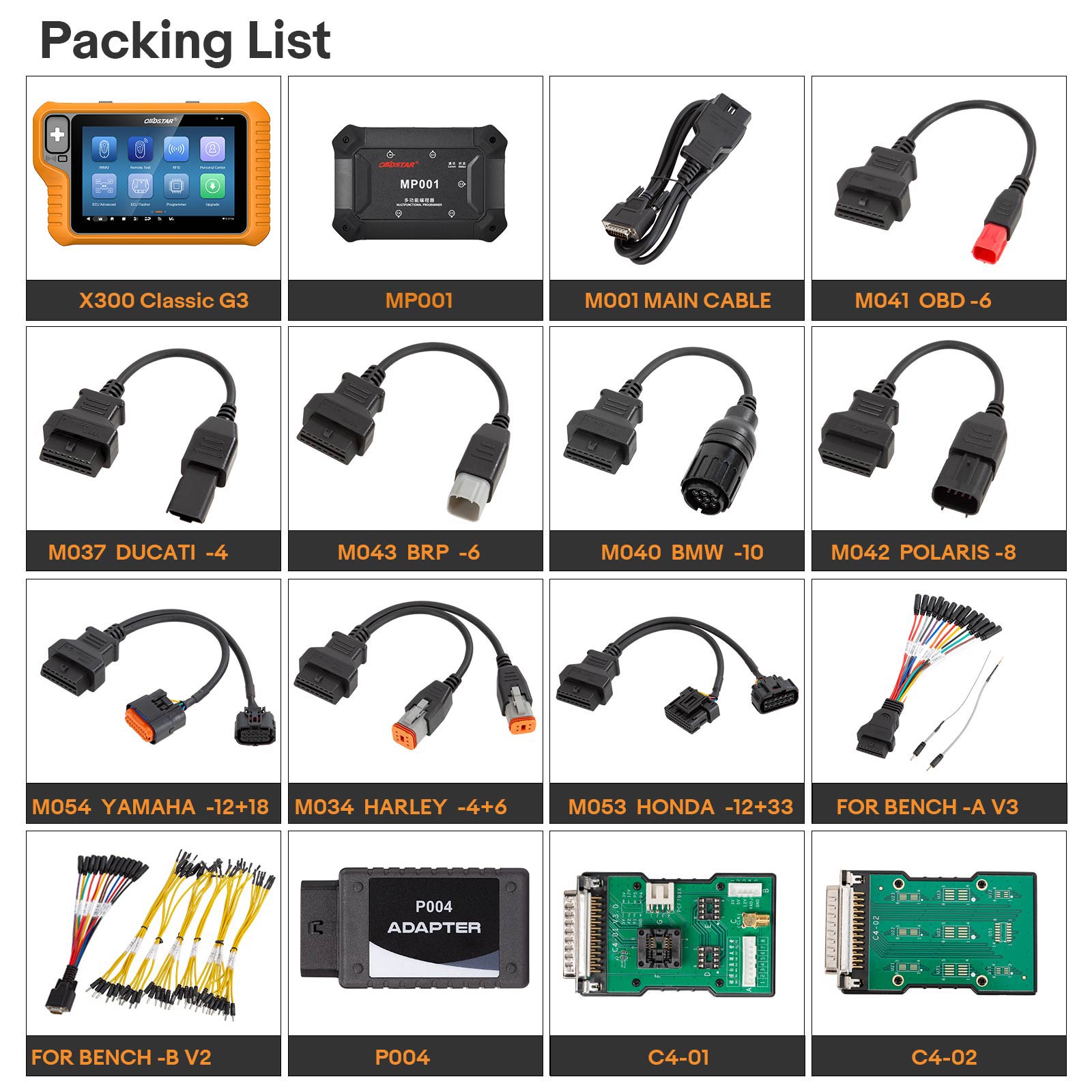

OBDSTAR X300 Classic G3 Package list:

1pc x M001 main cable
1pc x charger
1pc x MP001 all-in-one programmer
1pc x W004 read/write soldering wire
1pc x W005 read/write soldering wire
1pc x C4-01 multi-function data read/write board
1pc x C4-02 eight-pin chip(IC) soldering board
1pc x BENCH-A V3 for ECM and TCM cloning functions
1pc x P004 adapter
1pc x 3-in-1 jumper
1pc x BENCH-B V2 ECU Cloning BENCH harness

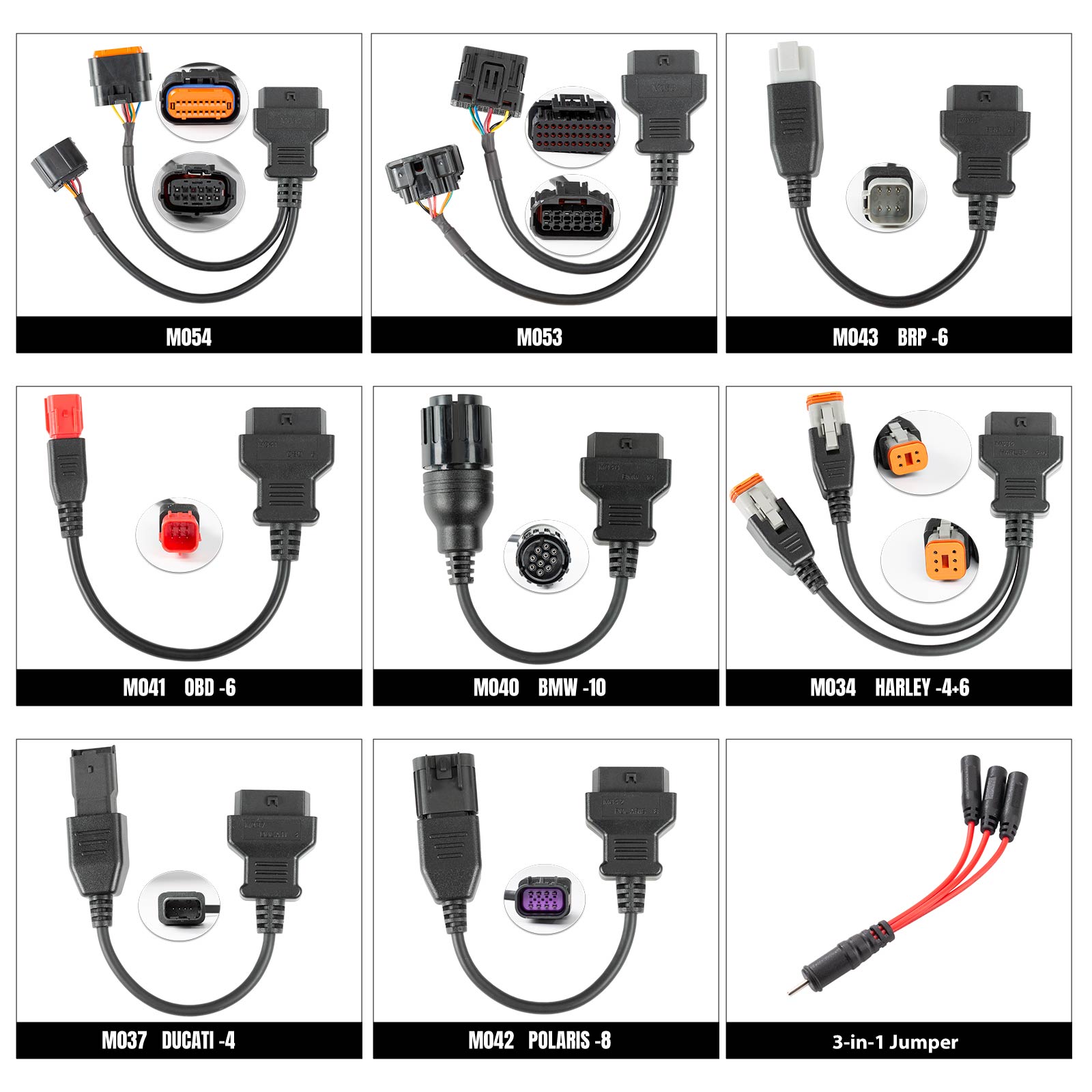

Free Gift Kits

A1
1pc x KeySlim + USB to Type-C Cable

A2
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA

Note: From June 1, 2026 onwards, the original A2 free gift will no longer be provided for free, but can be purchased separately.

---
