OBDSTAR ISCAN PRO INDMAR (Marine) Supports INDMAR Marine Diagnosis, BLM Reset, Camshaft Phaser Cleaning, Reset the Oil-life Monitor

Product Introduction:

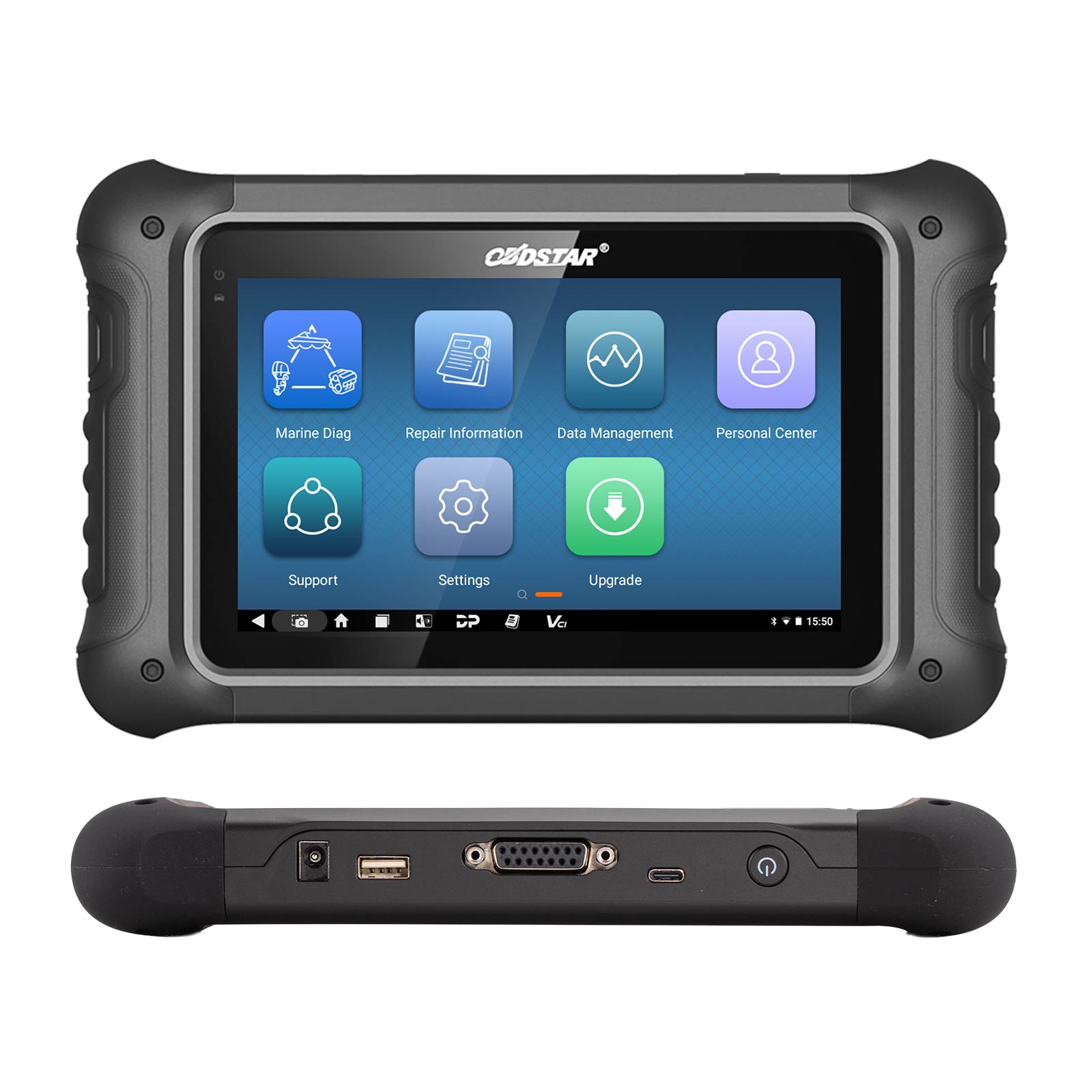

ISCAN PRO INDMAR (MARINE) is a portable tablet which has super performance and industrial appearance design specialized for INDMAR. It is a new generation of intelligent marine diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 7.0-inch capacitive touch screen, brings customer professional diagnosis experience.


Product Features:

Support INDMAR marine diagnosis
Support BLM (Block Learn Multiplier) reset, Camshaft phaser cleaning, Reset the oil-life monitor, Misfire Data Clearing, Fuel Adaptation Value Liquidation, Speedometer Calibration, ENG temp. sensor calibration, ENG control strategy and other special functions.
Support 2.4L,3.0L,4.3L,5.0L,5.7L,5.7L HO,5.7L HO SS,6.0L,6.0L SS,6.2L,STEYR 256 and other models.


Product Functions:

1. Android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.


Advanced Functions:

1. The OBDSTAR mobile APP integrates functions such as diag socket location, technical bulletin etc., working with ISCAN PRO to make marine diagnosis more accurately and efficiently;
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to analyze faults easily;
3. Support BLM (Block Learn Multiplier) reset, Camshaft phaser cleaning, Reset the oil-life monitor, Misfire Data Clearing, Fuel Adaptation Value Liquidation, Speedometer Calibration, ENG temp. sensor calibration, ENG control strategy and other special functions.
4. Support DC24V input.

Diagnostic support series
Support 2.4L, 3.0L, 4.3L, 5.0L, 5.7L, 5.7L HO, 5.7L HO SS, 6.0L, 6.0L SS, 6.2L, STEYR 256 and other models.

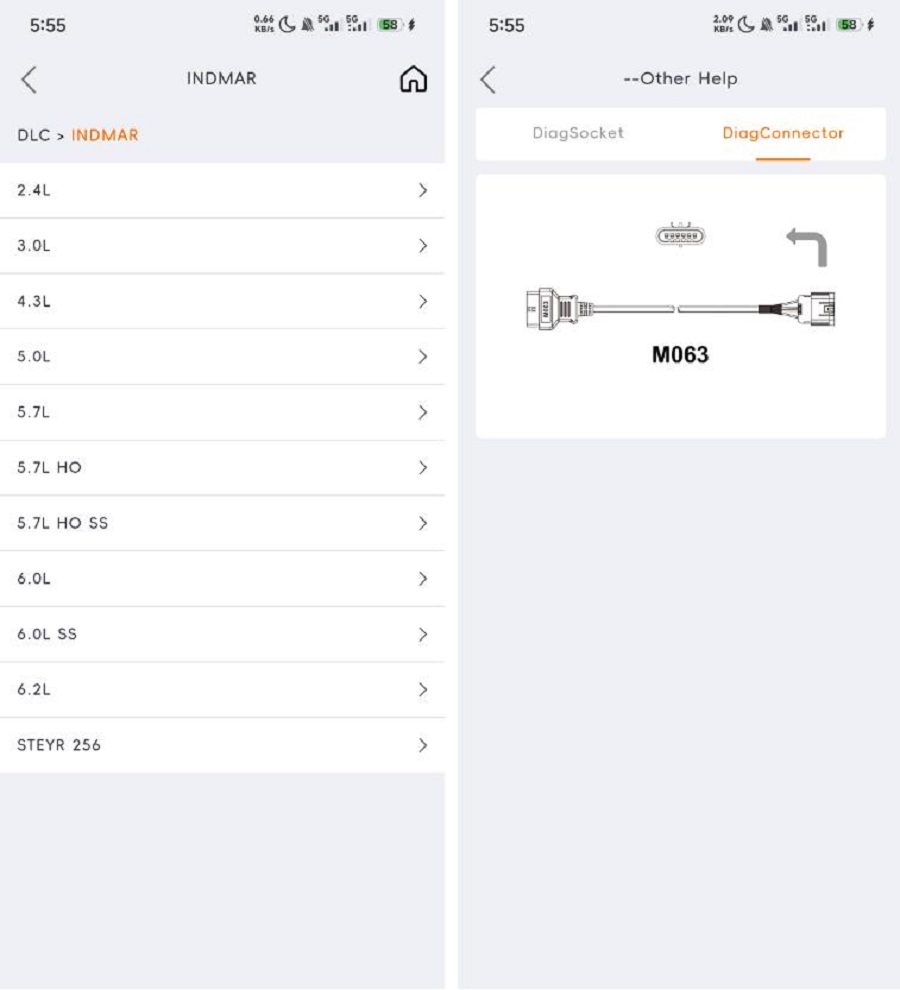

Function Display-(From OBDSTAR Mobile App)

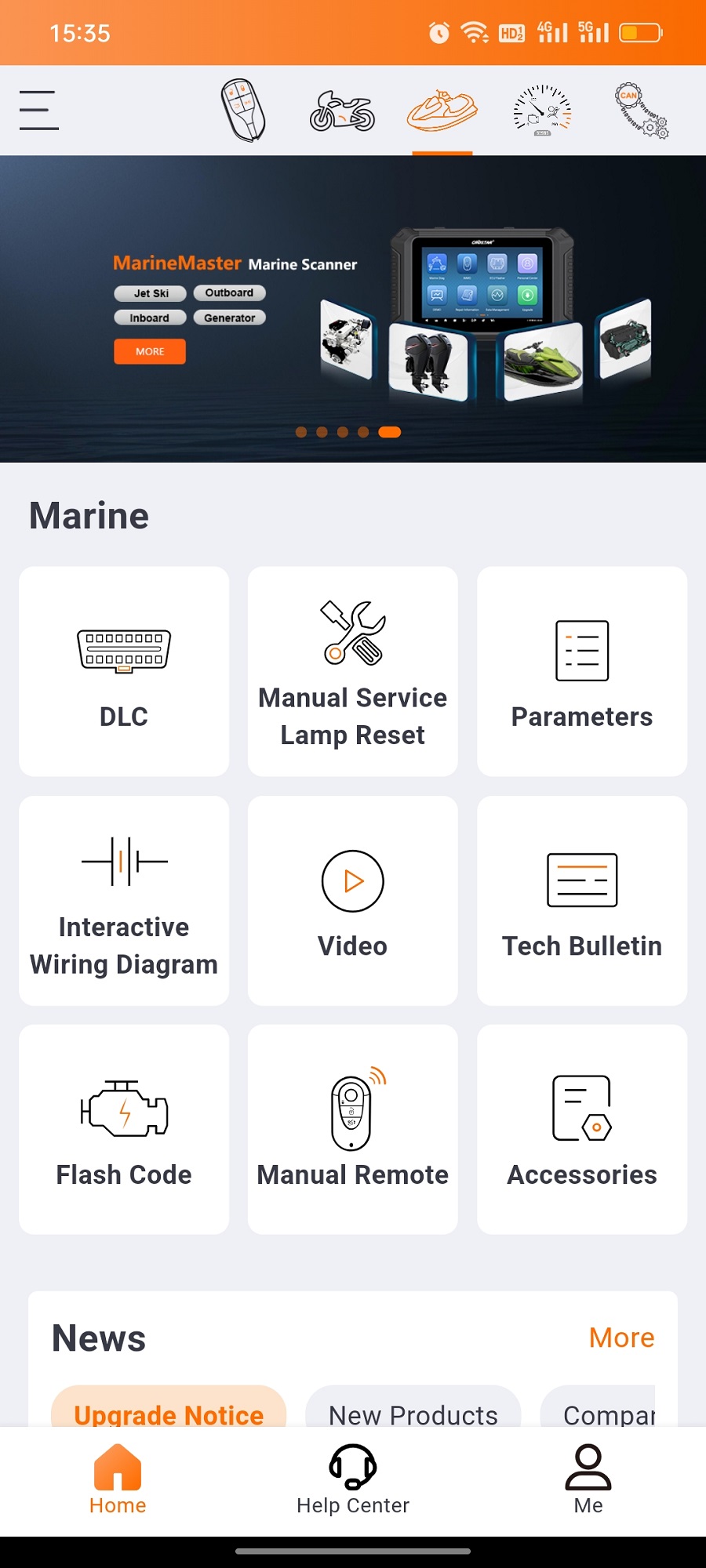

1) Main Page



2) Diag Socket/Diag Connector Location



Function Display-(From ISCAN PRO)

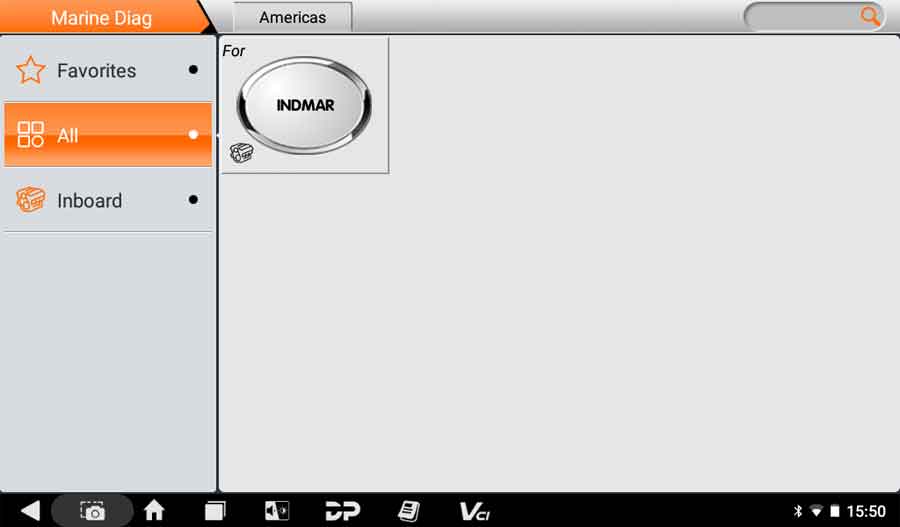

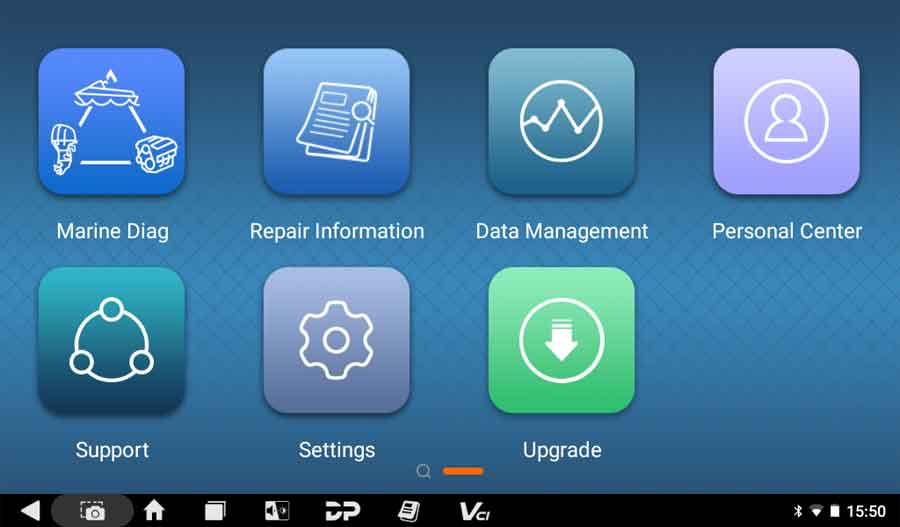

1) Main Page/Brand Supported

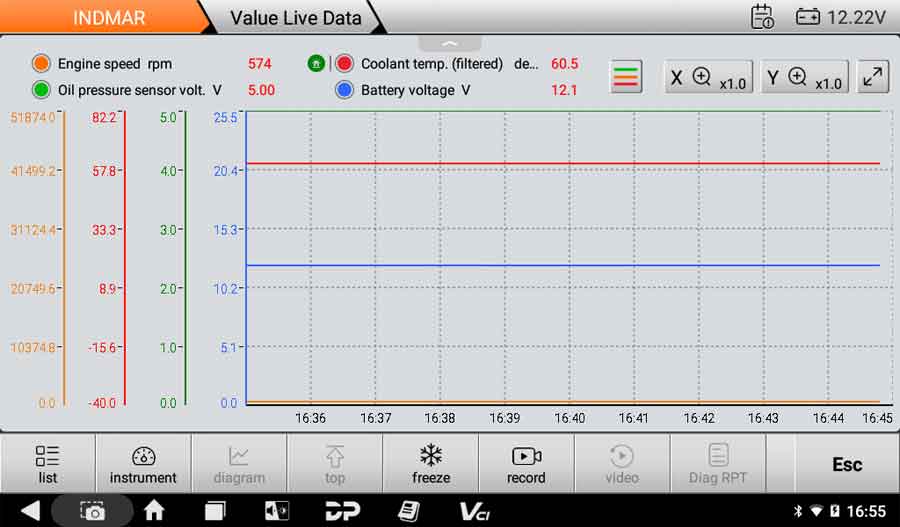

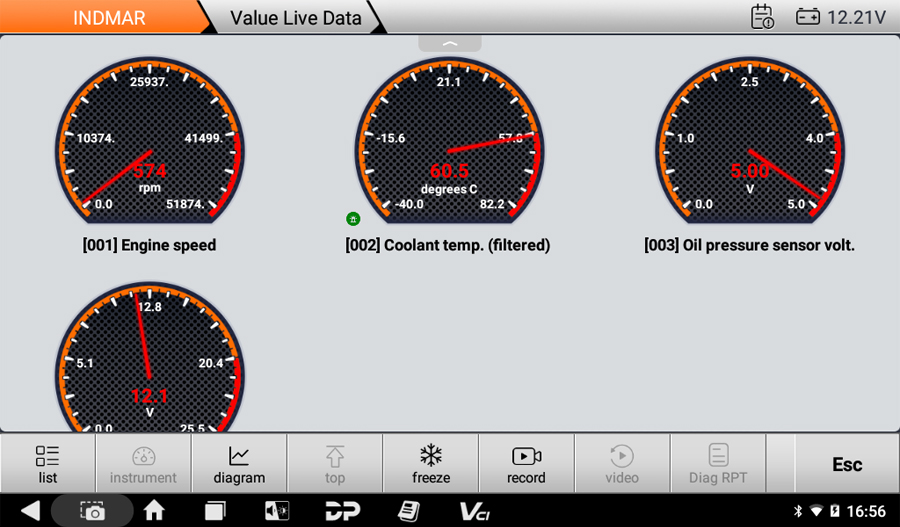

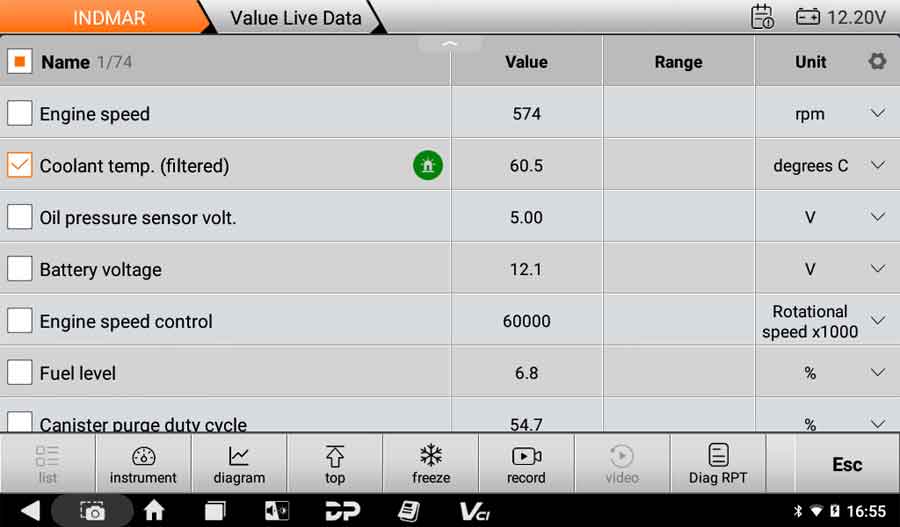

2) Data Flow Text/Waveform Diagram









Product Specifications:

Operation system： Android 5.1.1
CPU：RK3128 quad-core ARM cortex A7
Battery： 3700mA, rechargeable polymer lithium battery
Extension memory card： 32G micro SD (TF) card supported
Storage capacity： 16GB
LCD： 7.0 inch
LCD resolution：1024*600
Touch screen： Capacitive touch screen
Wifi： Supported
Working temperature： -20℃—55℃ (14℉—131℉)
Storage temperature： -20℃—70℃ (-4℉—158℉)
Weight： About 0.766kg
Dimension： 243mm*148mm*36mm

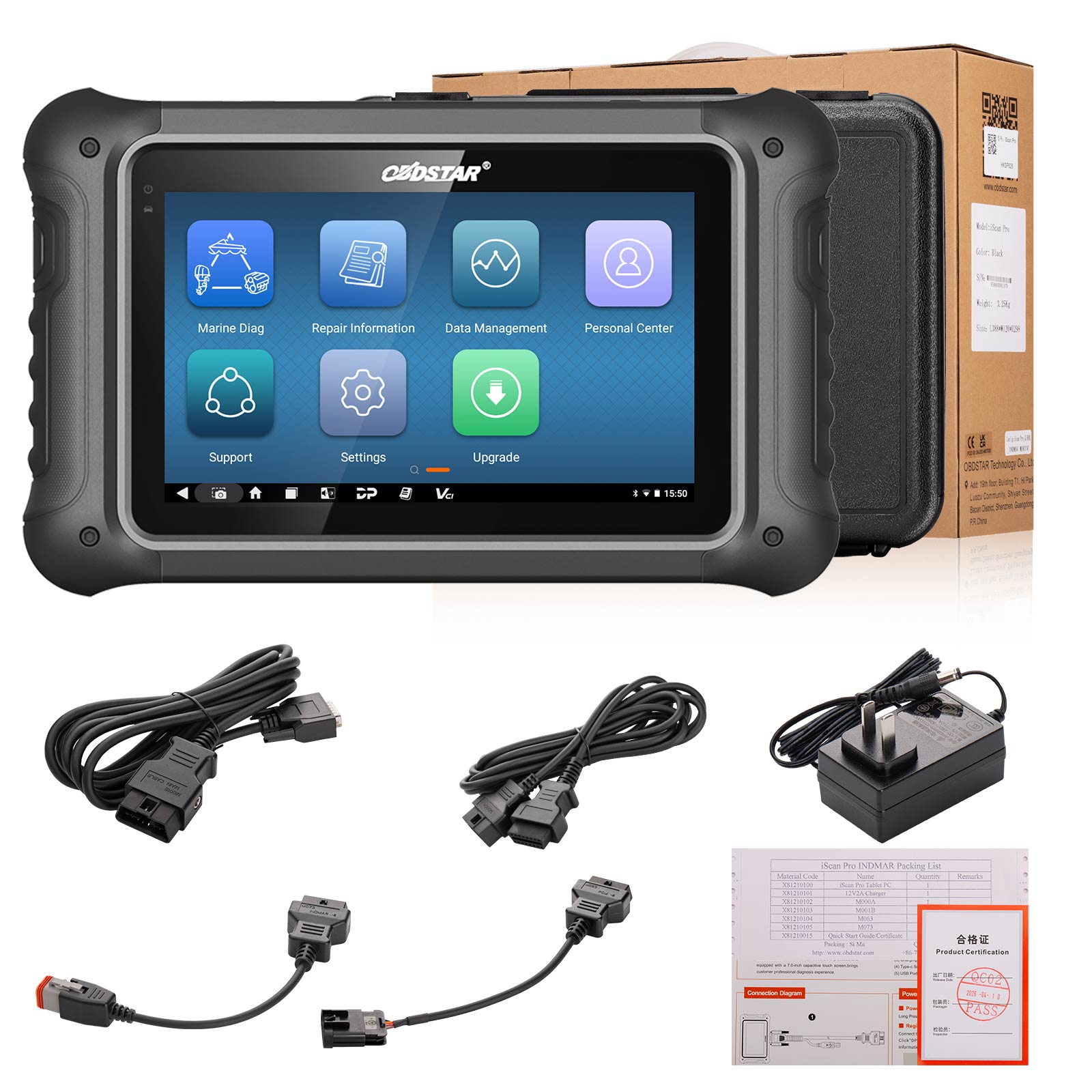

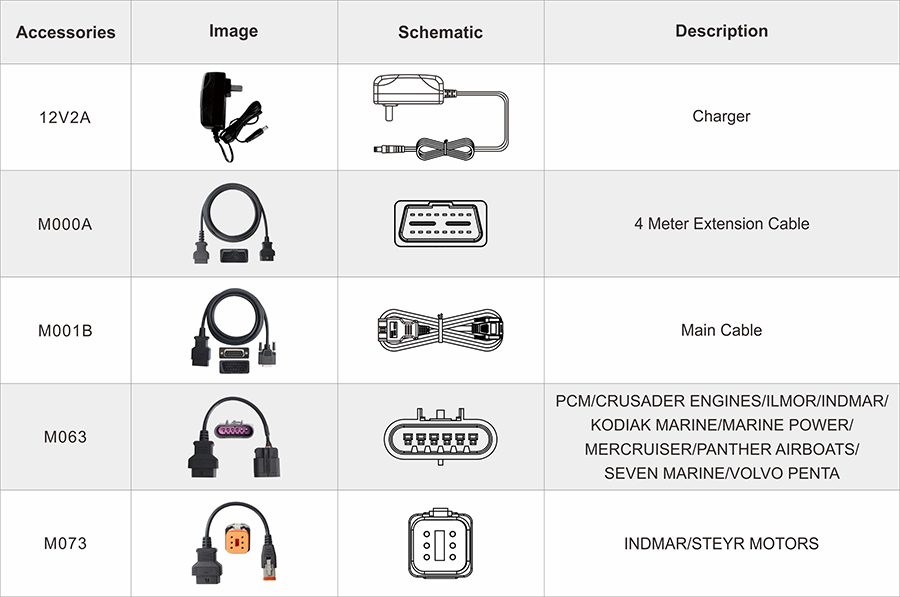

Package includes:

1pc x main unit
1pc x 12V 2A charger
1pc x M00A 4 meter extension cable
1pc x M001B main cable
1pc x M063 cable
1pc x M073 Indmar/steyr motors cable
