New NP Tools HU66 V.3 Smart 5 In 1 Lock pick Locksmith Tool

Product Description

NP Tools Smart 5 In 1 Tool HU66V.3

NP Tools Smart 5 In 1 Description:

Smart 5 In 1 Tool is a tool with LED indicator light, unlocking, readout, data storage, auto-calibration.

Precautions:
1. When the battery shows only one bar left, please use the new battery in time, avoid affecting normal use.
2. Please use 3.3V, CR2032 battery, cannot use other battery specifications.


How to install the Battery:

1. Turn the battery cover in the direction of the arrow
2. Insert the battery in the direction of the battery label
3. Battery install direction


How to use Smart 5 In 1 Tool hu66 v.3:

1. Long press the "O" button to power on
2. Short press the "O" button until the indicator light on, moving the pick up and down to change the data
3. Short press "S” to lock the value
4. Continue to pull out the pick, change the data in the second position
5. Press the "S" button to lock data after changing the data, repeat the previous steps until all data is changed.
6. Long press the "T" button to save data, a set of data has been stored in the bottom right corner, and the data has been saved successfully.


How to read the lock pick:

1. Opening the car lock
2. Switching the lock to read data in a fixed position
3. Select the direction where pick has no force to read the code
4. Turn the pick to the end for the pick number
5. Pree "S" button to lock single data after reading
6. Long press the "T" button to save data after reading


Error Code interpretation:


Error code	Description	Approach
Err-01	X-axis overstep the lock	Pick returns to the initial position, turn off and restart.
Err-02	Y-axis overstep the lock	Pick returns to the initial position, turn off and restart.
Err-03	Save failed	Press the save button again, please check the hardware after multiple failures
Err-04	Full storage	1. long press the 3S “T” button until the screen flash 3 times， so clean storage data, put and save the current data as the first storage data 2. Don’t save the current data, switch to working mode

Smart 5 In 1 Tool Specifications:

Display screen: LCD with white backlight board

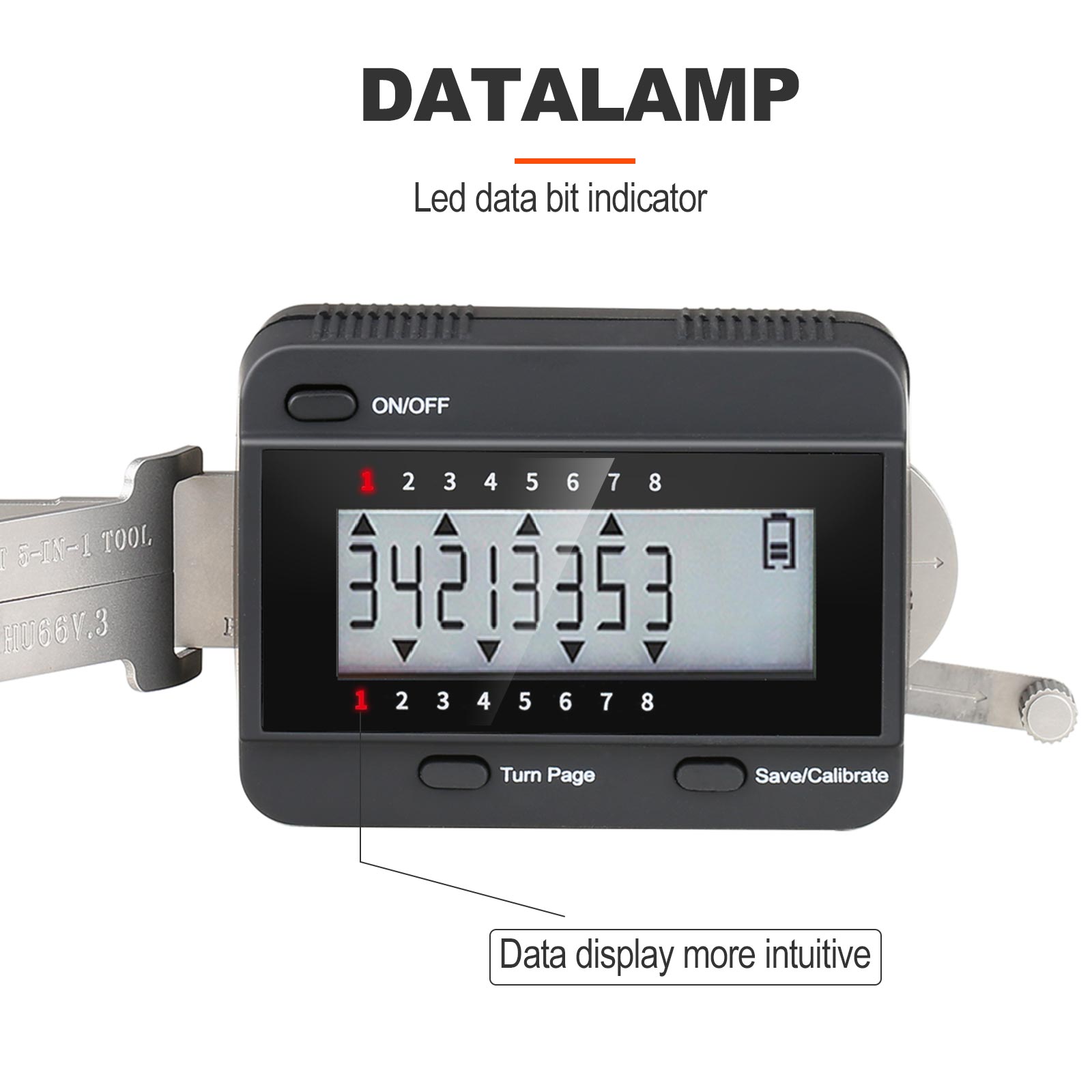

Data bit light: Red LED with a number, double instructions
Battery: DC3.3V (CR2032)
Support storage capacity: 12 sets of data
Power consumption: About 30-50 times
Operating temperature: -20°C - 45°C
Working humidity: Humidity under 95% (No condensation)
Gross weight: 160g
Size: 160MM*70MM*40MM



---
