Ship from EU LAUNCH X431 SmartLink B V2.0 Remote Diagnostic Device ( Vehicle Data Link Connector )

Product Description

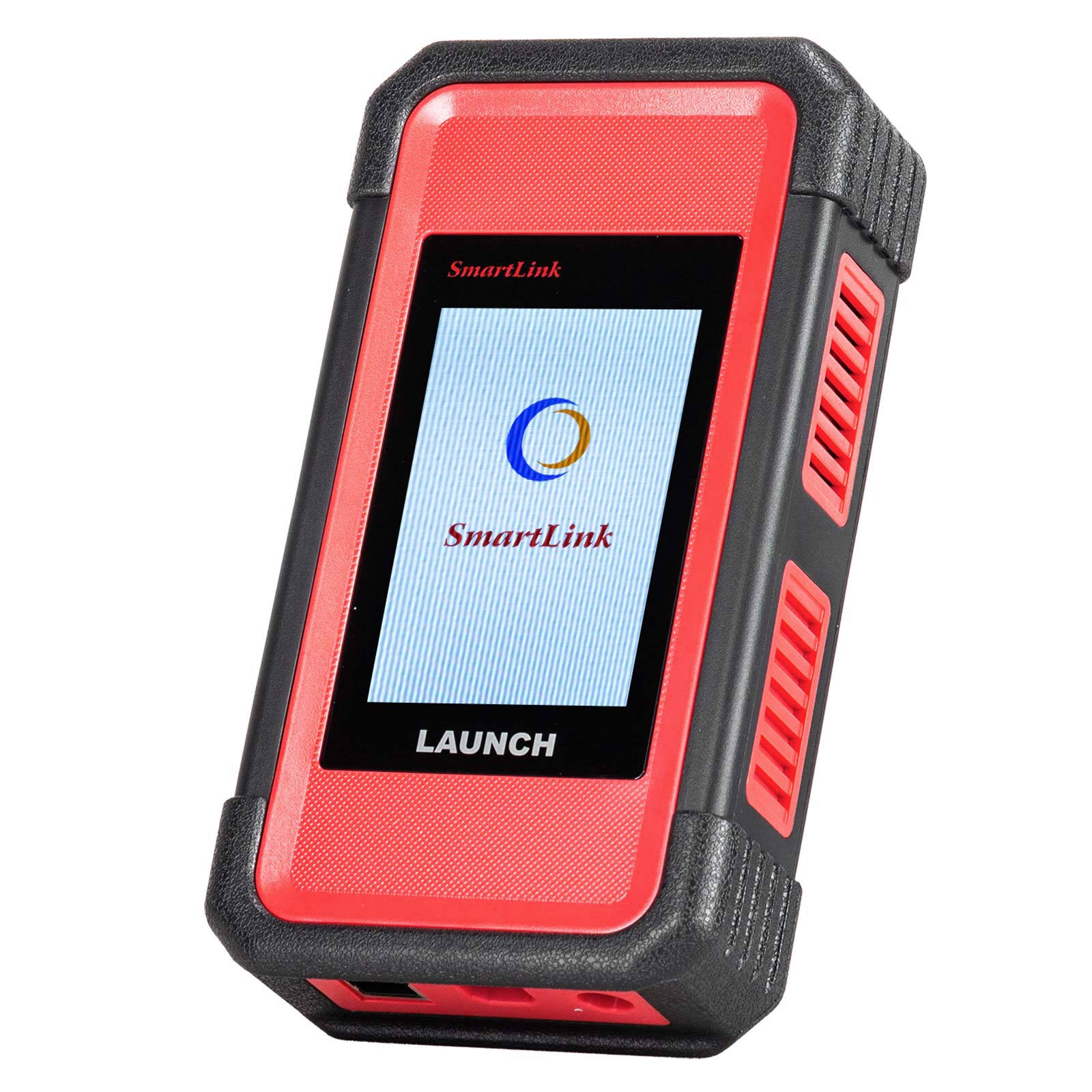

LAUNCH SmartLink B V2.0 Remote Diagnostics

SmartLink Remote is a new vehicle remote diagnostic technology that is completely different from the traditional remote diagnostics available.

How do the Smartlink B users provide remote diagnostic services

1. Creating a Remote Connection

Mode 1: Created by Connection Code

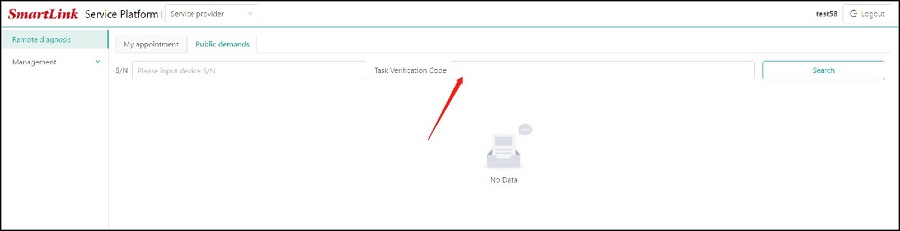

The SmartLink B user obtains a connection code from a carside user and creates a remote connection on the SmartLink platform.

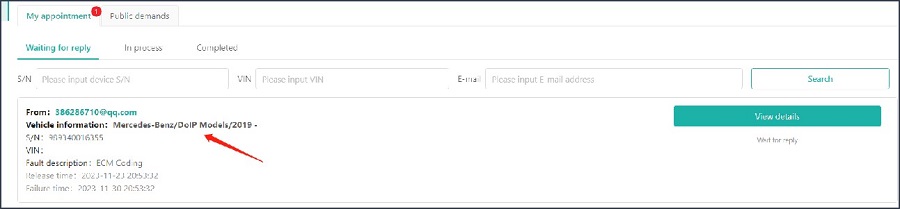

Mode 2: Created by Appointment or Open Demand

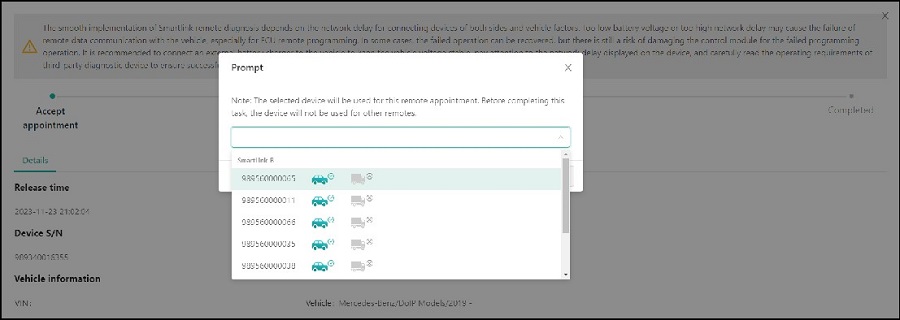

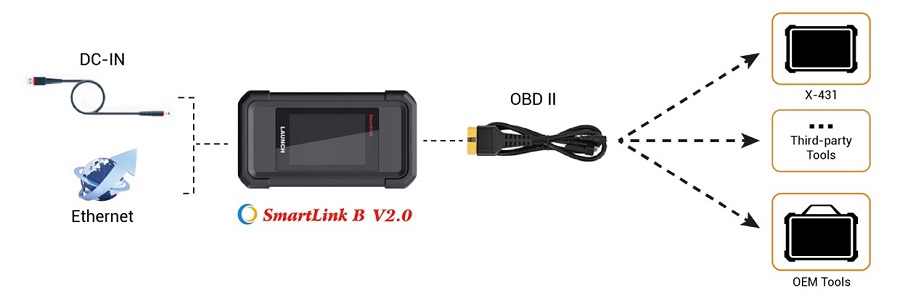

2. the Smartlink B power on, connects to the network and diagnosis devices

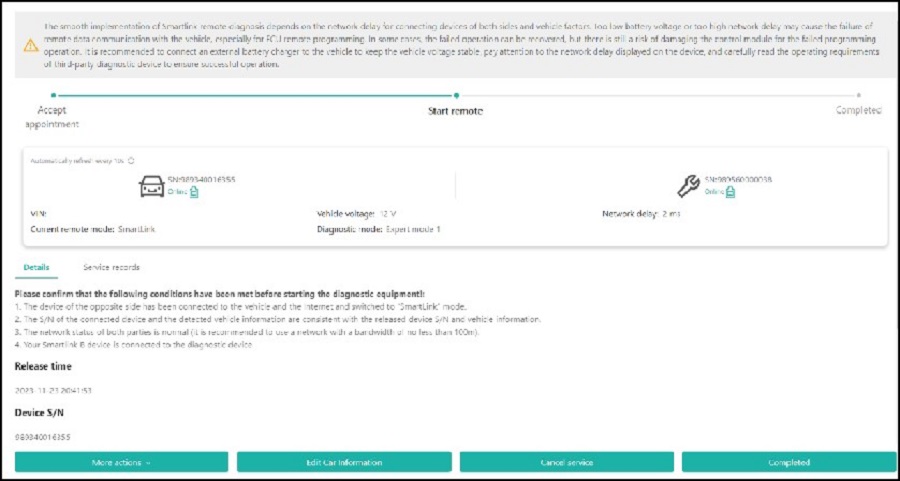

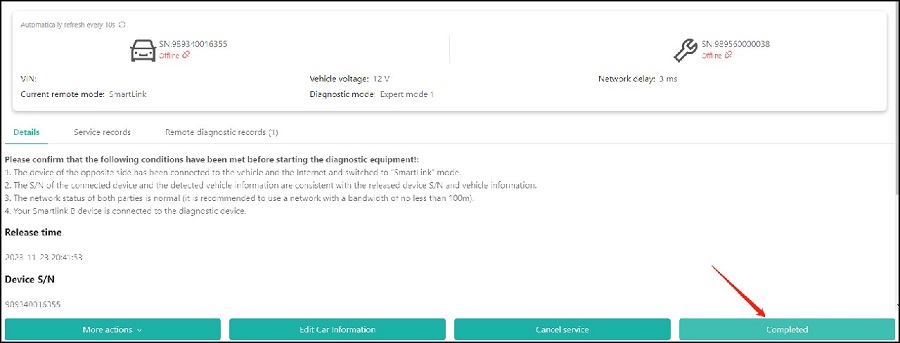

3. Once the connection is ready, you can operate the diagnostic device to start remote diagnosis.the online status of the devices, vehicle voltage, network delay can be shown on the Smartlink platform.



4. End remote diagnostic connect
After the remote diagnosis is completed, enter the test results to end the task.

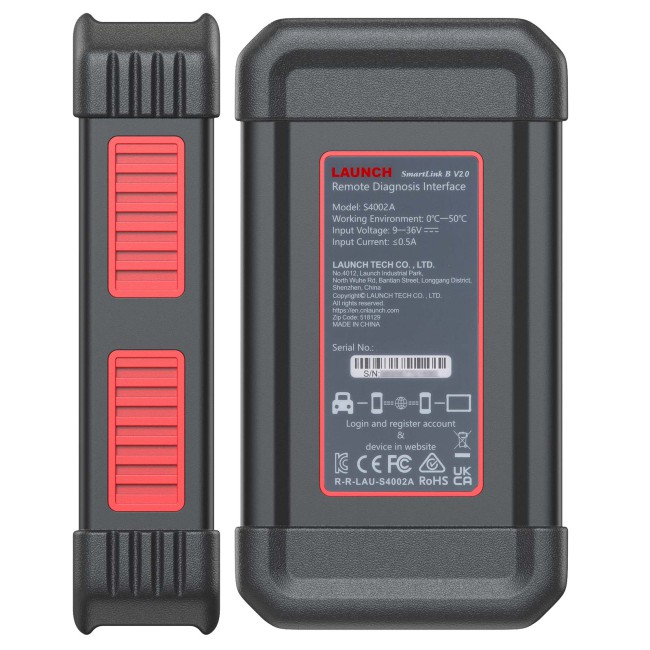

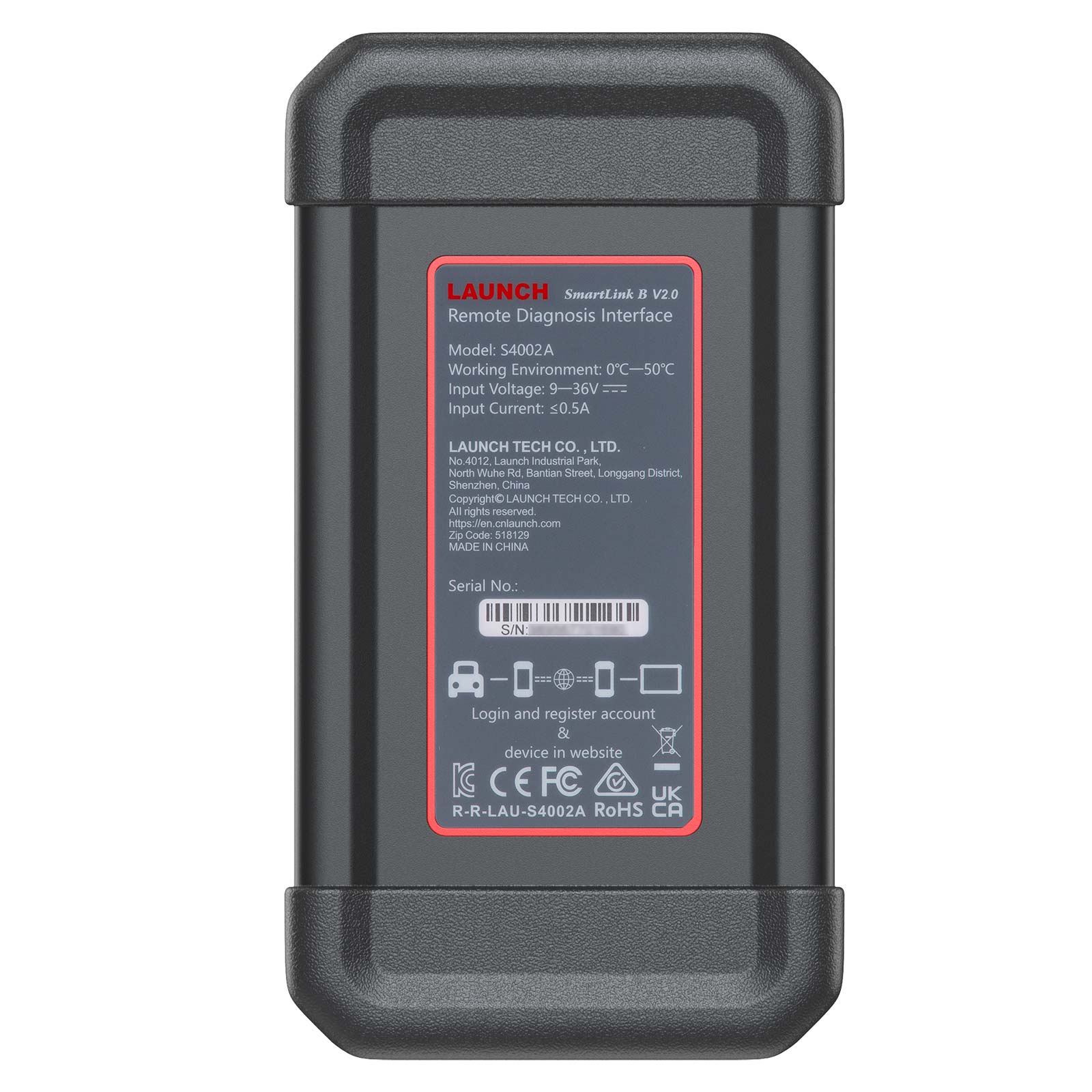

Product  Specifications:


Parameters	SmartLink B

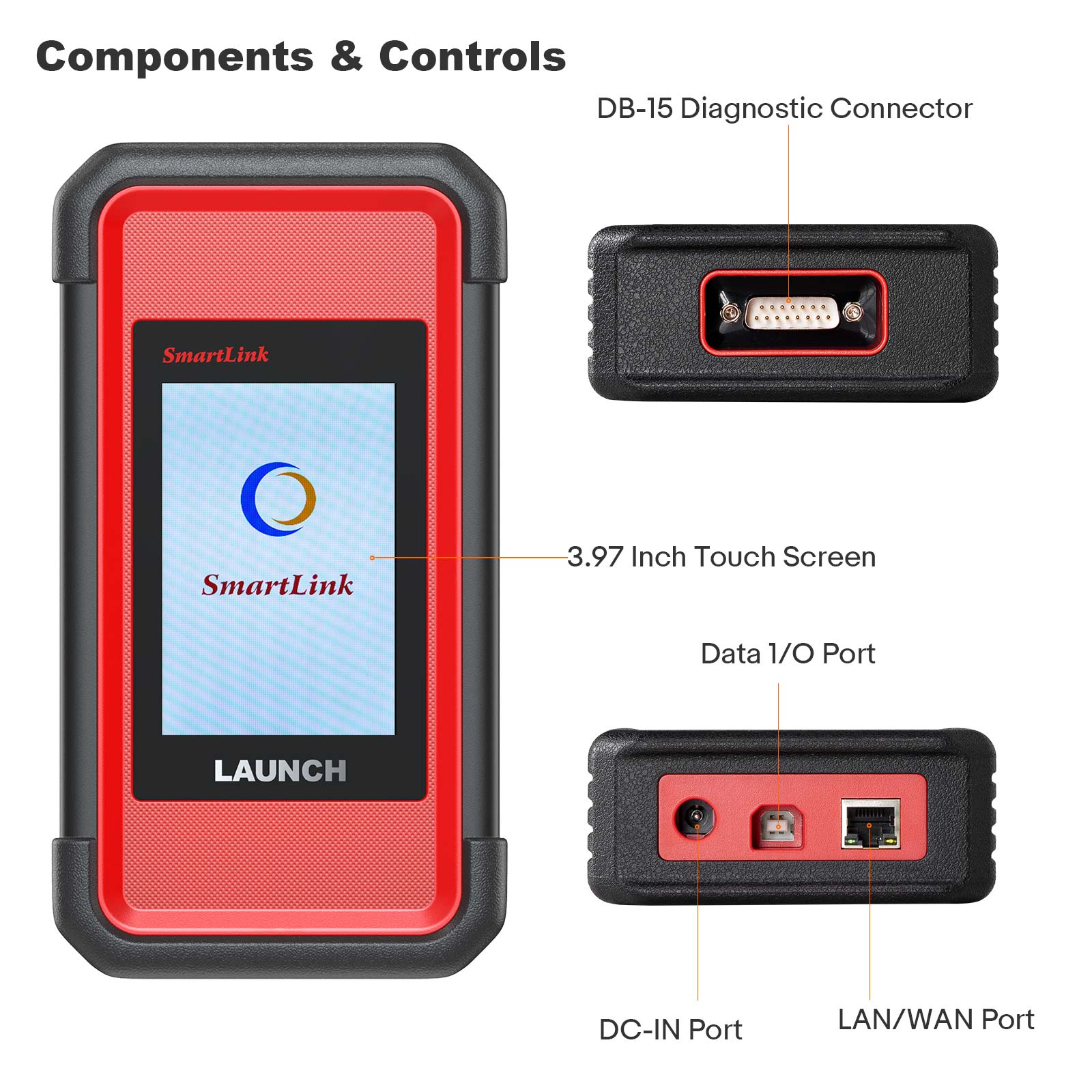

Display Screen	3.97-Inch single-touch screen, 320*480
Working Voltage	DC 9V ~ 36V
Communication Method	Remote diagnostic mode: Ethernet
Wi-Fi	Support 2.4G/5G dual band
USB	Type B USB 2.0
Storage	8GB
Memory	256M
Power Consumption	< 6W
Working Temperature	-10℃ ~ 50℃
Dimension (length*width*height)	204mm x 110mm x 45mm

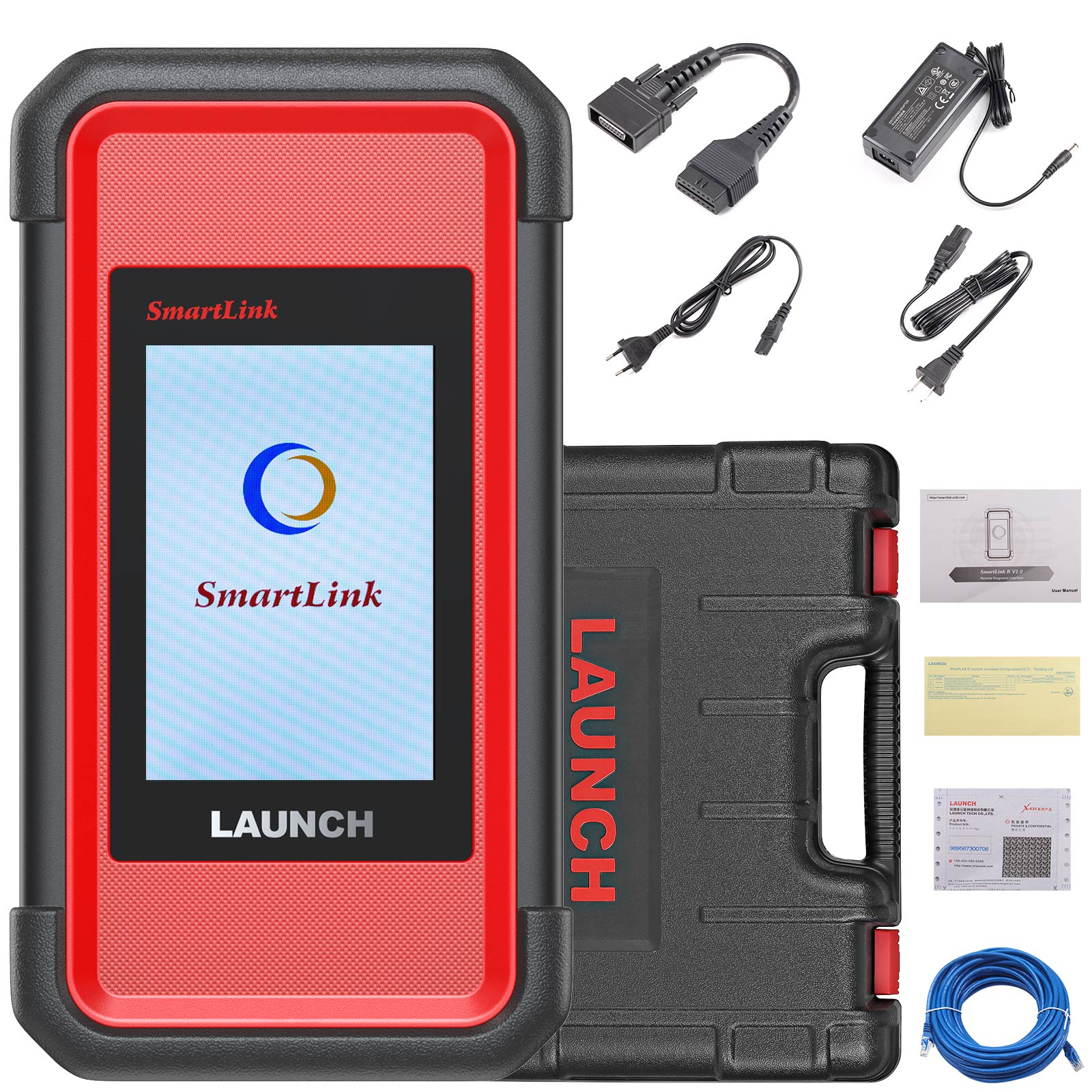

Package includes:

1pc x LAUNCH SmartLink B V2.0

---
