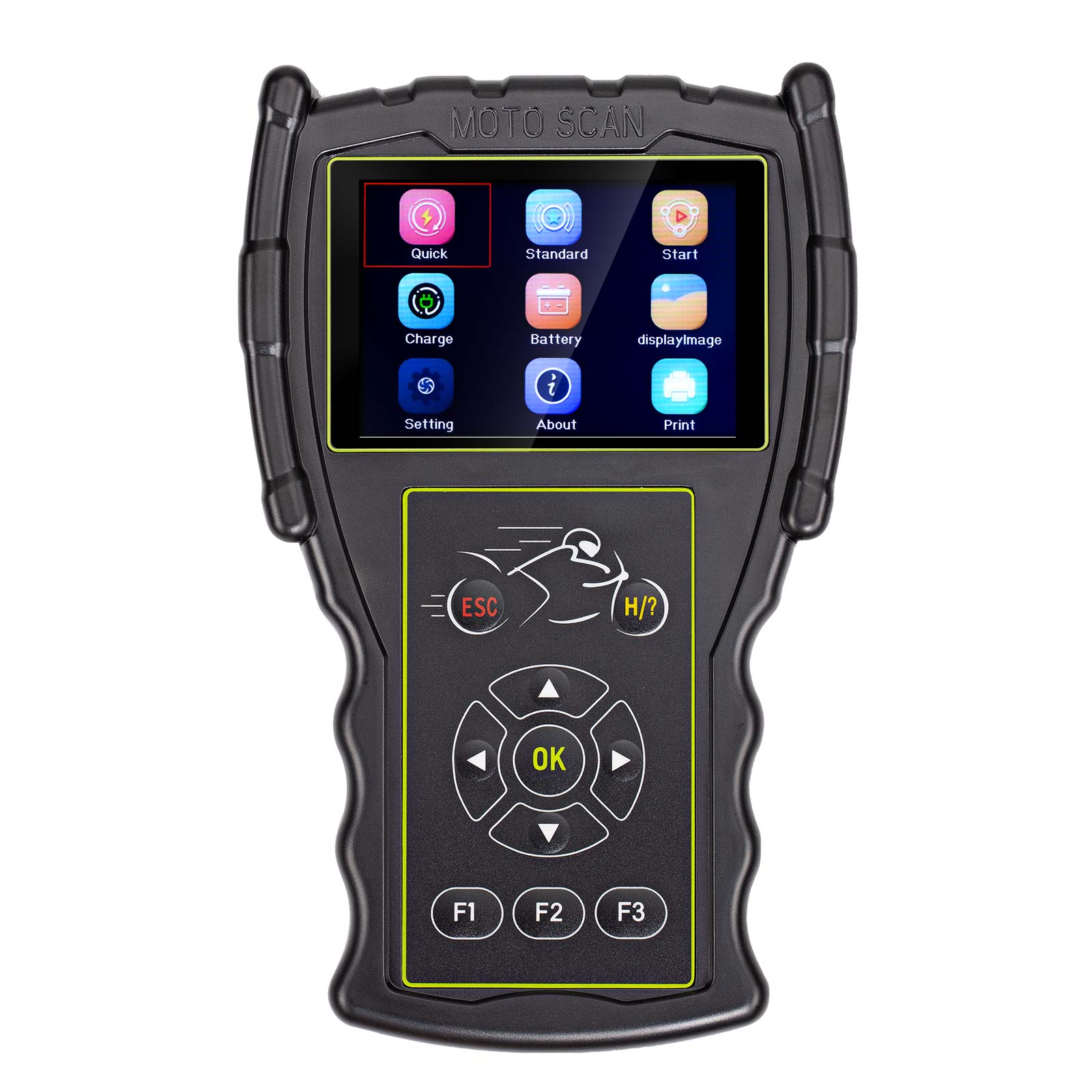

[Full Version] JDiag M100 Pro Moto Scanner Universal Motorcycle Scan Tool

Item No. HKSC553-C In Stock. History 12 sold.
0 rating
|
Latest price: €421.00
Buy Now: €347.00
EUR 347.00 USD 385.17 GBP 300.92
18% off
3 Product: JDiag M100 Pro [Full Version] JDiag M100 Pro Moto Scanner Universal Motorcycle Scan Tool
EU No-Tax Fast Delivery

Contact us for better price!
WhatsApp: +86 133 7268 9373
Email: sales@obdstore.eu
Shipping:
Free Shipping Express Shipping ServiceEstimated delivery time: 3-7 Working Days See details »
Weight:
2.5KG ( 1.13LB )
Package:
31cm*23.7cm*11.2cm ( Inch: 12.17*9.31*4.4 )
Returns:
Return for refund within 30 days, buyer pays return shipping. See details »

Product Description

JDiag M100 Pro Moto Scanner is the new generation Handheld Motorcyle diagnostics tool, it covers virtually all major manufacturers' diagnostic functions. It helps the technician to diagnose problems and make repairs faster;many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).

[Full Version] JDiag M100 Pro Moto Scanner Universal Motorcycle Scan Tool


Description

A new generation of upgraded intelligent motorcycle electronic fuel injection system diagnostic instrument based on M100, JDiag M100 Pro has a large 3.5 color screen, new appearance and more atmospheric; more intuitive model/function icons;  more comprehensive motorcycle models coverage, more comprehensive and powerful functions. It adopts a new generation of processing chips. The data reading speed is faster, and the detection speed is more efficient and fast. Moreover, it has dual system detection: EFI system detection + battery detection. The tool shows live data, displays ECU data, reads stored faults(history) or live data (RPM,batteryvoltage,throttleangle).

JDiag M100 Pro Moto Scanner is the new generation Handheld Motorcyle diagnostics tool, it covers virtually all major manufacturers' diagnostic functions. It helps the technician to diagnose problems and make repairs faster;many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).

It allows the technician to perform factory service procedures such as re-setting the service light, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and making idling adjustments.


JDiag M100 Pro Moto Scanner Features:

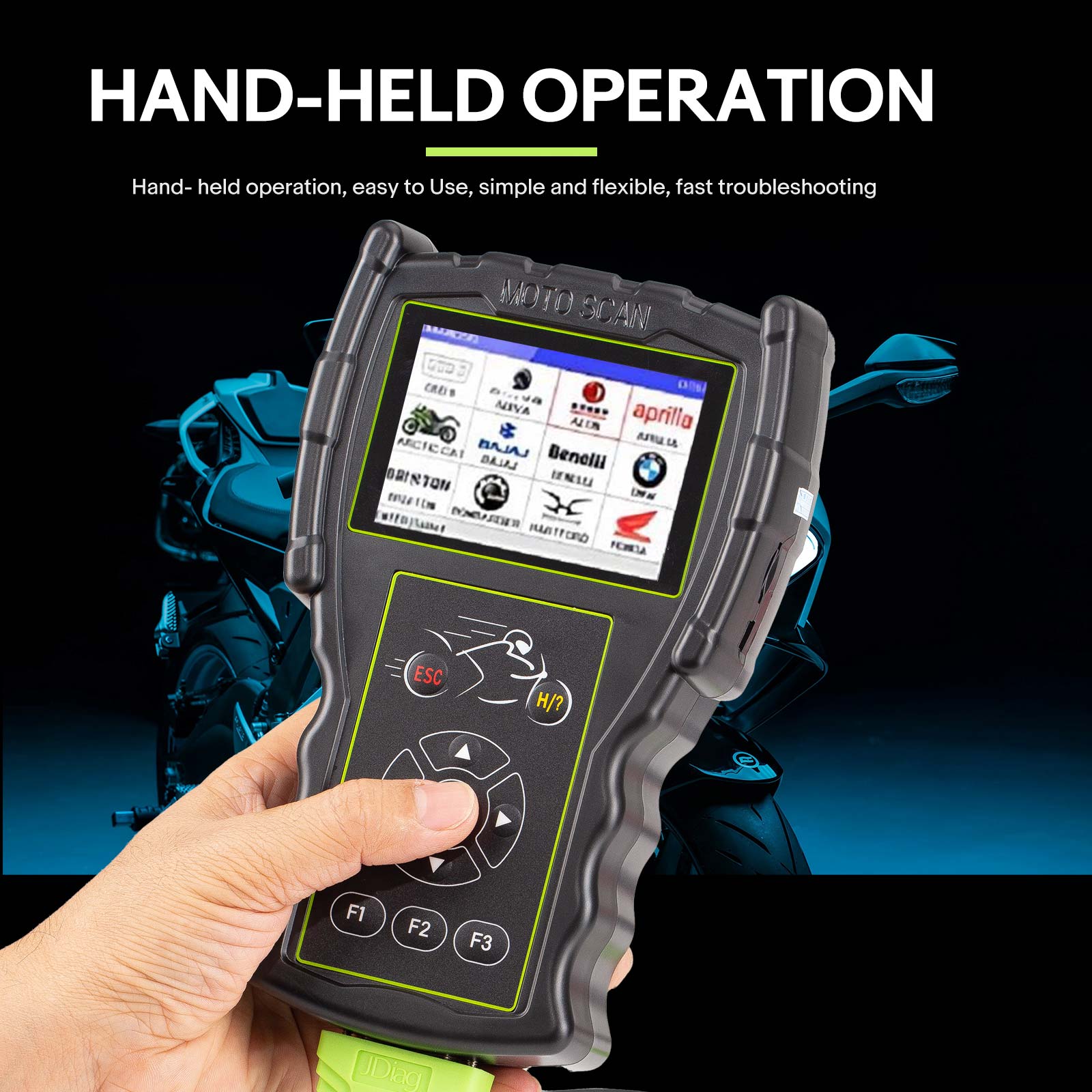

  • Handheld operation, convenient and flexible to use
  • Support for SD cards to store data and upgrades,
  • Reserved CAN bus interface
  • 3.5-inch color screen, clear display.
  • Dynamic data with numerical and waveform.
  • Support Motorcycle list:  Hartford, Aeon, Honda, SYM, Yamaha, Suzuki, Kymco, Kawasaki, Piaggio, PGO, KTM, etc.
  • Supports multiple languages: English, BIG5(Chinese Traditional), Spanish, French, Cambodian, Thai, Turkish, Vietnamese, Indonesian, Portuguese, Japanese, Korean, German.

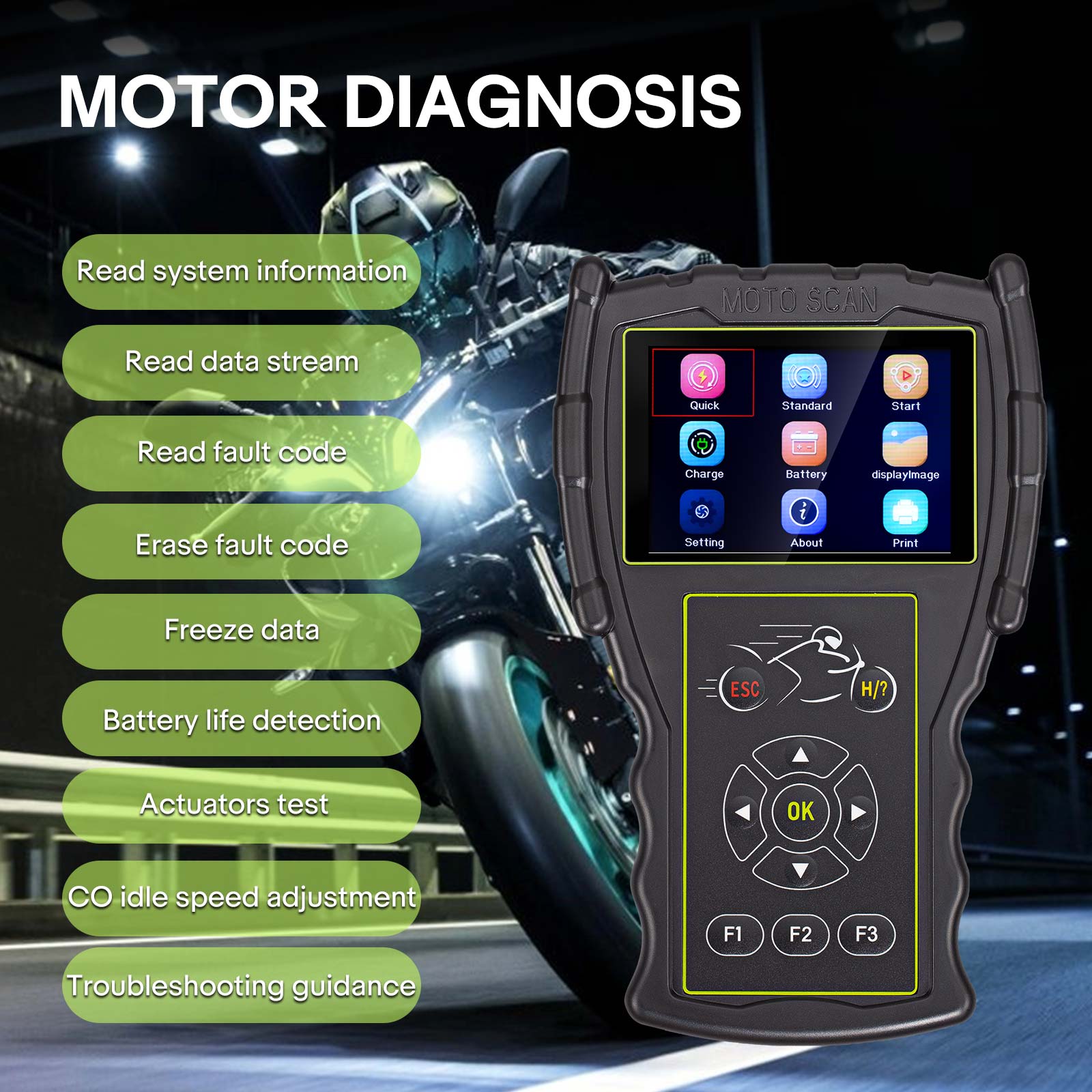

Function for JDiag M100 Pro
  1. Read system information
  2. Read data stream
  3. Read fault code
  4. Erase fault code
  5. Freeze data
  6. CO idle speed adjustment
  7. ABS system test

Specifications:

Power: DC10-15V
Operating Current: 250mA
Storage temperature: -10 C to 85 C
Operating temperature: 0 C to 70 C
Humidity: <90%
Upgrade Ports: USB port
Communication ports: COM port

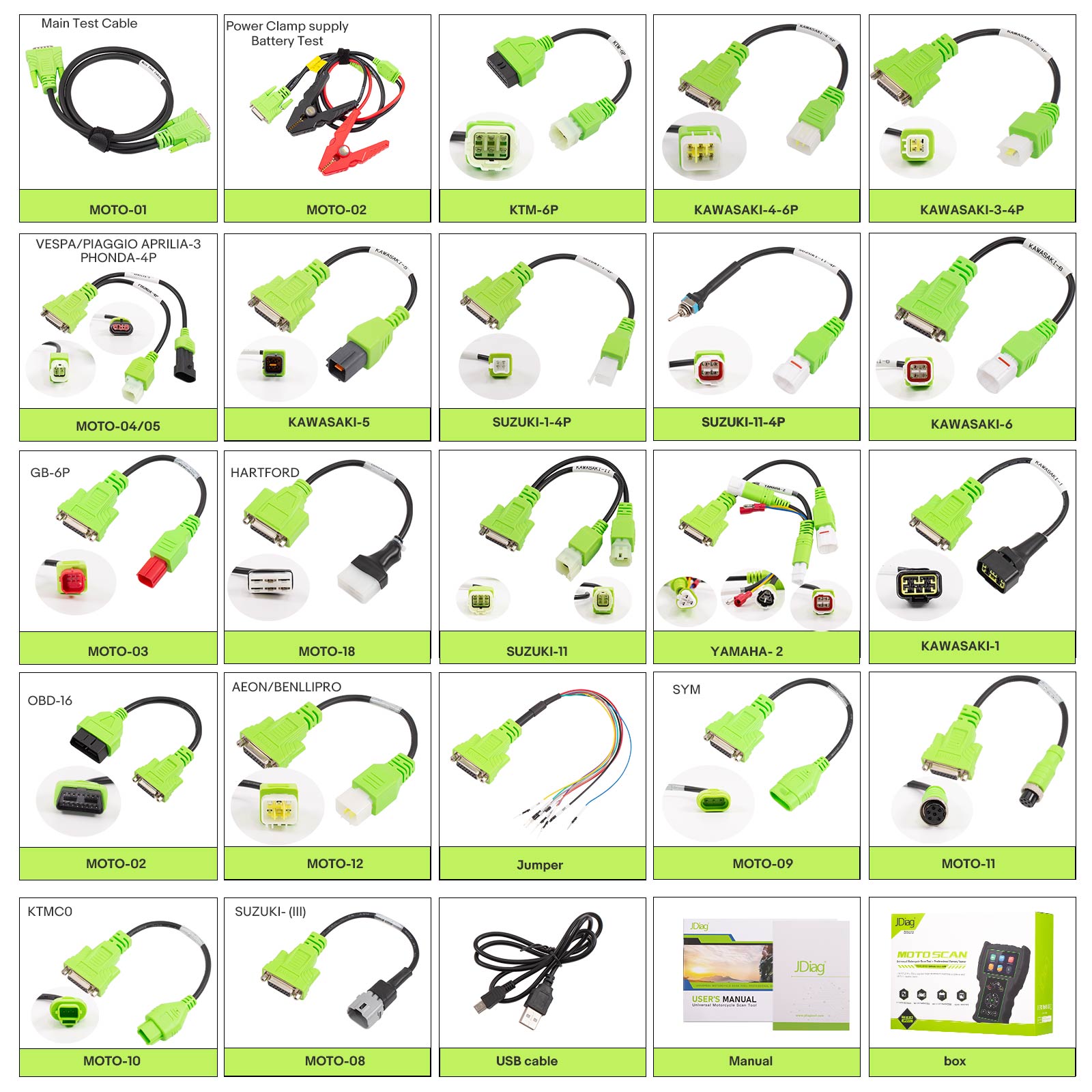

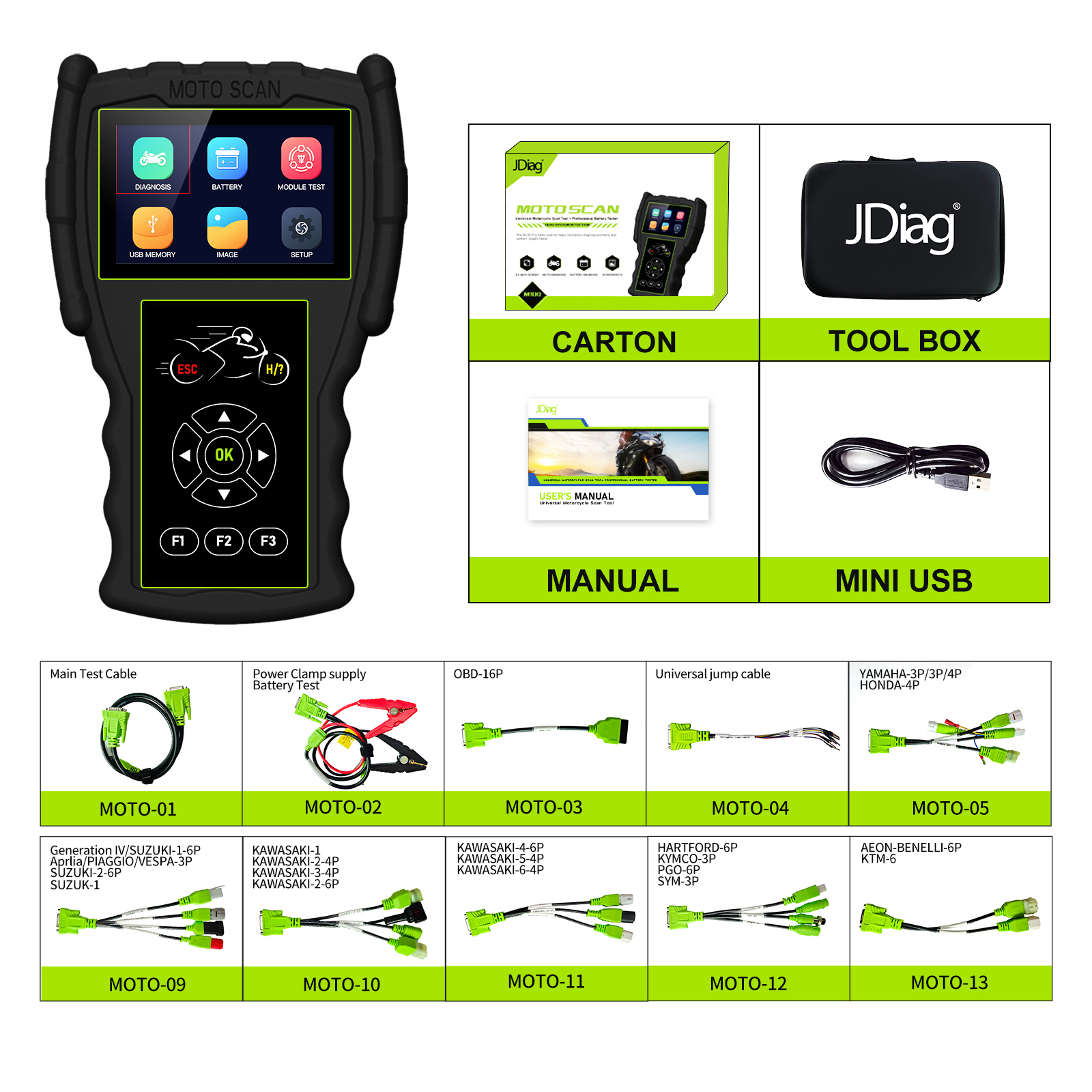

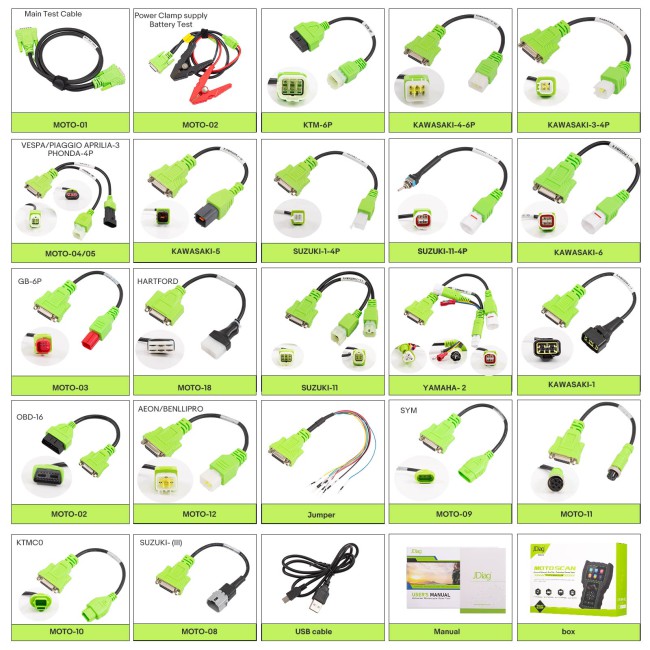

Package includes:

1pc x JDiag M100 Pro main unit
1pc x MOTO-13 cable
1pc x MOTO-12 cable
1pc x MOTO-11 cable
1pc x MOTO-10 cable
1pc x MOTO-09 cable
1pc x MOTO-05 cable
1pc x MOTO-04 cable
1pc x MOTO-03 cable
1pc x MOTO-02 cable
1pc x MOTO-01 cable
1pc x USB cable
1pc x Manual
