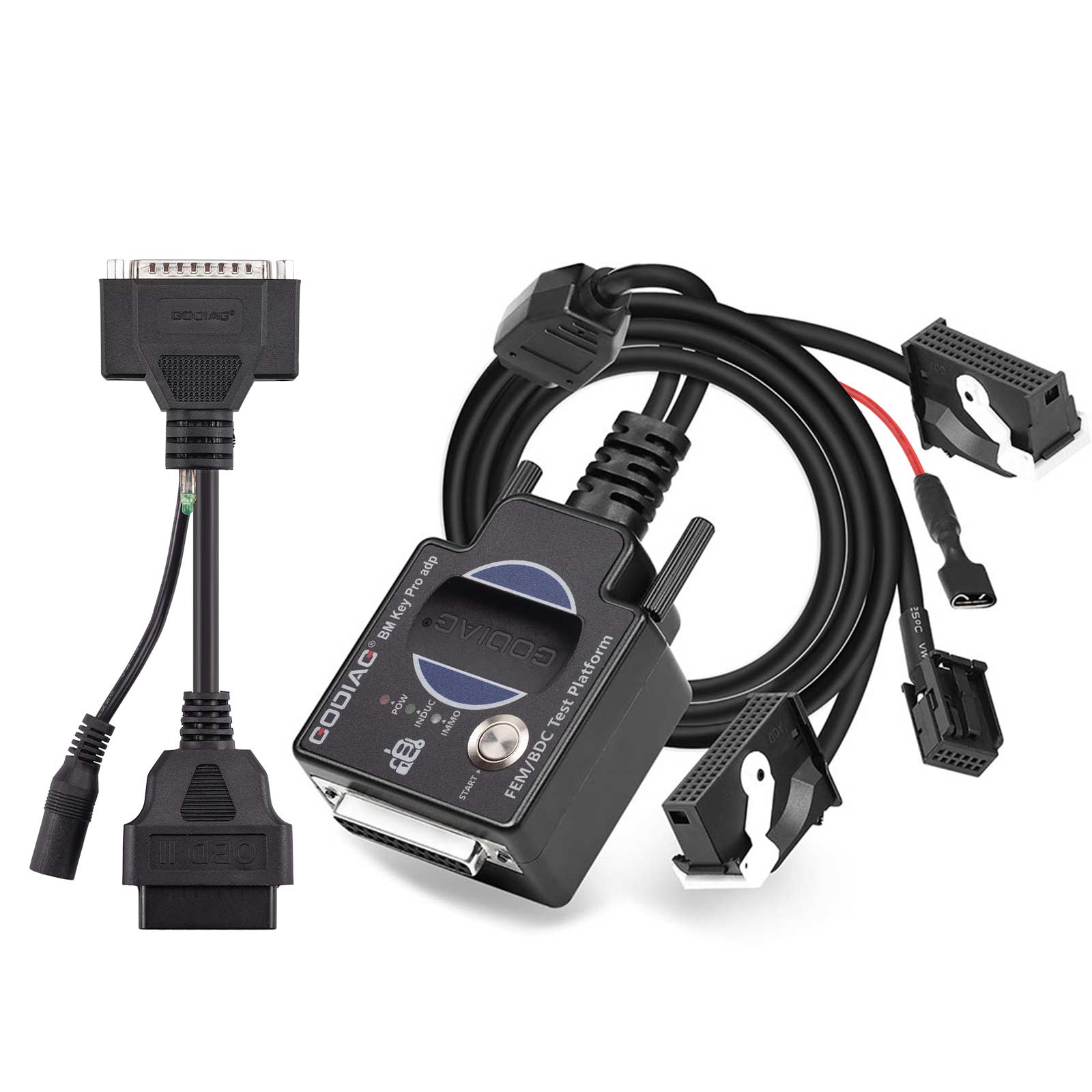

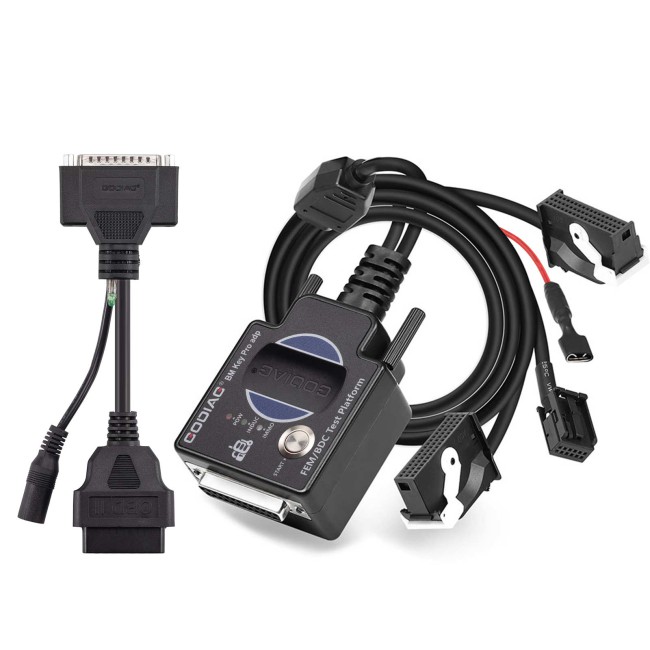

Ship from EU GODIAG GT100 Auto Tools OBD2 Break Out Box ECU Connector Plus GODIAG Test Platform for BMW FEM/ BDC Programming

Product Description

Godiag GT100 Auto Tools OBD2 Break Out Box ECU Connector Plus GODIAG Test Platform for BMW FEM/ BDC Programming

This package including SO537 Godiag GT100 + SK348 GODIAG Test Platform for BMW FEM/ BDC Programming


Top7 reasons to get this package:

1. GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding.
2. It can convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion.
3. Able to connect the single modules or multiple modules of the vehicle.
4. Connect with any diagnostic tool to tell whether the car communication is good or not.
5. Supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, key remote control fails or the fault light turns on.
6. Work together with Xhorse VVDI2, Autel devices, Launch, Foxwell etc, BMW CAS4 Test Platform released (buy SK310 alone), also will develop the connection cable for Benz and Chrysler, please wait.
7. Godiag FEM / BDC programming test platform is a dedicated device developed for BMW locksmiths, maintenance engineers and FEM / BDC programming engineers.


GODIAG GT100:

GODIAG GT100 is a brand new ECU connector and protocol communication testing tool. It will greatly help a user to connect the ECU module separately for diagnosis, programming and coding. Also it will tell whether the diagnostic & programming tool can normally send out communication signal.



GODIAG GT100 function and operation guide:

- By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100's LED will indicate whether the OBDII diagnostic interface has a good communication with the car.
- Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start/data loss/module locked.



Indicator Meaning:

1. Manufacturer custom 2. SJE1850 wire 3. Manufacturer custom 4. Power grounding 5. Signal grounding 6. SAEJ2284《CAN》high 7. ISO9141-2&iso, DIS4230-4K wire 8. Manufacturer custom

9. Manufacturer custom 10. SJE1850 wire《bus-> 11. Manufacturer custom 12. Manufacturer custom 13. Manufacturer custom 14. SAEJ2284《CAN》low 15. ISO9141-2 & ISO/DIS 4230-4L wire 16. Car battery positive

Godiag FEM / BDC programming test platform  5 major features:

1. Provide locksmiths with the easy and convenient connection for FEM/BDC immobilizer system.
2. Perform the synchronization test for the programmed FEM / BDC and the key
3. Provide a test environment for the engineers who professionally recycle FEM/BDC.
4. Help automobile maintenance engineers check whether the FEM/BDC and the key are synchronized correctly.
5. Provide professional engineers with connecting FEM BDC modules and instrument.



1. By working together with Godiag GT100 & xhorse vvdi 2 / bmw vvdi bim tool / Autel im608 etc, Godiag FEM / BDC test platform can program new key, can add new key and replace FEM / BDC ECU module.

2. Allowed to connect this test platform to the FEM / BDC  module to test whether it can communicate or there is any malfunction.

3. Used to read out & backup the data after preprocessing, used to replace FEM / BDC immobilizer module

4. Before installing the FEM / BDC module back to the car, it can be used to test whether the programmed key synchronizes with FEM / BDC.

5. Godiag FEM / BDC test platform can help expand business for the Engineers who are skilled to program FEM / BDC key.
When a car owner lost the key, he / she can remove the FEM / BDC module and the corresponding ECU, then ship them to the locksmith to program new key, also perform a synchronization test on the programmed key and FEM / BDC.

6. Troubleshooting - when the key can't start the car, This test platform can be used to pinpoint pinpoint whether it is is caused by the mismatch between FEM / BDC and the key.

7. This test platform adopts the dedicated OEM FEM / BDC fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of FEM / BDC module.

8. GODIAG for BMW FEM / BDC Programming Test Platform Structure Description
1) DB25 female connector． (used to connect the DB25 male port of GODIAG GT100)
2) Ignition simulated start switch.

9. Dimension


Pacakge including:

1 whole set SO537 Godiag GT100
1 whole set SK348 GODIAG Test Platform for BMW FEM/ BDC Programming

---
