YANHUA ACDP Module 29 Audi Gen5 BCM2 IMMO Module

Product Description

Yanhua ACDP Module 29 Audi Gen5 BCM2 IMMO Module

ACDP Module 29 Supported Models:

1. Support adding key and all-key-lost for 2013-2018 Audi A4/A5/Q5 and other models. BCM2 types: 0711, 0650, 0641, etc.
2. Support adding a key for 2013-2019 Audi A6/A7/A8 and other models. The BCM2 IMMO data can be read when all keys are lost. But the sync data needs to be obtained from a third party. BCM2 types: 0824,0825,0827 etc.


Yanhua ACDP Module 29 Functions:

1: Support Audi Gen5 unencrypted and partially encrypted version BCM2 to read IMMO data by OBD.
2: Support Audi Gen5 encrypted version BCM2 to read IMMO data by ICP.
3: Support chip models: D70F3381 / D70F3382 / D70F3634 / D70F3635.


Yanhua ACDP Module 29 Features:

1: OBD identifies to know, whether the vehicle supports reading IMMO data via OBD, whether the BCM2 type is an encrypted version, and whether the BCM2 module needs to be removed to read IMMO data.
2: Special interface board to read BCM2 IMMO data, pin intelligent detection, data read and write safe and reliable.


ACDP Module 29 Connection Diagram:

Take BCM2-A as an example.

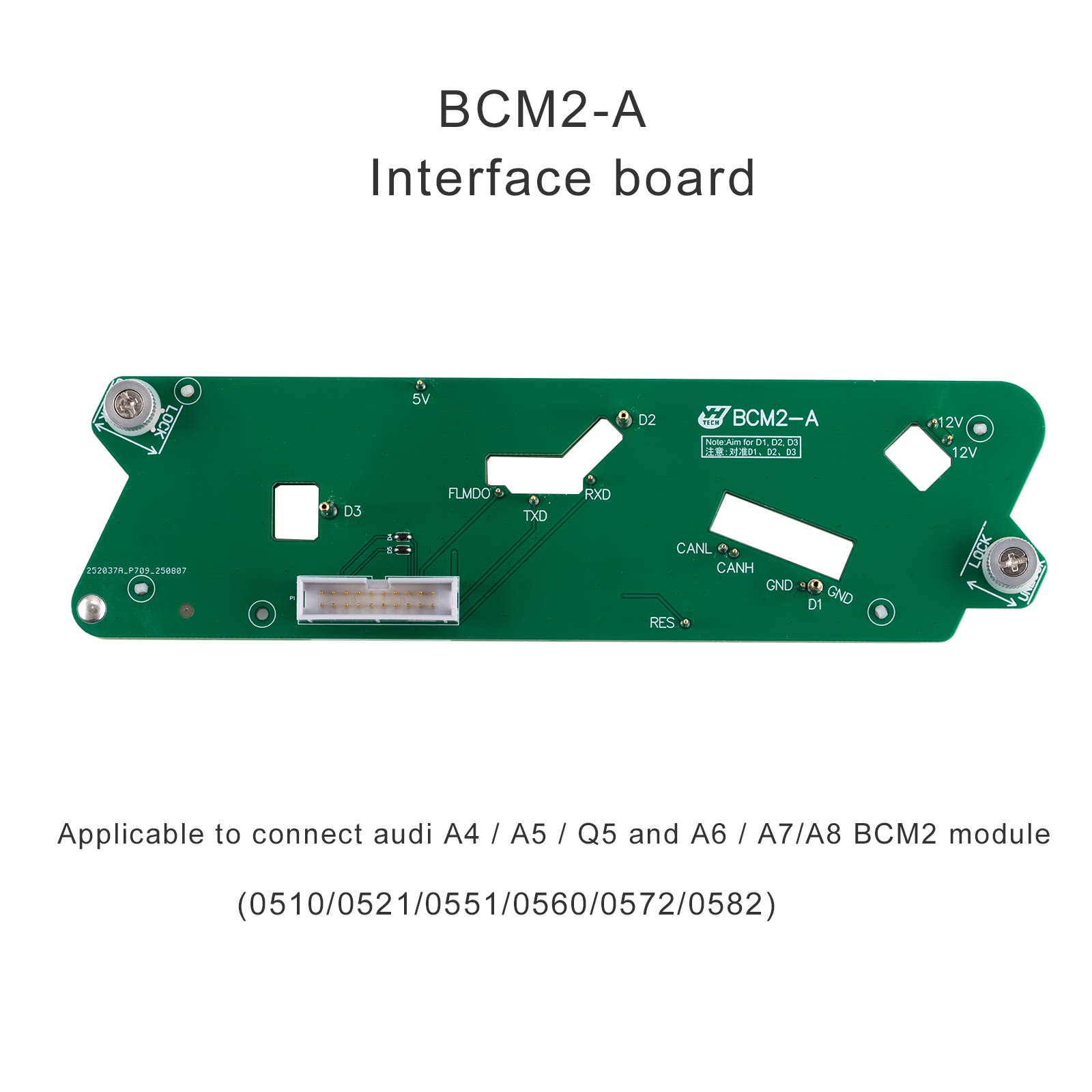

① Prepare ACDP, OBP+ICP adapter, BCM2-A interface board and BCM2 module.

② Locate the D1, D2, D3 anchors on the BCM2 module.

③ Locate the probe test point location on the BCM2 module.

④ Install the interface board fixing studs.

⑤ Install BCM2-A interface board based on the registration point D1/D2/D3.

⑥ Lock the studs and clamp the PCB lock.

⑦ Short the jumper cap to the "CAN-R-NC" port according to the marked position.

⑧ Connect ACDP, OBP+ICP adapter, BCM2-A interface board and BCM2 module.

ACDP Module 29 Package List:

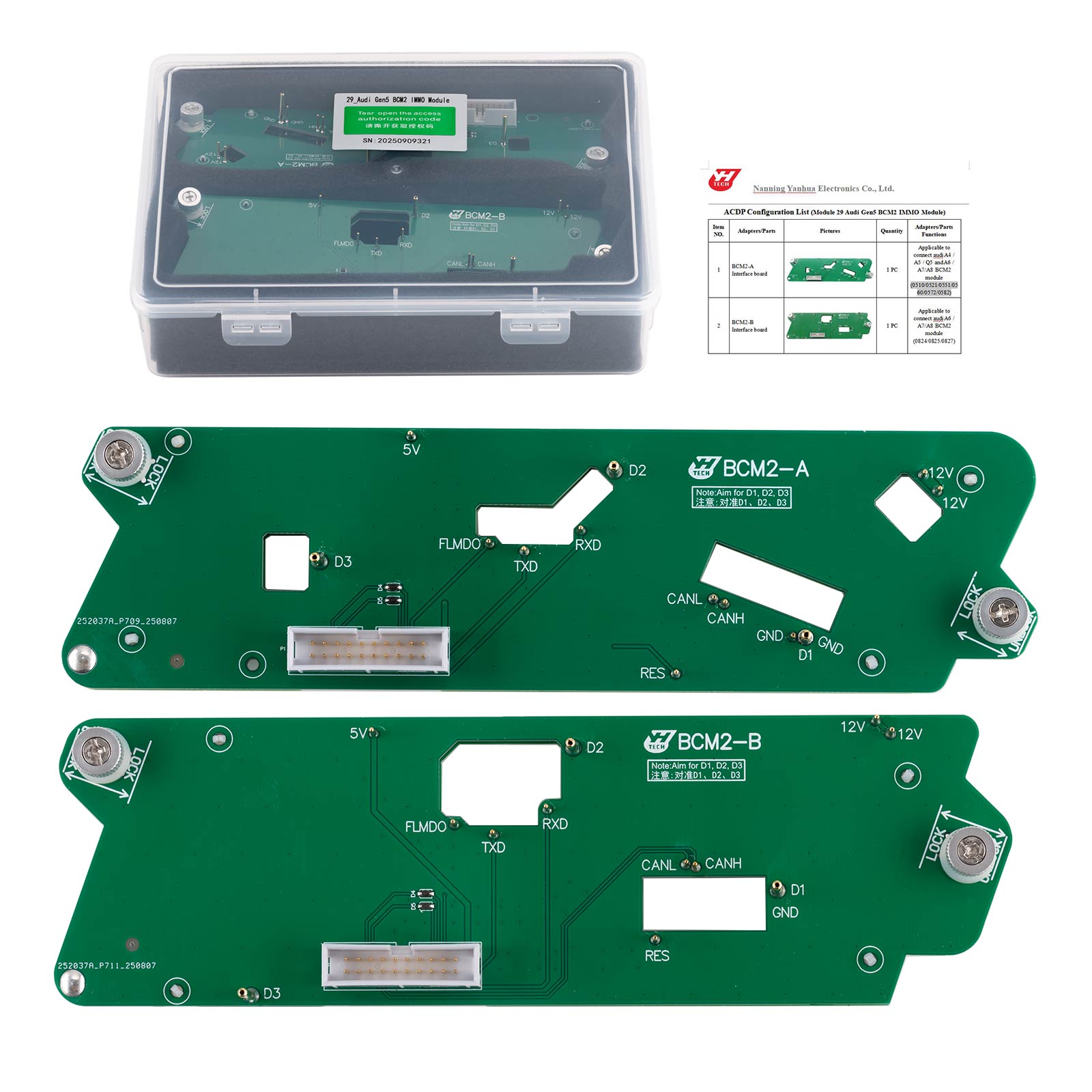

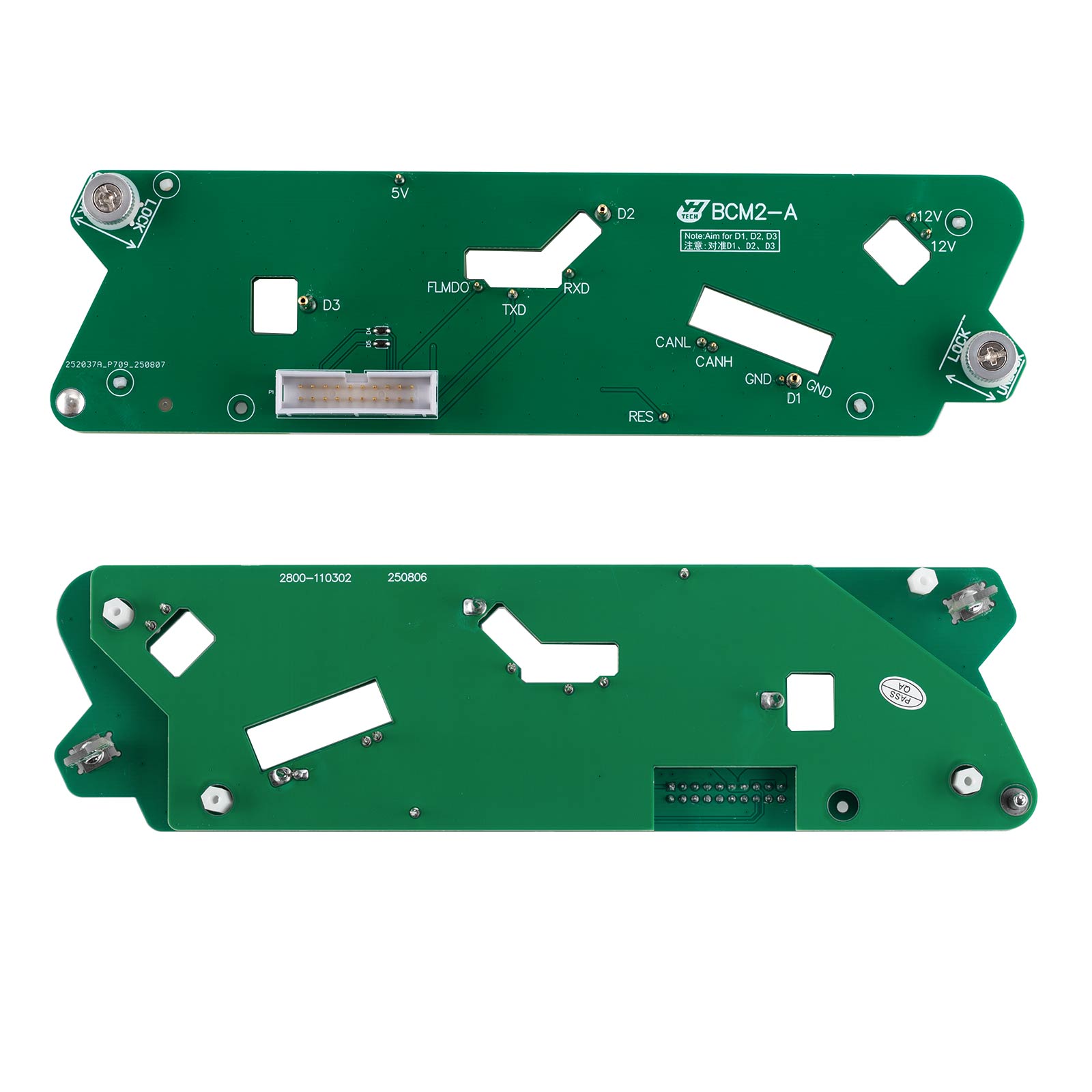

1pc x BCM2-A interface board

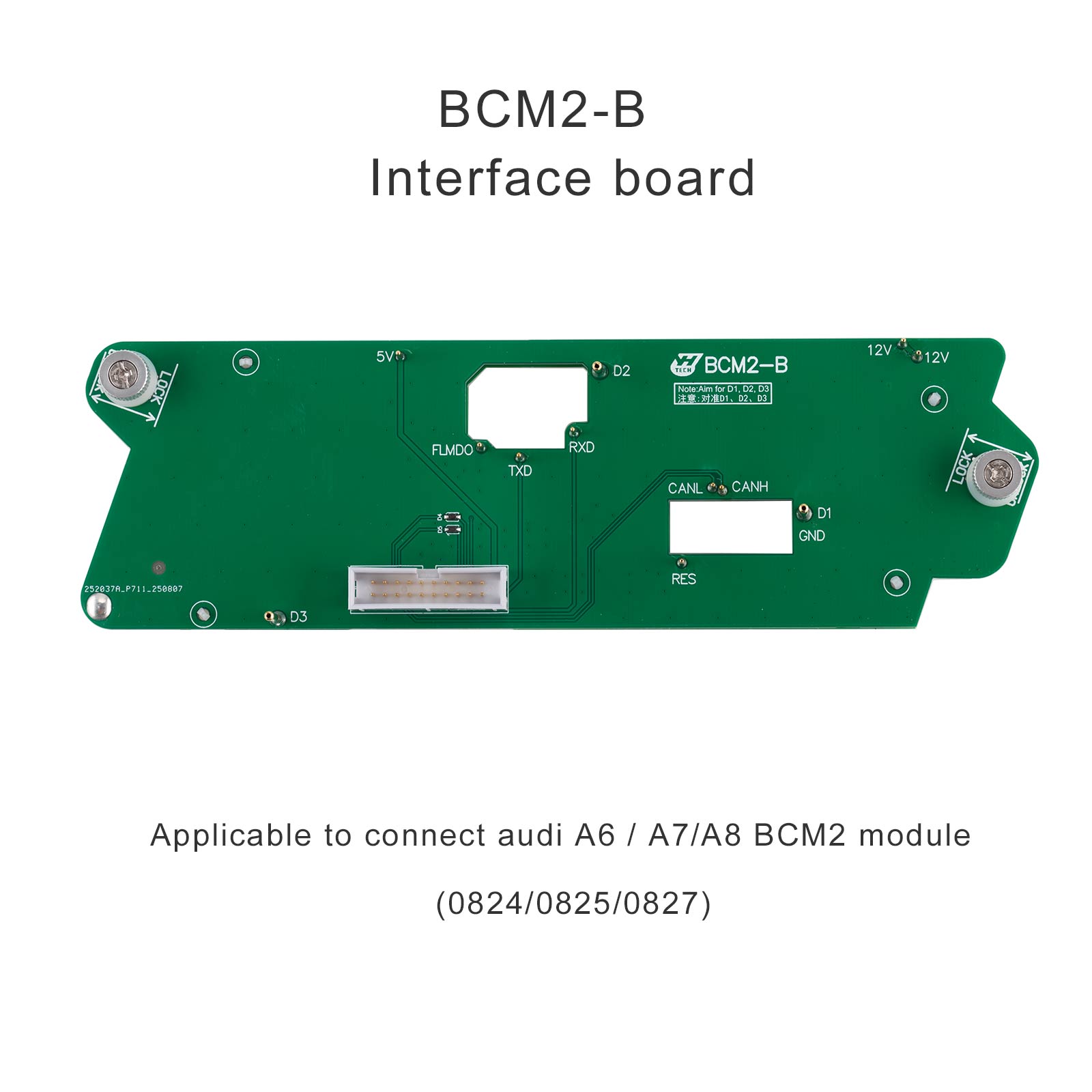

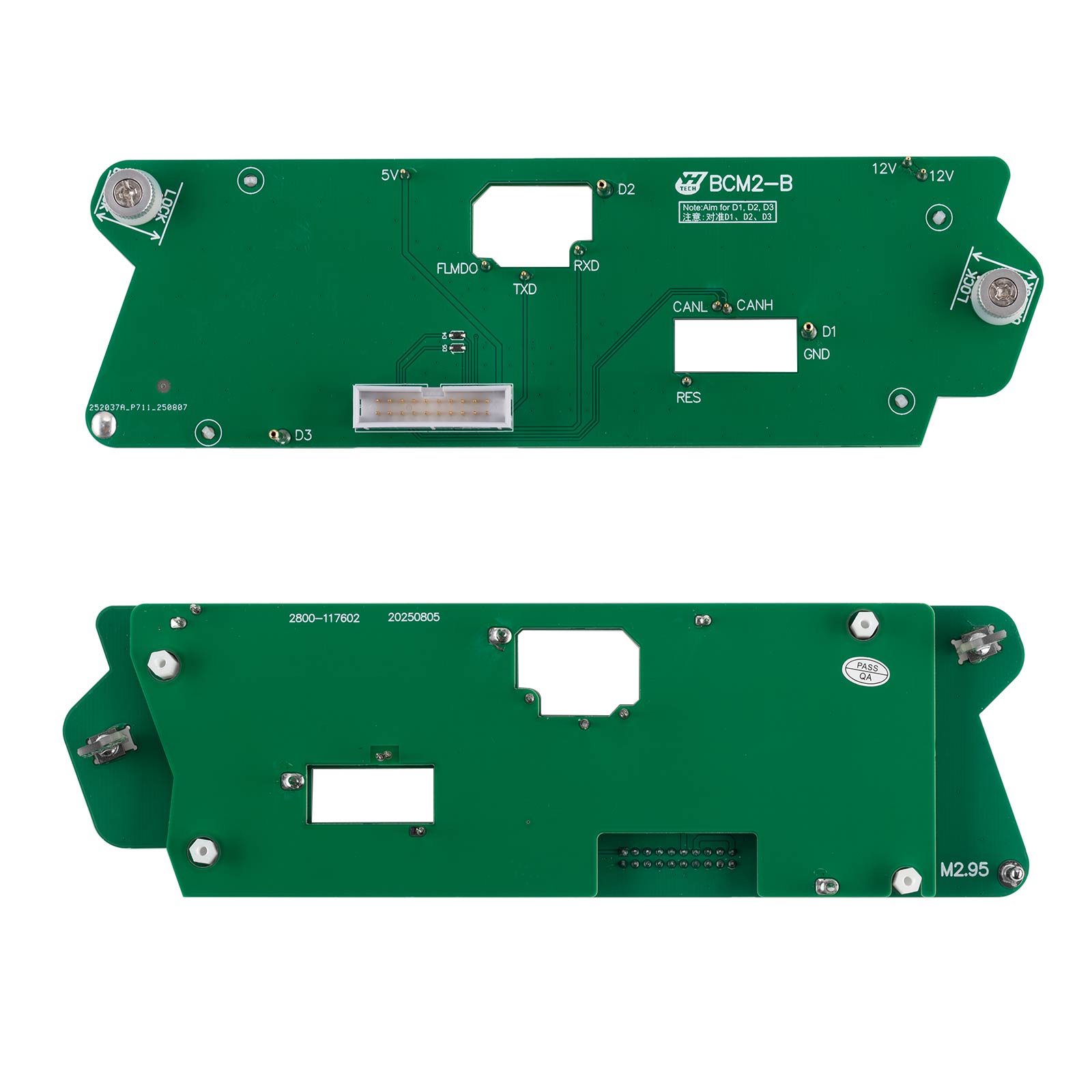

1pc x BCM2-B interface board
6pcs x Plastic pillar



---
