Autel IM508S - 2024 Vauxhall Movano Data Read Failed Solution

---

Problem:

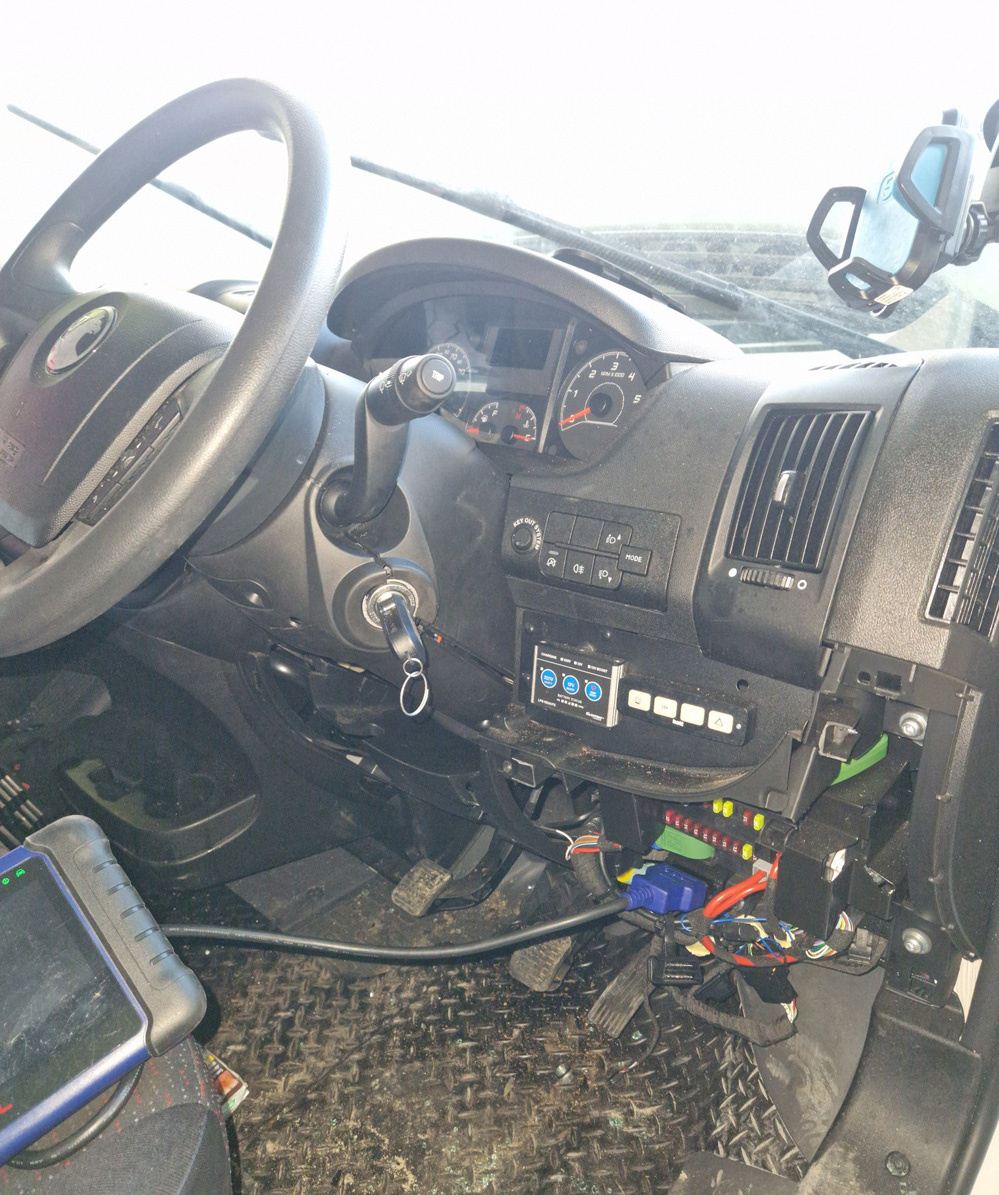

On a 2024 Vauxhall Movano (also known as Opel Movano / Fiat Ducato / Peugeot Boxer), the Autel IM508S shows a “data read failed” message.

The tool correctly reads the number of keys in the system

Fails when attempting to read immobiliser data

Vehicle tested with two brand-new dealer keys





Solution:
Reading immobiliser data via OBD or SGW cable is not possible on this model.

Your options are:

Obtain the PIN code from the dealer, or

Remove the BSI and read the EEPROM to retrieve the PIN

Working Method:

Perform a BCM EEPROM job

Bench-read the ECU with Autel to obtain the PIN

Program the keys directly

No need to read immobiliser data, as the keys are already pre-coded.
